IMPORTANT:
PRIOR TO UPGRADING YOUR IPRISM 55H APPLIANCE - YOU MUST COMPLETE THE FOLLOWING STEPS. YOUR SOFTWARE
UPGRADE WILL NOT WORK IF YOU HAVE NOT COMPLETED THESE STEPS
1.
Upgrade your memory – To determine the proper memory please reference knowledge base article:
Requirements – h series
2.
Change your BIOS settings
Initial Preparation
Properly shutdown your iPrism. Once it's halted disconnect iPrism and place on a table or workbench.
IMPORTANT:
ELECTRO-STATIC DISCHARGE (ESD) CAN DAMAGE ELECTRONIC COMPONENTS. PLEASE UTILIZE THESE PRECAUTIONS.
Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.
1.
Shut down your system and make sure the power is completely off.
2.
After disconnecting the power cords, discharge residual power by pressing the power button.
3.
It is recommended to use a grounded wrist strap designed to prevent static discharge.
4.
Touch a grounded metal object before removing the module from the antistatic container.
5.
Handle memory modules by its edges only; do not touch its gold contacts.
Remove the chassis lid
1.

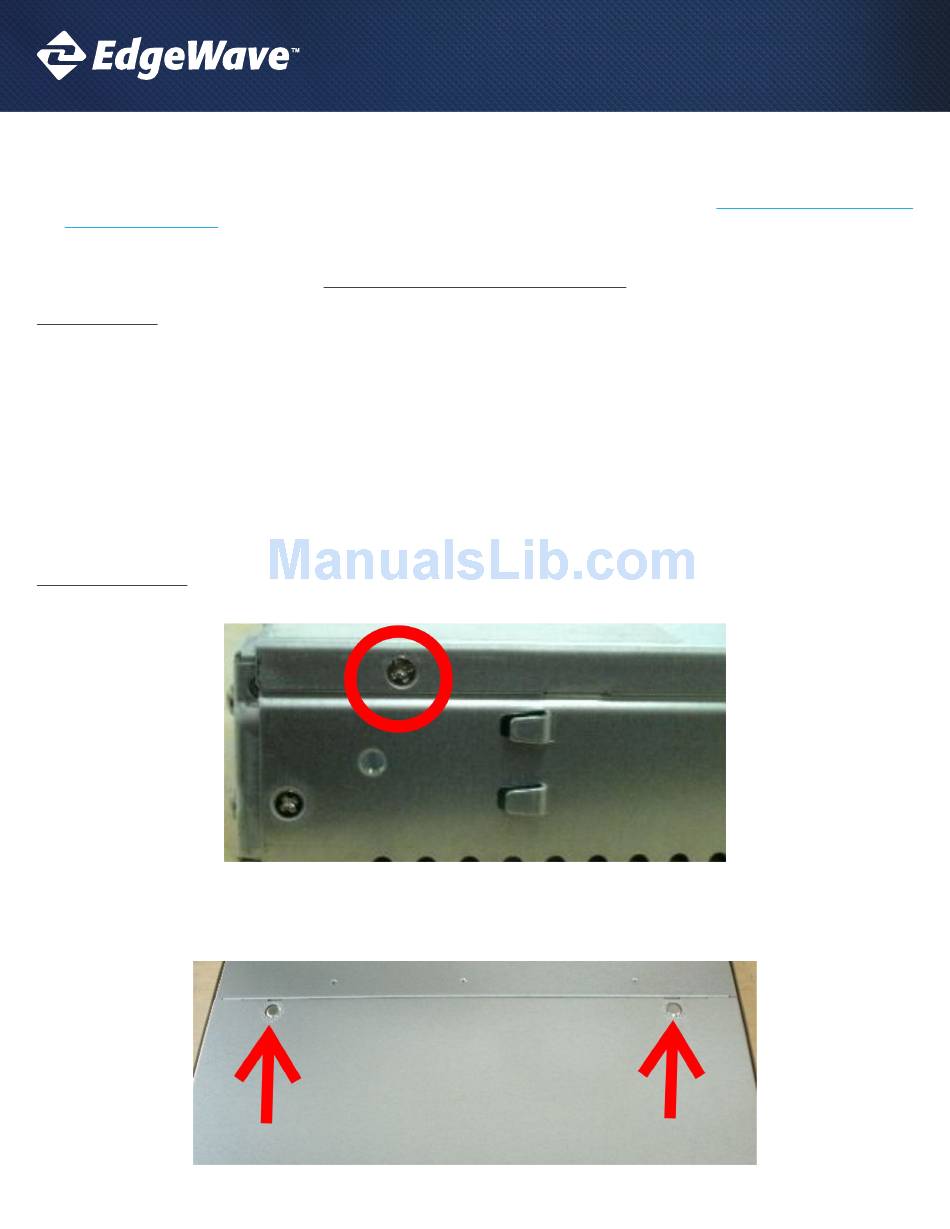

Remove the holding screw from the side of the iPrism holding the chassis lid in place.
2.
To remove the chassis lid press down on the buttons to release the tabs holding the lid. Please be careful not to press the tabs too far
down as this will bend them out of place and the lid may no longer properly latch.
IPRISM 55H APPLIANCE UPGRADE GUIDE
Memory Upgrade Procedure for a 55h
1
iPrism 8.001 Memory Upgrade
