- Page 1 Navilink A59 Document N° 1846-4 03/07/2017 Intelligent Room Temperature Controller code 074208 Reference guide for professionals and the user to be kept by the user for future reference atlantic-comfort.com...
-
Page 2: Table Of Contents
Navilink A59 Intelligent Room Temperature Controller Contents Description of the equipment ......2 General characteristics ....2 Display Description . -
Page 3: Display Description
Navilink A59 Intelligent Room Temperature Controller Display Description Features Symbols Definitions • Holiday mode activated • Holiday mode • Information • Navigation • Changing mode • Installer menu (OFF, Heating, Cooling) • Increase the setpoint • Cooling mode* • Go to next screen •... -
Page 4: Assembly And Connections
Navilink A59 Intelligent Room Temperature Controller 2 Assembly and connections Installation • Avoid direct sources of heat (chimney, television, The sensor must be installed in the living room area cooking surfaces, sun) and draughty areas (ventilation, on an unobstructed wall. It must be installed so as to door, etc.). -
Page 5: Using The Sensor With Mains Power
Navilink A59 Intelligent Room Temperature Controller Using the sensor with mains power Power rating 12-24V DC. Type of cable to be used: 0.5 to 1.5 mm rigid or 0.5 to 0.75 mm flexible with rigid end. " Do not use batteries. 2.4.1 Cable connection Bare the end of the wires to around 10 mm. - Page 6 Navilink A59 Intelligent Room Temperature Controller - 6 - Reference guide "1846- EN"...
-
Page 7: Wifi Connection
Navilink A59 Intelligent Room Temperature Controller 3 WiFi connection Room sensor pairing basics • HP / Boiler --> 1 room sensor Pair the sensor with the HP / Boiler. ALFEA NAIA / NAEMA • HP / Boiler --> 2 room sensors Pair the 1 sensor with the HP / Boiler. -
Page 8: Pairing A Sensor With A Hp / Boiler
Navilink A59 Intelligent Room Temperature Controller Pairing a sensor with a HP / Boiler 3.2.1 Pairing a 1 sensor with a HP / Boiler Action Description Display On the boiler or heat pump, start the pairing procedure. Please refer to the instructions supplied with the product. Default display when sensor is first commissioned. - Page 9 Navilink A59 Intelligent Room Temperature Controller 3.2.2 Pairing a 2 sensor Action Description Display Start the pairing procedure on the 1 sensor. Use the following procedure to pair the 2 sensor. Default display when sensor is first commissioned. Select "Sde" (sensor) using the buttons.
-
Page 10: Nd Sensor
Navilink A59 Intelligent Room Temperature Controller Pairing a 2 sensor The installation includes a 1 working sensor. 3.3.1 Procedure for pairing with a 1 sensor Action Description Display Access the Installer Menu by pressing simultaneously. Select "ioAJ" using the button. Select "oui"... - Page 11 Navilink A59 Intelligent Room Temperature Controller 3.3.2 Pairing a 2 sensor Action Description Display Start the pairing procedure on the 1 sensor. Use the following procedure to pair the 2 sensor. Default display when sensor is first commissioned. Select "Sde" (sensor) using the buttons.
-
Page 12: Installer Menu
Navilink A59 Intelligent Room Temperature Controller 4 Installer Menu Access the Installer Menu by pressing simultaneously. When the Installer Menu is active, the symbol appears. Quit the Installer Menu by pressing simultaneously. Calibration Pairing Resetting Send key Receive key Version page 13 page 14 page 15... -
Page 13: Calibration
Navilink A59 Intelligent Room Temperature Controller Calibration Action Description Display Access the Installer Menu by pressing simultaneously. Select "EtAI" (calibration) using the button. Adjust the temperature using the buttons. Wait 5 seconds. The sensor is calibrated. Quit the Installer Menu by pressing simultaneously. -
Page 14: Pairing A Sensor
Navilink A59 Intelligent Room Temperature Controller Pairing a sensor Action Description Display Access the Installer Menu by pressing simultaneously. Select "ioAJ" using the button. Select "oui" (yes) using the buttons. Wait 5 seconds. "Sde" (sensor) flashes. The sensor waits for pairing for 10 minutes. Pairing was successful. -
Page 15: Resetting
Navilink A59 Intelligent Room Temperature Controller Resetting Action Description Display Access the Installer Menu by pressing simultaneously. Select "init" (reset) using the button. Select "oui" (yes) using the buttons. Wait 5 seconds. The sensor is reset. Reference guide "1846- EN" - 15 -... -
Page 16: Sending An Io-Homecontrol® Key
Navilink A59 Intelligent Room Temperature Controller • ADVANCED PARAMETERS - HOME AUTOMATION OPTIONS Security key: The io-homecontrol® WiFi protocol has built-in security to avoid interfering with nearby equipment. Where various io-homecontrol® devices are used, the first installed device will generate a unique "security key"... -
Page 17: Receiving An Io-Homecontrol® Key
Navilink A59 Intelligent Room Temperature Controller Receiving an io-homecontrol® key Action Description Display Access the Installer Menu by pressing simultaneously. Select "iorE" using the button. Select "oui" (yes) using the buttons. Wait 5 seconds. The io-homecontrol® key receive sequence starts. The io-homecontrol®... -
Page 18: Version
Navilink A59 Intelligent Room Temperature Controller Version Action Description Display Access the Installer Menu by pressing simultaneously. Access the "Version" screen using the button. Quit the Installer Menu by pressing simultaneously. - 18 - Reference guide "1846- EN"... - Page 19 Navilink A59 Intelligent Room Temperature Controller Reference guide "1846- EN" - 19 -...
-
Page 20: How To Use
Navilink A59 Intelligent Room Temperature Controller 5 How to Use Adjusting the setpoint via the Advanced Menu: Manual mode " The exemption allows you to change the setpoint for a period of 24 hours. Action Description Display Press The setpoint flashes. Adjust the setpoint using the buttons. - Page 21 Navilink A59 Intelligent Room Temperature Controller Holiday mode Action Description Display Press the button. Set the number of days for the holiday period using the buttons. Wait 5 seconds. " The number of days remaining is displayed during the holiday period. "...
-
Page 22: Error List
Navilink A59 Intelligent Room Temperature Controller 6 Error List N° Error description Actions Battery fault if charge <10% Replace the batteries Temperature sensor fault Open circuit Value below lower limit Contact your installer Value above upper limit Short-circuit WiFi malfunction (if no WiFi signal for more than 16 minutes) Button malfunction (if button problem detected for Check that no buttons are stuck in the depressed... - Page 23 Navilink A59 Intelligent Room Temperature Controller Reference guide "1846- EN" - 23 -...
- Page 24 Please contact your heating engineer or After Sales service for further information. * Depending on the national regulations of each member state. Commissioning date: atlantic-comfort.com Société Industrielle de Chauffage SATC - BP 64 - 59660 MERVILLE - FRANCE Contact details of your heating engineer or After Sales service.
Need help?
Do you have a question about the 074208 and is the answer not in the manual?
Questions and answers

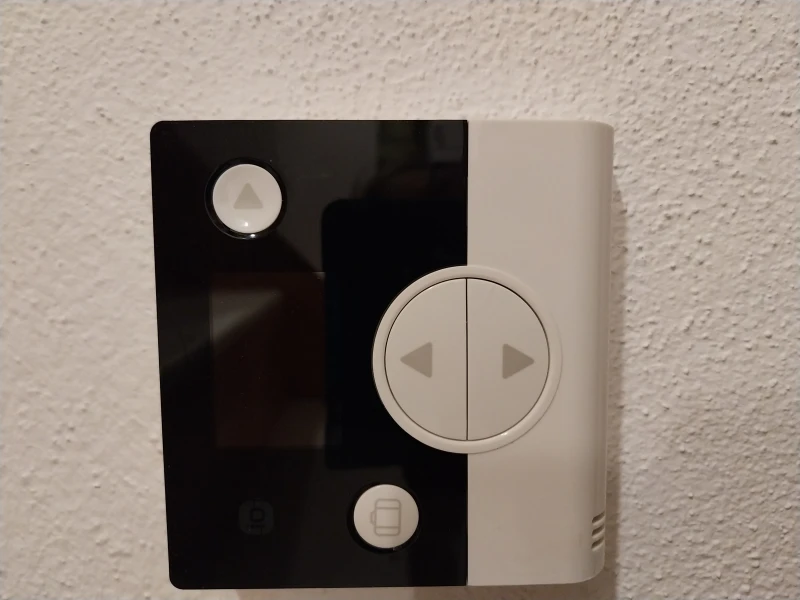

Der Raumregler ist ausgefallen. Nur mehr schwarz. Beim Heizraum, zeigt es den Fehler 60 an.
