The 1968 Dodge Dart was hot with the
440 engine, but Chrysler also made an
even hotter limited number of ultra high
performance Darts equipped with a HEMI
engine. These were light weight Dart GTS
hardtops and Chrysler noted they were
"intended for use in supervised acceleration
trials and not intended for general highway
use" and were delivered with no warranty.

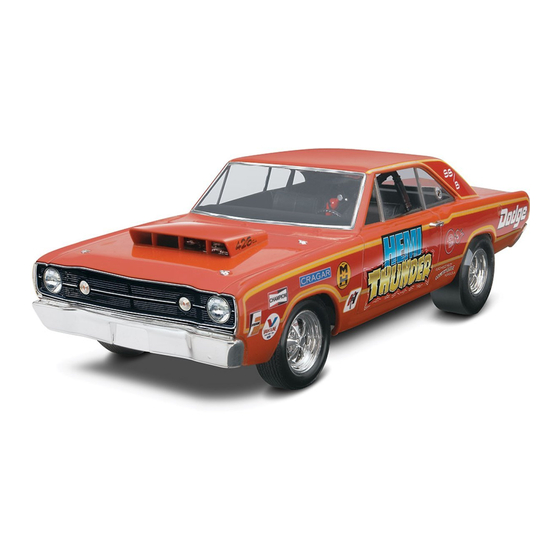

Your Revell model features an option-
al 426 cubic inch HEMI
®
engine with
two carbs or a 440 cubic inch engine
with a single carburator, a stock inte-
rior, hood, wheels and suspension or
racing version interior, suspension, hood
with air scoop and drag slicks. Decals
with factory stock markings plus colorful
drag racing graphics are also included.
* REPEAT SEVERAL TIMES
REPEAT PROCEDURE
*
` `
* A REPETER PLUSIEURS FOIS
* REPETEZ LE PROCEDE
READ THIS BEFORE YOU BEGIN
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
If you have any questions or comments, call our hotline at:
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85421700200), part number, description, your return address and phone number.
KIT 4217
'68 DODGE DART HEMI
®
* DECAL
* OPTIONAL PARTS
`
`
* DECAL COMANIE
* PIECES EN OPTION
LIRE CE QUI SUIT AVANT DE COMMENCER
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son
support en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
les solutions de fixage ou les solvants.
or, please write to:
Visit our website: www.revell.com
Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.
* CEMENT TOGETHER
* ASSEMBLY CAUTION
`
`
* A COLLER
*ATTENTION D ASSEMBLEE
(800) 833-3570
2'N1
®
* REMOVE AND THROW AWAY
* A RETIRER ET JETER
This paint guide is provided to complete this kit
as shown on the box.
Ce guide de peintures est fourni pour reproduire le modèle
réduit qui apparaît sur la boîte.
Gloss White
Blanc brillant
Noir Satiné
Semi Gloss Black
Silver
Argent
Aluminum
Aluminium
Steel
Acier
Gloss Orange
Orange brillant
Chrysler Engine Red
Rouge moteur Chrysler
Transparent Red
Rouge transparent
Turn Signal Amber
Ambre
Gold
Or
Tan
Havane
85421700200
* DO NOT CEMENT
* NE PAS COLLER
