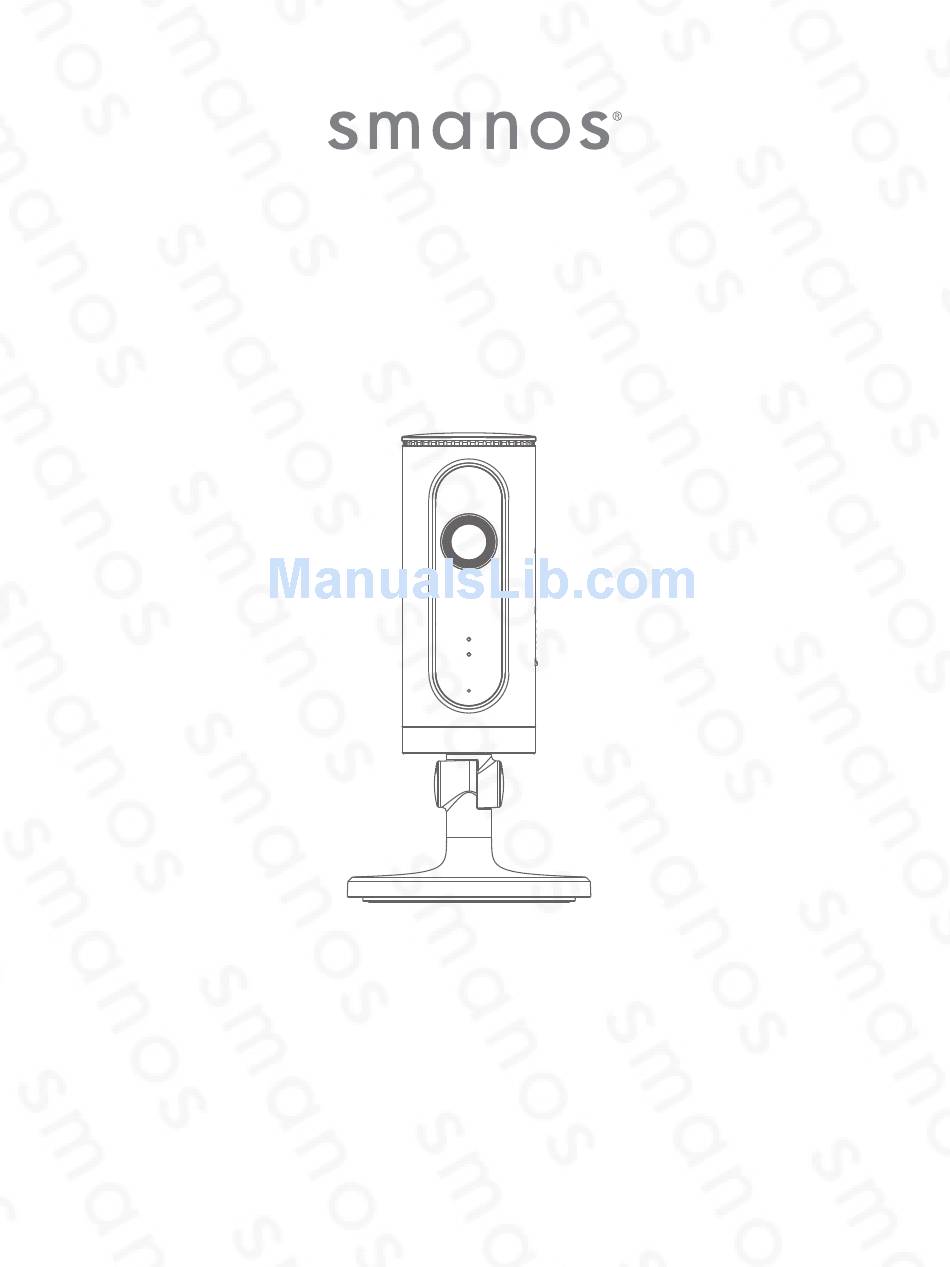

- Page 1 U S E R M A N U A L HD WiFi Camera...
-
Page 2: Table Of Contents
1. Things to Know Before Getting Started -------------------- 1.1 Your WiFi Internet Connection ----------------------------------- 1.2 Network Name and Password ----------------------------------- 1.3 Operating System Requirements -------------------------------- 2. Get to Know Your P70 Camera ---------------------------- 2.1 P70 Overview --------------------------------------------------- 2.2 Light Indicators -------------------------------------------------- 3. Getting Started ----------------------------------------------- 3.1 Download the App... -
Page 3: Things To Know Before Getting Started
- One critical factor affecting the performance of your P70 camera is the relative position of your home WiFi router and the P70. Set up your P70 in an open area (DO NOT place it on the floor); the closer the camera is to the router, the stronger the WiFi signal will result in better image quality &... -
Page 4: Get To Know Your P70 Camera
2. Get to Know Your P70 Camera 2.1 P70 Overview Front View Camera LED Indicators Microphone Bracket Side View Back View Reset button Heat Vent microSD™ Card Slot Power Jack... -
Page 5: Light Indicators
2.2 Light Indicators The indicators on the camera, just below the lens, tells you the status of the P70. Here’s a list of what each pattern means: Blinks once per WiFi Pairing State Red LED Indicator second Blinks every 2... -
Page 6: Getting Started
3. Getting Started If you have also purchased a smanos alarm system which supports P70 in the APP , you can also setup your camera through the alarm’s app to keep an eye on what matters from anywhere. (eg: setting up your P70 through W120 alarm system) 3.1 Download the Apps... -
Page 7: Adding A Camera
2.4GHz) router under the same name is used, please go into your routers settings to separate these two bands into different names and make sure to select with the 2.4GHz WiFi instead of the 5GHz's. Tap on [+], then follow the steps to set up your P70 camera with your WiFi. -
Page 8: Setting Up Your P70 Camera
① Plug the power adapter into a wall socket, the blue indicator light will start blinking. Putting the P70 Camera into WiFi Connection Mode ② Press and hold the Reset Button on the side by using the supplied Reset Pin until the camera beeps once, and then release the button, the red indicator starts to blink. - Page 9 ④ Pick your 2.4GHz WiFi network from the drop down box listed on the app, and enter the WiFi network’s password. The P70 will connect to the selected WiFi network. This pairing process should take about a minute. The Blue indicator light will stop blinking when a successful connection has been established.
-
Page 10: App Control
Anyone in the vicinity of your P70 camera will hear you. If you want to listen in on the surrounding area of your P70, all you need to do is tap on the Listen In button. -
Page 11: History Page
5.2 History Page Motion-triggered alerts can be reviewed from this History page. Tap on [ ] to pick a specific day and search for an alert. Note: Only the most recent 300 alerts will be shown. New alerts will overwrite the oldest ones. ①②③④⑤⑥⑦⑧⑨⑩... -
Page 12: Archive Page
5.3 Archive Page From Memory Card - 24/7 Continuous Recording ①②③④⑤⑥⑦⑧⑨⑩ ①②③④⑤⑥⑦⑧⑨⑩ Recording date ① Motion alert: motion was detected in this interval. ② Pause button ③ Calendar: pick a specific day to view ④ Current time ⑤ No recording ⑥... -
Page 13: My Albums - Video Clips And Snapshots
5.4 My Albums - Video Clips and Snapshots You can find all your manually saved video clips and snapshots on this page. Any video or snapshot found here are stored on your phone and can be edited and shared as you wish. Deleting Video(s) or Snapshot(s) Tap on the edit icon [ ] and then press the shown [... -
Page 14: Settings Page
5.5 Settings Page General settings On this page, you can change the camera’s name, video quality and view orientation. ①②③④⑤⑥⑦⑧⑨⑩ Motion Detection... - Page 15 When the motion sensor is turned on, you will receive a push notification whenever motion is detected. Timing This is useful if you installed the P70 in a busy room or area. You can define a timeframe during which you wish to receive motion alerts. Activity Zone With your own custom Activity Zones, you can define certain areas of interest in your camera’s view and get notification when there is motion;...
- Page 16 Network Configuration Reconfiguration enables you to reconfigure Camera when a network issue has arisen. And switch between networks enables you to connect your Camera with another nearby WiFi network, without repeating the camera-phone pairing process. You can check your current network and the signal strength as well.
- Page 17 When motion is detected, you will receive a push notification: (for example) Activity detected by [P70 camera name] at 08:20:00 GMT+2 Or Activity detected by [P70 camera name] at 07:20:00 GMT+1 DST during Daylight Saving Time. ①②③④⑤⑥⑦⑧⑨⑩...
-
Page 18: Settings
Firmware Update This setting enables you to update your P70 camera to the latest firmware if necessary. WHEN AN UPDATE IS TAKING PLACE, FORCED TERMINATION WILL CAUSE SERIOUS DAMAGE TO YOUR P70 Camera. It is highly recommended that you keep your camera plugged in at all times, and DO NOT SWITCH THE DEVICE OFF BEFORE AN UPDATE IS COMPLETED. -
Page 19: Account Management
6. Account Management ⑤⑥⑦⑧⑨⑩ 6.1 Editing your Account Tap on the portrait to change your portrait, user name and account password. -
Page 20: Sharing Your Camera
6.2 Sharing your Camera By choosing [My Shares] on the menu and tapping the [+] Add Button, you can share access to your device(s) with other registered accounts. Enter the email address and nickname of the account you want to share with, and then select the device(s). - Page 21 User (Read Only) With User (Read Only), the shared user in this group will only be able to edit the name of the device(s) and receive alerts; re-sharing the device(s) to other users or changing the settings are not permitted. By week days Select the day(s) and each day's routine you want the device(s) to be accessible to the account you share with.
-
Page 22: Installation
7. Installation Important: You should place your camera in an area with a strong WiFi signal for optimal performance. 1. Separate the mounting template on the bottom of this camera from the bracket by pressing the snap as shown 2. Mount the template on the wall by using the supplied screws 3. -
Page 23: Specifications
8. Specifications Image sensor Sony 1/2.9" CMOS sensor Shutter time 1/50s to 1/100,000s Lens 2.4mm F2.0 Angle of view 115° Video compression H.264 Bit rate Self-adaption Max. image resolution 1920 x 1080 Frame rate 20fps Storage Built-in microSD™ card slot, up to 32GB Wireless standards EEE802.11b/g/n Frequency range...
