COMBINATION ELECTRIC FIREPLACE/HEATER
IMPORTANT,
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-877-494-2536 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or e-mail your request to parts@baysidefurnishings.com
PLEASE READ ALL OF THE INFORMATION IN THIS OPERATING MANUAL, INCLUDING ALL
SAFETY, OPERATING, AND MAINTENANCE INFORMATION. TO AVOID THE POTENTIAL RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, USERS SHOULD FOLLOW THE
DIRECTIONS AND WARNINGS IN THIS MANUAL.
Your Electric Fireplace / Heater is fully assembled from the factory. There are no installation steps
required to make the fireplace / heater work.
Model # FP30-2B
OPERATING INSTRUCTIONS
RETAIN
READ CAREFULLY
(In US, Canada, and Mexico only)
Or visit our website www.baysidefurnishings.com
Date 2016-09-12 Rev. 0001-E Factory: ZHOPAI
LOT NUMBER:
DATE PURCHASED:
FOR
FUTURE REFERENCE:
/
/
E
Advertisement
Table of Contents
Related Manuals for Bayside FP30-2B
Summary of Contents for Bayside FP30-2B
-
Page 1: Operating Instructions
LOT NUMBER: DATE PURCHASED: COMBINATION ELECTRIC FIREPLACE/HEATER Model # FP30-2B OPERATING INSTRUCTIONS IMPORTANT, RETAIN FUTURE REFERENCE: READ CAREFULLY If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. -
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 4: Operation

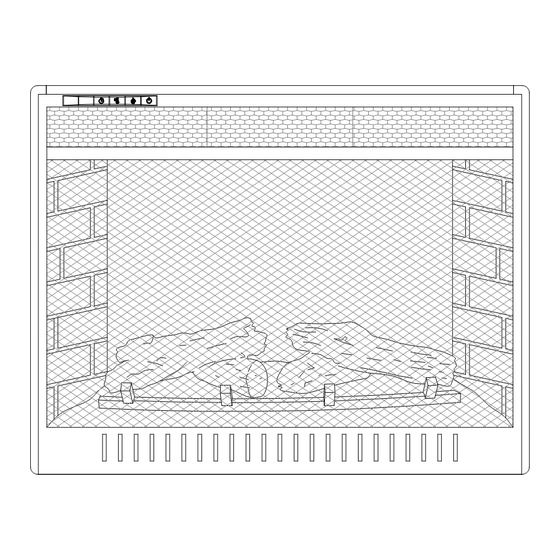

OPERATION The fireplace/heater unit comes in two distinct parts: The fireplace unit itself, (Figure 2), and the Remote Control, (Figure 3). ELECTRICAL SPECIFICATIONS Model No. FP30-2B Voltage 120 V Frequency 60 Hz Watts 1500 W Figure 2 Figure 3 • The Fireplace/Heater Unit On the top left corner of the fireplace/heater unit is the control panel. - Page 5 OPERATION The next segment, (2), is a Function Indicator. It has three square LED’s, a red one, a green one and a blue one. The red LED indicates that the Fahrenheit temperature heating function is running, the green LED indicates that the Centigrade temperature heating function is running, and the blue LED indicates that the Timer Function is engaged.
- Page 6 OPERATION The next segment, (5), is the Flames Control button. Like the timer button, there are four settings for the flames. Pressing the flames button in sequence will set the flames for different levels of flame height. These flame levels are showed in the display segment (1). The flame settings are as follows: BUTTON PRESS FLAME LEVEL DISPLAY VALUE...
-
Page 7: Battery Replacement
OPERATION • The Fireplace/Heater Remote Control A great feature of the Fireplace/Heater unit is the small remote control. This remote combines all the functions of the front panel controls of the fireplace/heater with the convenience of not having to leave the comfort of your seat to change the settings of the fireplace/heater. - Page 8 • Remote Control Button Functions The remote control mimics the buttons on the front panel of the fireplace/heater. The remote control does not have a display function. The buttons on the remote control work as follows: (Figure 6) Heater Up Main Power Timer Function Flames Control...
- Page 9 TROUBLE SHOOTING GUIDE PROBLEM SOLUTION 1a. Check that unit is plugged into a standard 120V outlet. 1. No power or function. 1b. Press power button on the control panel. 2. Main power switch lights up, but no flame 2a. Open the top and back panel to check if the effect.
-
Page 10: Care And Maintenance Instructions
Should this product be defective in workmanship or materials, or fail under normal use, we will repair or ® replace it for a period of up to one (1) year from date of purchase. Every Bayside Furnishings product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
