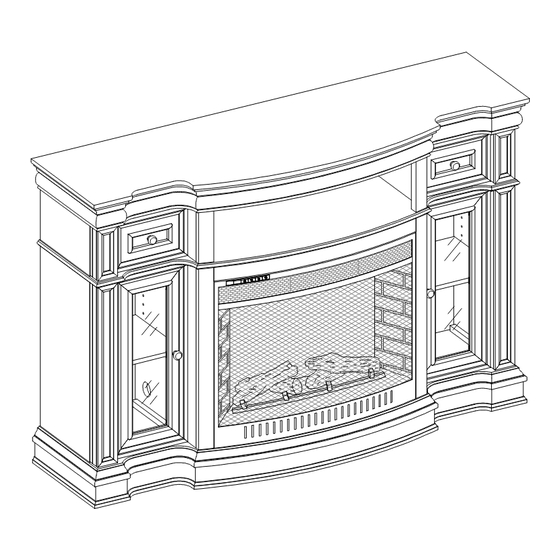

Fireplace Media Console
ITM. / ART. 1049034
Model # CSC65FP-30BI-2
ASSEMBLY INSTRUCTIONS
IMPORTANT,
RETAIN
FOR
FUTURE REFERENCE:
READ CAREFULLY
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-877-494-2536 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
(In U.S., Canada, and Mexico only)
Or visit our website www.baysidefurnishings.com
Or e-mail your request to parts@baysidefurnishings.com
Date 2017-07-19 Rev. 0001-B Factory: BESBEA
Advertisement
Related Manuals for Bayside CSC65FP-30BI-2
Summary of Contents for Bayside CSC65FP-30BI-2
- Page 1 Fireplace Media Console ITM. / ART. 1049034 Model # CSC65FP-30BI-2 ASSEMBLY INSTRUCTIONS IMPORTANT, RETAIN FUTURE REFERENCE: READ CAREFULLY If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your...
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S ® MANUFACTURER: Bayside Furnishings CATALOGUE: Fireplace Media Console (CSC65FP-30BI-2) MADE IN CHINA FITS MOST 190.5 cm / 75 in FLAT PANEL TVs MAXIMUM LOAD 61.3 kg / 135 lb...
-
Page 3: Parts And Hardware List
Parts and Hardware List PART # PART DESCRIPTION PART FIGURE QUANTITY Mantel Base with Fireplace Adjustable Shelf (Pre-attached) Remote Control with two AAA Batteries Acrylic Stopper Rubber Liner 1.5 m Hex Wrench Touch-up Pen Tipping Restraint Hardware Kit 2 sets NOTE: 1 set rubber liner is prepared to refasten the metal trims if needed. - Page 4 Assembly Instructions 1. The adjustable shelves (B) are pre-installed for shipping. If the shelf position is not to your liking, adjust them to your desired location. 2. The upper rear panel is removable for easy access to audio and video component hook-up.
- Page 5 Assembly Instructions NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat panel television directly on the console. 3. Remove the paper backing from the acrylic stopper (AA). Align the acrylic stopper into the cut-out on the acrylic stopper template.
- Page 6 Assembly Instructions 7. Ask for assistance to position the console (A) at the desired location against a wall and adjust the pre-attached floor levelers to correct tilting and/or level the doors as shown. 8. Attach the console to the wall use the anti-tip hardware. NOTE: The tipping restraint hardware included is for wooden stud wall construction.
-
Page 7: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or ® replace it for up to one (1) year from date of purchase. Every Bayside Furnishings product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
