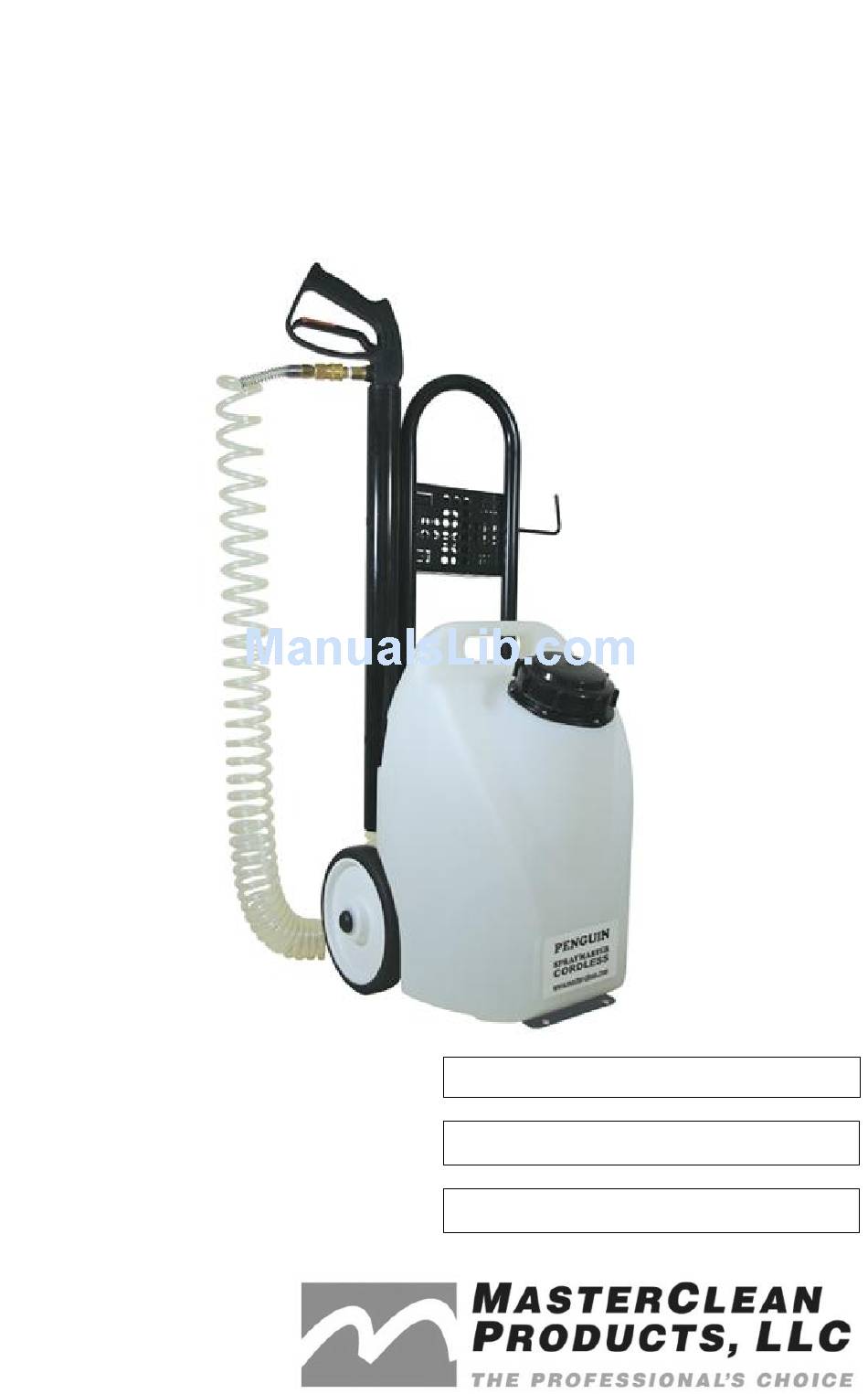

- Page 1 Penguin 200U Cordless Sprayer with Interchangeable Tank User’s Manual Serial Number: Date of Purchase: Distributor:...
- Page 2 MASTERCLEAN PRODUCTS, LLC AT ANY TIME WITHOUT NOTICE. WEAR PARTS 90-DAY LIMITED WARRANTY: Masterclean Products, LLC will replace all wear parts for 90 days from the date of original purchase. “Wear parts” are items which wear out as a result of usage or the passage of time and are consumed despite attempts to maintain them, such as gaskets, wheels, brass fittings, cords, wires, electrical terminals, hoses, switches, filters, bearings, o-rings, bulbs, castors or other parts deemed wear items in Masterclean Products, LLC’s sole discretion.
- Page 3 Prior to unpacking, please check the shipping carton for any obvious damages. Report the damages to the carrier prior to signing for it. During unpacking, check for any damages to the Penguin 200U Cordless Sprayer and its components. Report any Penguin 200U Cordless Sprayer damages to Masterclean Products, LLC Customer Service Department.
- Page 4 Safety Do not operate the Penguin 200U Cordless Sprayer: Unless you are trained and authorized. If this unit is not in its proper operating condition. If you and the unit is in standing water. If you and the unit is in flammable or explosive areas.
- Page 5 Charging and Recharging First time use - it is important to charge the Penguin 200U Cordless Sprayer prior to operating the unit. The built-in charger is a “SMART” charger. It knows when not to over- charge the battery and at the same time maintain the battery’s charge.
-
Page 6: Operation
Operation Please refer to the pictures of the Penguin 200U Cordless Sprayer on page 8 - 10 to refer to the components outlined below. Connect the Recoil Hose to the Spray Gun. Connect the other end of the Recoil Hose to the Quick-Disconnect at the rear of the unit. - Page 7 It is important that the tank and pump are clear of any chemical solution for any period of time that the Penguin 200U Cordless Sprayer is idle. This is necessary, since some solutions contain d’Limonene or a caustic material, which tends to deteriorate the pump.
- Page 8 Spray Gun Stainless-Steel Lance Handle Holster Basket Interchangeable Tank Fill Cap Recoil Hose...
- Page 9 Recoil Hose Hanger Charger Receptacle...
- Page 10 Tank Clasp Quick-Disconnect Charging Light Power Lamp Power Switch...
- Page 11 Changing the Interchangeable Tank To change the Tank on the unit with another Tank: Step 1: Turn the unit OFF. Step 2: Lift the Tank Clasp handle and turn it counter-clockwise until it stops. Handle Tank Clasp Step 3: Carefully, pull the Tank Clasp away from the Tank.
- Page 12 Step 4: Gently lift and pull the Tank away from the Chassis. Tank Chassis Step 5: Disconnect the QD between the Tank and the Pump.
- Page 13 Step 6: Re-connect the QD from another Tank. Step 7: Carefully, mount the Tank onto the Chassis. Push the Tank toward the Chassis. As the Tank is close to the Chassis, lift and push in the Tank to seat it onto the Chassis.
- Page 14 Step 8: Carefully, latch the Tank Clasp to the Tank. Turn the handle clockwise until it stops. Push down the handle to lock it. Step 9: The unit is now ready.
-
Page 15: Replacement Parts List
Replacement Parts List Item Part Number Description 204HA Handle Assembly 103G-P Spray Gun 108SSL25-P Lance, Stainless Steel 109H1/4DT-6508 Nozzle 210HA Recoil Hose 200UPH Upholstery Nozzle 209CC Charger Cord 202LA Fill Cap Parts not listed here can be obtained from your distributor and from www.mastercleanstore.com. - Page 16 www.mastercleanstore.com 01-2012 REV A...
