X300 M User Manual
X300 M User Manual
Statement
This handbook is the manual of X300 M. Without the written permission from
the manufacturer, any company or individual shall not copy or backup it in
any form (electronic, mechanical, photocopying, recording or otherwise).This
manual is only operating instructions for X300 M. If any result caused by
using it on other equipment, the company does not assume any responsibility
for it.
If not quality problems of X300 M,such as equipment failure caused by user
abuse or misuse, unauthorized disassembly, repair equipment yourself, not
operate or maintain by the instructions, lose it, the repair will not be free.
Other product names mentioned in this manual are in order to describe how
to use X300 M, and their copyrights are still observed by the original company.
X300 M and files are used for normal vehicles maintenance. If used for illegal
purposes, the company does not assume legal responsibility.

Advertisement

Table of Contents
loading

Summary of Contents for Obdstar X300 M

  • Page 1 Other product names mentioned in this manual are in order to describe how to use X300 M, and their copyrights are still observed by the original company. X300 M and files are used for normal vehicles maintenance. If used for illegal...
  • Page 2: Table Of Contents

    1.4.2.2 Contrast Control………………………………………………………5 1.4.2.3 Font Setting……………………………………………………………6 1.4.2.4 Metric/Inch……………………………………………………………..6 1.4.2.5 Data Logging…………………………………………………………..7 1.4.3 System Information…………………………………………………………… 7 1.4.4 Device Self-test ………………………………………………………………8 Chapter 2: How to update software for X300 M…………………………………………8 2.1 Update Tool software Installation ………………………………………………8 2.2 Register …………………………………………………………………………………11 2.3 Software Updating ……………………………………………………………………12...
  • Page 3: Chapter 1: Summary

    X300 M User Manual Chapter 1: Summary 1.1 Features 1.1.1 Advantages ● Multi-language environment can be applied in different countries and regions. ● The main unit system adopts ARM high speed chip to keep it running fast, stable and anti-jamming.
  • Page 4: Introduction Of The Device

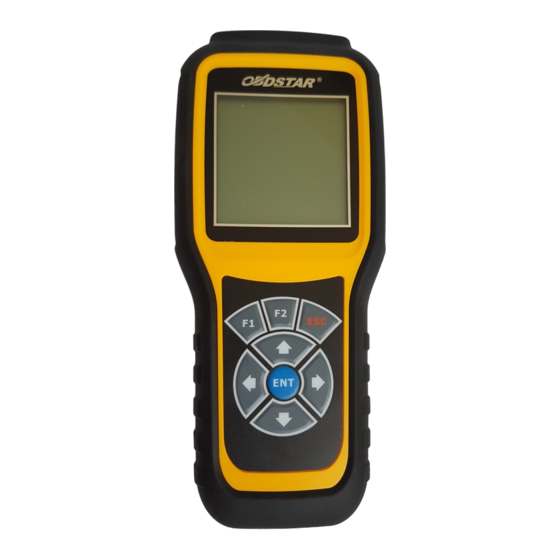

    X300 M User Manual 1.2 Introduction of the device 1.2.1 The main unit and accessories(Picture as below) Name Instruction Connect to the main test cable for auto key Testing cable port programming Display Screen Show information Keyboard input option key...
  • Page 5: Hardware Technical Specification

    X300 M User Manual 1.3 Hardware technical specification ★Dimension: 22cm(L)*10cm(W)*3.6cm(H) ★CPU : ARM7 ★Power Supply:DC12V ★Operation Power:DC12V ★Operation Temperature: -20~60℃ ★Display Screen:160*160 1.4 Functions Setting Power on, and then press ENTER on the screen, then go to the function setting, setting information as shown below:...
  • Page 6: Functions Selection

    X300 M User Manual 1.4.1 Function Selection Select different functions according to different requirements. Note: Software numbers and functions are different according to different product configuration. Further detailed information, please contact your distributor. 1.4.2 System Setting Select System Setting, language and contrast can be adjusted, as shown...
  • Page 7: Language Selection

    X300 M User Manual 1.4.2.1 Language Selection This device supports simplified Chinese, traditional Chinese, English, Russia, Greek, Spanish, Italian. In the language directory, select required language by Up and Down and press ENTER to confirm it. 1.4.2.2 Contrast Control According to the environment, adjust the brightness of the screen by the left...
  • Page 8: Font Setting

    X300 M User Manual 1.4.2.3 Font Setting According to requirement, select different font. 1.4.2.4 Metric/Inch According to different requirements, select the Metric/Inch by the up and down keys, and press ENTER to confirm as show below,...
  • Page 9: Data Logging

    X300 M User Manual 1.4.2.5 Data Logging Any problems during testing, please use the Data Logging function to record the test process and send the data to us. Select ON by the up and down keys and press ENTER to confirm, shown as below, Note: Every time you need to select ON if you want to record the data before testing car.
  • Page 10: Device Self-Test

    Device self-test includes screen display, keyboard testing. hardware self- testing, etc. If it cannot show enough pictures on the screen, keyboard not work, and hardware self-test not get through, please return this X300 M to the manufacturer. Chapter 2: How to update software for X300 M 2.1 Update tool software installation...
  • Page 11 X300 M User Manual Step 2: Click “Next” Step 3: Wait for several minutes then the installation finished...
  • Page 12 X300 M User Manual Step 4: Click “Finish” After Update Tool installation completed, click the Update Tool software icon on desktop to start the update tools. The main interface is as shown below:...
  • Page 13: Register

    X300 M User Manual 2.2 Register Click “Sign up” to fill in user information. Username can be English characters or the combination of alphabet and numbers. Serial number and register password can be referred to System information in the device.( Figure 1.4.3)...
  • Page 14: Software Updating

    X300 M User Manual 2.3 Software updating Operation steps as following: Step 1: Remove the TF card from your device. Insert your TF card into computer. Step 2:Open update tool and login Step 3: Click the source menu, choose the program you want to update, click it and confirm.
