Page 1: User Manual

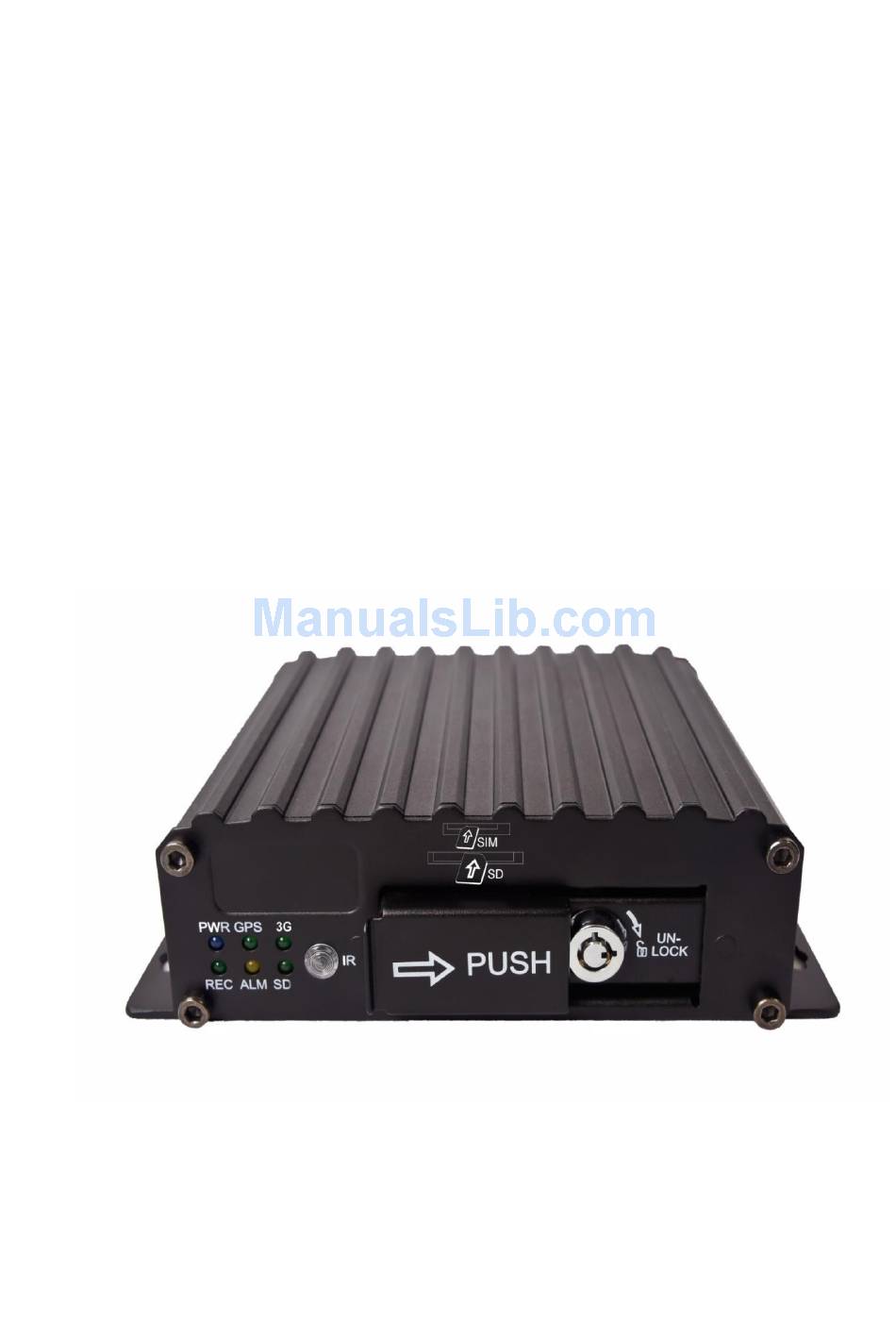

User Manual GPS / 3G / WIFI, 4 channel SD Card Mobile Digital Video Recorder（MDVR） Model:AH2000... -
Page 2: Table Of Contents
SD card MDVR User Manual V2.0 SD card MDVR(AH2000) User Manual V2.0 LIST PREFACE ......................- 1 - Section 1: Product Specifications ..............- 3 - Product Specifications ................- 3 - 1.2 The MDVR products application connection diagram ......- 4 - Section 2: Interface definition and functions.......... - Page 3 SD card MDVR User Manual V2.0 4.4-3: Sub-stream settings ..............- 25 - 4.4-4: Video plan (24-hour clock) ............. - 26 - 4.5: Alarm settings ..................- 26 - 4.5-1: The sensor setting-(alarm input) ..........- 27 - 4.5-2: Speed setting ................- 28 - 4.5-3: Acceleration settings ...............
-
Page 4: Preface
SD card MDVR User Manual V2.0 SD card MDVR(AH2000) User Manual V2.0 PREFACE A:Features Introduction MDVR is a kind of cost-effective device with strong functional scalability which is specially designed for vehicle video monitoring and remote monitoring .It is developed by high-speed processor and embedded Linux platform, combined with the most advanced H.264 video... - Page 5 SD card MDVR User Manual V2.0 electric when is less than 30V but greater than 4V, in case of 30V above, it will result in device damage when device grounding is recommended. 3: Humidity requirement: Install the device in a dry environment, avoiding wet, dripping, spray and other places. Do not install device in depression place or liquid dripping wet places;...
-
Page 6: Section 1: Product Specifications
SD card MDVR User Manual V2.0 Section 1: Product Specifications Product Specifications Table 1:MDVR Specifications Project Device parameters Performance indicators Operation Language Chinese/English Operation Interface Graphical menu interface(OSD menu) System Password Security Management Level--User password, administrator password Video Input Four composite video inputs One video outputs(one φ... -
Page 7: The Mdvr Products Application Connection Diagram
SD card MDVR User Manual V2.0 Acceleration External, built-in acceleration sensor G-Sensor (optional) sensor Supporting PC playback of video files, and analyze the vehicle information in file software Software This device supports the upgrading by SD card upgrades Machine Size Device Size 154(W)mm×... -
Page 8: Section 2: Interface Definition And Functions
SD card MDVR User Manual V2.0 Section 2: Interface definition and functions MDVR overall appearance &structure diagram (model ONE) Figure 2-1: Device structure and Size diagram Figure 2-2: Schematic diagram - 5 -... -
Page 9: The Mdvr Rear Panel Interface Definition
SD card MDVR User Manual V2.0 2.2 The MDVR Rear Panel Interface Definition Figure 2-7: The MDVR back panel Interface definition Table 3: The MDVR rear panel interface description as follow Connector Name Explain 4PIN Audio output AV-OUT 4PIN is made by four lines: red, black, yellow, white GPS Antenna GPS Antenna connector 3G Antenna... - Page 10 SD card MDVR User Manual V2.0 As shown by below pictures, one end is 6PIN white plug, which will be connected to the 6PIN power input connector on the rear panel of the device, the red and black wires are connected directly to the vehicle battery or the gathered electric which go through battery and fuse;...
-
Page 11: Sim Card Installation
SD card MDVR User Manual V2.0 of vehicles driving state ,such as brakes, steering, keyless entry, an emergency alarm button etc. Brake, as shown in Figure2-9,when the brake pedal is depressed, MDVR will be able to detect high level, otherwise low level is detected. - Page 12 SD card MDVR User Manual V2.0 Table 5: Remote Function Description LOGIN When VCR has a password, press the LOGIN button to enter the password, Since the system does not have restoring or resetting function, please remember the password INFO Information Review FOURSCREEN They are used to switch between the four-screen and single screen on the...
-
Page 13: Section 3: Common Quick Setting And Operation
SD card MDVR User Manual V2.0 Section 3: common quick setting and operation 3.1 The Junction Test and Start up The host‘s power cords are red, black and yellow, red and black wires connect directly to the vehicle battery or go through vehicle fuse, the red wire links to the positive, while black wire links to the negative, yellow wire links to firing wire ACC(the position before vehicle to start the monitor). -
Page 14: Video Settings
SD card MDVR User Manual V2.0 please press the FWD key on the remote control to the next pages; when it shows 1.you 2.yu 3.yuan 4.yun on the next page, please use FWD button to turn the pages; when it shows 1-5pcs of Chinese characters, if there is no YUE character, please use FWD button to turn the pages;... - Page 15 SD card MDVR User Manual V2.0 Firstly modify to be alarm recording under the System menu –Video Settings – General Setting-Video mode, then set the alarm pre-record time (range 0-60s) and alarm video delay (30- 900s); alarm output delay(5-255s),which can be set according to the actual external alarm device. Secondly it is needed to install the corresponding external alarm input device, such as the emergency button set by sensor, power switch for open/close door, brakes lights and other sensors;...
- Page 16 SD card MDVR User Manual V2.0 Impact acceleration can be understood to be for a three-dimensional XYZ coordinate axis which can denote three groups of status---up and down, left and right, front and rear; the bouncing up and down, accelerate, Emergent brake, rollover, sharp turns, etc. during the moving process of the vehicle can all be expressed in XYZ.
- Page 17 SD card MDVR User Manual V2.0 NOTE: After wiring and parameters setting of PTZ, users can only use remote to control PTZ after selecting the channel access to PTZ, for example, if PTZ connects through channel 2, then you need to switch to channel 2 maximize on the monitor interface to control it.
-
Page 18: Pc Playback Of The Video File
SD card MDVR User Manual V2.0 3.5: PC playback of the video file Besides playback by the host side, video files can also be copied to your computer to be played by the player. Install the player: Double -click the installation file named MDVR Player V1.0.1.exe in the CD-ROM, and then select the installation language (supporting Chinese and English), click OK and then keep clicking ―NEXT‖, a player shortcut icon will show on the desktop after installation completion;... -
Page 19: Fast Report By Vehicle Server Cms Sever
SD card MDVR User Manual V2.0 Figure 3-9 3.6: Fast report by vehicle server CMS Sever NOTE: The following described is invalid to the host which is without 3G module, it is not needed to report to CMS Sever platform Step 1: install the SIM card, 3G card which supports WCDMA/EVDO/TD-CDMA, detailed installation please refer to chapter II, 2.2, and 2.7 Step 2: Enter into the system menu after starting up, firstly modify the host‘s device number,... - Page 20 SD card MDVR User Manual V2.0 The main process of CMS Server quick reporting is as Figure3-10 below. Figure 3-10 Step 5: Enter the system menu –peripheral –wireless broadband, which is with wireless settings inside. A: wireless 3G settings Please pay attention to the supporting type of network during wireless 3G setting: WCDMA, EVDO, and TD-SCDMA.
-
Page 21: Section 4: Menu Function Instructions
SD card MDVR User Manual V2.0 network to WAN through the network cable, which can also report to CMS Server platform. Step 6: Previous steps are network connections ways. When the network is connected, the next step is the operation of software management on the PC CMS Server, which is divided into two steps. - Page 22 SD card MDVR User Manual V2.0 2. Username: Include administrator and operator, the Administrator has the authority to operate on all menus. Operator has only view permissions. 3. Password: Enter the appropriate password according the selected username, select down key to move to ―OK‖ and press ―ENTER‖ to log in when the password is correct; when password is incorrect, prompts login password error message, press OK to reenter the password.
-
Page 23: System Menu Organizational Framework
SD card MDVR User Manual V2.0 4.2: System Menu Organizational Framework 4.3: General setting General settings is the first menu in system menu, the generic setting interface contains four function options: data and time, vehicle information, user management and network, as shown in Figure4-7. -
Page 24: 1: Date & Time
SD card MDVR User Manual V2.0 4.3-1: Date & Time Set the system time and some other basic properties of the device, as shown in Figure4-8 1. Date Format: Press ―ENTER‖ drop-down menu to use the arrow keys to select the output format of date (year-month-day, day-month-year, and month-day-year). -
Page 25: 2: Vehicle Settings
SD card MDVR User Manual V2.0 4.3-2: Vehicle settings 1. Device No.: user sets a unique device number to each device, which will automatically display on the right of the number input box. The device number is 5 digits & characters, digits are effective. -
Page 26: Video Settings
SD card MDVR User Manual V2.0 Network setup interface is shown in Figure4-11 1. IP address Mask Gateway etc are LAN network setting after plugging in the network cable, there is no need to input if you do not use them. 2. -
Page 27: 2: Encoding Settings
SD card MDVR User Manual V2.0 1. Selectable video format PAL/NTSC 2. Selectable video mode: start up recording/alarm recording and timer recording 3. Sectional Time options 15/30/45/60, that is to say, video file will be packaged per such period of time, due to the limitation of the SD card writing speed and to make the packaging of the video file segments faster, it is recommended to choose 15/30 minutes. -
Page 28: 3: Sub-Stream Settings
SD card MDVR User Manual V2.0 Encoding settings interface as shown in Figure4-16 Definition: Optional D1/HD1/CIF; Frame Rate: PAL is adjustable 1-25 frame, full frame rate of 25 is real-time video; NTSC is adjustable 1-30 frame, full frame rate of 30 is real-time video. -
Page 29: 4: Video Plan (24-Hour Clock)
SD card MDVR User Manual V2.0 based on your own network situation, if under good enough network bandwidth, it can be set higher frame rate and bit rate and it can also be set automatically. 4.4-4: Video plan (24-hour clock) 1: If you select timer recording mode in ―video mode‖... -
Page 30: 1: The Sensor Setting-(Alarm Input)
SD card MDVR User Manual V2.0 Figure 4-20 Figure 4-19 4.5-1: The sensor setting-(alarm input) 1. User define the sensor name according to the difference setting interface when install MDVR; take Figure4-21 for example, to modify the name ‖INPUT‖ to be Chinese‘ front door, brake’, you can press the ‗ENTER‘... -
Page 31: 2: Speed Setting
SD card MDVR User Manual V2.0 4.5-2: Speed setting 1. There are two choices of speed source ‖GPS‖ and ‖vehicle‖, if you select GPS, then the speed information of vehicle can only be transmitted to the device under the situation that device has GPS module and GPS signal, the vehicle can obtain the speed of the vehicle via GPS. -
Page 32: 4: Temperature Settings
SD card MDVR User Manual V2.0 is useless, the acceleration setting mainly set the threshold, which needs to be determined. Generally speaking, the instantly acceleration is relatively large when vehicle is under emergent brake, crash, acceleration and sharp turns situations, the intuitive reflect is the relatively large threshold beating which is in waveform display of three state X/Y/Z when playback on PC. -
Page 33: 6: Oil Settings
SD card MDVR User Manual V2.0 Within the area selected by the user, the system will release alarm information after detection when there are moving objects. The motion detection alarm events can be searched in the log with the name CHL MD Alarm, the user can review these logs under the System Tools-log search. When the channel acts as motion detection, the video of the channel will be packaged into alarm recording, which users can search and play back the videos during that period of time. -
Page 34: System Tools
SD card MDVR User Manual V2.0 requirements fill alarm thresholds, when there is an amount of fuel at a time over the amount of oil when the alarm threshold, the device will send alarm information. 4.6: System Tools It is divided into four menus under System Tools: configuration management, device formatting, system upgrades, log search. -
Page 35: 2: Configuration Management And Log Search
SD card MDVR User Manual V2.0 4.6-2: Configuration management and log search Configuration management are mainly the importing and exporting system settings and the factory resetting; when execute exporting current configuration, the system will store the configuration information on the MDVR into SD card, if other MDVR‘s configuration is the same with this device‘s configuration, then this SD card can be inserted into other MDVR to be executed by importing current configuration. -
Page 36: 3: Device Upgrade
SD card MDVR User Manual V2.0 4.6-3: Device Upgrade Upgrade steps are as follows: Step 1: copy the ―xxx.crc‖ upgrade program files to the root directory of the SD card, do not need to build any folder, copy directly to the SD card inside; Step 2: Insert the SD card into the SD card slot of the host, then power supply to the host, when host starts up, it will be prompted to enter the ‖Upgrading…‖interface upgrade, which will last about 1-2 minutes.(The equipment did not shut down, connect the device shutdown!) -
Page 37: 2: Wireless Broadband
SD card MDVR User Manual V2.0 2. Baud rate: 1200/2400/4800/9600 four options, user can modify to different baud rate depending on different PTZ settings. 3. Data bit: data bits is generally be 8, where you can select from 1 to 8, generally is 8 in default. - Page 38 SD card MDVR User Manual V2.0 2. Installed SIM card and then plug in the 3G antenna, to ensure that the system is able to receive good 3G signal. 3. Edit the following information on menu interface of wireless broadband: A: set the module enable to be open.
-
Page 39: 3: Built-In Wifi Settings (Optional)
SD card MDVR User Manual V2.0 4.7-3: Built-in WIFI settings (optional) Instructions: Insert WIFI antenna to corresponding interface behind the host, edit the following information on WIFI setting interface as shown in Figure4-48: Set WIFI enabled and encrypted to be open. Authentication modes include WPA, WPA- PSK,WPA2-PSK,OPEN and SHARED, with encryption type TKIP and AES;... -
Page 40: Record Search
SD card MDVR User Manual V2.0 NOTE: The functionality of WIFI depends on the model, and this feature is optional, therefore, the mode to realize WIFI menu function may not be the same, which is subject to the actual development of the function. 4.8: Record Search Enter into the video search menu, play back video files by searching for different video types (all types, conventional types, alarm types) and different storage media (SD1 and SD2). - Page 41 SD card MDVR User Manual V2.0 When the video file is selected, it will be highlighted in blue, press‖ ‖ to play, as shown in Figure4-51and 4-52,the playback time, the history of the vehicle speed, GPS information and so on will be played during process. Commonly used keys are PLAY , rewind REW ,Fast ,and ―RETURN‖...
-
Page 42: System Information
SD card MDVR User Manual V2.0 4.9: System Information Description: System information played a significant role in viewing the device‘s status, it is very useful for installation, commissioning failure determine of the device. Firstly log into the system menu, the last one is System Information, which has two menus named SD/HDD Status menu and Device Status menu. -
Page 43: Appendix: Cms Platform Interface
SD card MDVR User Manual V2.0 Appendix: CMS platform interface Appendix 2: Common problems and treatment Q: What can I do when I found a problem with the product, but I cannot solve it by myself? A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze;... - Page 44 SD card MDVR User Manual V2.0 3. Check the connecting status between the host‘s video output cable and display screen. 4. Check whether the lock status of the host‘s Lock, it must be locked before normal starting Q: How to do when the car host video input interface is different from the camera output interface? A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard...
- Page 45 SD card MDVR User Manual V2.0 A: 1. Check whether GPS module exists, if it does not exit, check whether the hardware is installed or in a good contact. 2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;...
- Page 46 SD card MDVR User Manual V2.0 A: At present the signal coverage of WCDMA and EVDO is rather wide, however, there are some mountainous districts without signal coverage, and some suburban areas I have weak signal due to the local network constraints, then it will be jammed during watching of video, or video cannot be watched at all, the greatest impact of this situation is from the local network;...
-
Page 47: Appendix 3: Storage Space Corresponding Table
SD card MDVR User Manual V2.0 A: Firstly check whether the host side displays dialing, if it keeps the dialing status, it may be because the flow of the SIM card has run out, replace the SIM card to test; Secondly query whether the host device number has been modified by the driver, the host with modified device number needs to be resubmitted to add vehicle information;...
