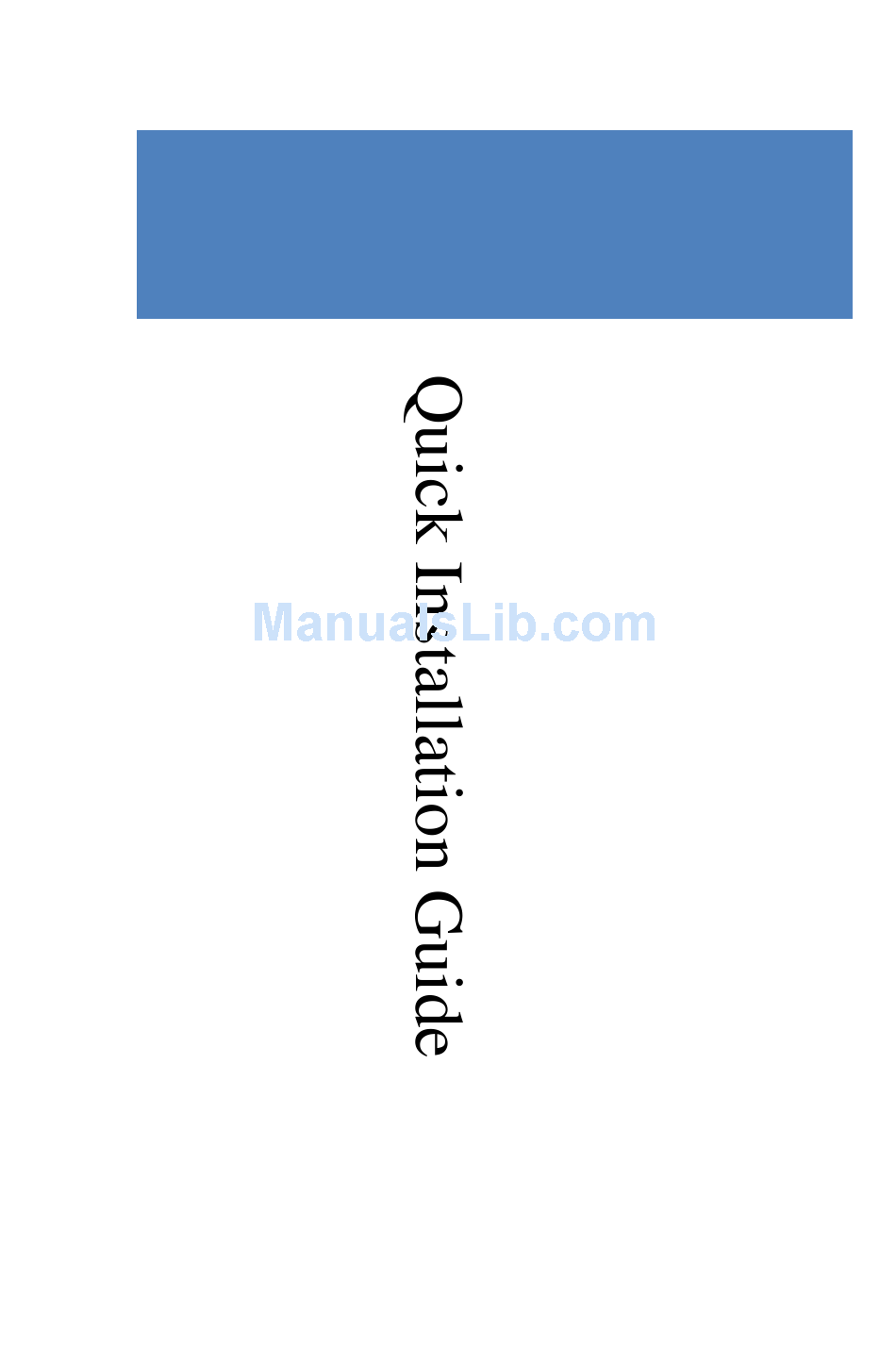

- Page 1 HD Vehicle MDVR Declaration: The Alersec company has the right of final interpretation to this Guide. Information contained herein is subject to change without prior notice due to continuous improvement of the product and technology.
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..................- 1 - 2. Preparations ..................- 1 - 3.Power Connection ................- 2 - 4.Video Input Mode Setting ..............- 3 - 4.1 Camera Connection Mode ............- 3 - 4.2 Software Setting ............... - 5 - 5.Online Setting .................. -
Page 3: Introduction
1. Introduction The MDVR adopts ARM DSP fast dual-core processor running on the Linux embedded OS, and also integrates the most advanced H.264 video encoding/decoding in IT industry, 3G/4G network, GPS and WiFi, as well ascircuit protection, HDD shock absorption, HDD heating, operation at wide voltage rangefeatures. -
Page 4: Power Connection
1. To turn the electronic lock clockwise to lock it after HDD/SD card and SIM card are installed; otherwise, the device will not be powered on; 2. To ensure prolonged and stable operation, it is advised to have the device horizontally installed and take waterproof measures;... -
Page 5: Video Input Mode Setting
720P/1080P IPC video inputs camera Hybridconnection channels of IPC+4*720PAHD/960H/D1 of analog and hybrid video inputs camera Table 2 AL200-HYBRID Connection Mode Connection Mode Connection Diagram Model AL300 -HYBRID channels of CIF/ D1/960H analog video Connection of inputs analog camera... - Page 6 Connection ofIP channels of 720P/1080P IPC video inputs camera Hybridconnection channels of 720P IPC+8*960H/D1/CIF of analog and hybrid video inputs camera Table AL300-HYBRID Connection Mode Connection Connection Diagram Model AL2000-HD Mode 4 channels of D1/960H/720P AHD video inputs Connection of 2 channels of 720p AHD（1&2 CH）...
-
Page 7: Software Setting
Notice ,when connect 4channel 720P AHD cameras or 4*960H+1*1080P IPC camera ,need to use High speed SD card（4K card，speed more than 80M/S） 4.2 Software Setting After connecting the camera according to above connection methods, from the Setup menu → Channel Mode interface, select the desired connection mode and save it and the system will automatically restart. -
Page 8: Online Setting
Figure 3 AL3000 HD Setting Interface When adding a camera, select the related channel and you can manually input the IP address and port number of the IP camera, or click "Search" to select the desired IP camera in the search result. - Page 9 Please ensure your device number is unique which will be used by the remote server to monitor and manage your vehicle. Please ensure your vehicle number is correct which will be superimposed on the video. Figure 4 Vehicle Information Setting Interface 2.。...
- Page 10 software). Fill in the access point name (APN), center number, user name and password provided by your operator; select the network type. For Chinese operators, select AUTO. For international subscribers, fill in the information provided by your local mobile operator. Figure 6 Wireless Setup Interface 4.
-
Page 11: Introduction To Remote Control
and authorize it to the corresponding administrator account. In this case, the CMS/IVMS client can remotely manage and monitor your device (In case that your device is managed by the manufacturer, please consult it with the manufacturer; for those establishing their own server, please contact our technical support for help). -
Page 12: Usage Precautions
Usage Precautions Installation Environment To extend thedevice life, please try to install the device in a place where vibration is weak; To ensure normal heat dissipation, do not install the device in a poorly-ventilated area, and also keep about 15 cm away from other objects on the same level; ... - Page 13 Transport and Handling To prevent incidental damage to the device during transport. Handle the device with due care. The original packaging materials and carton are preferred; Power the device off before handling or part replacement to prevent any damage; - 11 -...
-
Page 14: Warranty Policy
Warranty Policy Thank your for choosing our product. We will provide you with best and considerate services! Firstly, you can contact our customer service for one-to-one technical support during use of our product; secondly, the product quality is guaranteed within the warranty period and the freight incurred from returning the product to the company will be half and half;... - Page 15 Dear users, if any non-artificial quality defect is found on reception, please contact the responsible salesman of your vendor, and after our confirmation, return the device to our after-sales department for maintenance, together with this warranty card.
