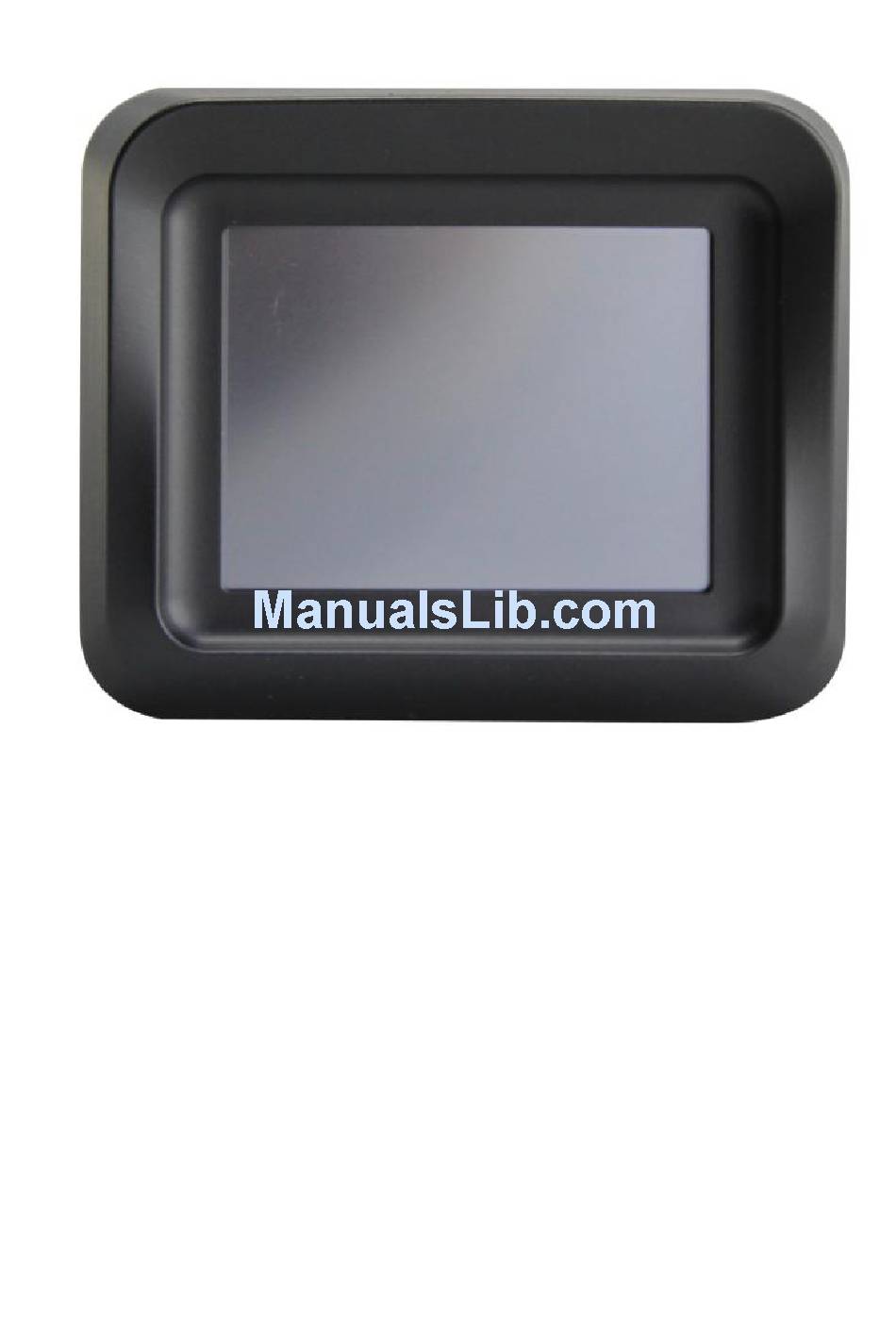

- Page 1 SJ-V21 High Resolution touch Screen Car DVR...
-
Page 2: Table Of Contents
Quick Guide Product Feature ................1 Caution ....................3 Product Appearance ..............4 Accessory ..................5 Operation ..................5 Mounting bracket ................. 6 Funtion Setting— Video Recording Mode ....7 Funtion Setting—Standby Mode ........... 8 Funtion Setting— Video Replay Mode ......9 Funtion Setting—... - Page 3 Feature With the 120-degree ultra wide angle lens, compare to the similar models in the industry, with more 15% wide visual range Using touch screen to make it designed for seamless interaction between humans and machines Video recording, photograph, mute function, emergency ...
- Page 4 Digital Zoom, which provides 4 times optical zoom supports all video and photo mode operation Built-in 3G-SENSOR , automatic detect the x axis, y axis and z axis 3-dimensional space of gravity change, also providing emergency protection function of video anti-writing protection; when there was a serious hit , the G-Sensor automatically detect and start the video anti-writing protection features, full protection of crucial files and records.
- Page 5 Recording mode and playback mode synchronized video output, compliant with in-vehicle AV equipment. Support up to 32GB Micro SD card (please use 4GB the above grades) Built-in microphone, record high quality audio This product is RoHS and through Taiwan BSMI, FCC and CE ...
-
Page 6: Caution
Caution We recommend that you set up all of the options of this product priority, avoid to operate this product while driving, keep driving safety Please keep the camera lens clean, not with fingers and substances such fat containing or water to contact lenses, resulting in dirt and hazy mist or a halo effect, resulting in reduce video quality;... -
Page 7: Product Appearance
Product Appearance 2.4”Touch Screen Display 6 120 Wide angle lens Car Charger Input Port 7 LED Indicator Switch on/off 8 micro SD slot （Press 3 seconds to be forced shutdown） AV OUT 9 GPS Speed Camera Detector connector Mounting Bracket Slot... -
Page 8: Accessory
Accessory Mounting Device Car Charger Software CD bracket... - Page 9 Operation Take out the device from the gift box，insert the SD Card， connect the Car Charger to car cigarette lighter ignition then the device start function. Please use the proper SD Card （please use 4GB the above grades and use above Class6 ），push the SD Card into the slot according to the direction，until it make a "click"...
- Page 10 Mounting the Bracket Accessory mounting bracket can be sucked on the front windshield，to make sure fix the device firmly，Please take the following steps to fix bracket with the device Inset the bracket buckle into the slot of the back-clip（ as the below image） 。 After the combination of the bracket, Recommend to sock the bracket on the front windshield behind the rear-view mirror...
-
Page 11: Funtion Setting-Video Recording Mode
Funtion Setting— Video Recording Mod Video length Video time Manual lock files，Avoid cycling cover。 G-sensor value Resolution Pause recording Night time mode... -
Page 12: Funtion Setting-Standby Mode
Funtion Setting—Standby Mode Playback mode Audio Recording Recording Snap Photo Image flip and flop Main Menu... -
Page 13: Funtion Setting-Video Replay Mode
Funtion Setting— Video Replay Mod Back to previous File number The previous The next Play... -
Page 14: Funtion Setting-Snap Shoot Mode
Funtion Setting— Snap Shoot Mode Photo browse mode The shutter button Recording mode Main Menu... -
Page 15: Main Menu 1/4
Main Menu 1/4 Language Set the interface language Clear all the files in memory, please Format operate carefully，prevent deletion of important files。 1920×1080/30fps Video Quality 1280×720/60fps... -
Page 16: Main Menu 2/4
Main Menu 2/4 Cycle time Set video length White Auto Sunny Cloudy balance Lamp Fluorescent lamp setting Date-time Increase Reduce... -
Page 17: Main Menu 3/4
Main Menu 3/4 Exposure Adjust the exposure compensation compensation value Touch Panel Adjusting touch screen calibration accuracy Reset all settings to factory settings Factory setting values... -
Page 18: Main Menu 4/4
Main Menu 4/4 Screen Set the screen auto-off time Overtime Collision Adjust triggering sensitivity G-sensor detection To exit the Exit the menu and automatically start menu recording... -
Page 19: Emergency Event Protection
Version After the firmware version is displayed, click on the screen bac k to recording display (Subject to the actual version). Emergency Event Protection This device has the G-sensor automatic collision detection， to start the file Write-protect function，Also provides user manual touch emergency protection；pressing this function while recording，the key graphics will appear at the top left corner of the screen the key graphics will appear, emergency protection... - Page 20 function , protect the files not being overwritten by the loop recording function，the files will be saved in the SD card to the separated "CRASH" folder. (as the below image) G-Sensor gravity sensor: automatically detects vehicles collisions a nd forced protect files In the system set up >...
-
Page 21: Video Output Connect To Tv
(2) Adjust the sensitivity in according to the driving condition，Such as high or low sensitivity，for adjusting the sensitivity value of the auto collision detection. Video Output connect to TV Using USB cable (optional)，follow the below instruction to conne ct , please note that after connecting to TV, the screen on the d evice will not display any video.。... -
Page 22: Specification
產品規格 Item Specification 2.4 inch TFT LCD high quality Display touch screen Image Sensor OV2710 120 degree wide-angle lens、 Wide-angle lens 5 pieces of multilayered glass lenses G-sensor Built-in Accelerator (3 axes) Resolution 1920×1080/30fps; 1280×720/60fps Language Chinese Traditional、English Video format Image Resolution Image format Micro SD Maximum support to... - Page 23 2.5mm phone jack-AV OUT Interface (optional) / USB 2.0 Storage temperature -10 ~ 65 ℃ Working temperature -5 ~ 45 ℃ Power Input Car charger DC 5V. 1.5A Dimension 65 ×80 ×37 (mm)
