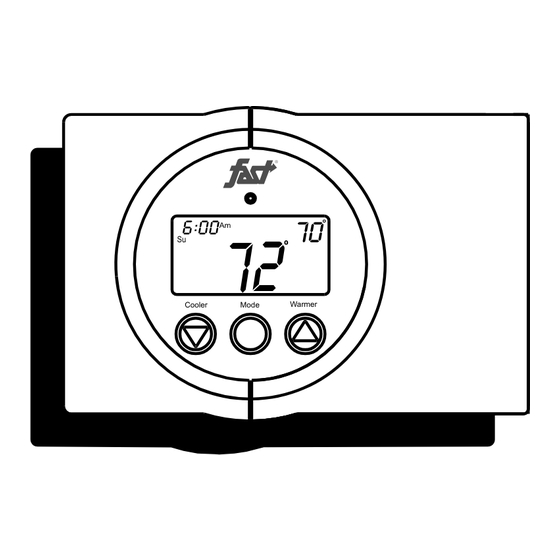

Fast 1 For All TR7DRH Owner's Manual

Programmable digital thermostat
Hide thumbs Also See for 1 For All TR7DRH:

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
OWNER'S MANUAL
1 For All
Programmable
Digital Thermostat
7 Day Programmable
4 Time Periods per Day
Thermoglow
Backlight
One-For-All Technology
Programmable Fan
Meets Residential California Title 24
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
H V A C
International Comfort Products
:
70
6 00
2
o
7
Am
Su
Cooler
Mode
Warmer
Separate Humidification and
Dehumidification Terminals
Read Outdoor Temperature
With Optional Sensor
Large, Easy To Read Display
P A R T S
P/N TR7DRH
2004

Advertisement

loading

Related Manuals for Fast 1 For All TR7DRH

Summary of Contents for Fast 1 For All TR7DRH

  • Page 1 OWNER'S MANUAL P/N TR7DRH 1 For All Programmable Digital Thermostat 6 00 Cooler Mode Warmer 7 Day Programmable Separate Humidification and 4 Time Periods per Day Dehumidification Terminals Thermoglow Backlight Read Outdoor Temperature With Optional Sensor One-For-All Technology Large, Easy To Read Display Programmable Fan Meets Residential California Title 24 Use with most Air Conditioning &...

  • Page 2: Front Panel

    Table Of Contents FRONT PANEL DISPLAY QUICK START Set the clock and go BASIC OPERATION Select a Mode View Outdoor Temp Select a Temperature Humidity Control Auto Operation PROGRAMMING 4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION Cool to Dehumidify Keypad lock Dehumidification Setpoint Memory Backup...
  • Page 3 Front Panel Backlit LCD Heat or Cool Display Indicator Red = Heat, 6 00 Green = Cool Cooler Mode Warmer Cooler or - Warmer or + Button Button Mode Button OUTSIDE 6 00 OUTSIDE HUMIDITY Warmer Cooler Mode PROGRAM SET CLOCK S E V E N D A Y P R O G R A M M A B L E PROGRAM HUMIDITY...
  • Page 4 Display I8 88 Program Setup Morning Night Evening SuMTuWThFSa COOL ServiceFilter Pan Outside AUTO OFFON HEAT Cool to Dehumidify Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies.
  • Page 5 Display Outside Indication Indicates the temperature displayed is from the optional outside sensor. Page 21. Morning, Day, Evening & Night Indication Indicates the program time period. Page 9-12. Setup Indication Indicates the thermostat is in the advanced programming mode. Page 13. Fan Operation Indication Fan On- indicates constant, continuous fan operation, (Fan On).
  • Page 6 Quick Start Set the Clock and Go During Setup & Programming: SET CLOCK Press the SET CLOCK Pressing the Up and Down button. buttons will modify the flashing selection. 12:00 (Represented in dark black) To adjust the Press clock or Day use MODE buttons.
  • Page 7 Basic Operation Temperature Control Select Mode I2 00 The HEAT setting indicates the temperature the room has to reach before the furnace will HEAT Press MODE turn on to heat the room. I2 00 The COOL setting indicates the COOL temperature the room has to reach before the air conditioner will turn on to cool the room.

  • Page 8: Select Desired Temperature

    Basic Operation Temperature Control Select Desired Temperature In any mode, adjust the desired Set Temperature I2 00 with COOL AUTO HEAT buttons. Pressing the up/down buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. Pressing the up/down buttons in Heat or Cool modes will adjust only the heat or cool set temperature.
  • Page 9 Basic Operation Humidity Control NOTE: Each step # is located at Press the Humidity button the top right corner of the HUMIDITY to enter Setup screens. display for easy reference. Pages 18,20 Current Room Humidity Select On to energize the humidifier system when humidity drops below the desired level.
  • Page 10 Programming 4 Time Periods Press Press the PROGRAM button to enter time period programming. PROGRAM Use the back cover Programming Worksheet to help with this section. Select the day of week (M - Su) Press MODE 6 00 6 00 Morning Morning Adjust the start time...
  • Page 11 Programming 4 Time Periods 8 00 Adjust the start time for Day. Press MODE 8 00 Adjust the cooling COOL setpoint for Day. (35 - 99 ) Press MODE 8 00 Adjust the heating COOL setpoint for Day. (35 - 99 ) HEAT Press MODE...
  • Page 12 Programming 4 Time Periods 6 00 Evening Adjust the heating COOL setpoint for Evening. HEAT (35 - 99 ) Press MODE I0 00 Night Adjust the start time for Night. Press MODE I0 00 Night Adjust the cooling COOL setpoint for Night. (35 - 99 ) Press MODE...
  • Page 13 Programming 4 Time Periods The copy command becomes available after programming the entire previous day. Select Yes or No to copy the previous day’s program to this day. If No is selected: If Yes is selected: Selecting Yes, then pressing mode will copy the previous day’s program and then will ask the Press same copy question again.
  • Page 14 Advanced Setup Before entering Advanced Setup, use the Mode button to place the unit in OFF. These steps are normally set up by the installer. Setting these values incorrectly may result in improper operation. Setup steps 1 & 2 are found in the clock set section.
  • Page 15 Advanced Setup Setup Select Electric Heat On or OFF. (Step 7 only appears if Step 5 is set to OFF). Press MODE Setup Adjust the Deadband ( 1 - 6 ) Press MODE Setup Adjust the minimum difference between COOL cooling &...
  • Page 16 Advanced Setup 0 00 Setup Adjust the programmable fan timer. page 20 0 - 60 minutes. 0:00 = off Press MODE Fan On 7 00 Setup Adjust the programmable fan start time. Press MODE Fan On Step 16 appears only if step 15 is not 0:00. 9 00 Setup Adjust the programmable...
  • Page 17 Advanced Setup Setup Select Dehumdification Operation On or Off. Page 8,18,20 Dehumidify Press Step 18 appears if step 17 is set to “ON” MODE Setup COOL Select Cool to Dehumidify feature. Page 8,18,20 Dehumidify Press MODE Step 19 appears only if step 17 is set to “ON” Setup Adjust the Maximum COOL...

  • Page 18: Advanced Setup Table

    Advanced Setup Advanced Setup Table Step # Description Range Factory Default Time of day clock set 24 hour 12:00 Am Day of the week Sun - Sat Monday Reset Service Filter icon Service Filter run time set 0 - 1950 Heat Pump operation Off / On Reversing valve polarity...
  • Page 19 About Advanced Features & Operation COOL TO DEHUMIDIFY - The compressor will run with the fan in this mode to reduce moisture in the air (step#19). This feature will allo adjustment of the cooling overshoot of the setpoint 0 to 5 (step#20). DEHUMIDIFICATION SETPOINT - If your HVAC unit is equipped with a Dehumidification System and the Humidity...
  • Page 20 About Advanced Features & Operation ELECTRIC HEAT - Selecting Electric Heat ON, page 14, step 7, will cause the thermostat to turn on the fan immediately any time there is a heat demand. Since all gas furnaces control the fan, this feature should be off unless the heater is only electric.
  • Page 21 About Advanced Features & Operation HUMIDIFICATION SETPOINT - If your HVAC unit is equipped with a humidification system, the thermostat will provide power to the Dehum terminal on the backplate of the thermostat when the Humidity in the home falls below the setpoint you have chosen.
  • Page 22 About Advanced Features & Operation MINIMUM HEAT/COOL SETPOINT DIFFERENCE - The Heat and Cool setpoints will not be allowed to come any closer to each other than the value set in Advanced Setup step # 9, on page 14. This minimum difference is enforced during Auto changeover and Program On operation.
  • Page 23 About Advanced Features & Operation PROGRAMMABLE FAN - If the Programmable Fan timer is set to a value other than 0:00, the fan will run for the preprogrammed amount of time, page 15, step# 12. The Programmable Fan timer will start the fan at the top of each hour.
  • Page 24 Warranty One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
  • Page 25 Programming Worksheet see page 9 DAY PERIOD START TIME COOL HEAT Morning Evening Night Morning Copy Mon Evening Night Morning Copy Tue Evening Night Morning Copy Wed Evening Night Morning Copy Thu Evening Night Morning Copy Fri Evening Night Morning Copy Sat Evening Night...
