WARNING
WARNING
To reduce the risk of fire, burn hazard
or other injury, read the instruction
carefully and be sure your appliance is
properly installed and assembled.
DANGER
If you smell gas:
1. Shut off gas to the appliance;
2. Extinguish any open flame;
3.Open lid;
4. If ordor continues, keep away from
the appliance and immediately call
your gas supplier or your fire
department.
WARNING
TO INSTALLER:
Test operation of the appliance and
instruct the user before leaving.
Ensure the appliance is commissioned
correctly before handing over to the
user.
USER MANUAL AND
INSTALL INSTRUCTION
WARNING
WARNING
FOR OUTDOOR USE ONLY
WARNING
WARNING
The grill head is heavy and will
require two or more people to lift
and position onto the grill cart when
assembly
WARNING
WARNING
Do not try lighting this appliance
without first reading the "LIGHTING
INSTRUCTION" section of this manual
WARNING
Conversion to natural gas only done
by authorized persons
WARNING
Always keep the electrical
components in dry situation.
Advertisement
Table of Contents
Related Manuals for SMART 401WB-W
Summary of Contents for SMART 401WB-W

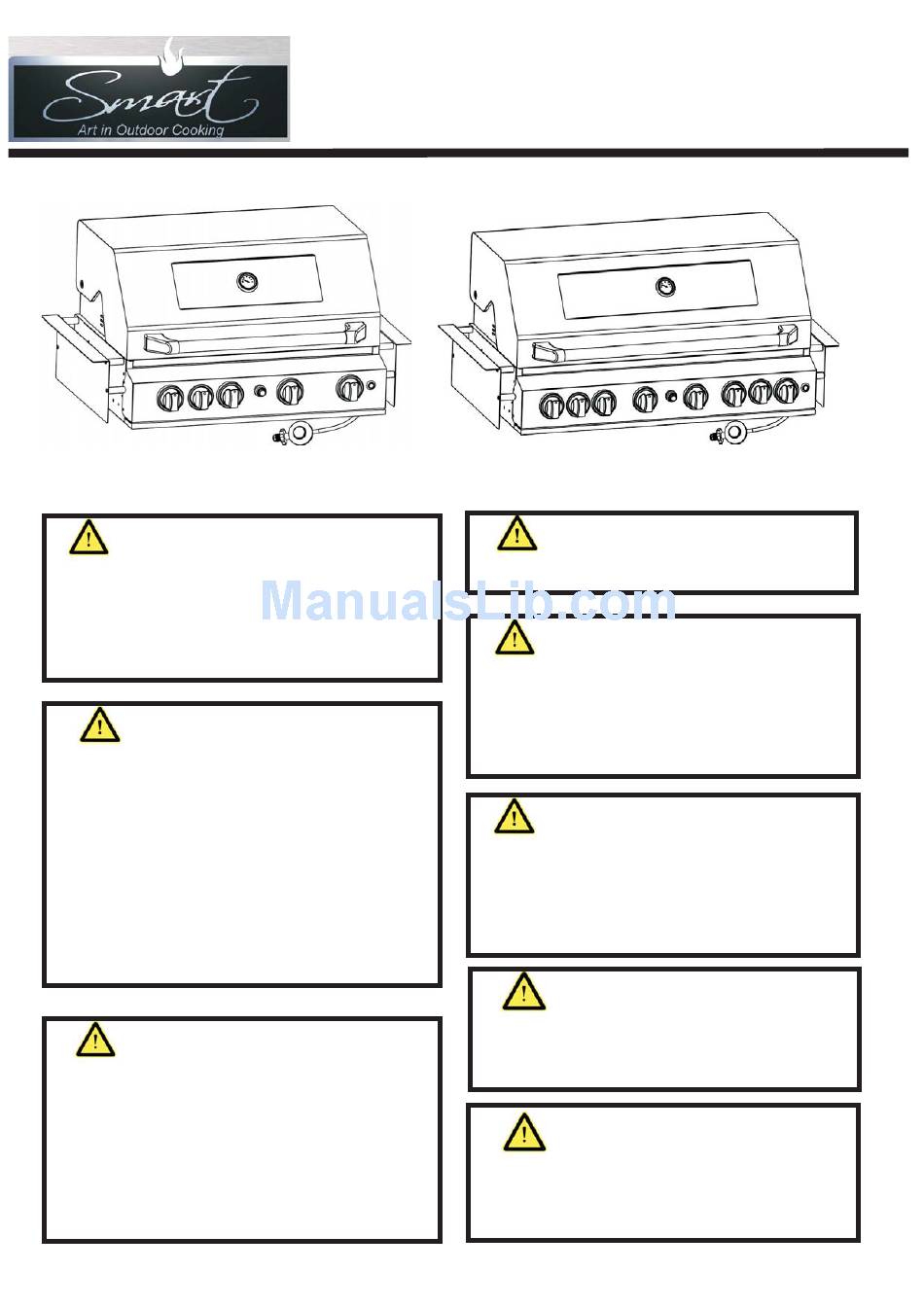

- Page 1 USER MANUAL AND INSTALL INSTRUCTION WARNING WARNING WARNING WARNING FOR OUTDOOR USE ONLY To reduce the risk of fire, burn hazard or other injury, read the instruction carefully and be sure your appliance is WARNING WARNING properly installed and assembled. The grill head is heavy and will require two or more people to lift and position onto the grill cart when...
-
Page 2: Outdoor Use Only
OUTDOOR USE ONLY This appliance shall only be used in above ground open-air situations with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the appliance is used shall comply with one of the following: - An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. - Page 3 PLEASE DO Use spanner to tighten all gas fittings Check all gas hose and line connection for damage, cuts or cracks each time for using the appliance. Always leak test with soapy water Check all burners regularly for insect nets such as spiders, ants, etc. Nets are dangerous and need to be fully cleaned.
-
Page 4: Gas Cylinder Information
GAS CYLINDER INFORMATION WARNING -This appliance is designed to be used with a gas cylinder not exceeding (Australia 9KG); The gas cylinder supply valve must be turned off when the appliance is not in use. Gas cylinders must be stored outdoors, out of reach of children and must not be stored in a building, garage or any other enclosed area. - Page 5 Gas Leak Test WARNING Never use a naked flame to check for gas leaks. Always use the following procedure to check for gas leaks. 1. In a small container, mix up a solution of water and detergent or soap. 2. Make sure that the gas supply valve on the gas cylinde is turned on. 3.
- Page 6 -For personal safety, wear proper apparel. Loose fitting garments or sleeves should never been worn while using this appliance. Some synthetic fabrics are highly flammable and should be not worn while cooking. -Only certain types of glass, ceramic earthenware , or other glazed utensils are suitable for grill use. Other types of material may shatter with sudden temperature changes.
-
Page 7: Electrical Components
ELECTRICAL COMPONENTS WARNING Electrical Groundings Instructions for Transformer- This appliance (Transformer) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, must be electrically grounded in accordance with local codes. DO NOT cut or remove the grounding prong from this plug. 1.To protect against electrical shock, DO NOT immerse cord or plugs in water or other liquids. -
Page 8: Care And Maintenance
To light the grill 1.Open the lid and make sure all the knobs are on the OFF position. 2.Push down the knob and turn the knob anticlockwise to HIGH position, then keep pressing the igniter for 2-3 seconds ( a sound could be heard), thus the burner could be lit. If the burner does not light, turn off the knob and wait for 5 minutes then repeat this process. - Page 9 Grease Pan The grease pan should be empted, wiped down and washed after each use with a mild detergent and warm water solution. Check the grease pan frequently and do not allow excess grease to accumulate and flow out of the grease pan. Grill Burner Extreme care should be taken when removing a burner.
-
Page 10: Abnormal Operation
Burners failing to remain alight Burner extinguished by trolley doors Gas valves, which are difficult to turn TECHNICAL DATA Model No. 401WB-W Gas Type: Universal LP Gas & Natural Gas Test Point Pressure: Universal LP Gas- 2.75 kpa Natural Gas-1.0KPA... - Page 11 TECHNICAL DATA Model No. 601WB-W Gas Type: Universal LP Gas & Natural Gas Test Point Pressure: Universal LP Gas- 2.75 kpa Natural Gas-1.0KPA otal Nominal Gas Consumption: Universal LP Gas-91MJ/h Natural Gas-77 MJ/h Nominal Gas Consumption & Injector size: Universal LP Gas - Main Burners: 13MJ/h x 6 Injector size 0.98mm - Back Burner: 13MJ/h...
- Page 12 EXPANDED VIEW & PART LIST FOR MODEL 401WB-W...
- Page 13 EXPANDED VIEW & PART LIST FOR MODEL 601WB-W...
- Page 14 Tools required: 1.Phillips Head Screwdriver ASSEMBLY INSTRUCTIONS 2.Gloves 1. Built -in bracket assembly M6x60 8pcs 2. Flame diffuser assembly...
- Page 15 ASSEMBLY INSTRUCTIONS 3. Cooking grid/cooking plate assembly 4. Warming rack assembly...
- Page 16 ASSEMBLY INSTRUCTIONS 5. Transformer and cable connecting Warning: The transformer need to be installed and fixed on the place where far away from the appliance. 6. 1xAA battery ( Battery is not included)
- Page 17 ASSEMBLY INSTRUCTIONS * For Rotisseries kit Note: 2 Motor brackets needed for using...
-
Page 18: Built-In Installation
BUILT-IN INSTALLATION WARNING 1. Please follow following instruction to Install. 2. The minimum clearance of the sides of the BBQ to walls needs to be 50mm. 3. DO NOT block any ventilation of the BBQ. 4. The enclosure material for the cutout is not combustibles 5. -
Page 19: Natural Gas Conversion
NATURAL GAS CONVERSION WARNING CONVERSIONS ONLY TO BE DONE BY AUTHORIZED PERSON Tools required: 1. Socket head set screw driver (Included with the appliance) 2. Wretch Gas piping 1. A minimum pipe with diameter 15mm is required for inlet piping. A lever operated shut-off valve should be installed with 1 meter of the appliance for serving the appliance. - Page 20 3.With the burner removed, you will see the brass gas jet which is screwed into the end of the valve. Using the socket driver supplied, unscrew the end LPG jet while retaining the inner (NG) jet. 4.Assembly the burner back. Please make sure Please make sure the gas valve is located well inside the main burner tube.
- Page 21 2.Remove the LPG jet from the elbow shaped brass injector assembly 3. Reassemble the plates as removed.
- Page 22 BARBECUE LIGHTS Ways to replace the light 1. Unscrew the light 2.Take out the light 3. Unscrew the cable 4. Replace the light then assembly back WARNING - The lights is hot when in working. The replacement need to be done after the light has cooled down. - Always keep the light in dry condition...
-
Page 23: Led Lights
LED LIGHTS Note: The LED light is inserted into the control bezel as a whole unit, if it needs to be replaced, the whole unit needs to be replaced. 1.Take off the control knob 2. Unscrew the knob bezel 3.Take off the unit and loose the LED cable connection carefully and replace the new LED light... -
Page 24: Warranty
This warranty only applies to the original Smart products distributed in Australia a nd where it has been used other than purchaser hire purchaser of this appliance New Zealand by Arisit Pty Limited.
