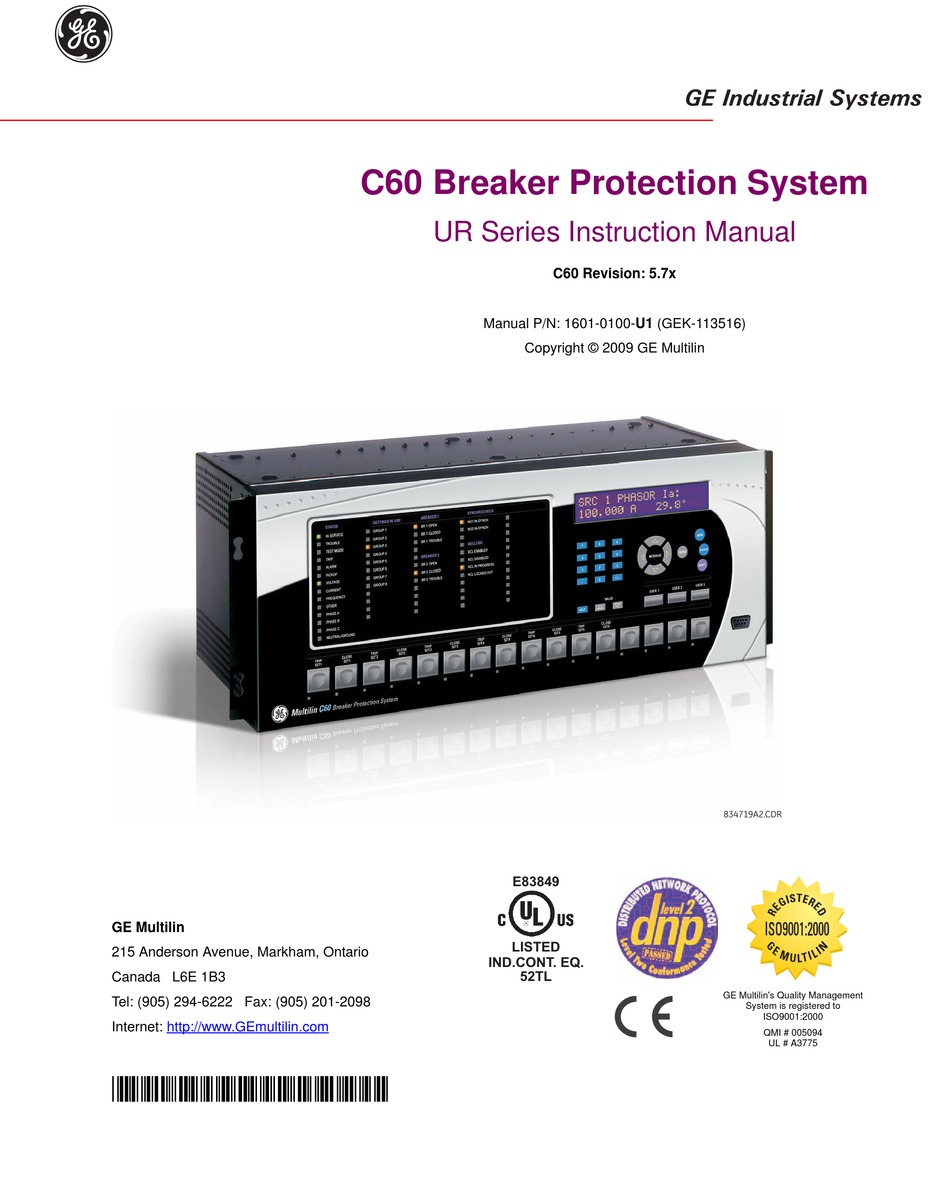

Title Page

GE Multilin

215 Anderson Avenue, Markham, Ontario

Canada L6E 1B3

Tel: (905) 294-6222 Fax: (905) 201-2098

Internet:

http://www.GEmultilin.com

*1601-0100-U1*

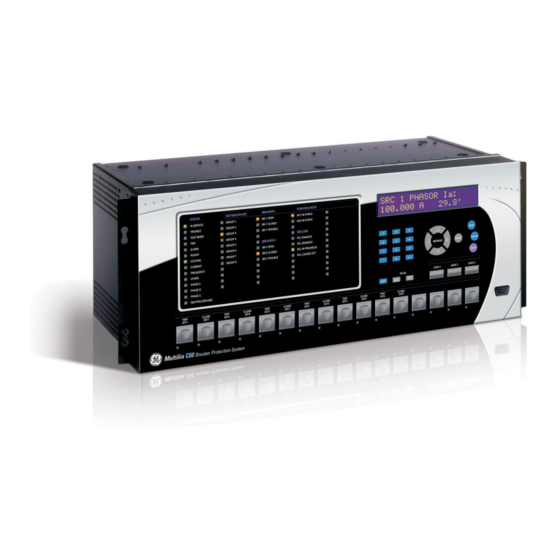

C60 Breaker Protection System

UR Series Instruction Manual

Manual P/N: 1601-0100-U1 (GEK-113516)

Copyright © 2009 GE Multilin

E83849

LISTED

IND.CONT. EQ.

52TL

GE Industrial Systems

C60 Revision: 5.7x

834719A2.CDR

GE Multilin's Quality Management

I I SO9001:2000

System is registered to

ISO9001:2000

QMI # 005094

UL # A3775

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the C60 UR series and is the answer not in the manual?

Questions and answers

Summary of Contents for GE Multilin C60 UR series

Page 1 Title Page GE Industrial Systems C60 Breaker Protection System UR Series Instruction Manual C60 Revision: 5.7x Manual P/N: 1601-0100-U1 (GEK-113516) Copyright © 2009 GE Multilin 834719A2.CDR E83849 I I SO9001:2000 GE Multilin LISTED 215 Anderson Avenue, Markham, Ontario IND.CONT. EQ.
Page 3 Addendum GE Industrial Systems ADDENDUM This addendum contains information that relates to the C60 Breaker Protection System, version 5.7x. This addendum lists a number of information items that appear in the instruction manual GEK-113516 (revision U1) but are not included in the current C60 operations.
Page 5: Table Of Contents
3.2 WIRING 3.2.1 TYPICAL WIRING.................... 3-10 3.2.2 DIELECTRIC STRENGTH ................3-11 3.2.3 CONTROL POWER ..................3-11 3.2.4 CT/VT MODULES .................... 3-12 3.2.5 PROCESS BUS MODULES ................3-14 3.2.6 CONTACT INPUTS AND OUTPUTS ............... 3-14 GE Multilin C60 Breaker Protection System...
Page 6 MODBUS USER MAP ..................5-36 5.2.6 REAL TIME CLOCK ..................5-37 5.2.7 FAULT REPORTS ....................5-38 5.2.8 OSCILLOGRAPHY ...................5-40 5.2.9 DATA LOGGER ....................5-42 5.2.10 DEMAND ......................5-43 5.2.11 USER-PROGRAMMABLE LEDS ..............5-44 5.2.12 USER-PROGRAMMABLE SELF TESTS ............5-48 5.2.13 CONTROL PUSHBUTTONS ................5-49 C60 Breaker Protection System GE Multilin...
Page 7 IEC 61850 GOOSE ANALOGS..............5-202 5.8.13 IEC 61850 GOOSE INTEGERS..............5-203 5.9 TRANSDUCER INPUTS AND OUTPUTS 5.9.1 DCMA INPUTS ....................5-204 5.9.2 RTD INPUTS....................5-205 5.9.3 DCMA OUTPUTS ..................5-206 5.10 TESTING 5.10.1 TEST MODE ....................5-210 GE Multilin C60 Breaker Protection System...
Page 8 CLEAR RECORDS .....................7-2 7.1.4 SET DATE AND TIME ..................7-2 7.1.5 RELAY MAINTENANCE ..................7-3 7.2 TARGETS 7.2.1 TARGETS MENU ....................7-4 7.2.2 TARGET MESSAGES ..................7-4 7.2.3 RELAY SELF-TESTS ..................7-4 8. SECURITY 8.1 PASSWORD SECURITY 8.1.1 OVERVIEW ......................8-1 viii C60 Breaker Protection System GE Multilin...
Page 9 GGIO2: DIGITAL CONTROL VALUES ..............C-2 C.2.4 GGIO3: DIGITAL STATUS AND ANALOG VALUES FROM RECEIVED GOOSE DATAC-2 C.2.5 GGIO4: GENERIC ANALOG MEASURED VALUES .........C-2 C.2.6 MMXU: ANALOG MEASURED VALUES............C-3 C.2.7 PROTECTION AND OTHER LOGICAL NODES ..........C-3 GE Multilin C60 Breaker Protection System...
Page 10 ANALOG INPUTS.................... E-11 F. MISCELLANEOUS F.1 CHANGE NOTES F.1.1 REVISION HISTORY..................F-1 F.1.2 CHANGES TO THE C60 MANUAL ..............F-2 F.2 ABBREVIATIONS F.2.1 STANDARD ABBREVIATIONS ................. F-6 F.3 WARRANTY F.3.1 GE MULTILIN WARRANTY................F-8 C60 Breaker Protection System GE Multilin...
Page 11 TABLE OF CONTENTS INDEX GE Multilin C60 Breaker Protection System...
Page 12 TABLE OF CONTENTS C60 Breaker Protection System GE Multilin...
Page 13: Cautions And Warnings
• registration card (attached as the last page of the manual) • Fill out the registration form and return to GE Multilin (include the serial number located on the rear nameplate). • For product information, instruction manual updates, and the latest software updates, please visit the GE Multilin web- site at http://www.GEmultilin.com.
Page 14: Introduction To The Ur
This new generation of equipment must also be easily incorporated into automation systems, at both the station and enterprise levels. The GE Multilin Universal Relay (UR) has been developed to meet these goals. C60 Breaker Protection System...
Page 15: Hardware Architecture
(dual) ring configuration. This feature is optimized for speed and intended for pilot- aided schemes, distributed logic applications, or the extension of the input/output capabilities of a single relay chassis. GE Multilin C60 Breaker Protection System...
Page 16: Software Architecture
5. An explanation of the use of inputs from CTs and VTs is in the Introduction to AC sources section in chapter 5. A description of how digital signals are used and routed within the relay is contained in the Introduction to FlexLogic™ section in chapter 5. C60 Breaker Protection System GE Multilin...
Page 17: Pc Requirements
Click the Install Now button and follow the installation instructions to install the no-charge EnerVista software. When installation is complete, start the EnerVista Launchpad application. Click the IED Setup section of the Launch Pad window. GE Multilin C60 Breaker Protection System...
Page 18 EnerVista UR Setup to the Windows start menu. Click Finish to end the installation. The UR-series device will be added to the list of installed IEDs in the EnerVista Launchpad window, as shown below. C60 Breaker Protection System GE Multilin...
Page 19: Configuring The C60 For Software Access
RS232 port is intended for local use and is not described in this section; see the Using the Quick Connect Feature section for details on configuring the RS232 port. A GE Multilin F485 converter (or compatible RS232-to-RS485 converter) is will be required. Refer to the F485 instruction manual for additional details.
Page 20 Device Setup window. Click the Add Device button to define the new device. Enter the desired name in the “Device Name” field and a description (optional) of the site. C60 Breaker Protection System GE Multilin...
Page 21: Using The Quick Connect Feature
Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista CD or online from http://www.GEmultilin.com). See the Software Installation section for installation details. Select the “UR” device from the EnerVista Launchpad to start EnerVista UR Setup. GE Multilin C60 Breaker Protection System...
Page 22 White/orange Blue Blue White/blue White/blue Green Orange White/brown White/brown Brown Brown 842799A1.CDR Figure 1–6: ETHERNET CROSS-OVER CABLE PIN LAYOUT Now, assign the laptop computer an IP address compatible with the relay’s IP address. 1-10 C60 Breaker Protection System GE Multilin...
Page 23 Right-click the Local Area Connection icon and select Properties. Select the Internet Protocol (TCP/IP) item from the list provided and click the Properties button. Click on the “Use the following IP address” box. GE Multilin C60 Breaker Protection System 1-11...
Page 24 Verify the physical connection between the C60 and the laptop computer, and double-check the programmed IP address in setting, then repeat step 2 in the above procedure. PRODUCT SETUP COMMUNICATIONS NETWORK IP ADDRESS C:\WINNT>ping 1.1.1.1 If the following sequence of messages appears when entering the command: 1-12 C60 Breaker Protection System GE Multilin...
Page 25 Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE enerVista CD or online from http://www.GEmultilin.com). See the Software Installation section for installation details. Start the Internet Explorer software. GE Multilin C60 Breaker Protection System 1-13...
Page 26 The EnerVista UR Setup software will then proceed to configure all settings and order code options in the Device Setup menu, for the purpose of communicating to multiple relays. This feature allows the user to identify and interrogate, in seconds, all UR-series devices in a particular location. 1-14 C60 Breaker Protection System GE Multilin...
Page 27: Connecting To The C60 Relay
View the C60 event record. • View the last recorded oscillography record. • View the status of all C60 inputs and outputs. • View all of the C60 metering values. • View the C60 protection summary. GE Multilin C60 Breaker Protection System 1-15...
Page 28: Mounting And Wiring
Figure 1–7: RELAY COMMUNICATIONS OPTIONS To communicate through the C60 rear RS485 port from a PC RS232 port, the GE Multilin RS232/RS485 converter box is required. This device (catalog number F485) connects to the computer using a “straight-through” serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the C60 rear communications port.
Page 29: Faceplate Keypad
LED off. The relay in the “Not Programmed” state will block signaling of any output relay. These conditions will remain until the relay is explicitly put in the “Programmed” state. Select the menu message SETTINGS PRODUCT SETUP INSTALLATION RELAY SETTINGS RELAY SETTINGS: Not Programmed GE Multilin C60 Breaker Protection System 1-17...
Page 30: Relay Passwords
Refer to the Changing Settings section in Chapter 4 for complete instructions on setting up security level passwords. NOTE 1.5.6 FLEXLOGIC™ CUSTOMIZATION FlexLogic™ equation editing is required for setting up user-defined logic for customizing the relay operations. See the Flex- Logic™ section in Chapter 5 for additional details. 1-18 C60 Breaker Protection System GE Multilin...
Page 31: Commissioning
View the event recorder and oscillography or fault report for correct operation of inputs, outputs, and elements. If it is concluded that the relay or one of its modules is of concern, contact GE Multilin for prompt service. GE Multilin...
Page 32 1.5 USING THE RELAY 1 GETTING STARTED 1-20 C60 Breaker Protection System GE Multilin...
Page 33: Overview
Neutral Time Overcurrent Sensitive Directional Power Phase Time Overcurrent 50DD Disturbance detector AC Circuit Breaker Ground Instantaneous Overcurrent Neutral Overvoltage Neutral Instantaneous Overcurrent Auxiliary Overvoltage 50N BF Neutral Instantaneous Overcurrent, Autoreclose Breaker Failure Phase Instantaneous Overcurrent GE Multilin C60 Breaker Protection System...
Page 34: Ordering
Each of these modules can be supplied in a number of configurations specified at the time of ordering. The information required to completely specify the relay is provided in the following tables (see chapter 3 for full details of relay modules). Order codes are subject to change without notice. Refer to the GE Multilin ordering page at http://www.GEindustrial.com/multilin/order.htm for the latest details concerning C60 ordering options.
Page 35 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels GE Multilin C60 Breaker Protection System...
Page 36 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels C60 Breaker Protection System GE Multilin...
Page 37 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels GE Multilin C60 Breaker Protection System...
Page 38: Replacement Modules
Not all replacement modules may be applicable to the C60 relay. Only the modules specified in the order codes are available as replacement modules. NOTE Replacement module codes are subject to change without notice. Refer to the GE Multilin ordering page at http:// www.GEindustrial.com/multilin/order.htm for the latest details concerning C60 ordering options.
Page 39 4 dcmA inputs, 4 dcmA outputs (only one 5A module is allowed) 8 RTD inputs INPUTS/OUTPUTS 4 RTD inputs, 4 dcmA outputs (only one 5D module is allowed) 4 dcmA inputs, 4 RTD inputs 8 dcmA inputs GE Multilin C60 Breaker Protection System...
Page 40 4 dcmA inputs, 4 dcmA outputs (only one 5A module is allowed) 8 RTD inputs INPUTS/OUTPUTS 4 RTD inputs, 4 dcmA outputs (only one 5D module is allowed) 4 dcmA inputs, 4 RTD inputs 8 dcmA inputs C60 Breaker Protection System GE Multilin...
Page 41: Protection Elements
0.1 to 2.0 × CT rating: ±0.75% of reading or ±2% of rated Time accuracy: ±3% or ±4 ms, whichever is greater (whichever is greater) Operate time: 50 ms above 2 × CT rating: ±2.5% of reading GE Multilin C60 Breaker Protection System...
Page 42: User-Programmable Elements
Number: up to 256 logical variables grouped tual input under 16 Modbus addresses Reset mode: self-reset or latched Programmability: any logical variable, contact, or virtual input 2-10 C60 Breaker Protection System GE Multilin...
Page 43: Monitoring
Relay accuracy: ±1.5% (V > 10 V, I > 0.1 pu) Worst-case accuracy: user data %error user data %error user data Line%error METHOD see chapter 8 %error RELAY ACCURACY + (1.5%) %error GE Multilin C60 Breaker Protection System 2-11...
Page 44: Metering
Current input (mA DC): 0 to –1, 0 to +1, –1 to +1, 0 to 5, 0 to 10, 0 to 20, 4 to 20 (programmable) 379 Ω ±10% Input impedance: Conversion range: –1 to + 20 mA DC Accuracy: ±0.2% of full scale Type: Passive 2-12 C60 Breaker Protection System GE Multilin...
Page 45: Power Supply
0.3 A FORM-A VOLTAGE MONITOR 250 V 0.2 A Applicable voltage: approx. 15 to 250 V DC Operate time: < 4 ms Trickle current: approx. 1 to 2.5 mA Contact material: silver alloy GE Multilin C60 Breaker Protection System 2-13...
Page 46 L/R = 20 ms L/R = 40 ms L/R = 40 ms Internal fuse: 5 A / 350 V AC, Ceramic, Axial SLO 0.8 A L/R = 40 ms BLO; Manufacturer: Conquer; Part number: SCD-A 005 2-14 C60 Breaker Protection System GE Multilin...
Page 47: Communications
Shielded twisted pair: 150 m (492 ft.) MAXIMUM STANDARD FAST ETHERNET SEGMENT LENGTHS 10Base-T (CAT 3, 4, 5 UTP): 100 m (328 ft.) 100Base-TX (CAT 5 UTP):100 m (328 ft.) Shielded twisted pair: 150 m (492 ft.) GE Multilin C60 Breaker Protection System 2-15...
Page 48: Inter-Relay Communications
IEC 60068-2-2, 16 h at +85°C Altitude: Up to 2000 m Storage temperature: –40 to +85°C Installation category: UL/CSA/CE safety rating:–40 to +60°C Pollution degree: The LCD contrast may be impaired at temperatures less than –20°C. NOTE 2-16 C60 Breaker Protection System GE Multilin...
Page 49: Type Tests
Units that are stored in a de-energized state should be powered up once per year, for one hour continuously, to NOTE avoid deterioration of electrolytic capacitors. GE Multilin C60 Breaker Protection System 2-17...
Page 50 2.2 SPECIFICATIONS 2 PRODUCT DESCRIPTION 2-18 C60 Breaker Protection System GE Multilin...
Page 51: Panel Cutout
RS232 communications port. The relay is secured to the panel with the use of four screws supplied with the relay. 11.016” [279,81 mm] 9.687” [246,05 mm] 17.56” [446,02 mm] 7.460” [189,48 mm] 6.995” 6.960” [177,67 mm] [176,78 mm] 19.040” [483,62 mm] 842807A1.CDR Figure 3–1: C60 HORIZONTAL DIMENSIONS (ENHANCED PANEL) GE Multilin C60 Breaker Protection System...
Page 52 The case dimensions are shown below, along with panel cutout details for panel mounting. When planning the location of your panel cutout, ensure that provision is made for the faceplate to swing open without interference to or from adjacent equipment. C60 Breaker Protection System GE Multilin...
Page 53 RS232 communications port. The relay is secured to the panel with the use of four screws supplied with the relay. 11.015” 7.482” 1.329” 13.560” 15.000” 14.025” 4.000” 9.780” 843809A1.CDR Figure 3–4: C60 VERTICAL DIMENSIONS (ENHANCED PANEL) GE Multilin C60 Breaker Protection System...
Page 54 Figure 3–5: C60 VERTICAL MOUNTING AND DIMENSIONS (STANDARD PANEL) For details on side mounting C60 devices with the enhanced front panel, refer to the following documents available online from the GE Multilin website. • GEK-113180: UR-series UR-V side-mounting front panel assembly instructions.
