Manual Tulp gas fires

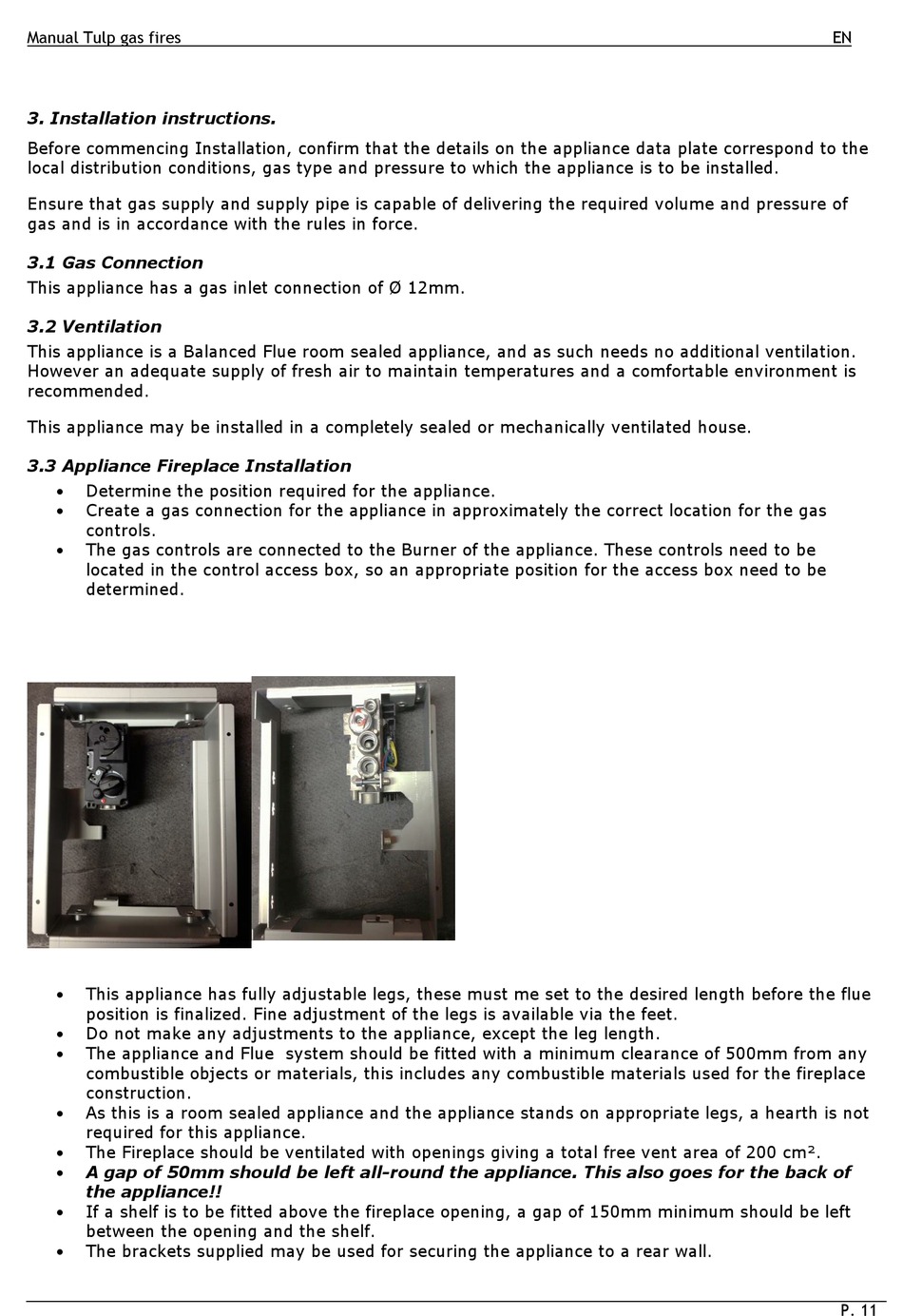

3. Installation instructions.

Before commencing Installation, confirm that the details on the appliance data plate correspond to the
local distribution conditions, gas type and pressure to which the appliance is to be installed.
Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of
gas and is in accordance with the rules in force.

3.1 Gas Connection

This appliance has a gas inlet connection of Ø 12mm.

3.2 Ventilation

This appliance is a Balanced Flue room sealed appliance, and as such needs no additional ventilation.
However an adequate supply of fresh air to maintain temperatures and a comfortable environment is
recommended.
This appliance may be installed in a completely sealed or mechanically ventilated house.

3.3 Appliance Fireplace Installation

 Determine the position required for the appliance.
 Create a gas connection for the appliance in approximately the correct location for the gas
controls.
 The gas controls are connected to the Burner of the appliance. These controls need to be
located in the control access box, so an appropriate position for the access box need to be
determined.
 This appliance has fully adjustable legs, these must me set to the desired length before the flue
position is finalized. Fine adjustment of the legs is available via the feet.
 Do not make any adjustments to the appliance, except the leg length.
 The appliance and Flue system should be fitted with a minimum clearance of 500mm from any
combustible objects or materials, this includes any combustible materials used for the fireplace
construction.
 As this is a room sealed appliance and the appliance stands on appropriate legs, a hearth is not
required for this appliance.
 The Fireplace should be ventilated with openings giving a total free vent area of 200 cm².
 A gap of 50mm should be left all-round the appliance. This also goes for the back of
the appliance!!
 If a shelf is to be fitted above the fireplace opening, a gap of 150mm minimum should be left
between the opening and the shelf.
 The brackets supplied may be used for securing the appliance to a rear wall.
EN
P. 11
