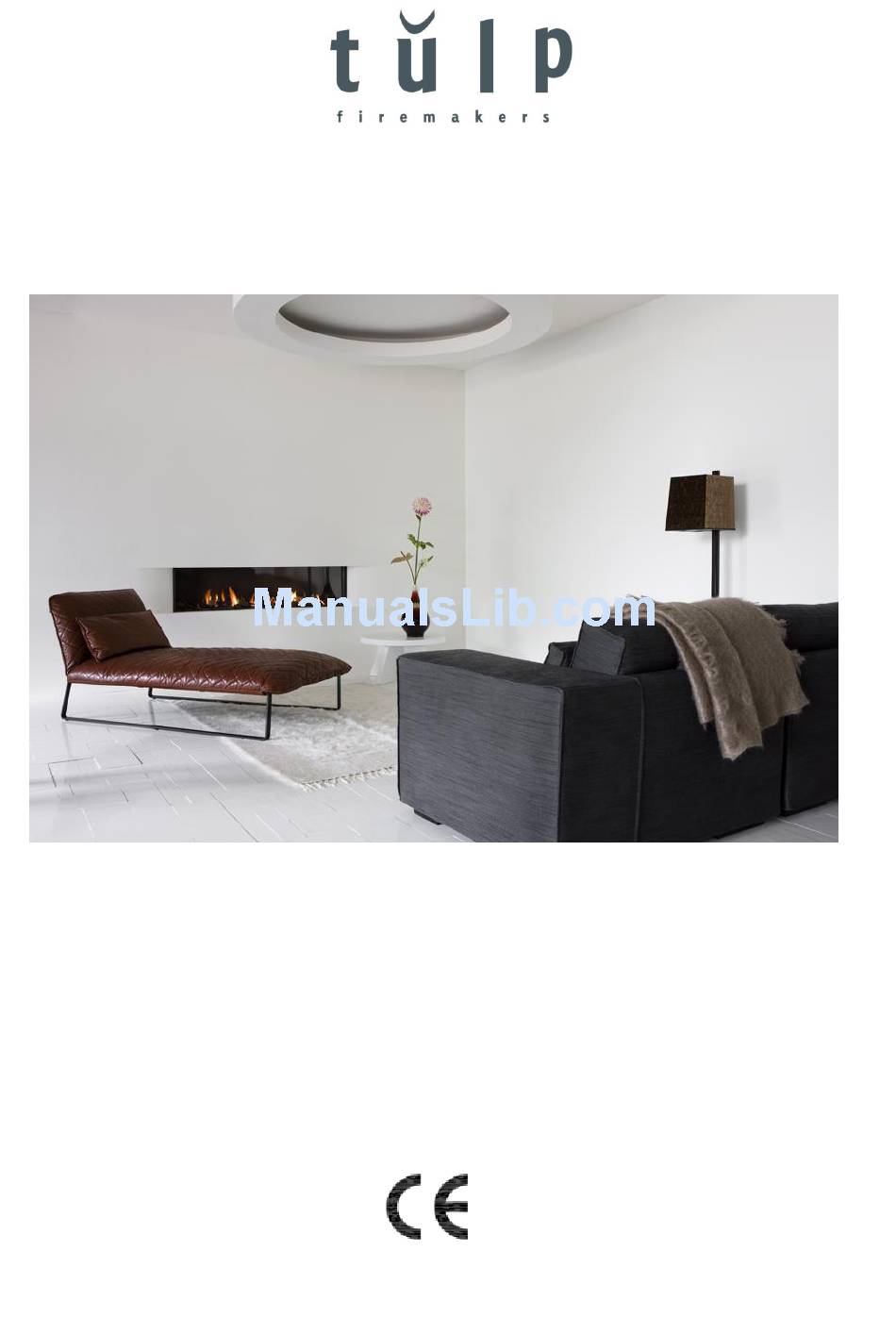

Tulp B-Fire 50 Installation, Servicing And User Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

B-Fires Gas
inc.: Standard Fireback, Tunnel and Round
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
For use in GB & IE (United Kingdom and Ireland)
This appliance has been tested and certified for other counties (see technical data). However to install appliance in
other countries, modification of the appliance and its method of installation may be necessary in order to use the
appliance safely and correctly. The manual for the local language must be obtained. Contact Tulp for further
information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-Fire 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tulp B-Fire 50

  • Page 1 This appliance has been tested and certified for other counties (see technical data). However to install appliance in other countries, modification of the appliance and its method of installation may be necessary in order to use the appliance safely and correctly. The manual for the local language must be obtained. Contact Tulp for further information.

  • Page 2: Table Of Contents

    Manual Tulp gas fires Content 1. General Notes 2. User instructions 2.1 First Time of Operation 2.2 Remote Control Overview 2.2.1 Batteries 2.2.2 Replacing the batteries 2.2.3 Setting the Transmitter code 2.2.4 Handset 2.3 Cleaning and Maintenance 3. Installation instructions.

  • Page 3: General Notes

    If this appliance is extinguished, on purpose or other, no attempt to relight should be made within 3 minutes. Tulp provides a warranty of 24 months on the gas appliances. Warranty requests are only taken in when sent by the dealer. Warranty expires in the following cases: Not observing this manuel ...

  • Page 4: User Instructions

    We would recommend keeping children and pets out of the area at this time. 2.2 Remote control overview This Tulp Gas appliance has been constructed with an advanced remote control system. This consists of three main parts: Handset, receiver (fig. 1.1) and gas valve with manual override (fig. 1.2). The gas control valve and the receiver box are behind the access door.

  • Page 5: Batteries

    An alternative AC Mains Adaptor may be used to power the Receiver instead of the 4 AA batteries. Only an AC Mains Adapter supplied by Tulp may be used. The Mains Adaptor is plugged into the DC 6V socket on the end of the receiver.
  • Page 6 Manual Tulp gas fires P. 6...
  • Page 7 Manual Tulp gas fires P. 7...
  • Page 8 Manual Tulp gas fires P. 8...

  • Page 9: Cleaning And Maintenance

    Manual Tulp gas fires 2.3 Cleaning and Maintenance This appliance should be inspected and serviced once a year by a qualified, competent and registered person. The inspection and maintenance must at least ensure that the appliance is working correctly and safely. It is advisable to clean the appliance of any dust and debris before regularly during the heating season and especially if the appliance has not been used for some time.
  • Page 10 Please pay attention: if the remote does not work, try to push the reset button. This can be done by using a sharp object. Pay attention: When the appliance makes a “ploff” during or after igniting it, shut down the appliance immediately. Before using it again, get in contact with Tulp BV! P. 10...

  • Page 11: Installation Instructions

    Manual Tulp gas fires 3. Installation instructions. Before commencing Installation, confirm that the details on the appliance data plate correspond to the local distribution conditions, gas type and pressure to which the appliance is to be installed. Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in accordance with the rules in force.

  • Page 12: Flue Connection

    This appliance may only be used with Balanced Flue (otherwise known as Concentric Flue) parts as specified by Tulp. The Tulp specified flue parts have been approved with the appliance. If the appliance is installed on non-Tulp approved parts, Tulp cannot guarantee or accept and responsibility for the proper and safe working of the appliance.
  • Page 13 Manual Tulp gas fires 3.4.2.1 Location of a terminal in the wall (horizontal) There should be a minimal gap of 0,5 m between the terminal and:  Corners of a building  Roof overhang, gutter  Balconies or similar extensions unless the flue construction reaches at least the front of the balcony or similar extensions.
  • Page 14 Manual Tulp gas fires Terminal in the wall (horizontal: To prevent disruption Distance: terminal to A, B of C At walls in multi-storey buildings Not permitted when A, B of C is above the terminal At walls – in general. (*) Above terminal: >2m...
  • Page 15 Manual Tulp gas fires Maximum pipe extension, for outside wall. Use shaded area to calculate maximum allowable length (H) for the corresponding pipe rise (V) but pay attention to values below!! P. 15...
  • Page 16 Manual Tulp gas fires 3.4.7 Vertical Roof Vent Termination C Flue sizing: B-Fire Gas 35 straight up: 30mm flue restrictor, Ø100/150 – 0,5m minimum with bends: no flue restrictor, Ø100/150 B-Fire Gas 50, 60, 80 straight up: 30mm flue restrictor, Ø100/150 – 1,0m minimum with bends: no flue restrictor, Ø100/150...

  • Page 17: Fuel Bed Arrangements

    Manual Tulp gas fires 3.5 Fuel Bed Arrangements. With the appliance a colour copy is delivered. Here you see how the logs should be placed. Do not use another arrangement of the logs! This can cause soot! White and black pebbles must be shattered evenly over the grate.

  • Page 18: Servicing

    Turn the appliance OFF and isolate the gas supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Tulp for injury caused by burning or scolding by a hot appliance.

  • Page 19: Spare Parts

    Manual Tulp gas fires 4.3 Spare parts Item B-fire S-fire Pilot Assembly Natural 0_160_032-NAT51 0_160_035-NAT51 Pilot Assembly LPG 0_160_032-LPG30 0_160_035-LPG30 Elektrode 0_915_015 0_915_015 Elektrode lead G60-ZKIS1/1500 G60-ZKIS1/1500 Thermocouple 1_000_2150 1_000_2150 Gas valve 1_ GV60 1_ GV60 Latching Solenoid GV-S60C/12 (for double burner)

  • Page 20: Technical Information

    Manual Tulp gas fires 5. Technical Information 5.1 Countries of Use Land Aardgas Propaan -Austria , G20 at 20 mbar ,G31 at 50 mbar; I ,G30/G31 3P(50) 3B/P(50) at 50 mbar -Belgium , G20/G25 at 20/25 mbar ,G31/G31 at 28/37 mbar; I...

  • Page 21: Technical Data

    Manual Tulp gas fires 5.2 Technical Data 5.2.1 B-Fire 50 (round) (PIN: 0558CL1179) Type C11/C31 G20/G25 G30/G31 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(30,37,50) Supply Pressure mbar 30/50 28-30/37 30/37/50 Nominal Heat Input 12.0/9.8 Gross (Hs) Output 6.8/5.5 Consumption m³/hr 1.143 1.143/1.085 1.218...
  • Page 22 Manual Tulp gas fires 5.2.3 B-Fire 150 (PIN 0558CL1179) Type C11/C31 G20/G25 G30/G31 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(30,37,50) Supply Pressure mbar 30/50 28-30/37 30/37/50 Nominal Heat Input 19/15.6 17.5 11.5 Gross (Hs) Output 12.1 12.1/10 11.5 Consumption m³/hr 1.809 1.809/1.727 1.938...
  • Page 23 Manual Tulp gas fires 5.2.5 B-Fire 95 (PIN 0558CM1360) Type C11/C31 G20/G25 G30/G31 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(30,37,50) Supply Pressure mbar 30/50 28-30/37 30/37/50 Nominal Heat Input 13.2 13.2/10.8 12.2 10.2 10.2 Gross (Hs) Output 9.0/7.4 Consumption m³/hr 1.257 1.336...
  • Page 24 Manual Tulp gas fires 5.2.7 B-Fire 60 (PIN 0359CO1331) Type C11/C31 G20/G25 G30/G31 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(30,37,50) 30/50 28-30/37 30/37/50 Supply Pressure mbar Nominal Heat Input 15.0 15.0 15.0 11.0 11.0 11.0 Gross (Hs) 10,3 10,3 10,3 Output Consumption m³/hr...
  • Page 25 Manual Tulp gas fires 5.2.9 B-Fire 100 high 3 siden open of corner open (PIN 0063CO3576) Type C11/C31 G20/G25 G30/G31 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(30,37,50) Supply Pressure mbar Nominal Heat Input 16.0 16.0/13.2 14.7 Gross (Hs) Output 12.4 12.4 15.4...

  • Page 26: Dimensions

    Manual Tulp gas fires 5.3 Dimensions 5.3.1 B-Fire Gas 50 5.3.2 B-Fire Gas 50 Tunnel P. 26...
  • Page 27 Manual Tulp gas fires 5.3.3 B-Fire Gas 50 Round P. 27...
  • Page 28 Manual Tulp gas fires 5.3.4 B-Fire Gas 100 5.4.5 B-Fire Gas 100 Tunnel P. 28...
  • Page 29 Manual Tulp gas fires 5.4.6 B-Fire Gas 150 5.4.7 B-Fire Gas 150 Tunnel P. 29...
  • Page 30 Manual Tulp gas fires 5.4.8 B-Fire Gas 35 5.4.9 B-Fire Gas 35 Tunnel P. 30...
  • Page 31 Manual Tulp gas fires 5.4.10 B-fire 100 high 5.4.11 B-fire 95 3 sides open, right open, left open P. 31...
  • Page 32 Manual Tulp gas fires 5.4.12 B-fire 60 5.4.13 B-fire 80 P. 32...
  • Page 33 Manual Tulp gas fires 5.4.14 B-fire 100H 3 sided open 5.4.15 B-fire 100H corner open P. 33...
  • Page 34 Manual Tulp gas fires 5.4.16 B-fire 120 5.4.17 Toegangsluikje P. 34...
  • Page 35 Manual Tulp gas fires Remarks: P. 35...
  • Page 36 Manual Tulp gas fires TULP B.V. Ganzestaartsedijk 1 5525 KC Duizel The Netherlands Tel. : +31 (0)497 511 299 Fax. : +31 (0)497 535 062 Web : www.tulp.eu Email : info@tulp.eu STUV sa rue Jules Borbouse, 4 B-5170 Bois-de-Villers Belgium Tel.
