I. INTRODUCTION
The microprocessor-controlled Max
Charge MC-612 is the most advanced
regulator available. Designed to continu-
ally monitor battery voltage and auto-
matically optimize charging, the MC-612
uses up to 12 time and voltage increments
to ensure your batteries receive a full charge quickly and
safely.
The MC-612 lets you choose from a variety of selectable
preset programs to best suit your charging needs. I I t t s s
U U n n i i v v e e r r s s a a l l F F a a c c t t o o r r y y P P r r o o g g r r a a m m a a l l l l o o w w s s y y o o u u t t o o c c o o n n n n e e c c t t t t h h e e M M C C -6 6 1 1 2 2
t t o o y y o o u u r r a a l l t t e e r r n n a a t t o o r r r r i i g g h h t t o o u u t t o o f f t t h h e e b b o o x x . . Six additional preset pro-
grams support most popular battery types, including standard and deep-cycle flooded
batteries, AGM, gel, and Optima (spiral wound) technologies. An easy-to-use magnetic reed switch delivers quick, precise regu-
lator adjustment. Should your charging system require individualized adjustment, the MC-612 provides additional user-defined
programming options.
When used with optional alternator and battery temperature sensors, the MC-612 automatically monitors ambient tempera-
tures and compensates for over-temperature conditions by reducing field output.
Alarm outputs connect to audible or visual alarms to warn of dangerous system con-
ditions.
II. SAFETY CONSIDERATIONS
Before installing your MC-612 marine regulator, please take a moment to consider
these guidelines for safe regulator installation. Failure to work safely could result in per-
sonal injury or damage to your electrical system.
1.
Always disconnect your battery banks and ensure that switches are "OFF" prior to
installing your regulator.
2.
Remove loose-fitting clothing or jewelry, which could become entangled in your motor or
other machinery.
3.
Wear ANSI-approved safety glasses.
4.
DO NOT attempt to modify the regulator. Alterations could result in damage to your
charging system, and will void your warranty.
5.
Do not attempt installation if tired or fatigued.
6.
Ensure the engine has cooled before initiating installation.
7.
Do not attempt installation while using alcohol or any medication that could impair your
judgment or reaction time.
8.
Always use the right tool for the job. Improper tool use may damage the regulator or
your boat, and could result in personal injury.
9.
Take time to read the manual. Equipment damage and possible injuries may result from
an incomplete understanding of the installation and operation of the MC-612 regulator.
If you are unfamiliar with marine electrical systems, consult with a licensed marine
electrician.
III. BASIC INSTALLATION
The MC-612 can be purchased with or without a standard 54" harness. When
installing without the harness, or if the wiring needs to be extended beyond the length
of the harness, marine grade 12AWG (American Wire Gauge) wire should be used.
FAX: (360) 435-3210
19009 61st Ave. NE, Arlington, WA 98223
E-MAIL: balmar@balmar.net
- 1 -

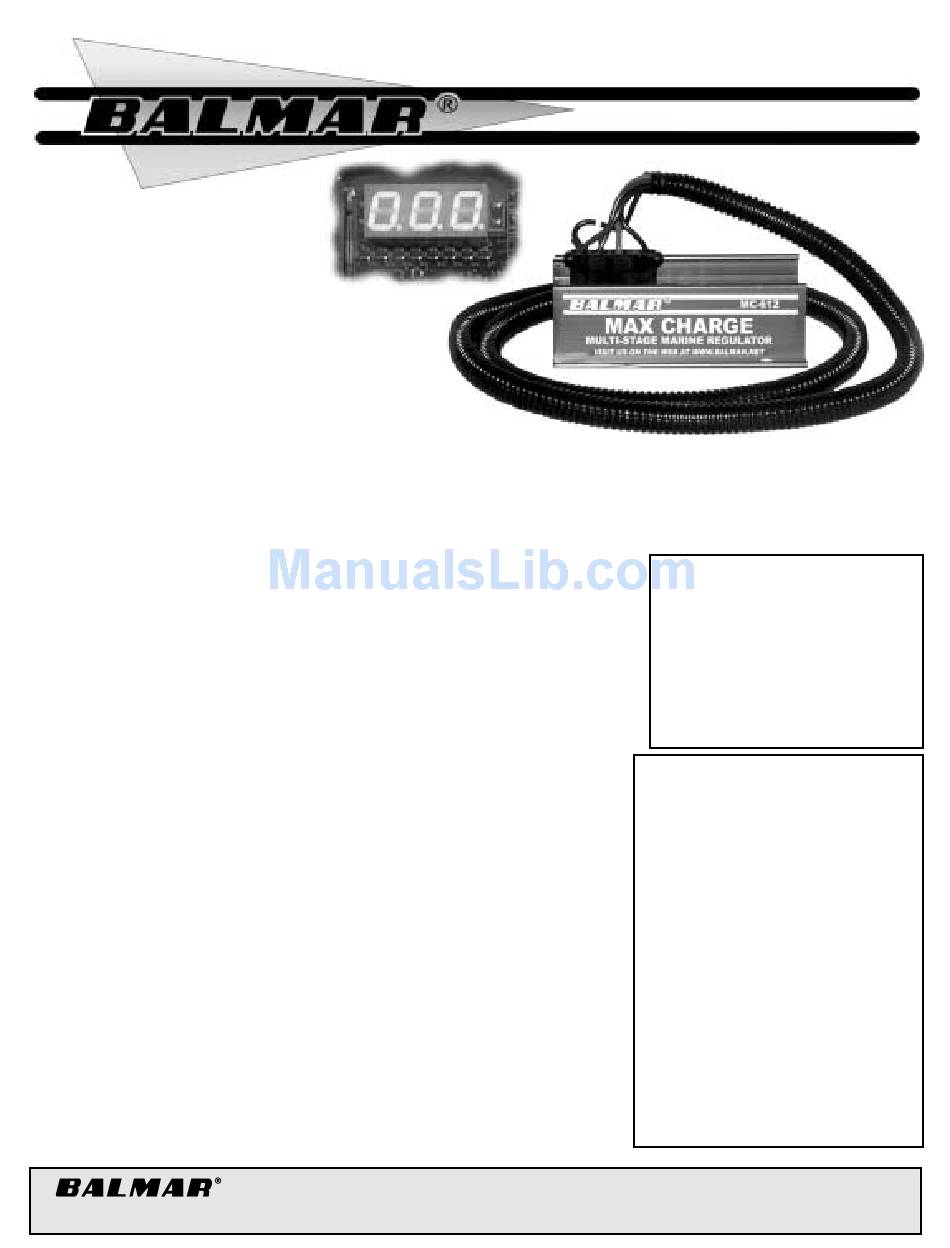

Max Charge MC-612 Regulator
Installation and Operator's Manual
I.
II.
III.
IV.
V.
VI.
VII.
VIII.
IX.
Sample System Wiring
Express Installation Instructions
©Copyright 2001 Ballard Commercial Industries, Inc. Revised 3/15/2002
CAUTION
The following instructions are
intended for use by experienced
marine electrical installers. If you
are not experienced at installing
electrical system components,
we recommend the use of a qual-
ified marine electrical technician.
TABLE OF CONTENTS
Introduction
Safety Considerations
Basic Installation
Alarm and Sensor Installation
Short Display
Preset Battery Programming
Long Display
Advanced Programming
Amp Manager
Equalization
System Diagnostics
Troubleshooting
Warranty
Single Output Alternator
Dual Output Alternator
PHONE: (360) 435-6100
WEB: WWW.BALMAR.NET
Advertisement
Related Manuals for Balmar MC-612
Summary of Contents for Balmar MC-612
- Page 1 Should your charging system require individualized adjustment, the MC-612 provides additional user-defined programming options. When used with optional alternator and battery temperature sensors, the MC-612 automatically monitors ambient tempera- tures and compensates for over-temperature conditions by reducing field output.
- Page 2 To install the regulator: Mount the regulator in a dry, well-ventilated location, well away from hoses and exhaust manifolds which may cause damage to the regulator or wiring. Avoid areas of heat and/or high vibration. The RED wire (in the harness) powers the regulator. Attach at the positive output terminal at the back of the alternator.
- Page 3 Small Engine Mode The MC-612 can be modified for provide a half-power setting by installing a toggle switch between the positive and negative ter- minals of the alternator temperature sensor circuit. When activated by closing the switch, the regulator reduces the alternator output by approximately 50%.
- Page 4 In addition to its Universal (default) factory program, which can be used safely with Readout displays “BAL”. most battery types, the MC-612 features programs for: gel, standard lead acid, SD Mode 2 - Regulator model. deep-cycle lead acid, AGM (absorbed glass mat), Optima (spiral), as well as voltage- Readout displays “612”.
- Page 5 Adjust time in PrA*. Stage 2 - Soft Ramp. One minute volt- Stage 8 - Ramp Down. Transition The MC-612 uses up to 12 individual stages age ramp minimizes belt slippage. from Absorption to Float stage. to ensure proper charging. Each stage may Non-adjustable.
- Page 6 CODE 014 - Wire short at alternator tem- perature sensor terminal. When equipped with optional Battery Temperature Sensor, the MC-612 will automatically adjust CODE 015 - Sensor wire not found at alter- charging voltage to compensate for ambient battery temperature. In default mode, the regula- nator temperature sensor ter- tor is limited to maximum compensated voltage of 14.8 volts (to minimize the likelihood of over-...
- Page 7 If the alternator fails to generate voltage during field testing, a malfunction of the alternator is likely. Contact your local alternator repair shop or Balmar’s technical service staff for recommendations. - 7 -...
- Page 8 If factory service is required, you can contact our BALMAR Customer Service Department Monday through Thursday, 7:30 AM to 5:30 PM, (PST)1-360 435-6100 ext “3”. Material required for the repair or replacement for the defective part or product is to be supplied free of charge upon delivery of the defective regulator to BALMAR, 19009 61st Ave.
- Page 9 - 9 -...
- Page 10 Suggested Wiring Options for Dual Output Alternators...
- Page 11 2 2 . . G G r r o o u u n n d d i i n n g g - The Model MC-612 must be properly grounded to regulate accurately. The two ground wires located in the har- ness must be securely attached to their terminals and the alternator’s preferred ground to ensure proper grounding.
- Page 12 Max Charge MC-612 Quick Installation Instructions The MC-612 can be installed with very little difficulty if installation instructions are followed carefully. If you are unaccustomed to marine electrical installations, we recommend a licensed marine electrician. To install the MC-612: 1. Mount the regulator in a dry, well-ventilated location, well away from hoses and exhaust manifolds which may cause dam- age to the regulator or wiring.
