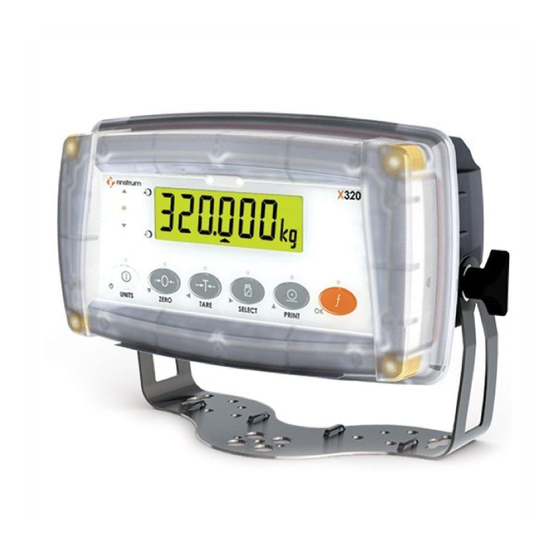

Rinstrum X320 Operator's Manual

Ip69k digital indicator
Hide thumbs Also See for X320:
Table of Contents

Advertisement

Quick Links

Presented By
Dallas
Ft Worth
Austin
Houston
NicolScales.com
800.225.8181
Contact Us
Nicol Scales & Measurement is an ISO Accredited Calibration
Company that has provided calibration, repair and sales of all types
of weighing and measurement products since 1931.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X320 and is the answer not in the manual?

Questions and answers

Related Manuals for Rinstrum X320

Summary of Contents for Rinstrum X320

  • Page 1 Presented By Dallas Ft Worth Austin Houston NicolScales.com 800.225.8181 Contact Us Nicol Scales & Measurement is an ISO Accredited Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.

  • Page 2: Digital Indicator

    X320 IP69K Digital Indicator Operator Manual 003X-610-100-M02...
  • Page 3 Rinstrum Pty Ltd. Disclaimer Rinstrum Pty Ltd reserves the right to make changes to the products contained in this manual in order to improve design, performance or reliability. The information in this manual is believed to be accurate in all respects at the time of publication, but is subject to change without notice.

  • Page 4: Table Of Contents

    Operator Manual Rev 1.21 Table of Contents 1. INTRODUCTION.............2 1.1. Approvals ..............2 1.2. Features ..............2 1.3. Manuals..............2 2. SAFETY ................3 2.1. Operating Environment .........3 2.2. Electrical Safety.............3 2.3. Cleaning ..............3 3. BASIC OPERATION............4 3.1. User Interface Display and Controls .....4 3.2.

  • Page 5: Introduction

    Operator Manual Rev 1.21 1. Introduction This instrument is an IP69K rated precision digital indicator using the latest Sigma-Delta A/D technology to ensure fast and accurate weight readings. 1.1. Approvals • C-tick approved and CE approved. 1.1.1. Trade versions • NSC approval (4000 divisions at 0.8µV/division). •...

  • Page 6: Safety

    Operator Manual Rev 1.21 2. Safety 2.1. Operating Environment • Operating Temperature: –10 to 50°C • Humidity: 100% • Operating Voltage: Shown on Rear Label • IP69K 2.2. Electrical Safety • For your protection all mains electrical hardware must be rated to the environmental conditions of use.

  • Page 7: Basic Operation

    Operator Manual Rev 1.21 3. Basic Operation 3.1. User Interface Display and Controls Page 4 003X-607-121...

  • Page 8: Operation Keys

    Operator Manual Rev 1.21 3.2. Operation Keys Description POWER: The <POWER> key is used to turn the instrument on and off. • To initially turn the instrument ON: Press and hold the <POWER> key until the display starts up. • To turn the instrument OFF: Press and hold the <POWER>...
  • Page 9 Operator Manual Rev 1.21 Description ZERO: The <ZERO> key is used to perform a Zero adjustment on the scale display when an empty scale has drifted away from a true zero reading. • The Zero adjustment is stored when power is removed and is re-used when next powered •...

  • Page 10: Stability Considerations

    Operator Manual Rev 1.21 Description PRINT: The <PRINT> key will trigger an output of the current weight reading if a printer or computer has been attached to the instrument and the manual print function has been selected. • The PRINT prompt is displayed while waiting for the printer to accept data.

  • Page 11: Annunciators

    Operator Manual Rev 1.21 3.4. Annunciators Symbol Name Description Visible when the gross reading is ZERO within ± ¼ of a division of true zero. Visible when the displayed reading represents Net weight. Visible when the displayed reading MOTION is not stable. Visible when check weighing is OVER enabled and the weight is above...

  • Page 12: Basic Weighing

    Operator Manual Rev 1.21 4. Basic Weighing 4.1. Normal Weighing • Ensure instrument is On and Zero annunciator is lit. • Place your item on the weigh platform. • Read the weight display. 4.2. Using Tare • The indicator displays zero with Zero annunciator lit. •...

  • Page 13: Special Functions

    Operator Manual Rev 1.21 5. Special Functions 5.1. Testing the Display • Press the <TEST> key to clear the display then show all segments of the display then clear the display again before returning to normal operation. 5.2. Counting • Place the container on the weigh platform and press <TARE>...

  • Page 14: Hold

    Operator Manual Rev 1.21 5.4. Hold • Press the <HOLD> key to hold the displayed weight at its current weight. • The Hold annunciator will be lit. • Press the <HOLD> key again to release the weight reading and return the display to normal weighing.

  • Page 15: Live Weighing

    Operator Manual Rev 1.21 5.6. Live Weighing • Press and hold the <LIVE WT> key to switch between normal weighing and live weight mode. The display will briefly show NORMAL or LIVE.WT. • Note: During normal weighing, this key operates exactly like a manual <HOLD> key. •...

  • Page 16: Showing Totals

    Operator Manual Rev 1.21 5.7. Showing Totals • The <PRINT> key is used not only to print the current weight but also to add that weight to the current total. • When the <TOTAL> key is pressed, the indicator displays COUNT followed by the number of items in the total.

  • Page 17: High Resolution (K303)

    Operator Manual Rev 1.21 5.9. High Resolution (K303) • When the <HI RES> key is pressed, the indicator shows a high resolution (x 10) on the display. • While the high resolution is displayed the units annunciator flashes. • Printing is inhibited while the high resolution is displayed.

  • Page 18: Check Weigh

    Operator Manual Rev 1.21 5.11. Check Weigh • When the <Check.W> key is pressed the display will briefly show each of the following: • OVER • The target weight for over. • UNDER • The target weight for under. • Press and hold the < Check.W > key for two seconds OVER will be displayed followed by the over target weight for editing.

  • Page 19: Error Messages

    Operator Manual Rev 1.21 6. Error Messages 6.1. Weighing Errors Error Description Resolution (U - - - - -) The weight is below Increase the weight or the minimum allowable decrease the minimum weight reading. allowable weight reading. (O - - - - -) The weight is above Check the condition of the maximum...

  • Page 20: Setup And Calibration Errors

    Operator Manual Rev 1.21 6.2. Setup and Calibration Errors Error Description Resolution The instrument may be in Access Full Setup to edit (ENTRY) Safe Setup and an item that the item. (DENIED) needs Full Setup has been selected for editing. When accessing setup, Turn the instrument off.

  • Page 21: Diagnostic Errors

    Operator Manual Rev 1.21 6.3. Diagnostic Errors • Check: Service personnel can check this item on site. • Return for Service: The instrument must be returned to the manufacturer for factory service. Error Description Resolution (E0001) The power supply voltage is too Check supply low.
  • Page 22 Operator Manual Rev 1.21 Notes: Page 19 003X-607-121...
  • Page 23 Operator Manual Rev 1.21 Notes: Page 20 003X-607-121...
  • Page 24 Notes:...
