PLI-4052
500Mbps Powerline Adapter
User Manual
V1. 0_20170628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLI-4052 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne PLI-4052

Summary of Contents for LevelOne PLI-4052

  • Page 1 PLI-4052 500Mbps Powerline Adapter User Manual V1. 0_20170628...

  • Page 2: Table Of Contents

    500Mbps Powerline Adapter Table of Contents Chapter 1 Introduction ........................ 2 1.1 Features ..........................2 1.2 Security Warning ......................2 1.3 Package Contents ......................3 1.4 Environment........................3 Chapter 2 External Component Description ................. 4 2.1 Front Panel ........................4 2.2 Physical Interface ......................

  • Page 3: Chapter 1 Introduction

    500Mbps Powerline Adapter Chapter 1 Introduction Congratulations on your purchase of this outstanding Powerline Adapter. The device is 500Mbps Powerline Adapter, it turns you existing powerline into a high speed network with no need for wire or drilling. No configuration required, simply plug you adapters into you power sockets and you can establish infrastructure in a flash.

  • Page 4: Package Contents

    500Mbps Powerline Adapter 1.3 Package Contents Please make sure you have the following in the box, if anything is missing, please contact your vendor.  500Mbps Powerline Adapter  User Manual  RJ-45 Network Cable  Warranty Card 1.4 Environment ...

  • Page 5: Chapter 2 External Component Description

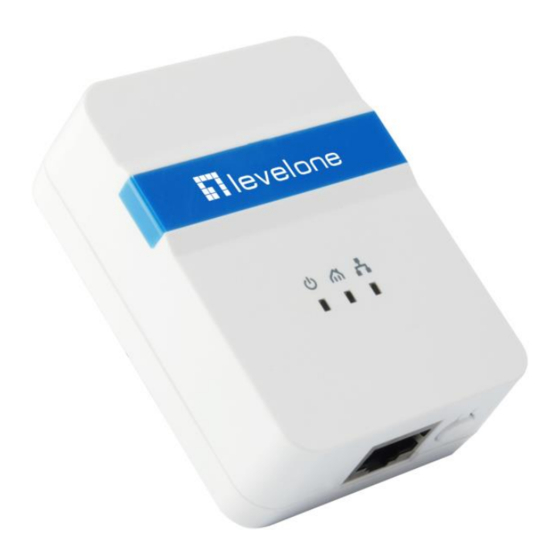

    500Mbps Powerline Adapter Chapter 2 External Component Description 2.1 Front Panel The front panel provides LED’s for device status. Refer to the following table for the meaning of each feature. Color Status Indication Power is on. System is in the process of password Green Blinking synchronization.

  • Page 6: Physical Interface

    500Mbps Powerline Adapter 2.2 Physical Interface There are three physical interfaces on this Powerline Adapter. Interface Description A Power Plug for connecting the adapter to a 100V~240V AC power Power Plug socket. A 10/100Mbps Ethernet port for connecting the adapter to the PC or Ethernet Port the broadband device with a network cable.

  • Page 7: Chapter 3 Hardware Installation

    500Mbps Powerline Adapter Chapter 3 Hardware Installation To ensure the optimum performance of the Powerline Adapter and significantly improve the transmission of the network, we recommend that you comply with the following connection rule: Plug the Powerline Adapter directly into a wall socket but not the multiple sockets. 3.1 Hardware Installation - Computer For those computers you wish to be networked by Powerline Adapter, each of the computers must be properly connected with a Powerline Adapter through an Ethernet...

  • Page 8: Hardware Installation - Internet

    500Mbps Powerline Adapter 3.2 Hardware Installation - Internet This section describes how to connect the Powerline Adapter into your existing ADSL broadband connection via ADSL Ethernet port. Follow the procedures described below to connect the Powerline Adapter to your ADSL broadband connection: 1.
