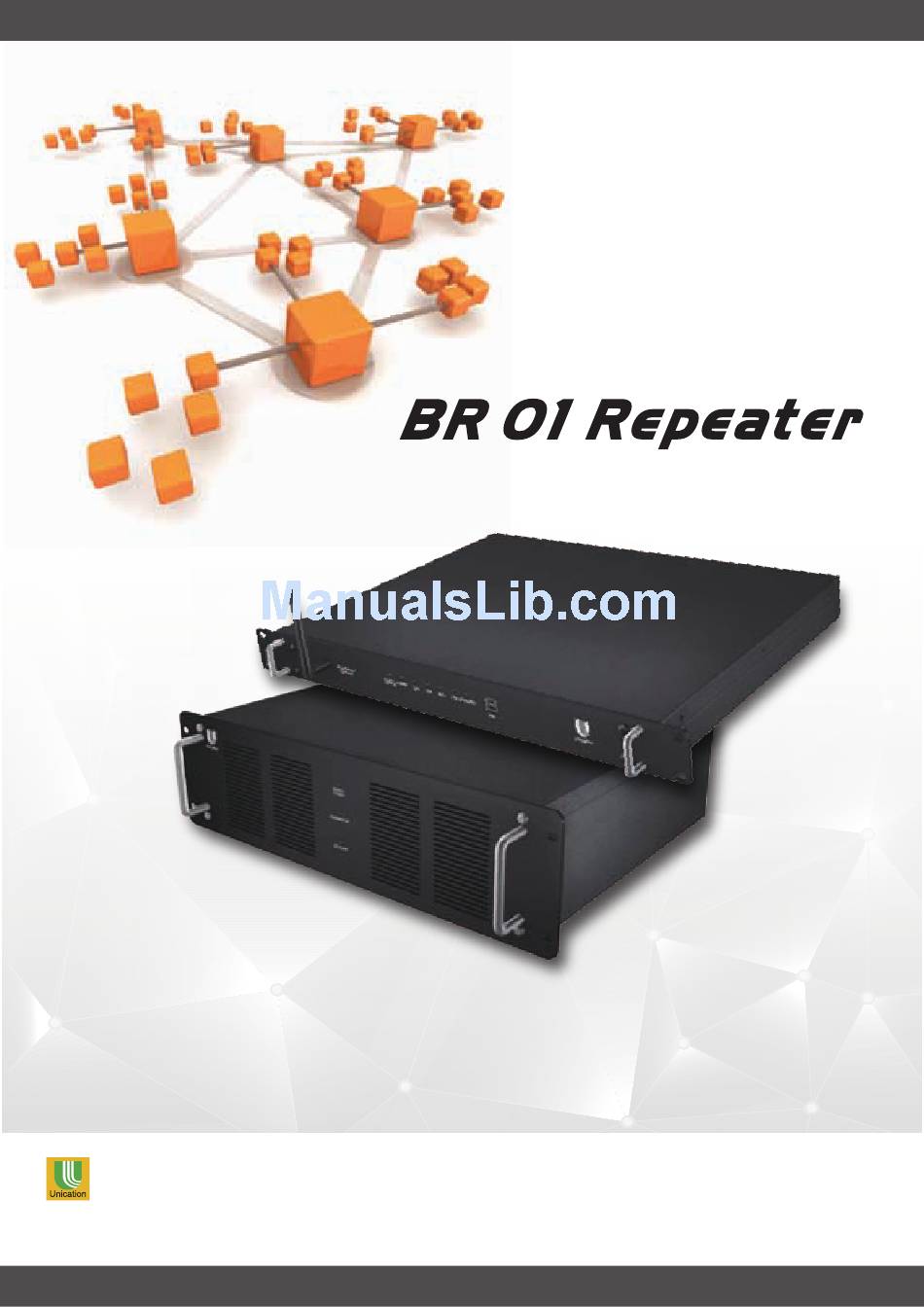

- Page 1 Unication Two-Way Radio System Anytime, Anywhere, Unication is Happy to Serve You. Please contact us use our Toll Free phone no.:888-657-2963 or leave a message on Unication Website : http://www.unication.com or http://www.unicationusa.com Thank you.
- Page 2 INDEX SPECIFICATION Overview Installation and Setting SAFETY INFORMATION...
- Page 3 TX01, CR01, multiple TX01’s, CR01’s and 3rd party repeaters can connect to same battery (at battery terminal directly). Front Face 1. Air Intake Vent grill 2. AC Power ON / Battery backup LED 3. PA Fault LED 4. Carrying handles on left and right sides 5. Unication logo...
- Page 4 14. Connects to transmitter cavity RF pre-filter and duplexor for traditional dual frequency repeater operation. 15. Unication Proprietary Single Channel Repeater 16. Connects to RF pre-filter and antenna for Unication proprietary single channel repeater operation. 17. Reference Input: 13 MHz reference input from CR01.
- Page 5 GPS Receiver Specifications Function or Feature Description GPS Receiver Antenna 1. Performance: SIRF or equivalent port 2. 50 ohm impedance, 3. Provides DC power to power external GPS antenna LNA. The GPS port shall provide 5VDC +/- 10%, 27mA power for the external GPS LNA. 4.
- Page 6 TX01 includes a TX/RX switch to switch the TX output to go to the CR01 receiver in order Repeater Output to provide the Unication proprietary single channel repeater function(”R&R”. The TX/RX switch must be very fast switching and must not degrade the IMD, spurious and antenna matching.
- Page 7 TX01 Transmitter RF specifications Conducted spurious VHF/UHF: and harmonic 1. Less than -36dBm for below 1 GHz emissions attenuation 2. Less than -30dBm for above 1 GHz at antenna connector WLB: less than -20 dBm Operating VSWR 1. The PA shall also be used in the future simple M01 mobile with power level set to 50 watts maximum, voltage = 13.8 VCD, without an isolator (simple mobile).
- Page 8 TX01 Transmitter RF specifications TX01 Protection 2. TX01 has self-protection in case that CR01 communications is lost or cable disconnected In this case TX01 will power off. TX01 will stay in off condition until CR01 communications is restored and instructed to turn on by CR01.
- Page 9 CR01 Receiver RF specifications Channel switch time 8.75 ms Sensitivity 1. Analog, 12.5 kHz bandwidth, at 12dB Sinad: 122 dBm 2. Analog, 25.0 kHz bandwidth, at 12 dB Sinad: 122 dBm 3. Digital (C4FSK): < 5% BER at 122 dBm (12.5kHz bandwidth) Reference Oscillator External reference oscillator input from CR01 reference module, 50 ohms, 13MHz, 50 ohms...
- Page 10 FM P25 Phase 1 control followed by P25 Digital Voice or P25 Data Linear P25 Phase 1 control followed by P25 Digital Voice or P25 Data DMR control followed by Unication 2400 bps digital voice (“UniDMR”) or DMR data MPT1327 P25 phase 2 Linear outbound (with TX02- 100w)
- Page 11 Redundant Satellite or Microwave link radio connects to BR01 via Ethernet Port B. Local connectivity BlueTooth (optional) Methods (on CR01 box). WIFI (optional) Accessed with Console Repeater Type Traditional dual frequency into duplexor Unication Proprietary single channel repeater using very fast switching TDMA radio (“R&R”)
- Page 12 Function Details of Function BR01 BR02 FR01 TR01 SR01 IC01 Power Output B. Repeater Configuration via PPS Repeater One or more of the above access Methods can be Access configured to operate simultaneously. Method The ability to support multiple access methods Parameters simultaneously permits a mixture of existing 3rd party portables to access the repeater.
- Page 13 TDMA Options (phase 2) configured via Repeater Traditional 2 frequency pair into duplexor mode Unication proprietary single channel repeater (no duplexor) and Repeater Type Normal Operational mode Repeater is put offline. non-functional mode (TX = OFF). Note the default condition is the repeater is fully functional, even after a reset.
- Page 14 Function Details of Function BR01 BR02 FR01 TR01 SR01 IC01 Power Output C. Repeater Information and Control accessed with Uni Console Control, Alarm Fan status (rotating or not rotating) and Status and Current TX Activity Status Commands which are TX log of % transmitting over past 1 week. Accessed Current RX Activity Status Locally or...
- Page 15 Function Details of Function BR01 BR02 FR01 TR01 SR01 IC01 Power Output C. Repeater Information and Control accessed with Uni Console Control, Alarm Internet cable communications delay – ping command and Status and from console to CR01 unit Commands Status of Ethernet cable, GSM modem or satellite modem which are communications (Functional/Non functional Accessed...
- Page 16 Function Details of Function BR01 BR02 FR01 TR01 SR01 IC01 Power Output D. Repeater Network Interconnection Operation. These operations are provided by MCPE (FR01) RF Cross Portable on one repeater band can send a call to a Banding of portable which is on a different band on a different Conventional Repeater Portables...
- Page 17 Function Details of Function BR01 BR02 FR01 TR01 SR01 IC01 Power Output E. Remote PC Console Functions Software Software download to processors from Console. Download Control, Alarm View and reset PA & CR01 alarms (Provided by CR01) & Status GUI View and reset MCPE alarms View and reset CM01 alarms View and reset SM01 alarms...
- Page 18 Coax cable connection to CR01 using LMR400 coax with Type N connector In order to minimize customer service overhead, only one brand shall be supplied by Unication for roof top and another one for mobile applications. GPS Magnetic mount...
- Page 19 1. LNA and filter used to supply RX signal for up to 4 CR01 Installed after duplexor. receivers. 2. Designed and manufactured by Unication. Time mark cable Wired used to daisy chain the time mark sign. Custom cable provide by...
- Page 20 Suppliers qualified by mounted, internet switch is required. In order to minimize Unication in each country. customer service overhead, limited number of brands shall be qualified by Unication. 2. Battery backup is necessary and accomplished with a 3rd party UPS Transmitter pre-filter 1.
- Page 21 Overview CR 01 Bluttooth (Option) AC/BAT Power ALARM Ethernet Ground screw Accessory Connector CR01 12VDC Power Input PA Control GPS (Option) Ethernet Port A Reference Out Ethernet Port B Rx Connector PA Fan Control...
- Page 22 TX 01 AC/BAT Power Transmitting PA Alarm AC Input CR01 12VDC Power Power Supply Fan PA Fan Control PA Fan Control Tx Connector Reference Input Uni Scr (R&R) Rx Out (Option) PA Control Ground Screw...
- Page 23 Installation and Setting 1. Installation This document briefly describes the cable and coax connections for the standard BR01 Repeater Unit. PEASE READ SAFETY INFORMATION IN PART D BEFORE INSTALL THE BR01 REPEATER. 1.1: BR01 front and rear panels The below image shows the front and rear panel of the BR01 repeater with no cables installed.
- Page 24 1.2: BR01 Cable and Coax Connections The following sections document the cable and coaxial connections that are required to be completed for the BR01 repeater to be operational. This includes interconnect, Grounding/Earthing, RF and AC power. 1.2.1: Install the PS/Fan interconnect cable Connect the PS/Fan cable between the CR01 ‘PS/Fan Control’...
- Page 25 1.2.3: Install the PA Control Cable (DB44) Connect the PA Control Cable (DB44) between the CR01 ‘PA Control’ and TX01 ‘PA Control’ connections. Figure 5: BR01 with PA Control Cable Installed Control Cable 1.2.4: Install the CR01 12Vdc Power cable Connect the CR01 12Vdc power cable between the TX01 ‘12V DC Output’...
- Page 26 1.2.5: Install the BR01 Equipment Grounding (Earth) Install acceptable equipment grounding/earth cables to both the TX01 and CR01 screw terminal connections in accordance with approved equipment grounding standards. Figure 7: BR01 with two equipment ground connections attached. CR01 Ground / Earth TX01 Ground / Earth Connection Connection...
- Page 27 1.2.7: Install the AC Power Cable into TX01 Insert AC power cable into the TX01 ‘120/240V AC’ connector. Figure 9: BR01 AC Power Cable Installed AC Power Cable...
-
Page 28: Software Configuration
2. Software Configuration Please follow steps below to setup the BR01: Step 1: Power on the CR01 and TX01. Step 2: Connect the USB cable from the PC with PPS to the front USB port of the CR01. Step 3: Start the BR01 PPS. - Page 29 Step 4: Select “Create New Repeater Profile” and “New”. Step 5: Enter a “Repeater Name” and select “Protocol”. Click “Next”.
- Page 30 Step 6: Enter repeater RX and TX frequencies and click “Next”. Step 7: Set the “Advanced Settings” if needed and click “Next”.
- Page 31 Step 8: Set the “Access Code Setting” and click “Next”. Step 9: Enter the “Repeater ID”; set the parameters and click “Save”.
- Page 32 Step 10: Click “Yes” to program the repeater. Step 11: Click “Connect” to confirm the setting and programming.
-
Page 33: Scope Of Manual
The faulty module must then be shipped to the Unication System Support Center for further troubleshooting and repair to the component level. - Page 34 General Safety Precautions Read and follow all warning notices and instructions marked on the product or included in this manual before installing, servicing or operating the equipment. Retain these safety instructions for future reference Also, all applicable safety procedures, such as Occupational, Safety and Health Administration (OSHA) requirements, National Electrical Code (NEC) requirements, local code requirements, safe working practices, and good judgment must be used by personnel.
- Page 35 All equipment must be properly grounded in accordance with Unication Standards and Guideline for Radio Sites and specified installation instructions for safe operation. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect from overheating, these slots and openings must not be blocked or covered.
-
Page 36: Fcc Statement
(2) this device must accept any interference received, including interference that may cause undesired operation. Note: Unication Co., Ltd is not responsible for any changes or modifications not expressly approved by the party responsible for Compliance. Such modifications could void the user’s authority to operate the equipment. - Page 37 IC RSS warning This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
- Page 38 Human Exposure Compliance This equipment is designed to generate and radiate radio frequency (RF) energy by means of an external antenna. When terminated into a non-radiating RF load, the base station equipment is certified to comply with Federal Communications Commission (FCC) regulations pertaining to human exposure to RF radiation in accordance with the FCC Rules Part 1 section 1.1310 as published in title 47 code of federal regulations and procedures established in TIA/EIA TSB92, Report On...
- Page 39 Additional information on the topic of electromagnetic exposure is contained in the Unication Standards and Guideline for Communications Sites publication. Persons responsible for installation of this equipment are urged to consult the listed reference material to assist in determining whether a given installation complies with the applicable limits.
- Page 40 Conformité concernant l’exposition de l’homme Cet équipement est conçu pour générer et émettre l’énergie de la radiofréquence (RF) au moyen d’une antenne extérieure. Après s’être terminé à un charge de RF non-émettant, l’équipement de la station de base est certifié qu’il se conforme aux règlements de la Commission de Communication Fédérale (FCC) appartenant à...
- Page 41 Des informations supplémentaires au sujet de l’exposition électromagnétique sont contenues dans le Standard Unication ainsi que les Indications pour la publication des Sites de Communications. On conseille vivement aux personnes responsables de l’installation de cet équipement de consulter le matériel de référence en liste pour déterminer si une installation donnée se...
- Page 42 2.FCC OET Bulletin 65 Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electro- magnetic Fields http://www.foc.govloet/rtsadetyl 3.Unication standards and Guideline for Communications Sites. 4.IEEE Recommended Practice for the Measure of Potentially Hazadous Electromagnetic Fields- RF and Micro- wave, IEEE Std C95.3-1991,...
- Page 43 Corporate Headquarter: Unication Dallas Unication Canada Unication Co., Ltd. 1901 E,Lamar Blvd, 3999 Henning Dr.,Unit Address: 5F, No.6, Wu-Kung 5Rd., Arlington TX, 76006 402, Burnaby BC,V5C 6P9 Hsinchuang City., New Taipei, Taiwan. sales@unication.com sales@unication.com +886-2-22999678 +1-817-303-9320 +1-604-205-7450 salesenquiry@uni.com.tw www.uni.com.tw US-BR01-20160323-V0.01...
