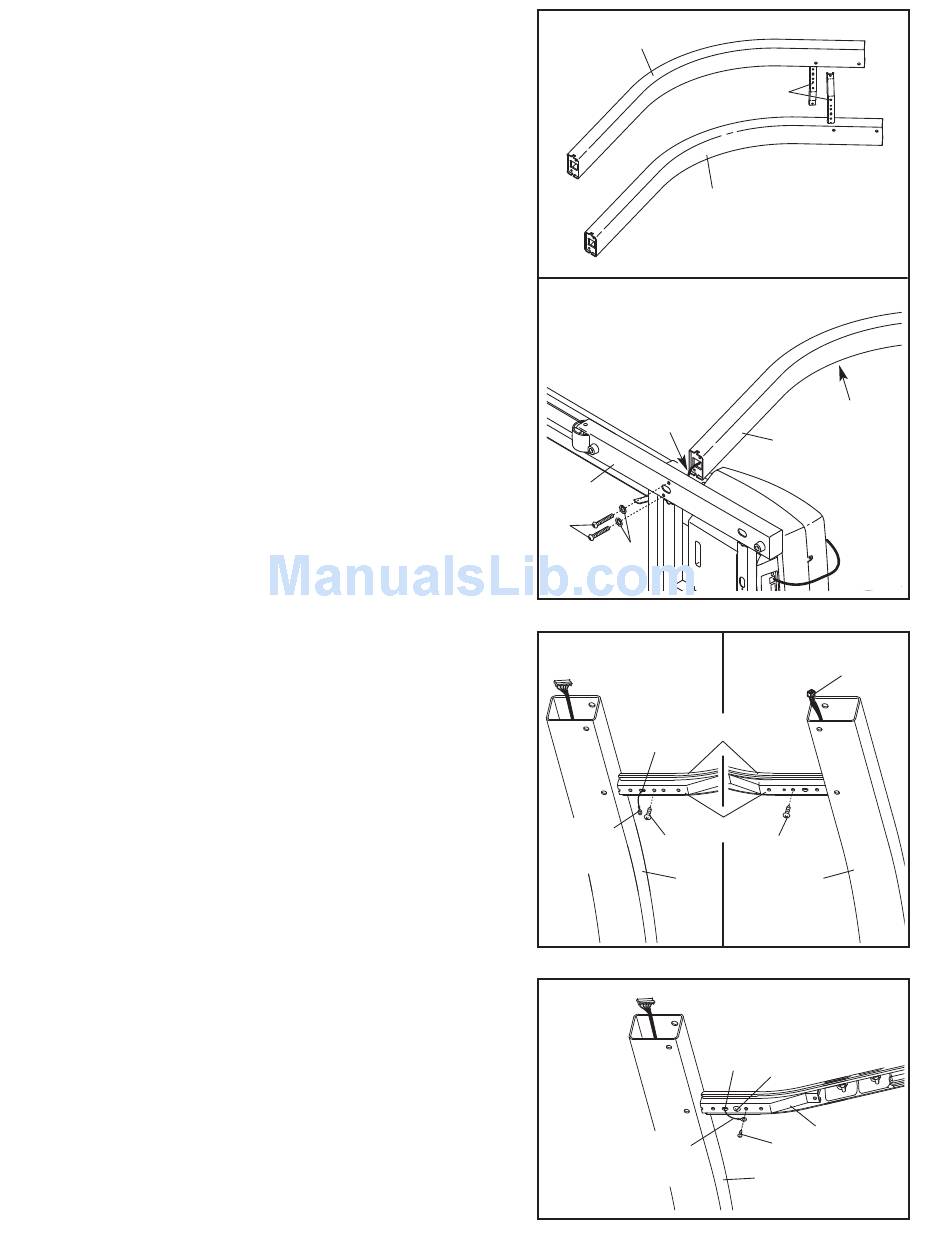

2. See drawing 2a. Identify the Right Upright (95) and the
Left Upright (92); note the orientations of the posts on
the Uprights.
See drawing 2b. Hold the Right Upright (95) near the
Upright Base (97), and orient the Right Upright as shown.
Make sure that the Right Upright bends in the direc-
tion shown.
Straighten the Wire Harness (74), and feed it into the
lower end of the Right Upright (95) and out of the upper
end. Hold the Right Upright against the Upright Base
(97). Make sure that no wires are pinched. Hand
tighten two Upright Bolts (80) with Upright Star Washers
(4) into the bottom of the Upright Base and the lower end
of the Right Upright. Do not tighten the Upright Bolts
yet.
With the help of a second person, carefully tip the
treadmill onto its right side. Attach the Left Upright (92)
as described above. Note: There is not a wire harness
on the left side.
Attach the other Wheel (not shown) to the Upright Base
(97) as described in step 1.
With the help of a second person, carefully lower the
treadmill so the Uprights (92, 95) are in a vertical position.
3. Have a second person hold the Pulse Bar Top (71) be-
tween the Uprights (95, 92). See inset drawing 3a.
Locate the ground wire on the right end of the Pulse Bar
Top. Insert the ground wire through the indicated slot in
the post on the Right Upright. See drawing 3b. Locate
the pulse wire on the left end of the Pulse Bar Top. Insert
the pulse wire into the side of the Left Upright and out of
the top as shown.
Next, attach the Pulse Bar Top (71) to the posts on the
Uprights (95, 92) with two Screws (108). Make sure that
the Screws are in the holes shown. As you tighten
the Screws, press the ends of the Pulse Bar Top
against the posts. Make sure that no wires are
pinched.
4. Attach the ring on the end of the ground wire to the indi-
cated hole in the post on the Right Upright (95) with a
Silver Ground Screw (23). Make sure that the ring is
turned as shown and that the ground wire is routed
above or below the head of the indicated Screw
(108). Insert the excess wire into the indicated slot in the
post on the Right Upright.
