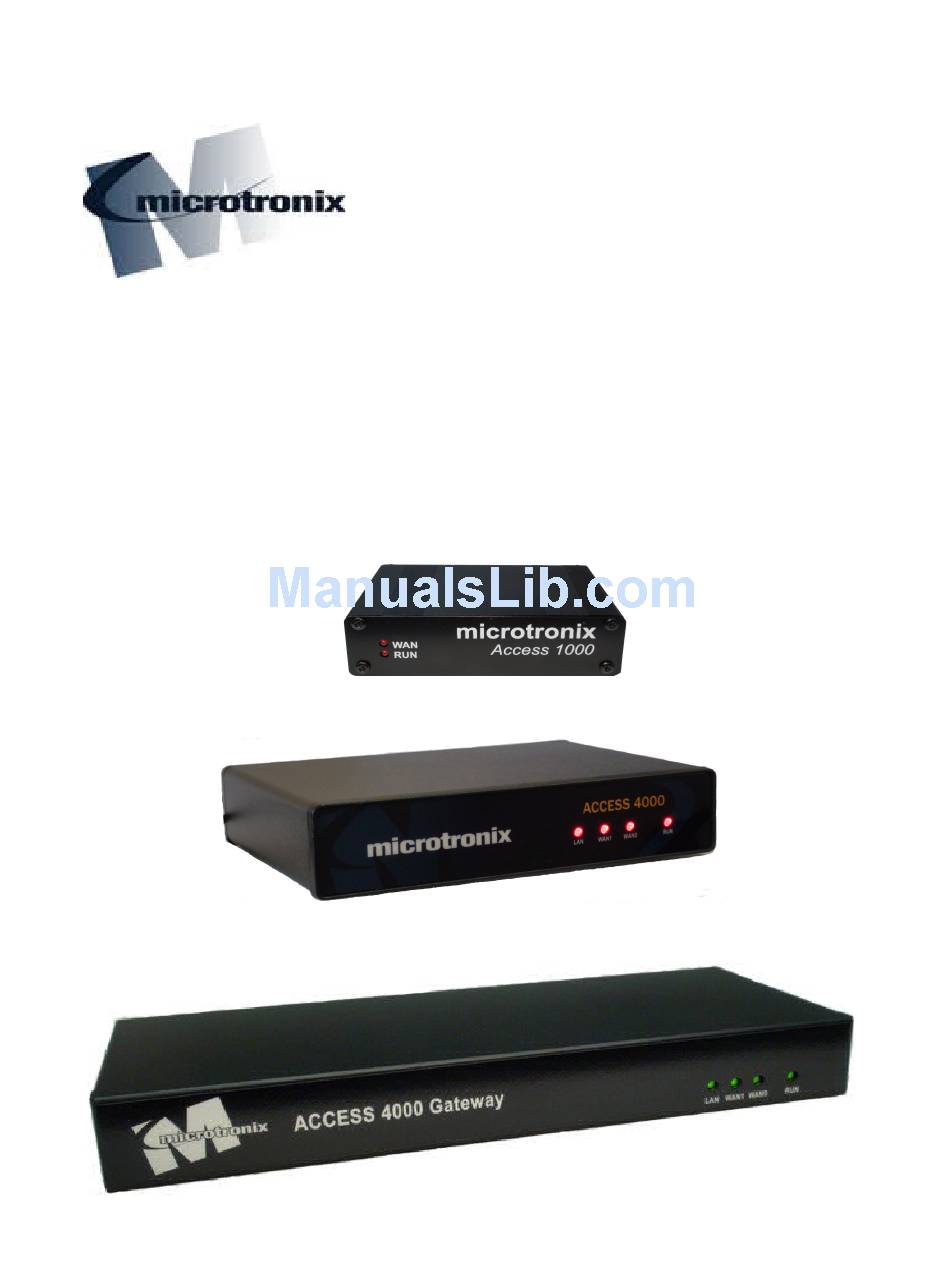

Microtronix
Access 1000 & 4000
X.25 – TCP/IP Gateway
Quick Start Guide 0.10.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Access 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MICROTRONIX Access 1000

  • Page 1 Microtronix Access 1000 & 4000 X.25 – TCP/IP Gateway Quick Start Guide 0.10.4...
  • Page 2 Microtronix Access X.25–TCP/IP Gateway Table of Contents 1 Overview............................. 4 1.1 Access X.25-TCP/IP Gateway models..................4 1.2 WAN interface..........................5 1.3 Console interface.......................... 5 1.4 Network (Ethernet) interface......................5 1.5 USB interface..........................5 2 Package Check List..........................6 3 Quick Start Guide..........................7 3.1 Installation.............................
  • Page 3 Microtronix Access X.25–TCP/IP Gateway 3.11.1 Device Settings..........................23 3.11.2 Network Settings..........................23 3.11.3 Update and Start the Server.......................24 3.11.4 Verify Sync Server Connection......................24 3.12 Terminal Server Configuration....................25 3.12.1 Serial Settings............................25 3.12.2 Conversion Settings...........................26 3.12.3 Network Settings..........................26 3.12.4 Update and Start the Server.......................26 3.12.5 Verify Terminal Server Connection....................27 4 Cables..............................28 4.1 WAN Cables..........................28 4.1.1 Connecting to a DCE device........................28 4.1.2 Connecting to a DTE device........................28 4.2 Serial and Console Cables......................29 4.2.1 Connecting to a DCE device........................29 4.2.2 Connecting to a DTE device........................29 5 Encapsulation Message Formats....................30 5.1 MBIT (2-byte count field)......................30 5.2 RFC1006 (ISO TP)........................
  • Page 4: Overview

    Microtronix Access X.25–TCP/IP Gateway 1  Overview The Microtronix Access X.25–TCP/IP Gateway provides conversion between X.25 and TCP/IP devices, or X.25 encapsulation over TCP (XOT). In addition, raw synchronous and serial terminal servers may be configured. A web interface allows for configuration and monitoring from any Internet browser, and telnet/SSH servers allow for connecting to the command line interface for additional management.
  • Page 5: Wan Interface

    Microtronix Access X.25–TCP/IP Gateway     Model 4002­N44­RM The model name and serial number are printed on the label located on the bottom of the unit. The following sections describe the each attributes and function of each interface type. 1.2  WAN interface WAN ports support RS232/V.24 with speeds up to 128 Kbps, and V.35, X.21, RS530, RS449/V.36 interface types with speeds up to 10 Mbps, in a standard DB25F DCE connector.
  • Page 6: Package Check List

    Microtronix Access X.25–TCP/IP Gateway USB flash drive for storing and moving files ● The 4002-S04 and 4002-N04-RM models may be specially ordered with an internally mounted USB flash drive with no external USB connector. The 4002-N44-RM models have an internally mounted USB 4-port serial expansion card.
  • Page 7: Quick Start Guide

    Microtronix Access X.25–TCP/IP Gateway 3  Quick Start Guide Configuration of the Access Gateway will require a PC or laptop with standard Internet browser like Internet Explorer or Mozilla Firefox. Optionally, a serial COM port (or USB serial adapter) on the PC with a terminal emulator application may be used to connect to the Console port.
  • Page 8: Emergency Ip Address Recovery

    The system will restart with the system-defined values. 3.3.4  System Firmware Updates The u-boot console may also be used in conjunction with Microtronix support for applying firmware updates, and emergency IP address recovery. To apply firmware updates: 1) Obtain the kernel image (uImage) and/or filesystem image (jffs2.img) files from Microtronix...
  • Page 9: Configuration Web Interface

    Microtronix Access X.25–TCP/IP Gateway 3.4  Configuration Web Interface  The default IP address of the Access Gateway is 10.1.1.240. The PC used to access the web interface must be configured (temporarily) for an address in the same subnet, for example, 10.1.1.200. Connect the PC to the same LAN, or temporarily use the red Ethernet crossover cable to connect directly to the Access Gateway.
  • Page 10: Ip Network Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.5  IP Network Configuration To create or modify the IP network parameters different than the default values defined in U-Boot , obtain the new IP address, network mask, and default gateway values. Follow this procedure only if you don't want the default values to be used in the running system.
  • Page 11: Verifying Ip Network

    Microtronix Access X.25–TCP/IP Gateway 3.5.1  Verifying IP Network Use ping from a PC or other station on the IP network to verify the Access Gateway is reachable. Sometimes ARP cache tables are obsolete and need refreshing after an IP change. The LAN led on the front panel will blink when there is activity on the Ethernet port.
  • Page 12: X.25 Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.6 X.25 Configuration To configure a WAN port to match the attached X.25 equipment at all 3 layers of the X.25 protocol, select each of the following items from the X.25 WAN main menu section: 3.6.1  Layer 1 – Physical From the main menu X.25 WAN section, select L1-Device to display the form:...
  • Page 13: Layer 2 – Data Link

    Microtronix Access X.25–TCP/IP Gateway 3.6.2  Layer 2 – Data Link From the main menu X.25 WAN section, select L2–LAPB to display the form: 1) Select a device from the drop-down list (hdlc0 – WAN port 0 is the default). 2) For connection to a DTE device, select DCE; for connection to a DCE device, select DTE.
  • Page 14: Layer 3 – Packet

    Microtronix Access X.25–TCP/IP Gateway 3.6.3  Layer 3 – Packet From the main menu X.25 WAN section, select L3–X.25 to display the form: 1) Select a device from the drop-down list (hdlc0 – WAN port 0 is the default). 2) For connection to a DTE device, select DCE; for connection to a DCE device, select DTE.
  • Page 15: Verifying X.25 Interface

    Microtronix Access X.25–TCP/IP Gateway 3.7  Verifying X.25 Interface The WAN led on the front panel will illuminate when the X.25 link is established at all 3 layers of the WAN port. To view detailed status of each layer of the X.25 interface, click X.25 Status in the main menu X.25 WAN section.
  • Page 16: Interface Statistics

    Microtronix Access X.25–TCP/IP Gateway to have Status enabled, then restarted. If the received DTR and RTS signals are off, then: The cable is not connected. ● The cable is the wrong DTE/DCE gender or wrong pin configuration for the interface.
  • Page 17: X.25 Logical Channel Status

    Microtronix Access X.25–TCP/IP Gateway Analysis beyond this is out of scope for this document. The displayed data may be captured and forwarded to Microtronix Support for analysis. 3.7.6  X.25 Logical Channel Status Select the LCI Status item to examine the status of any SVC or PVC logical channel connections active on the X.25 interface(s).
  • Page 18: X.25 To Tcp Routing Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.8  X.25 to TCP Routing Configuration If X.25 call requests are initiated by the attached X.25 equipment, then X.25 to TCP routing must be configured. Entries can be added to the X.25 to TCP Routing table, or existing entries modified or deleted.
  • Page 19: Specify Conversion Or Encapsulation Method

    Microtronix Access X.25–TCP/IP Gateway 1) Specify the destination IP address in the Remote IP Address field. 2) Specify the TCP port number on which the destination is listening in the Remote TCP Port field 3.8.3  Specify Conversion or Encapsulation Method Choose from the drop-down list in the Conversion Type field, the X.25 to TCP conversion method for this connection.
  • Page 20: Tcp To X.25 Routing Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.9 TCP to X.25 Routing Configuration If connection requests are initiated by remote IP hosts, then TCP to X.25 routing must be configured. Entries can be added to the TCP to X.25 Routing table, or existing entries modified or deleted.
  • Page 21: Generate Outbound X.25 Connection

    Microtronix Access X.25–TCP/IP Gateway MBIT, RFC1006, OFTP or RBP for message preservation. • Q-MBIT or QRBP for message preservation including Q-bit. • XOT for X.25 encapsulation. • LINE for special CR/LF handling. • IAC-ESC for data transparency with remote Telnet sessions.
  • Page 22: Verify X.25 Gateway Status

    Microtronix Access X.25–TCP/IP Gateway 3.10  Verify X.25 Gateway Status To examine the status of the X.25/TCP gateway application and the connections controlled by the gateway, select the following items from the X.25 Gateway main menu section. 3.10.1  Connection Status This page displays summary information about the interconnections between TCP sockets and X.25 logical channels.
  • Page 23: Synchronous Server Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.11 Synchronous Server Configuration A WAN port may be configured for raw synchronous HDLC operation by configuring it as a Synchronous Server interface. Ensure that X.25 and Terminal server operation are disabled for the selected port by selecting Status->Disable in the L1-Device page, and the Enabled button de- selected in the Serial-TCP page.
  • Page 24: Update And Start The Server

    Microtronix Access X.25–TCP/IP Gateway 7) Enter the remote IP address to which the connection will be made, or enter 0.0.0.0 for a listen to be posted. 3.11.3  Update and Start the Server 8) Check the Start / Restart Sync Server box for changes to become active.
  • Page 25: Terminal Server Configuration

    Microtronix Access X.25–TCP/IP Gateway 3.12 Terminal Server Configuration The Console, WAN, and external USB serial adapter ports may be configured for asynchronous serial operation by configuring them as a terminal server interface. Ensure that X.25 and Synchronous Server operation are disabled for the selected port by selecting Status->Disable in the L1-Device page, and the Enabled button de-selected in the Synchronous-TCP page.
  • Page 26: Conversion Settings

    Microtronix Access X.25–TCP/IP Gateway 3.12.2  Conversion Settings 5) Select the mode of operation from the drop-down list. RAW treats data as a byte stream. LINE does special line handling for data from TCP to the serial interface. IAC-ESC ensures data transparency when connecting to remote Telnet sessions.
  • Page 27: Verify Terminal Server Connection

    Microtronix Access X.25–TCP/IP Gateway 3.12.5  Verify Terminal Server Connection Click on the Status and Control & Log items in the Terminal Server main menu section. Refer to the Help pages for details. www.microtronix.com...
  • Page 28: Cables

    Microtronix Access X.25–TCP/IP Gateway 4  Cables 4.1  WAN Cables When configured for sync (X.25), the DB25F WAN ports have an RS530 DCE pin configuration (compatible with ISO 2110). RS232 is a subset of RS530, so a WAN port has a standard RS232 pin assignment when configured for RS232/V.24.
  • Page 29: Serial And Console Cables

    Microtronix Access X.25–TCP/IP Gateway 4.2  Serial and Console Cables When configured for async serial, the DB25F WAN ports have an RS232 DCE pin configuration. On models with a DB9 Console port, the port has a DB9F connector with RS232 DCE pin configuration. 4.2.1  Connecting to a DCE device The following cables are used when connecting to a serial DCE device (like a modem) that has a DB25 or DB9 female connector.
  • Page 30: Encapsulation Message Formats

    Microtronix Access X.25–TCP/IP Gateway 5  Encapsulation Message Formats The following are the formats of the messages used to encapsulate X.25 packet data over TCP connections. The TCP/IP host is expected to implement one of these methods if message preservation is required on the X.25 host.
  • Page 31: Qrbp

    Microtronix Access X.25–TCP/IP Gateway 6 bytes. The count ( 2 bytes network order) is the payload length. The flag is coded 0x00 to indicate a complete application message, or coded as 0x01 to indicate a continuation of the application message in subsequent RBP messages with the final fragment in an RBP message with flag 0x00.
  • Page 32: Contact Microtronix

    Microtronix Access X.25–TCP/IP Gateway 6  Contact Microtronix Microtronix Datacom Ltd. 4056 Meadowbrook Drive, Unit 126 London ON N6L 1E3 CANADA Tel: +1 519 690-0091 Fax: +1 519 690-0092 General Inquiries: info@microtronix.com Sales Enquiries: sales@microtronix.com Customer Support: support@microtronix.com www.microtronix.com...
