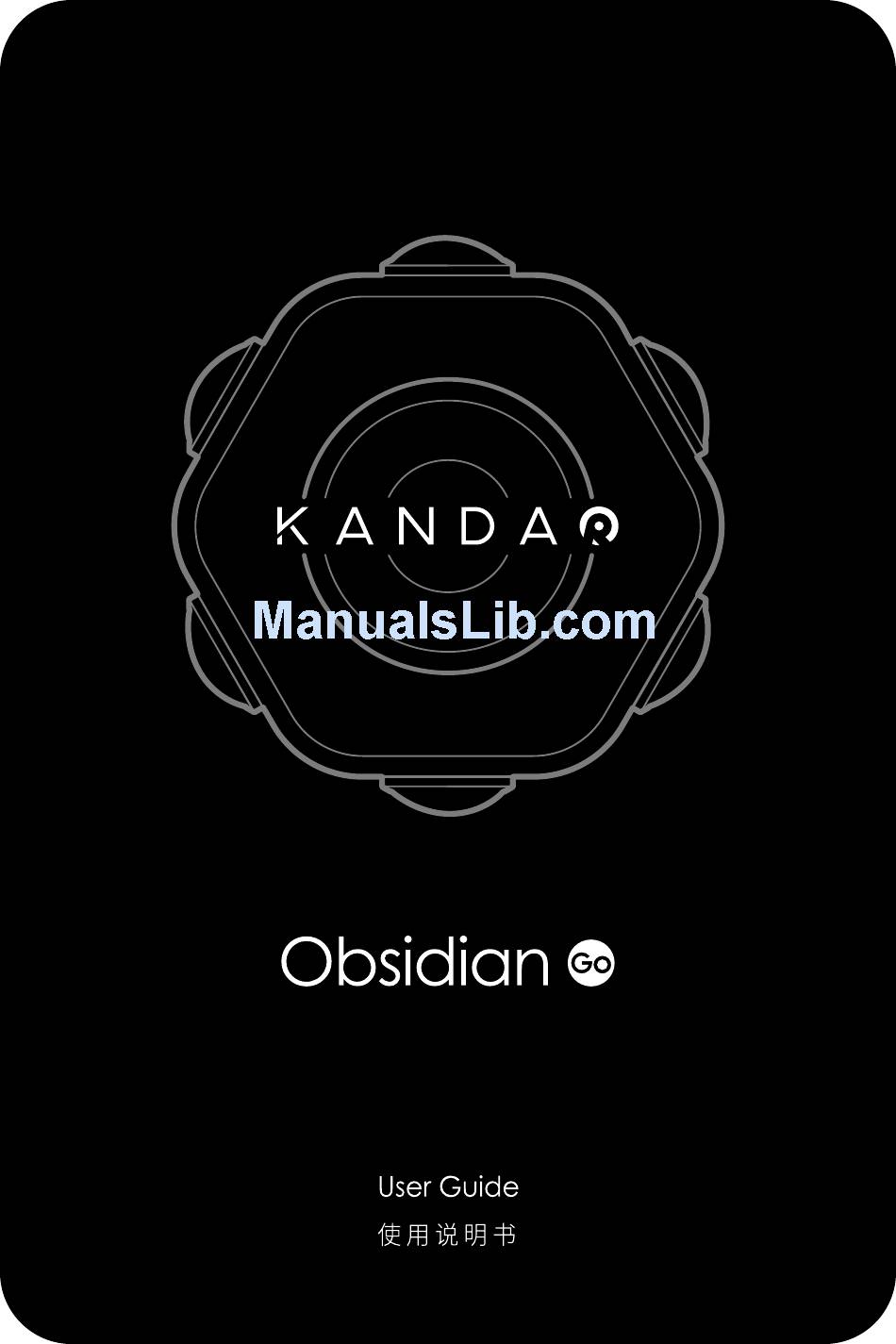

- Page 1 3 D V i r t u a l R e a l i t y C a m e r a...
- Page 2 Contents Name of Parts Specification Parameters Package Contents Using the Camera Operate with Remote...
-
Page 3: Name Of Parts
Name of Parts Introduction to camera parts Hot/Cold-Shoe Mount Battery Cover Lens Micro SD Power Card Slot Indicator Working Mode Indicators Power Button Time-lapse Photo Video Record Capture Button Button Microphone 12V External Tripod Mount: Power 3/8“UNC Supply Terminal Tripod Mount： Anti-Rotation Pin Zoom Audio Tripod Mount:... - Page 4 Introduction to camera remote control parts Photograph Indicator Power Indicator Video Indicator Power Button Time-lapse Photo Capture Button Video Record Button Buzzer Battery Cover...
-
Page 5: Specification Parameters
Specification Parameters Model Obsidian GO Video Format Weight (Camera+Battery) 1015 g Recording Media Micro SD Card (Maximum 128G) Video Coding Format H.264 Working Voltage Battery 7.4V, Adapter 12V Power 10.5W Frame Rate 30 fps Working Temperature -10 ~ 40 °C... -
Page 6: Package Contents
Package Contents Obsidian GO Carrying Case Shoulder Strap Camera Manual Lens Cleaning Sync Control Cable for Zoom H2n Handy Cloths Recorder(spatial sound) Adapter Remote Control Remote Control Batteries Batteries LP-E6 Lens Cleaning Pen Card Reader USB 3.0 Optional ) -
Page 7: Using The Camera
Using the Camera Power the Camera using one of the following ways 12V external power supply 2 X Canon LP-E6 or compatible batteries... - Page 8 Insert Micro SD cards Insert all six Micro SD cards into the slots. U3 (USH-I) cards are required. Power on / off Power on: Press the [Power Button], if the camera turns on normally, the power indi- cator lamp emits red, and the six [Working Mode Indicators] emit blue.
-
Page 9: Operate With Remote
Operate with Remote Control Install the battery & connect with camera Install the battery：Open the battery door and insert 2 AAA batteries. batteries Connect with camera：Switch on camera first, then press any button on the remote control to start connecting, during this process Power Indicator will flash slowly, and then go off after the connection is done. - Page 10 Indicator lamp description Slow flash Quick flash Camera is on but Low power/ camera is disconnected with remote on abnormal status control Taking a photograph An error has occurred during taking a photograph Recording a video An error has occurred during recording a video Camera is in dormancy Reminder:...
- Page 11 Safe Handling Precautions Avoid condensation and freeze -- When moving the camera from one extreme temperature to another, keep your camera in sealed plastic bags to prevent condensation. Allow time for equipment to adjust to temperature change before removing from the plastic bag.
- Page 12 FCC Special Statement FCC Regulatory Information Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 13 w w w . k a n d a o v r . c o m Kandao is a high tech company committed to virtual reality with a strong mixed of mission and passion to build the best VR camera for the mass. The co-founders and core team members of Kandao graduated from top universities and have either/both technical and/or commercial backgrounds in leading technology organization such as Tencent, Huawei, Philips, Sharp and other well-known enterprises.
