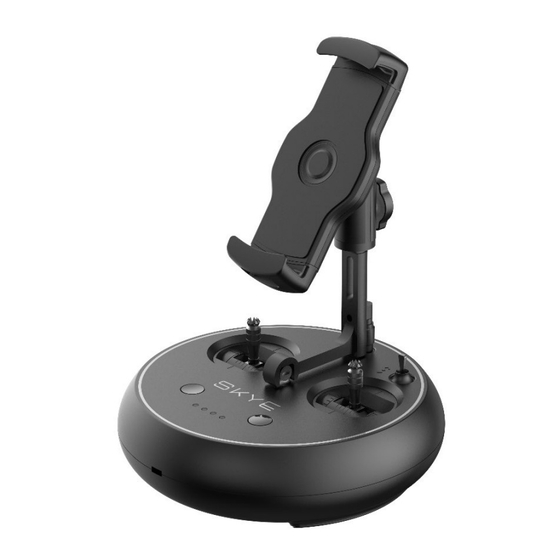

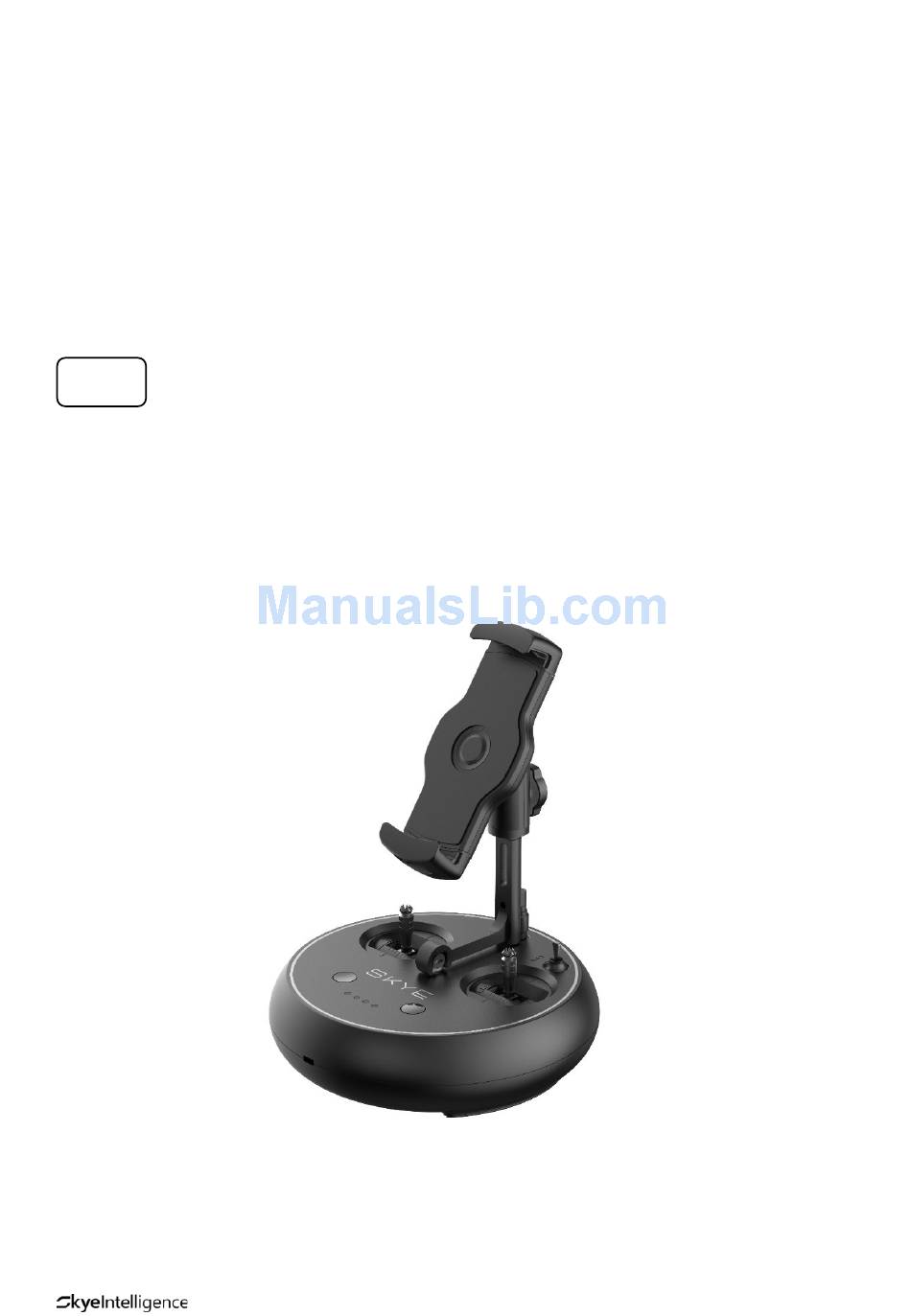

Page 1: Remote Controller
Remote Controller V 1.0... -
Page 2: Using The Remote Controller
Turning the Remote Controller On and Off The Orbit remote controller has a capacity of 520 mAh rechargeable battery. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the steps below to turn on your remote controller: 1. - Page 3 Battery Level: The battery level is displayed via LED indicators on the front panel of the remote controller: Battery Level Indicators ●ON ◎OFF Battery Level ～100% ● ● ● ● ◎ ～75% ● ● ● ◎ ◎ ～50% ● ● ◎...
- Page 4 Adjust the tilt of the gimbal: Users can use this dial to control the tilt of the gimbal: Dial Gimbal Remarks Push the dial clockwise， the camera rotates upward. The more the dial is pushed away from the center position, the faster the camera rotate.
- Page 5 Controlling Orbit This section explains how to control the orientation of the Orbit through the remote controller. The Remote Control is set to Mode 2 by default. Stick Neutral/Mid-Point: Control sticks are in the center position. Moving The Control Stick: The control stick is pushed away from the center position.
- Page 6 One-click Return procedure and regain control of the drone. emote Controller Paring When the Remote Controller is turned on, it will detect the paring status with the Orbit, if the controller is not paired with the drone, the Skye+ app will pop up a paring window as below: Remote Pairing Procedures Enter Settings scree and click Remote Controller Setting.
- Page 7 Step 3. Pairing in process Remote Control Calibration Calibration is required after pairing successful. Step 1. Click“Remote Controller Calibration”to enter the calibration screen. Step 1. Click“Remote Controller Calibration”to enter the calibration screen. Step 2. Click “Start Calibration”...
- Page 8 Step 3. A warning is displayed to notice users to follow the instructions. Follow the instruction to start the combination stick command process until it shows “Calibration succeed” 1. Users MUST pair the Remote Controller via Skye+ app before first use. 2.
- Page 9 This content is subject to change. If you have any question about this document, please contact SKYE by sending a message to support@skye-intelligence.com © SKYE. All Rights Reserved Printed in China...
- Page 10 Any Changes or modifications not expressly roved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
