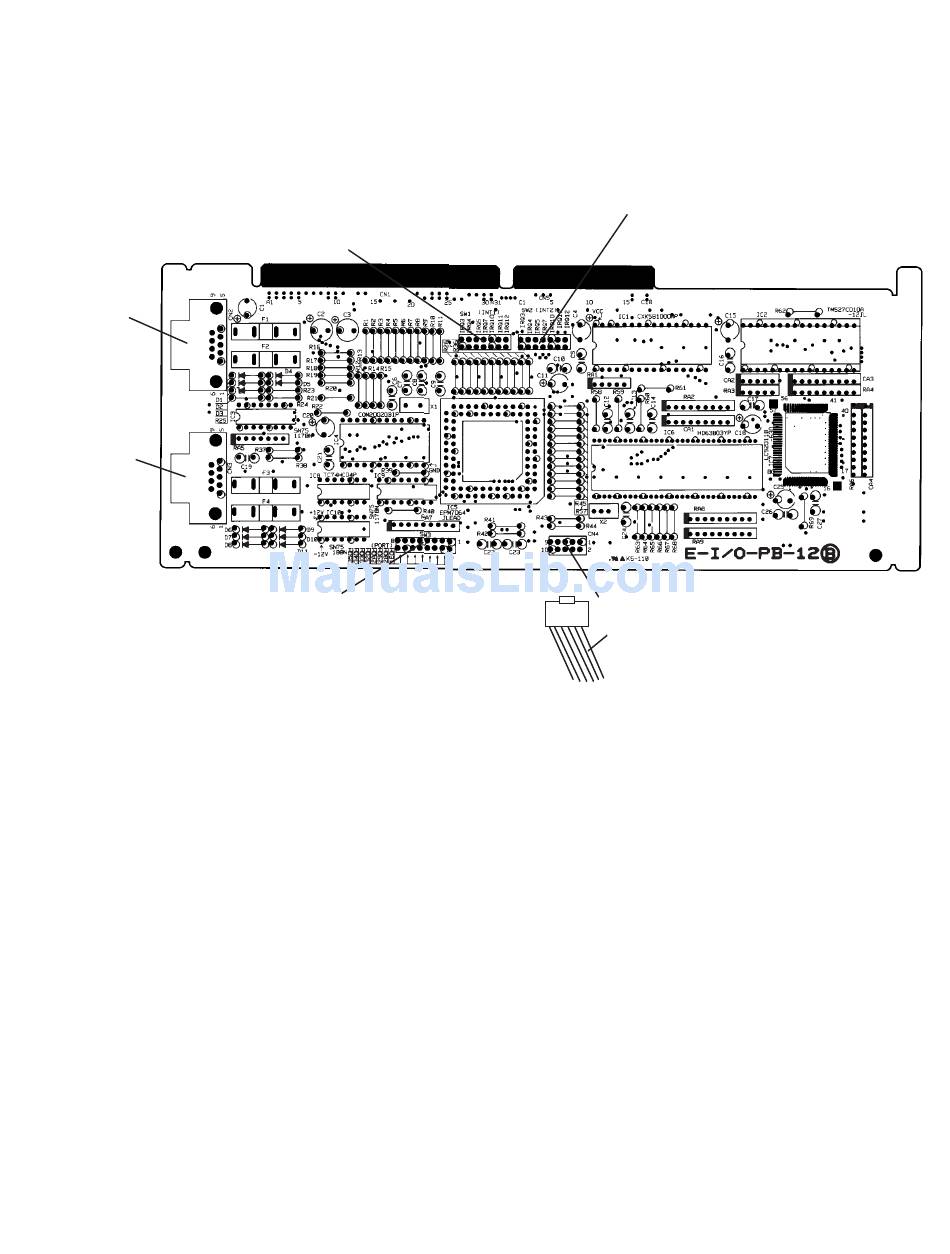

1-2. I/O PB-12 board cables connection

C N2
Inline
Connector
C N3
Kitchen
Printer
Connector
1)
Connect the following cable to the I/O-PB12.
2)
The standard setting for SW1(INT1), SW2(INT2) and SW3(PORT) are as follows:
SW1
IRQ No. selection
SW3
I/O Port address
selection
CN2: Kitchen printer
CN3: In-line
CN4: Power cable from the UPS.
Ensure that the red dot line mark is No.1 pin.
SW1: Standard setting is IRQ10.
SW2: Standard setting is IRQ11.
SW3: Standard setting is 1E0H.
C N4
Red wire
From Power sup p ly (UPS)
— 2 —
SW2
IRQ No. selection
