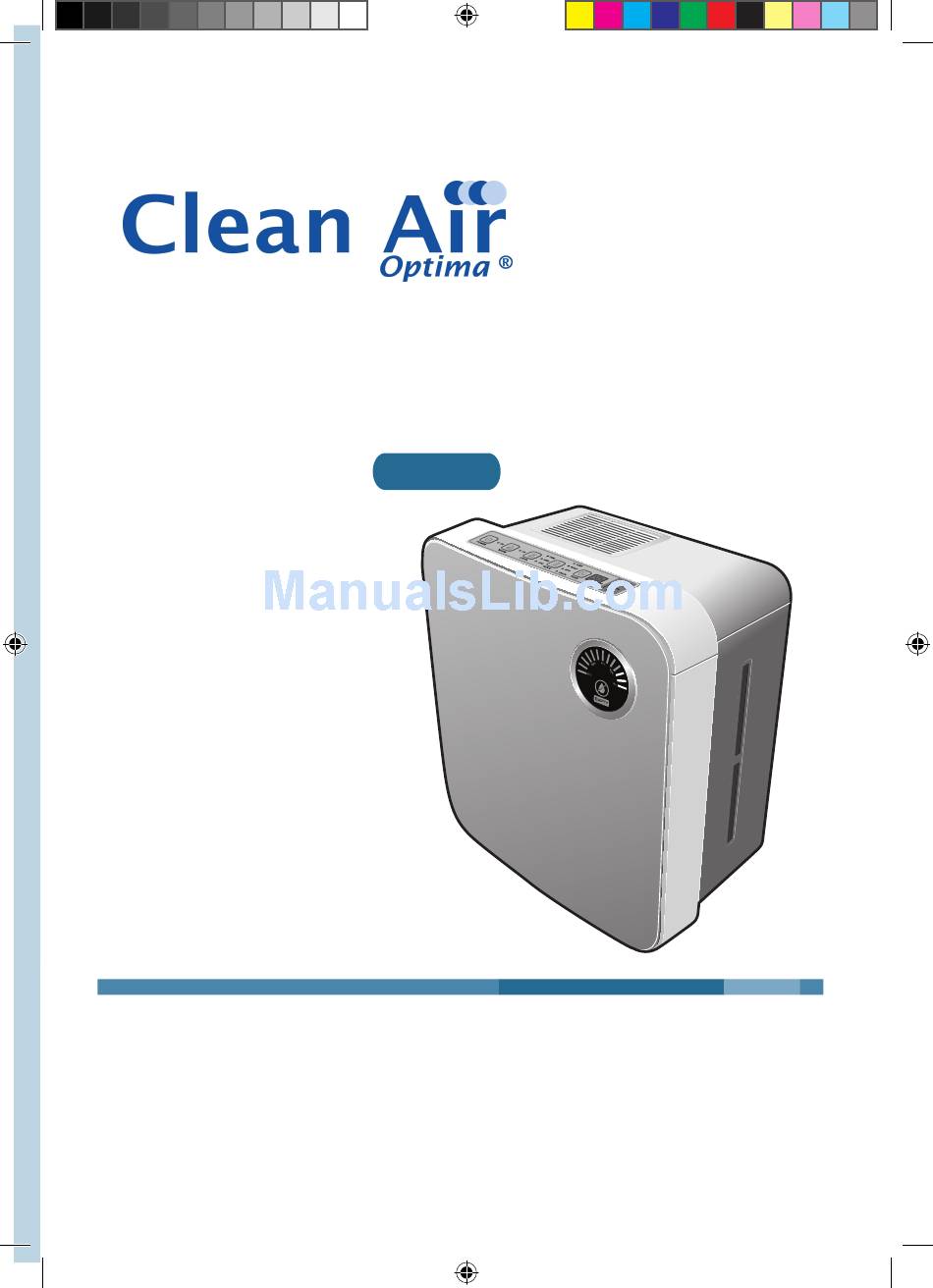

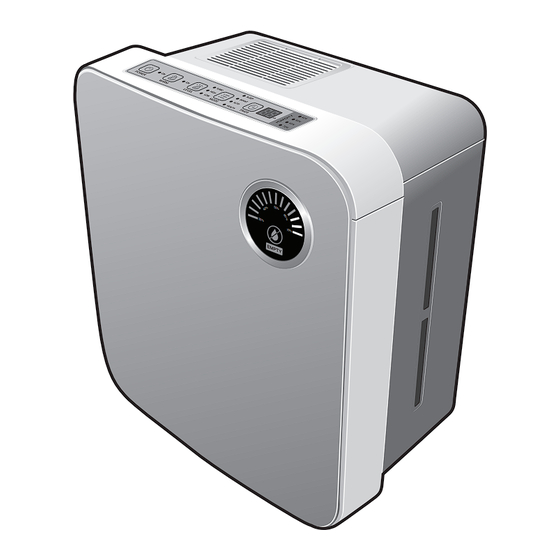

- Page 1 Air wa sher 2in1: Air purifying & Air humidifying User’s Manual CA-807...
-
Page 2: Product Specification
Product Specification Product Name Clean Air Optima CA-807 Rated Voltage and Frequency 220V - 230V 344W(Rapid humidifying) / 44W(Natural humidifying) Rated Power Consumption Mode Artificial Intelligence, Sleep, Baby, Health protection 400ml/h(Rapid humidifying) / 200ml/h(Natural humidifying) Humidity 5 Liter Water Tank Volume... - Page 3 Contents Before using Caution for the Safety …………………………… 04 Name and Function of each part ………………… 10 Using How to install ……………………………………… 12 Preparation before using ………………………… 13 Notice ……………………………………………… 14 How to use ………………………………………… 15 How to clean ……………………………………… 19 Before reporting If regarded as the trouble …………………………...
-
Page 4: Caution For The Safety
Caution for the safety ● M ake sure to follow the indications below because they are for preventing unexpected risk or damage by using the products exactly. ● C aution related to the safety can be divided as follows depending on the size of expected risk in case of wrongly installing and damage and urgency level of risk. - Page 5 Before using Don’t move the humidifier during its use. Don’t use it when electrical cord or power plug is damaged or the electric outlet is loose. • It can cause errors or electric shock. • It can cause electric shock, electric short and fire. In case of damaged power cord, inquire it to the place you bought it and customer service center and exchange it with other product.
- Page 6 Caution for the safety When water is put into power supply part, pull the plug When noise, burning smell and smoke come from the out and contact with service center. product, immediately cut off the power and contact with service center. •...
- Page 7 Before using Don’t use it in a place where wind blows from window When noise, burning smell and smoke come from the and air conditioner. Avoid the place where humidity product, immediately cut off the power and contact from the product can contact with ceiling, wall, with service center.
- Page 8 Caution for the safety Don’t use damaged water tank with no change. When using the product, don’t use with the side with filter and wall facing. • It can cause water to drop from the product or water to overflow in the water tank, triggering electric shock and errors.
- Page 9 Before using Use it after drying completely when water is put into Dump water in case of the concern for freezing. the power supply part. • When it can be frozen, dump water remaining in body frame such as water tank. Frozen product can cause errors. •...
-
Page 10: Name And Function Of Each Part
Name and Function of each part Name of front side and inside part Discharge port • It is the place to discharge Operation Part evaporative humidity. • Refer to the description of operation part in 11 page. Part displaying humidity •... - Page 11 Using Operation Part Button for rapid humidifying ON : Rapid humidifying OFF : Button for natural Mode button humidifying. It is the button for selecting the mode of Sleep →Baby → Artificial Intelligence →Health Protection. Reserving button Button for reserving operation time Humidity button It is the button to select Power button...
-
Page 12: How To Install
How to install ● T he body frame is recommended to install in the place where the floor is strong and flat and the air is circulated well. ▶ If the body frame is installed facing the center of the room, more effective air flow can be created. •... - Page 13 Caution before using Using Don’t put combustibles into the water tank. It can cause it to burn. How to supply water ● Use it clearly at all times by replacing water with clean water daily. Open the cap of the water tank and remove the Open the cap of the water tank and put tap water in it.
-
Page 14: Notice
Notice Evaporative humidifying system ● Steam cannot be seen. • As it is natural evaporative type without boiling water, the increase cannot be seen. ● The wind coming from ventilator is not warm. • As the air taken in during the evaporation gets rid of the heat, the wind coming from the ventilator is not warm, Depending on the size of the room, it can be felt cold. - Page 15 How to use Using Button for Operation Part ● Put water tank into the body frame. It takes about 40 seconds to fill water tank with water after water ※ tank is put into the body frame. Pressing power button with water not filled into water bassin can lead to turning off the display of no water and not working product.
-
Page 16: Sleep Mode
How to use Humidity control Notice - In case of less than 30% of initial indoor humidity, select ‘Turbo’ with the button of humidity and set a rapid humidity. Then you can increase indoor humidity fast. - Initial setting is kept at Turbo. Press the button of humidity (Level) and control humidity. - Page 17 Using 2. Baby Mode • To keep 66%, humidity proper for baby, the Weak and Strong operation of humidifying can be repeated. 3. Artificial intelligence mode • To keep 55%, humidity proper for infants, the Turbo, Strong and Weak operation of humidifying can be repeated.
- Page 18 How to use How to use ‘Reserving Time’ Notice - Reserving Time can be operated in all modes and in changing mode, Reserving Time can be cancelled. ● Reserve the operation time you want by pressing the button for reserving time. •...
-
Page 19: How To Clean
How to clean Using Make sure to pull the plug out. ※ Make sure to clean up regularly. If the pollution is serious, it can cause the product to lower the performance or to be broken down and the smell to be emited. Water tank (every day) ●... - Page 20 How to clean up Clean water tank part twice in a week. If you don’t remove the water from water tank after using and the condition is ● left, the color of the water is changed or the water stinks. Remove the cover of water tank.
- Page 21 Using Clean the water bassin part with a soft sponge ⑥ and assemble it in the adverse order. ▶ I nstallintheorderbelowwhenthesensor ofwaterlevelismissing. ① Lay the sensor of water level at the bottom of protrusion. ② Insert the axis of water level sensor into the hole of water tank part.
- Page 22 Clean the humidification filter (Rotor) 2 - 3 per week Notice Depending on water quality, water moss can be gathered. Clean it up in case of serious contamination. Don’t use benzene, thinner, alkaline detergent, detergent for removing fungi and powdered detergent. ※...
-
Page 23: Leaking Water
What if you think there are errors? Using If you think there is an error even after the check as follows, stop using to prevent the ▶ accident. And then pull the plug out and contact with customer service center. Tel: +49(0)5921 878-121 E-mail: info@optima-luftreiniger.de ▶... - Page 24 Take in this case, your supplier or, if that is not possible with Clean Air Optima contact. If the defect in the device to something other than material and / or workmanship be due, processing or repair costs will be billed.
