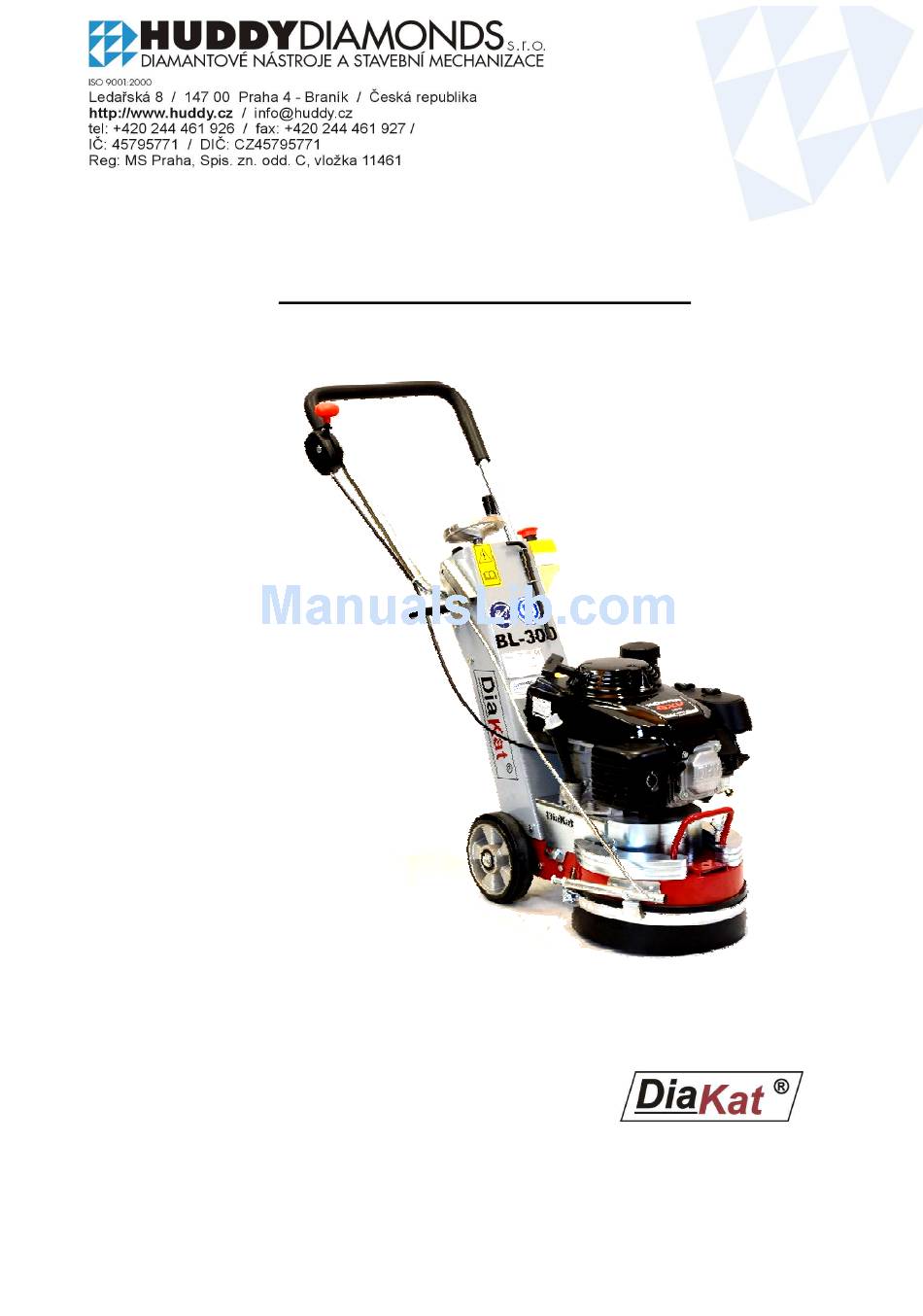

- Page 1 Operator’s Manual Rev.1.0 BL-300 Floor grinder...
- Page 2 1.3. Prohibited activities ......................3 1.4. Liquidating the machine at the end of its useful lifetime ........... 4 1.5. Safety instruction for work with BL-300 Floor Grinder ............. 4 2. TECHNICAL DATA AND DESCRIPTION OF THE MACHINE.....4 2.1. Description of the machine ....................4 2.2.
-
Page 3: Safety Instruction
BL BL BL BL- - - - 300 Floor grinder SAFETY INSTRUCTION 1.1. General safety instructions 1.1.1. Qualification requirements Persons operating this machine must fulfil the following requirements: The machine may be operated independently only by workers who are: • older than 18- teen years (or as the law in the country of use prescribes) •... -
Page 4: Using The Machine
BL BL BL BL- - - - 300 Floor grinder 1.1.4. Using the machine When using the machine the operator must comply with the following instructions: 1. Check the machine before use. 2. Use prescribed personal safety aids while working. (Helmet, earmuffs, safety shoes, goggles, respirator, gloves…). -
Page 5: Liquidating The Machine At The End Of Its Useful Lifetime
TECHNICAL DATA AND DESCRIPTION OF THE MACHINE 2.1. Description of the machine The BL-300 DiaKat Floor Grinder is designed for grinding small bumps and slight unevenness of horizontal floor areas. It find its widest use in grinding and levelling of smaller concrete, anhydride and screeded floor areas with diamond or Tc tipped grinding tools The BL -300 is primarily intended for a “dry grinding”... -
Page 6: Technical Specifications
BL BL BL BL- - - - 300 Floor grinder 2.2. Technical specifications Weight 62+6 kg Tool diameter 300 mm Max. depth of cut 0,5-1,5 mm Main spindle RPM's 1800 rot.min Depth of cut adjusting manual Engine HONDA GXV160 Engine RPM's 3000 ot.min Max.output 4.0 kW (by 3600 rot.min-... -
Page 7: Description And Designation Of Tools
BL BL BL BL- - - - 300 Floor grinder 2.4. Description and designation of tools Description TCT cutters carrier 3bars x 4 x 46 / 6 Ø 300 mm Usage * reducing of surface to desired depth * grinding of small bumps * surface roughening * tile's holding glue removal 1 - 3 mm... -
Page 8: Mounting Of Tool
7. Make sure that the tool hole fit fully on to the collar of the carrier. 2.4.2. Dismounting of tool Similarly dismount the tool. 2.5. Význam značek a piktogramů na použitých na stroji BL-300 floor grinder is complient with EU law and is marked with following stickers with following meaning: Symbol / Sticker Sticker meaning... -
Page 9: Before Starting
BL BL BL BL- - - - 300 Floor grinder BEFORE STARTING 3.1.Visual check up of the machine state Regularly (before commencing work) check: • all covers and safety features • all screwed joints (especially tool mounting screws) • state of tool’s wear WORKING WITH THE MACHINE !ATTENTION! Always use adequate dust collector when grinding in enclosed area. -
Page 10: Maintenance
BL BL BL BL- - - - 300 Floor grinder MAINTENANCE The basic steps of preventive maintenance described in this manual can be carried out by the operator appointed by the entrepreneur. We recommend that all repairs and adjustments beyond the scope of this manual are carried out by authorised service centre.
