DIAKAT BF-410 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ISO 9001:2000
Ledařská 8 / 147 00 Praha 4 - Braník / Česká republika
http://www.huddy.cz / info@huddy.cz
tel: +420 244 461 926 / fax: +420 244 461 927 /
IČ: 45795771 / DIČ: CZ45795771
Reg: MS Praha, Spis. zn. odd. C, vložka 11461

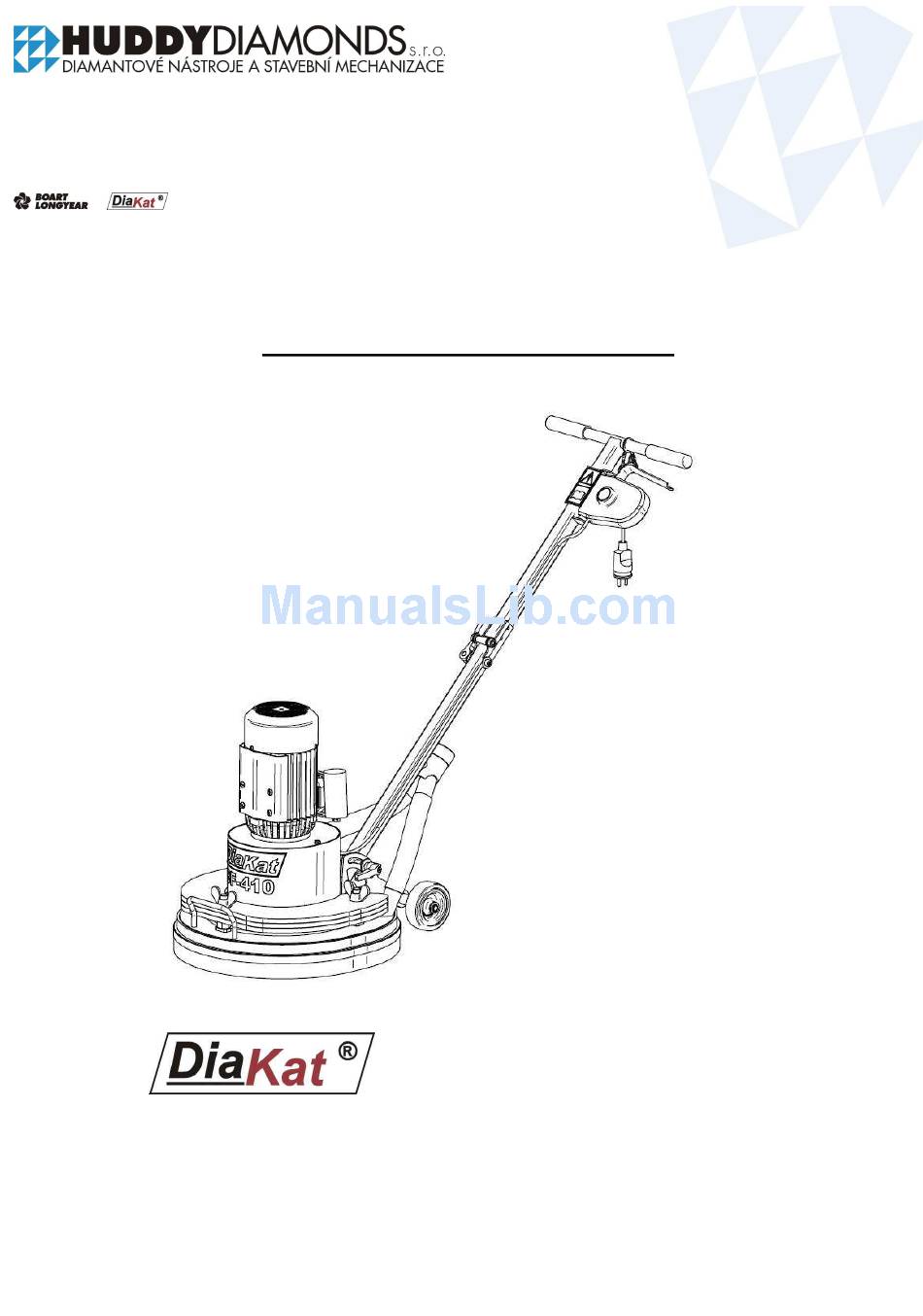

Operator's Manual
BF-410
Floor Grinder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-410 and is the answer not in the manual?

Questions and answers

Related Manuals for DIAKAT BF-410

Summary of Contents for DIAKAT BF-410

  • Page 1 Ledařská 8 / 147 00 Praha 4 - Braník / Česká republika http://www.huddy.cz / info@huddy.cz tel: +420 244 461 926 / fax: +420 244 461 927 / IČ: 45795771 / DIČ: CZ45795771 Reg: MS Praha, Spis. zn. odd. C, vložka 11461 Operator’s Manual BF-410 Floor Grinder...

  • Page 2: Table Of Contents

    1.2. Transporting the machine....................3 1.3. Prohibited activities......................3 1.4. Liquidating the machine at the end of its useful lifetime ...........4 1.5. Safety instruction for work with BF-410 Floor Grinder............4 2. TECHNICAL DATA AND DESCRIPTION OF THE MACHINE .... 5 2.1. Description of the machine....................5 2.2.

  • Page 3: Safety Instruction

    BF-410 Floor grinder SAFETY INSTRUCTION 1.1. General safety instructions 1.1.1. Qualification requirements Persons operating this machine must fulfil the following requirements: The machine may be operated independently only by workers who are: • older than 18- teen years (or as the law in the country of use prescribes) •...

  • Page 4: Using The Machine

    BF-410 Floor grinder 1.1.4. Using the machine When using the machine the operator must comply with the following instructions: 1. Check the machine before use. 2. Before commencing work check if it is safe to start the machine with out endangering the operator or other persons.

  • Page 5: Liquidating The Machine At The End Of Its Useful Lifetime

    The manufacturer can not be held responsible for damages to health or environment in cases where all the above mentioned principles where not adhered to. 1.5. Safety instruction for work with BF-410 Floor Grinder Attention! The machine is designed to comply with current safety legislation. It is prohibited to remove any of the safety covers on the machine.

  • Page 6: Technical Data And Description Of The Machine

    2.1. Description of the machine The DiaKat BF-410 Floor Grinder is designed for grinding levelled floor areas. Thanks to its low rev it is suitable for finishing work on materials such as concrete, screeds, anhydride, wood, or epoxy, be it in or outdoors.

  • Page 7: Primary Operative Parts Of The Machine

    BF-410 Floor grinder 410 mm Tool diameter Length of machine (handlebars in work mode) 1176 mm, adjustable Height of machine with / without handlebars 896 mm / 495 mm, adjustable Weight of machine + additional weights 42 kg + 15 kg additional weights...

  • Page 8: Mounting And Dismounting Of Tool

    BF-410 Floor grinder 2.4. Mounting and dismounting of tool !ATTENTION! Always follow the instructions below when mounting or dismounting tool! (Only then you can set up the machine with tool correctly and safely.) The machine must be always secured against movement and the motor switched off and unplugged when changing tool! 2.4.1.

  • Page 9: Before Starting

    BF-410 Floor grinder BEFORE STARTING 3.1. Visual check up of the machine state Regularly (before commencing work) check: • all covers and safety features • all locking leavers • state of tool’s wear 3.2. Additional burdening The pressure of the tool can be increased by adding up to three additional weights, weighting 5 kg each.

  • Page 10: Switching Of The Machine

    BF-410 Floor grinder * Application of slight pressure on the handlebars towards the ground will cause moving of the machine to the left * slight lifting of the handlebars will cause moving of the machine to the right. * slight tilting of the machine to the left will cause moving of the machine to the front * slight tilting of the machine to the right will cause the machine to move back 4.3.

  • Page 11: Conditions Of Guarantee

    CONDITIONS OF GUARANTEE Diakat machines are designed and manufactured to withstand the toughest working conditions and still remain safe, defect free and long-lasting. The following conditions are the same for the whole Diakat range of products. If not otherwise agreed the manufacturer guarantees all his products for 24 months from the date of the delivery to the end user, under the condition that the first year paid service inspection is carried out.
