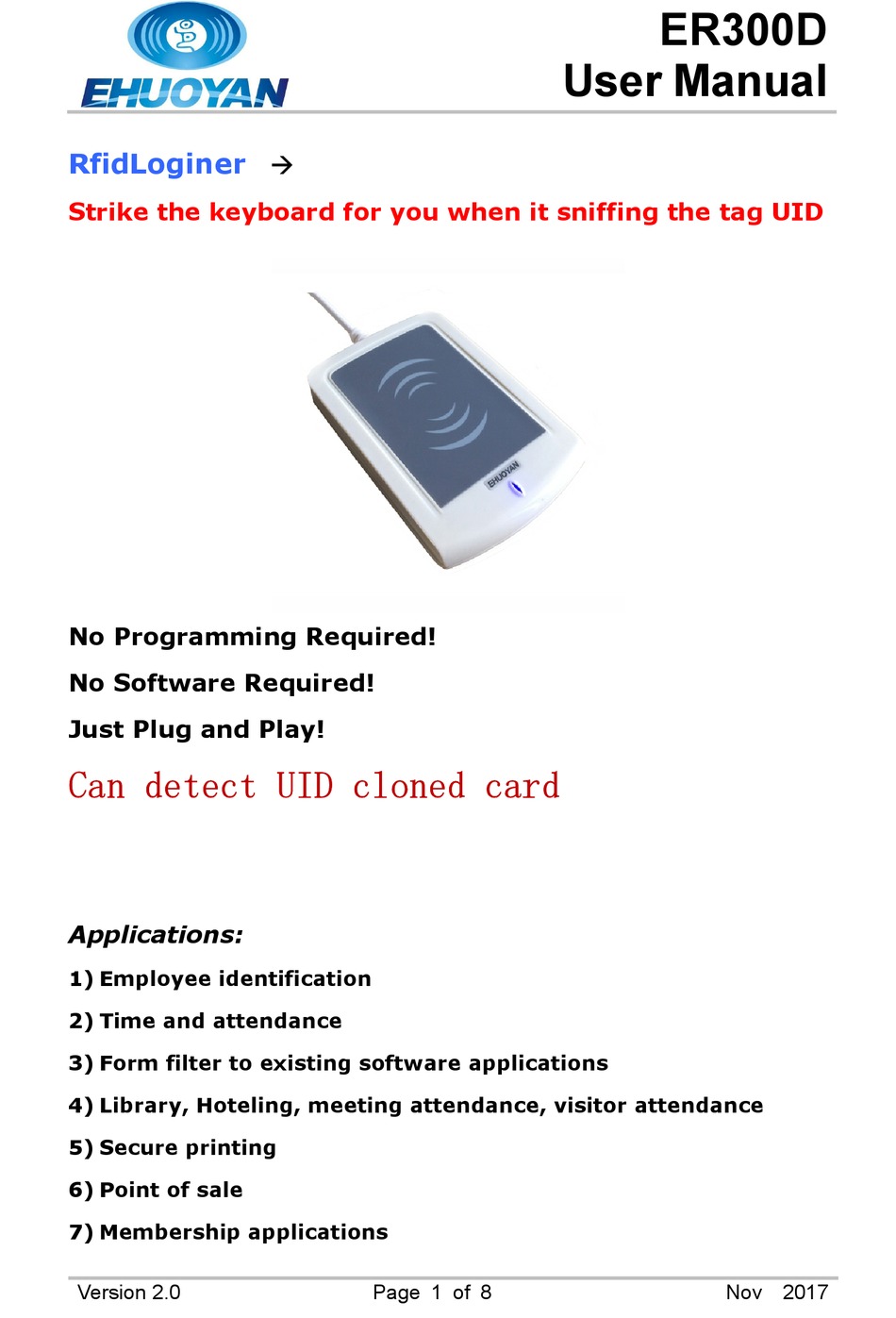

ER300D
User Manual
RfidLoginer
Strike the keyboard for you when it sniffing the tag UID
No Programming Required!
No Software Required!
Just Plug and Play!
Can detect UID cloned card
Applications:
1) Employee identification
2) Time and attendance
3) Form filter to existing software applications
4) Library, Hoteling, meeting attendance, visitor attendance
5) Secure printing
6) Point of sale
7) Membership applications
Version 2.0
Page 1 of 8
Nov 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EHUOYAN ER300D
Summary of Contents for EHUOYAN ER300D
- Page 1 ER300D User Manual RfidLoginer Strike the keyboard for you when it sniffing the tag UID No Programming Required! No Software Required! Just Plug and Play! Can detect UID cloned card Applications: 1) Employee identification 2) Time and attendance 3) Form filter to existing software applications...
-
Page 2: Ordering Information
- Relative humidity: up to 95% - Weight: 100g 2. Output mode The ER300D is a RFID reader which can read Mifare one s20, s50 and s70 RFID tags. This reader acts as a USB HID keyboard device. Version 2.0... - Page 3 ER300D User Manual When ER300D is deployed, no software is needed. It uses standard USB drivers supplied by the operating system such as Windows, Macintosh and Linux. The ER300D reader can read the supported cards and print the card’s serial number as 10 digits(Decimal format) and then end with “Enter”...
- Page 4 ER300D User Manual Example: 3. Device Connect Plug the USB port to the PC USB port, after power on the blue led will flash, it means that the reader is ready. Version 2.0 Page 4 of 8 Nov 2017...
- Page 5 ER300D User Manual When plug the ER300D reader to the PC’s USB port, the system will recognize it as HID keyboard device. Next will be showed on the device manager: Version 2.0 Page 5 of 8 Nov 2017...
- Page 6 ER300D User Manual It may show different with different system. After installation successfully, open “Excel “ or other application program to read the RFID Tag and the tag’s UID will be shown on the screen . 4. Electrical Characteristics 4.1 Operating Condition Range...
-
Page 7: Legal Information
EHUOYAN products are not designed, authorized or warranted to Suitability for use — be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of a EHUOYAN product can reasonably be Version 2.0 Page 7 of 8... - Page 8 User Manual expected to result in personal injury, death or severe property or environmental damage. EHUOYAN accepts no liability for inclusion and/or use of EHUOYAN products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
