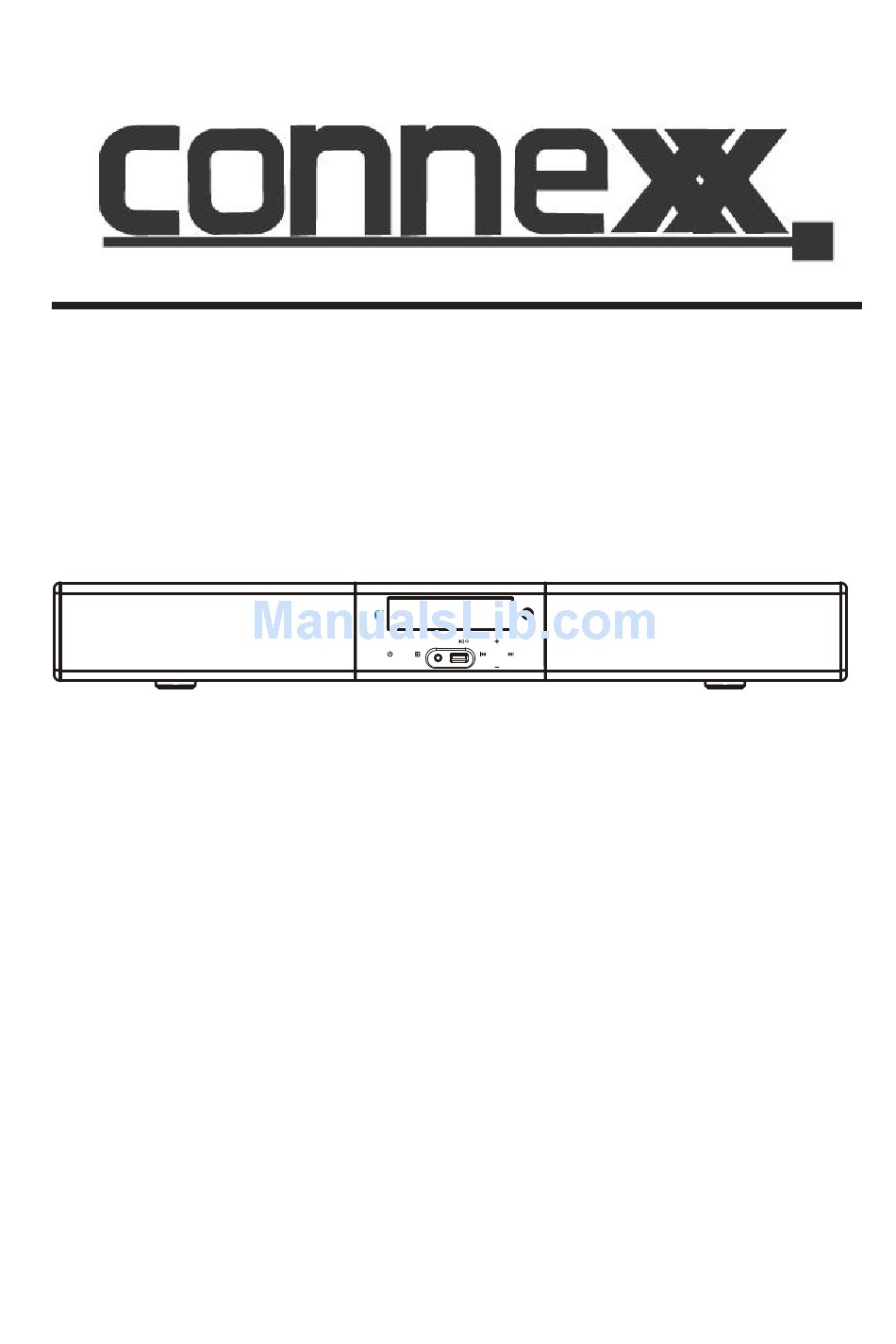

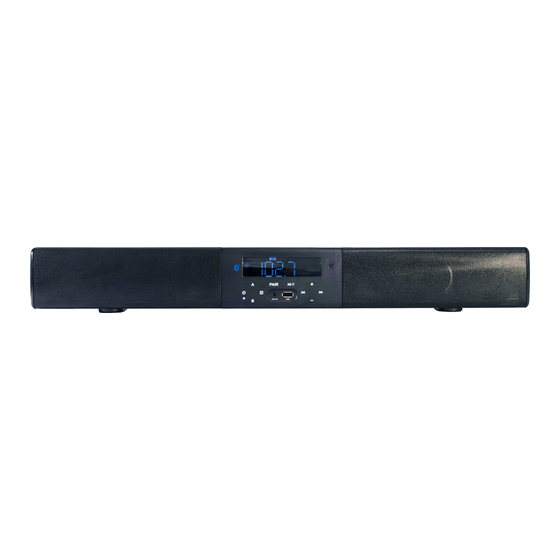

- Page 1 MODEL: SB-26 PAIR AUX IN --INSTALLATION AND OPERATION MANUAL-- PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE...
- Page 2 TABLE OF CONTENTS INTRODUCTION..................Page FEATURES....................Page PACKING LIST..................Page IMPORTANT SAFETY INSTRUCTIONS..........Page PLACING AND MOUNTING..............Page GENERAL VIEW..................Page REMOTE CONTROL................Page BATTERY INSTALLATION--REMOTE CONTROL........Page GENERAL OPERATIONS................Page LISTEN TO FM RADIO................Page BLUETOOTH PAIRING AND PLAYBACK..........Page ADDING OPTIONAL SUBWOOFER AND SPEAKER......Page CONNECT TO TV/DVD................Page CONNECT USING OPTICAL..............Page AUX IN PLAYBACK.................
-
Page 3: Introduction
INTRODUCTION Thank you for choosing a Connexx product. We hope you will find the Instructions in this owner's manual clear and easy to follow. If you take a few minutes to review, you will learn how to use all of the features of your new soundbar stereo for maximum enjoyment. - Page 4 The lighting flash with arrowhead symbol within an CAUTION equilateral triangle is intended to alert the user to RISK OF ELECTRIC SHOCK the presence of uninsulated “dangerous voltage” DO NOT OPEN within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric CAUTION: TO REDUCE THE RISK OF shock to persons.
- Page 5 6 ) Clean only with dry cloth 13 ) Refer all servicing to qualified service Unplug this product from the wall outlet before personnel. Servicing is required when the has been damaged in any way, such cleaning. Do not use liquid cleaners or aerosol apparatus as power-supply cord or plug is damaged, liquid cleaners.
-
Page 6: Placing And Mounting
PLACING AND MOUNTING 1. Placing on the table When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow space around the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from the Sound Bar could pr oduce a potential heat hazard. -
Page 7: Front View
GENERAL VIEW Front View PAIR AUX IN 9 10 1. PAIR Button (SOURCE)Button 11. PREVIOUS/TUNE Down 12. Volume Up 2. ZONE A Button 7. AUX IN Jack Play/Pause/ Preset/ 3. POWER Button 8. USB Jack Memory/Preset Play Button 4. POWER Indicator 9. -
Page 8: Remote Control
REMOTE CONTROL 1. POWER button 2. Bluetooth Mode Switch button POWER MUTE 3. AUX IN Mode Switch button OPTICAL 4. TV Mode Switch button TUN- / /TUN+ button AUX IN ZONE A 6. VOL ( Volume )+/- buttons ZONE B ( Play/Pause )/ ( Memory/ / ... -
Page 9: Battery Installation--Remote Control
BATTERY INSTALLATION--- REMOTE CONTROL Battery Installation 1.Slide and lift the battery door (Figure 1). 2.Install 2 (two) AAA size batteries into the battery compartment as indicated by the polarity markings (Figure 2). 3.Replace the battery door (Figure 3). Battery Precaution Remote Control Effective Range When there is an obstacle between the unit and the remote control, the remote control may not operate properly. -
Page 10: General Operations
GENERAL OPERATIONS 1. Touch the Power button on the unit or press the button on remote control to power on the unit from standby mode. The power indicator will light up blue. 2. The default mode is "BT". Touch the (mode) button repeatedly to switch to desired mode. -
Page 11: Listen To Fm Radio
LISTEN TO FM RADIO 1. Power ON the unit. 2. Touch the (mode) button repeatedly until "FM" appears on the display. Or press FM button on Remote Control. 3. Press and hold the /TUN - or /TUN + buttons and then release, The unit will start to search next ( or previous ) available FM radio station then plays. -
Page 12: Adding Optional Subwoofer And Speaker
ADDING OPTIONAL SUBWOOFER AND SPEAKER Subwoofer ZONE B SPEAKERS EXT UB SUBWOOFER NOTE: Before connecting, disconnect power. There is a SUBWOOFER SELECTOR on the back of the unit to turn on or turn off the external subwoofer output. IN(Internal subwoofer)- When the switch is moved to "IN" position, there will be no audio output from the external subwoofer. -
Page 13: Connect To Tv/Dvd
CONNECT TO TV/DVD AUDIO IN AUDIO IN VIDEO AUDIO OUT VIDEO OUT NOTE: Before connecting, disconnect power. NOTE: Before connecting, disconnect power. 1. Connect as the figure above. 2. Power ON the unit. 3. Touch the (mode) button repeatedly until "TV" appears on display. Or press TV button on Remote Control. -
Page 14: Connect Using Optical
CONNECT USING OPTICAL Optical Cable(Not Supplied) DVD or TV NOTE: Before connecting, disconnect power. 1. Connect one end of optical connection cable ( not supplied ) to the optical jack on the rear of the unit as pictured above. 2. Connect the other end to the DVD or TV back panel. 3. - Page 15 AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES Connect to the 3.5mm Audio Out jack of external audio devices including Tablets, Laptops, Smartphones, MP3 Players, etc. To the Phones/Aux Out/Line Out 1. Connect one end of audio connection cable (not supplied) to the AUX IN jack on the front of the unit as pictured above.
-
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the following guide before requesting service Check the following guide before requesting service No power Power cable not connected ~Check fuse or blown fuse ~Check power connection Raise volume level by touching the + Volume in minimum position button on unit or VOL+ button on remote control Play the music/movie in the connected... -
Page 17: Specifications
SPECIFICATIONS Operation Voltage......................DC10V-14V Power Supply Requirement..............DC 12 Volts, Negative Ground Unit size..................646.9(W) X 85.6(H)X 80.7(D)mm Device and Accessories Net Weight................1.45kg(3.2 lb) Max Power Consumption......................60W Radio Coverage ....................FM 87.5 -108.0 MH Bluetooth Effective Range.....................Up to 32 feet (Measured in open area. Wall and structures may affect the effective range.) Remote Effective Range.................... - Page 18 www.riverparkinc.com 2016 RIVERPARK Inc. V. 09.16...
Need help?
Do you have a question about the SB-26 and is the answer not in the manual?
Questions and answers
Unit will not turn on. Fuse is good. Cannot locate the power supply wire on backside. All wires feed in to rear. No actual plug. Manual shows Power Harness with in-line fuse. I cannot locate it. Please help. Model SB-26 came in Forest River 2608BS mounted under the tv.
The power harness with in-line fuse for the Connexx SB-26 is included in the packing list of the unit. It may be located behind or near the mounted soundbar under the TV. Check for a red and black wire labeled as the DC power extension, which contains the in-line fuse.
This answer is automatically generated
If my antenna cable got broken for my SB-26, how can I get a new one? Is there a part number I can search for?
