Introduction

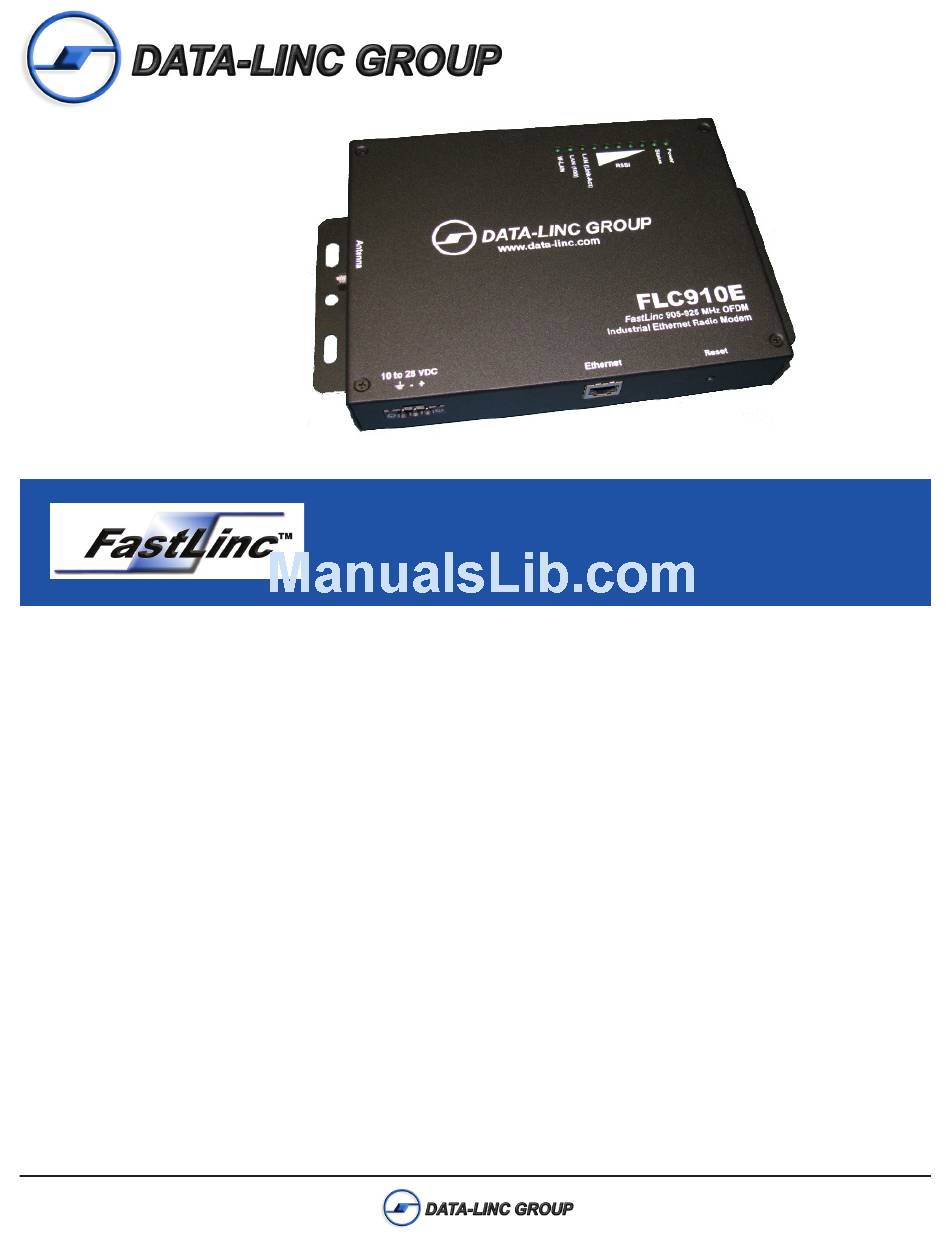

The FLC910E OFDM Ethernet Radio Modem is a secure and easy to use unit to achieve wireless connectivity. This
Quick Start Guide aims to provide a quick and easy setup for a "Base Station" and "Station Adaptor" network. Please see
the User's Guide for other operation modes and more detailed configuration information.
Getting Started
Unpacking the Hardware
•FLC910E OFDM Industrial High-Speed Ethernet Modem
•120 VAC Wall Transformer (US Power Connector)
•Cat5 Ethernet Cable
•CD with Manual
•Quick Start Guide
•Test Antenna
Connections
•Connect the Test Antenna,
•Connect the Cat5 Ethernet cable to PC (for Configuration)
•Connect the Power Supply from wall to unit
The unit will begin the boot process upon power connected.
Note: The boot process takes about 70 seconds before the unit will be fully operational and configurable.
The LAN Link LED should be lit for a connection to the PC.
PN 161-09855-001A
June 2010
FLC910E
Q
uick
FLC910E Quick Start Guide
S
tart
