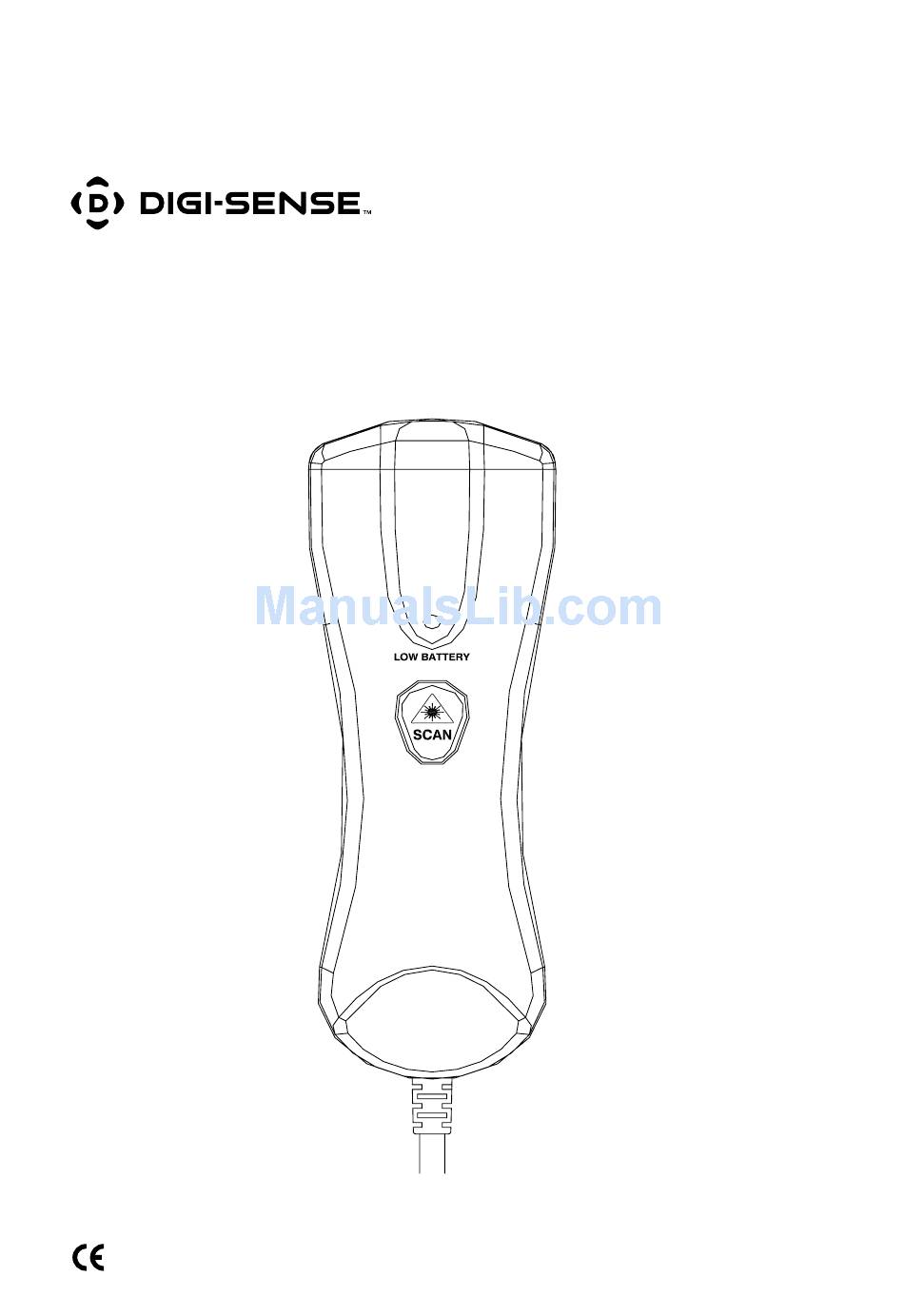

- Page 1 User Manual Infrared Wand with 8:1 Distance-to-Sight Ratio Model 20250-24 THE STANDARD IN PRECISION MEASUREMENT...
- Page 2 Introduction The Digi-Sense Infrared Temperature Wand (Model 20250-24) is a noncontact measurement accessory to be used with the Digi-Sense Professional series of thermocouple thermometers (models 20250-17, -18, -19, -20). Unpacking Check individual parts against the list of items below. If anything is missing or damaged, please contact your instrument supplier immediately.
-
Page 3: Specifications
Setup and Operation 1. Plug the connector on the IR wand into the IR input jack on the side of the meter (see Fig. 1). If the wand is connected properly, “IR - - - -” or an “IR TEMP” icon will be shown on the meter display. 2. -
Page 4: Field Of View
Field of View The wand’s field of view is 8:1, meaning that if the sensor is 8 inches from the target, the diameter of the object under test must be at least 1 inch. Other distances are shown in the diagram below. Make sure that the target is larger than the unit’s spot size. -
Page 5: Maintenance And Repair
Maintenance and Repair Cleaning and Storage •The wand should be cleaned with a damp cloth and mild detergent when necessary. Do not use solvents or abrasives. • Store the wand in an area with moderate temperature and humidity conditions. Battery Replacement When the battery power falls low, the low-battery LED indicator will light.
