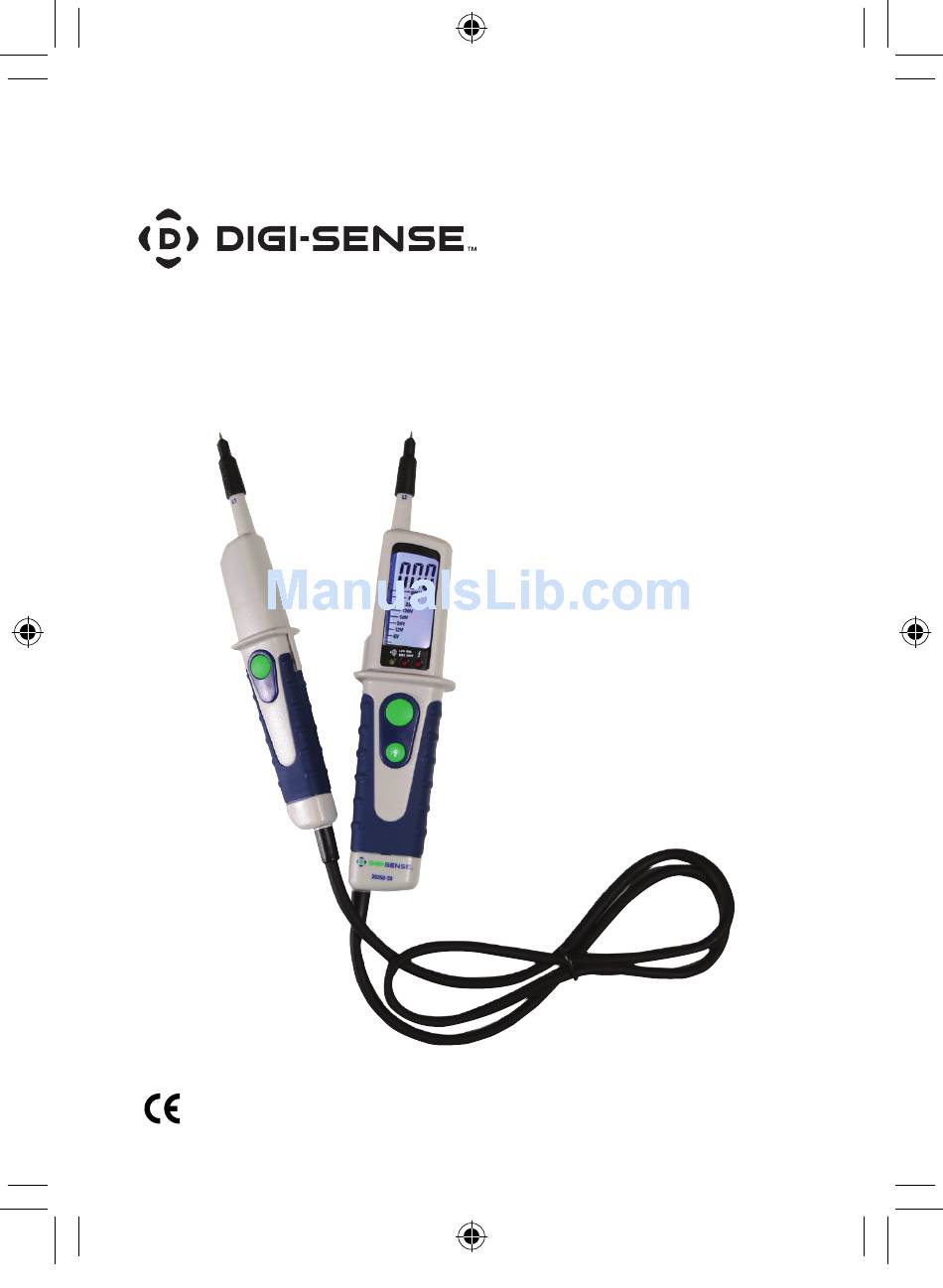

- Page 1 User Manual Multifunction AC/DC Voltage Tester Model 20250-59 THE STANDARD IN PRECISION MEASUREMENT 1065DGMAN_20250-59 DS multifunctional voltage tester.indd 1 8/8/2017 1:37:47 PM...
-
Page 2: Safety Precautions
Introduction The Digi-Sense AC/DC Voltage Tester (Model 20250-59) is versatile and easy to use. The instrument is a must-have on your electrical tool belt. It safely measures AC/DC voltage, polarity direction, and circuit continuity. The instrument also provides rotary field indication and low impedance testing. - Page 3 WARNINGS In order to avoid electrical shock, valid safety regu- lations regarding excessive contact voltages must be followed. These include voltages exceeding 60 VDC and 25 VAC RMS. Prior to measurement, make sure that the test leads and instrument are in working order. When using this instrument only the handles of the probes may be touched –...
-
Page 4: Appropriate Usage
Safe operation can no longer be assured if the instrument: • Shows obvious damage • Does not perform desired measurements • Has been stored too long under unfavorable conditions • Has been subjected to mechanical stress during transport • All relevant statutory regulations must be adhered to when using this instrument Appropriate Usage This instrument may only be used under those conditions... -
Page 5: Meter Description
Meter Description 1. Handle test probe – (L1) 2. Instrument test probe + (L2) 3. Measurement point illumination 4. 2000-count LCD 5. LED for single-pole phase test 6. LED for low impedance test 7. LED for continuity 8. Low impedance switch (L2) 9. -
Page 6: Setup And Operation
Setup and Operation Measuring Point Lighting The voltage tester has a battery-operated measuring point lamp. Press button (9) to switch this lamp on. The lamp stays on as long as this button is pressed. When the button is released, the lamp goes off. The lighting button is arranged in such a way that it can also be pressed during low impedance measurements. - Page 7 The LCD shows the voltage values numerically and in the form of a bar graph. The type of voltage (alternating cur- rent = AC, direct current = DC) and the polarity are also shown on the LCD. In the event of negative DC voltage, the numeric voltage value is preceded by “-“.
- Page 8 Rotating Field Direction Display The voltage tester can show the direction of the rotating field with three-phase systems. Always hold the voltage tester by the handles designed for this purpose. Never touch the device beyond the handle ends. Hold the two test tips on the measuring points to be tested.
- Page 9 Using Voltage Tester as a Single-Pole Phase Tester The voltage tester can also be used as a single-pole phase tester. Always hold the voltage tester by the handles designed for this purpose. Never touch the device beyond the handle ends. This phase test serves as a quick test only.
-
Page 10: Specifications
Specifications Voltage test Voltage range 6, 12, 24, 50, 120, 230, 400 VAC/DC, 690 VDC Resolution 1 VAC/DC DCV: +1.0% rdg + 3 digits Tolerances ACV: +1.5% rdg + 5 digits 400 VAC Max. measuring current Approximately ≤1.0 mA 690 VDC Max. measuring current Approximately ≤1.5 mA Voltage detection Automatic... - Page 11 Low impedance test Voltage range 12 to 230 VAC/DC Low impedance <6 kΩ 5s <250 VAC/DC, 1s ≤0.2 A (690 V) / Operation time 30s Max. Overvoltage protection 3s <400 VAC/690 VDC General 2000 counts (3½ digits) LCD with bar graph and backlight Housing IP64...
-
Page 12: Maintenance And Repair
Maintenance and Repair Maintenance and Disposal Check the correct operation of the voltage tester regularly. It can be assumed that risk-free operation is no longer possible if: • There is visible evidence that the device has been damaged. • The device has been stored under unfavorable conditions for a long period of time. - Page 13 Battery Replacement The voltage tester is powered by two AAA batteries supplied with the instrument. They are replaced as follows: 1. Loosen the screw on the battery compartment lid (10) with a screwdriver and remove it. 2. Insert two AAA batteries into the compartment observ- ing the correct polarity information in the compartment.
- Page 14 1065DGMAN_20250-59 DS multifunctional voltage tester.indd 14 8/8/2017 1:37:48 PM...
- Page 15 1065DGMAN_20250-59 DS multifunctional voltage tester.indd 15 8/8/2017 1:37:48 PM...
- Page 16 For Product and Ordering Information, Contact: Toll-Free: 1-800-358-5525 Toll-Free: 1-800-323-4340 Phone: 1-847-327-2000 Phone: 1-847-549-7600 Fax: 1-847-327-2700 Fax: 1-847-247-2929 Davis.com/Digi-Sense ColeParmer.com/Digi-Sense 1065DGMAN_20250-59 Manual Part No. 00101-94 1065DGMAN_20250-59 DS multifunctional voltage tester.indd 16 8/8/2017 1:37:48 PM...
