1.6 cu ft

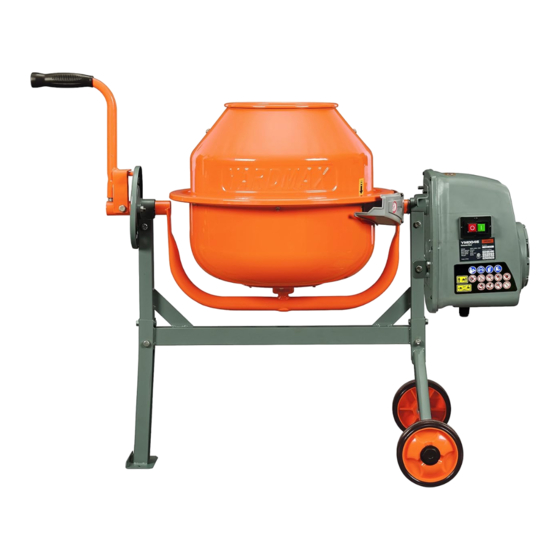

Electric Concrete Mixer
Operator's Manual
MODEL NUMBER
YM0046
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label (see Page 2, Figure 1).
You should record both of them
in a safe place for future use.
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
FOR YOUR SAFETY
Save This Manual for Future Reference
Tame the Great Outdoors
TM
Advertisement
Table of Contents
Related Manuals for YARDMAX YM0046
Summary of Contents for YARDMAX YM0046
- Page 1 Save This Manual for Future Reference 1.6 cu ft Electric Concrete Mixer Operator’s Manual MODEL NUMBER YM0046 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label (see Page 2, Figure 1). You should record both of them in a safe place for future use.
- Page 2 Up for the job? YARDMAX is. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers the perfect combination of performance and practicality. YARDMAX has a solution that’s right for you.
- Page 3 Operator’s Manual » DISCLAIMER Carefully read through this entire operator’s manual YARDMAX reserves the right to discontinue, change, before using your new Concrete mixer. Pay attention and improve its products at any time without notice to all cautions and warnings.
-
Page 4: Specifications
SPECIFICATIONS Model number YM0046 Cubic Feet Motor 120V~ 60Hz, 150W Horsepower .2HP IP45 Washdown Drum Type Steel Weight Capacity 100 lbs number of blades Opening Diameter 9" Product Weight 53 lbs SyMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. -
Page 5: Safety
SAFETY KNOW YOUR CONCRETE MIXER KEEP VISITORS AND CHILDREN AWAY Read this manual and all labels to understand your YARDMAX Keep unauthorised persons away from the mixer. Do not allow concrete mixer and its limitations and potential hazards. children to handle or climb on or in the mixer. - Page 6 DO NOT FORCE TOOL PROTECT THE ENVIRONMENT Do not use the concrete mixer for any other purpose than that for Take left over materials to an authorized collection point or which it was intended. Do not start the motor if the drum is fully follow the stipulations in the country where the mixer is used.
-
Page 7: Contents Supplied
Electric Concrete Mixer Operator’s Manual » COnTEnTS SUPPlIED Your YARDMAX concrete mixer comes partially assembled and contains the following: HARDWARE KIT 1. Upper Drum M8 × 40 × 1 2. bottom Drum with Support Arm M8 × 60 × 1 3. -
Page 8: Assembly
ASSEMblY This concrete mixer is partially assembled at the factory. To assemble your machine follow the below instructions. Assembly requires two persons (recommended). Support Leg STAND 1. Slide the each wheel in each stub axle. Insert each split pin into the axle hole. - Page 9 Electric Concrete Mixer Operator’s Manual » BOTTOM DRUM MIXING BLADES 1. Slide the motor support bracket on the shaft. (See Figure 2, Mount the mixing blades inside the bottom drum loosely as shown illustration 1) (See Figure 3, Illustration 1) Two holes are provided at the base of the drum into which a M8×20 screw may be inserted from the 2.
- Page 10 UPPER DRUM TIPPING BAR 1. Place the upper drum onto the bottom drum by aligning both 1. Slide the locking plate over the large diameter shaft (at the the mounting holes, and the labeled arrows. (See Figure 4, “leg side” of the frame) with the rim facing inwards as shown. Illustration 1 &...
- Page 11 Electric Concrete Mixer Operator’s Manual » TRANSMISSION & MOTOR 2. Insert the spring into the bar pipe, hold the spring in place with a finger, and place the bar over the larger diameter shaft so the Align the pinion shaft with the bushing sleeve in the transmission spring stays inside the bar pipe.
-
Page 12: Know Your Machine
KnOW YOUR MACHInE FEATURES AND CONTROLS Tipping bar Mixing blade locking Plate Gear Guard Support Seat Support Arm Motor Switch Electric Cord Know your Machine... -
Page 13: Operation
Do not connect either cord to the earth pin. STAKE ON LEVEL GROUND To secure your YARDMAX concrete mixer during operation, use two longer bolts or stakes through the holes in the front leg of the mixer stand to hold the mixer in place. (See Figure 7) Due to varying ground surfaces, these are not included. - Page 14 For best results, always load the mixer in the following order: Loading / Mixing Position Loading / Mixing Position 1. Add the required amount of gravel into the drum. For Mortar For Concrete 2. Add the required amount of cement into the drum. 3.
-
Page 15: Maintenance
Electric Concrete Mixer Operator’s Manual » MAInTEnAnCE REPLACING THE BELT Ensure the extension cord is always unplugged before 1. Remove the motor. (see Figure 9a) the motor cover is removed. The drive belt maintains a constant, even tension provided by the spring-loaded jockey. -
Page 16: Wiring Diagram
WIRInG DIAGRAM TROUblESHOOTInG Problem Cause Remedy Motor stops working Thermal protector works Stop working for a while until motor cools 1. belt has broken 1. Replace the new belt Drum fails to rotate 2. Motor stops working due to 2. Stop working for a while until motor cools overheat Wiring Diagram &... -
Page 17: Parts Diagram
Electric Concrete Mixer Operator’s Manual » PARTS DIAGRAM Parts Diagram... -
Page 18: Parts List
PARTS LIST Description QTY. Description QTY. Cross Headed Screw M8X16 bolt M3.5*12 Waterproof Washer 8 Gear Guard - Short lock nut M8 Motor Support bracket Mixing blade Circlip 12 Cross Headed Screw M6X16 Gear Guard - long Flat Washer 6 bearing 6001 lock nut M6 Flat Washer... - Page 19 Electric Concrete Mixer Operator’s Manual »...
- Page 20 Tame the Great Outdoors 844-YARDMAX info@yardmax.com (844-927-3629)
