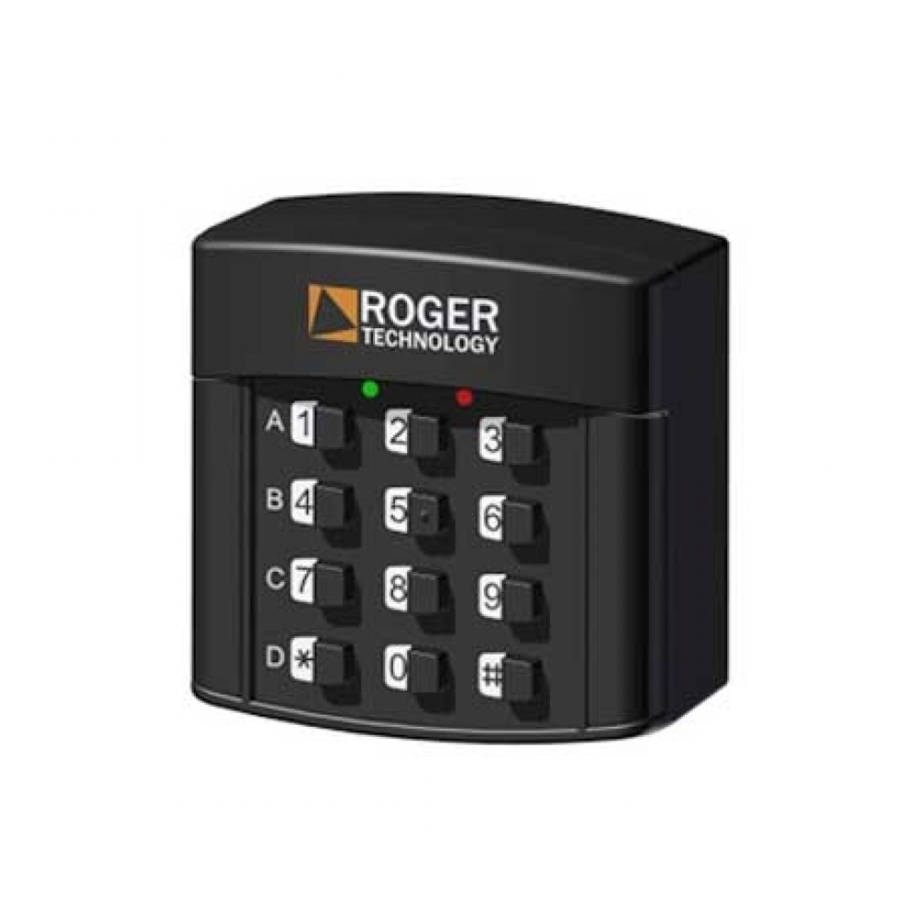

Roger H85/TDR/E Wireless Keypad - Quick User Guide

Step 1.

Changing the engineer's password.

1) Key in **0000* (This is the factory default password)

2) Key in 1234*(This sets the keypad engineer's password to 1234 or use a 4

digit password of your choice)

3) Key in 1234* (This confirms and saves the engineer's password as 1234 or

use a 4 digit password of your choice)

4) Done (The green led lights and the unit buzzes for 2 seconds)

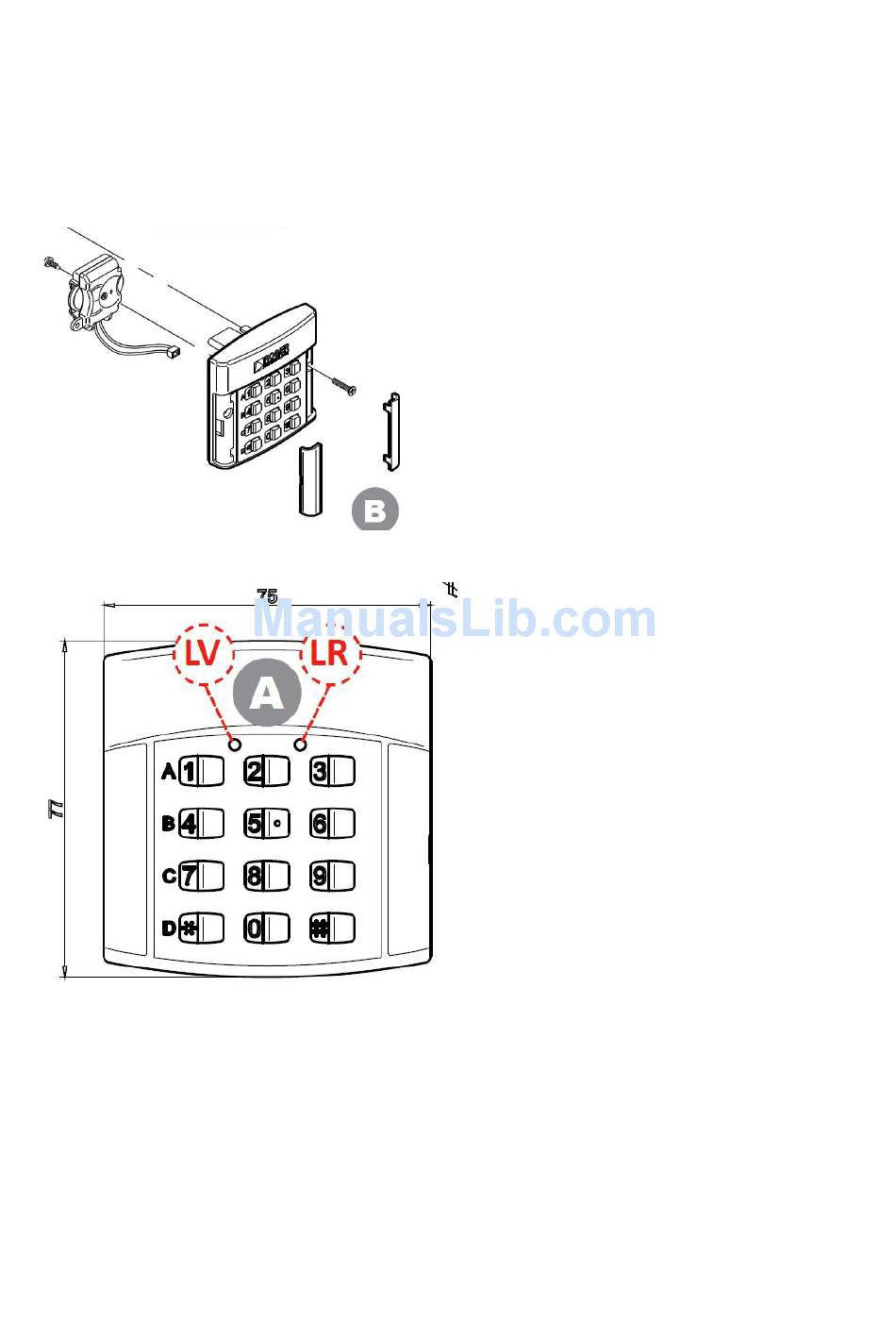

Open the unit and attach the battery

lead.

Key -

Green Led

Red Led

Entry Button *

Channel 1

Channel 2

Channel 3

Channel 4

Clear

Engineers Password 0000

Table of Contents

Troubleshooting

Do you have a question about the H85/TDR/E and is the answer not in the manual?

Page 1 The Electric Gate Shop Roger H85/TDR/E Wireless Keypad - Quick User Guide Step 1. Open the unit and attach the battery lead. Key - Green Led Red Led Entry Button * Channel 1 Channel 2 Channel 3 Channel 4 Clear Engineers Password 0000 Changing the engineer’s password.
Page 2 Storing a simple user entry code (Example to open the gate). (Assuming the engineer’s code is 0000, if you have changed it use your new 4 digit engineer’s password) 1) Key in*0000* (This enters programming using the engineers password) 2) Key in 5555## (This sets the new entry code to 5555 or use a 4 digit code of your choice) 3) Done Using the keypad –...
Page 3 If the unit does not learn to the receiver, try speeding up the process as the receiver may have timed out. Or when entering the code 5555** hold the second * for longer (This is the same as holding your remote button longer). Advanced Features (For all the advanced features refer to the manufacturer’s booklet that comes with the keypad)
Page 4: Troubleshooting
2) Key in 5555*B (This enters your user entry code, and opens the gates pedestrian function) Learning Procedure - Roger control box or standalone receiver. (The keypad learns in the same way that your learn the gate remotes, refer to the control box instructions) 1) Press P1 on the radio card the led will flash slowly.
