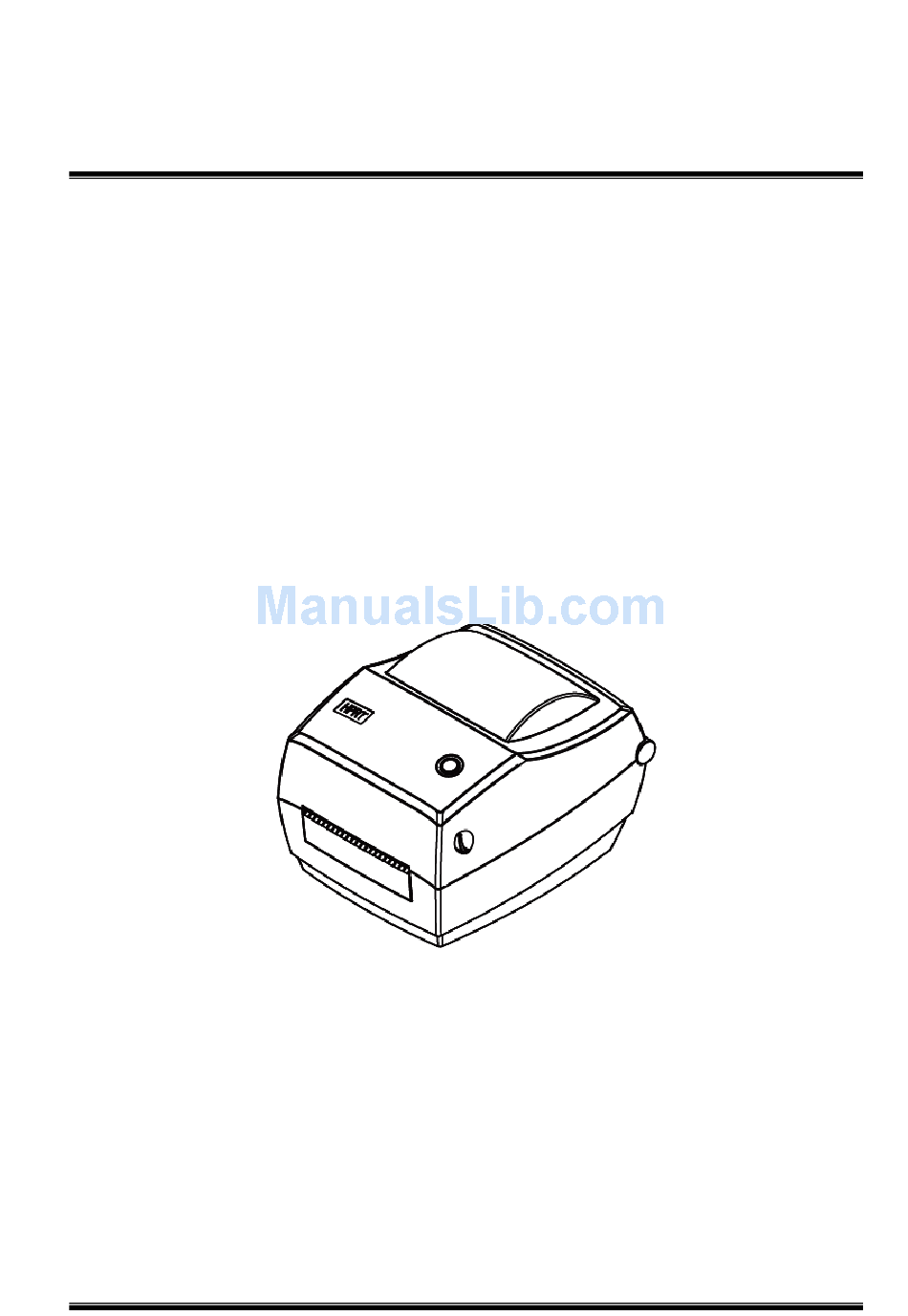

  • Page 1 Label Printer User Manual LPG4 Xiamen Hanin Electronic Technology Co.,Ltd ADD: Room 305A, Angye Building, Pioneering Park, Torch High-tech Zone, Xiamen, China 361009 Tel.: +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com...
  • Page 2 REVISION RECORDS REV. DATE DESCRIPTION DRAWN CHECKED APPROVED 2015.05.27 Preliminary Ji Qiuxia Yang Kaiqu Ren Xiaowei 1.Change the value of RAM and 2015.07.27 Ji Qiuxia Yang Kaiqu Ren Xiaowei FLASH 1.Change the sketch of AC adapter and Serial Cable;(P3) 2.Modify the resolution and Max. Printing width in Table 2-1;...
  • Page 3 Contents MANUAL INFORMATION ......................... 1 IMPORTANT SAFETY INSTRUCTIONS ....................2 CHAPTER 1 INTRODUCTION ......................4 1.1 Packing List ........................4 1.2 Appearances and Components ..................5 1.3 Dimension .......................... 6 CHAPTER 2 SPECIFICATIONS ......................7 CHAPTER 3 INSTALLATION & USAGE ....................8 3.1 Media Loading ........................
  • Page 4  Copyright This manual is printed in 2016, the copyright belongs to Xiamen Hanin Electronic Technology Co. Ltd. Printed in China 1.3 Version...

  • Page 5: Manual Information

    LPG4 User Manual MANUAL INFORMATION This User Manual contains basic information for product usage as well as for emergency measures that may be required. Provides information on utility usage for function selection, operating condition modification etc. Provides information on Seagull Windows Driver installation.

  • Page 6: Important Safety Instructions

    LPG4 User Manual IMPORTANT SAFETY INSTRUCTIONS Before using the appliance, please carefully read the following safety regulations in order to prevent any hazard or material damage. 1.Safety Precautions 1) Be sure to use the accompanying power charger, if not, it may cause fire, explosion or damage.
  • Page 7 5. WEEE (Waste Electrical and Electric Equipment) This mark shown on the product or its literature indicates that the corresponding item should not be discarded at the end of its working life with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate marked items from other types of waste and recycle them responsibly to promote the sustained reuse of material resources.

  • Page 8: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION 1.1 Packing List Notes: 1. Unpack the printer and keep the packing material in case you need to ship the printer in the future. 2. Make sure you own all parts as follows, if not, do contact the local dealer. Standard accessories Printer AC Adapter...

  • Page 9: Appearances And Components

    1.2 Appearances and Components Note: Views above are for reference only, ports differ by your choice. Rev. 1.3...

  • Page 10: Dimension

    1.3 Dimension Rev. 1.3...

  • Page 11: Chapter 2 Specifications

    CHAPTER 2 SPECIFICATIONS Items Parameter Printing Method Thermal Transfer/Direct Thermal Printing Resolution 203dpi(8dots/mm) Printing Speed Printing 102mm/s Max. Printing Width 108mm Max. Printing Length 15mm - 300mm 32 bit RISC CPU Processor Memory Flash Adjustable reflective sensor, Fixed transmissive Detection Sensors sensor(Central aligned), Head-up sensor, Ribbon end sensor...

  • Page 12: Chapter 3 Installation & Usage

    CHAPTER 3 INSTALLATION & USAGE 3.1 Media Loading 3.1.1 Paper Roll Loading 1. Press the left and right cover open lever with both hands simultaneously and lift up the printer cover. 2. Slide the paper holders to adjust the distance between them, and place the roll between the holders.(Make sure the locking tab is un-lock, so that user can adjust the paper holders) Rev.
  • Page 13 3. Make sure the holders are snug against the sides of the media roll, and then press the locking tab down to lock the media holders in place. 4.Pull some paper out and pass it through paper guides, adjust paper guides according to the paper width.
  • Page 14 5.Lower the printer cover, press down until the cover snap close, and tear the extra paper in the direction of printer. Rev. 1.3...
  • Page 15 3.1.2 Fan-fold Label Loading 1. Put the printer on a stable place. 2. Place the fan-fold label media at the back of printer with thermal sensitive layer upside, pull the media and pass it through the external paper feed slot. Rev.
  • Page 16 3. Open the printer cover and pull the label through the paper guides and adjust the paper guides according to the paper width. 4.Close the printer cover. Rev. 1.3...
  • Page 17 3.1.3 External Paper Roll If the paper roll is extremely large, users can load the paper roll outside(See the graph at right). Pass the paper through the external feed slot and then through paper guides. Adjust paper guides according to the paper width. Note: The paper holder is fixed on sides by locking tab.
  • Page 18 2. Put the take-up spindle core across the print head module from top to bottom, put the supply spindle core into supply spindles, right locked to ribbon pin roll, left locked to back dail wheel module. Same way to install take-up spindle core. 3.
  • Page 19 5. Hold the printer cover with your left-hand and push the cover support lock in the direction of the arrow. 6. Close the printer cover until you hear a snap and the print head module will automatically fold up. Rev. 1.3...

  • Page 20: Power Connection

    3.2 Power Connection 1. Make sure the printer is “OFF” 2. Connect the AC adapter with power interface. 3. Connect the AC adapter with power cord. 4. Plug the other side of power cord into the socket outlet. CAUTION：  Please use the specified AC adapter in case of product damage or injury. ...

  • Page 21: Peripherals Connection

    3.3 Peripherals Connection Interface Cable Connection The standard for the printer’s interface cable is below: - USB B-Type cable - RS-232C cable - RJ45 cable Please follow the graph instruction to connect the cable. 1. Make sure the printer is off. 2.

  • Page 22: Detection

    3.4 Detection Rev. 1.3...

  • Page 23: Operation Panel

    3.5 Operation Panel Button Operate  Power On Turn on the power switch at the rear, the printer is on and LED indicator is blue.  Power Off Turn off the power switch at the rear, the printer is off. ...

  • Page 24: Basic Functions

    3.6 Basic Functions 3.6.1 Power On/Power Off Press “O” power off, press “一“power on. 3.6.2 FEED Button 1. When the printer is on, press this button, printer will automatically feed a label under “Label Mode”; the printer will feed a fixed distance under “Continuous Mode”; 2.

  • Page 25: Chapter 4 Interface

    CHAPTER 4 INTERFACE 4.1 USB Interface Figure 4-1 SIGNAL NAME VBUS 4.2 Other Optional Interface  Serial Port Figure 4-2 SIGNAL NAME Rev. 1.3...
  • Page 26  Ethernet Port SIGNAL NAME Rev. 1.3...

  • Page 27: Chapter 5 Printer Cleaning

    LPG4 User Manual CHAPTER 5 PRINTER CLEANING Adhesives and coatings of the media can transfer onto the printer parts over time along the media path including the thermal print head and media sensor. This build-up can accumulate dust and debris. Failure to clean the print head, media path, and media sensor could result in print quality, worst more of inadvertent loss off labels, label jams and possible damage to the printer.

  • Page 28: Chapter 6 Label Printer Utility Instructions

    Chapter 6 Label Printer Utility Instructions 6.1 Installation Preparation Download HPRTUtilityForLabel application program. eg:Print Utiliy For Label V2.0.0.1. 6.2 Usage Note: The screen may vary slightly by different operating systems and models. Following takes HY58 (Windows XP) for example. (1). Open the “HPRTUtilityLabel”. (2).Add/Modify/Delete Printer, Connect Test.
  • Page 29 ●Click “Add Printer” choose the printer and port(take USB for example), click “OK” add successful, check in “Printer List”. ●Click “Modify Printer” the port(take “COM1”for example), click “OK” modify successful, check in “Printer List”. Rev. 1.0...
  • Page 30 ●Click “Delete Printer”, click “OK” delete the printer you chosen, click “Cancel” cancel delete printer. ●Choose the printer you currently use, connect it with computer; Click “Connect Test” to test whether the connection is ok or not. If connection is OK, the icon below will come out. If connection fails, normally shows following icon.
  • Page 31 (3).Function. ●Click “Printer Information”, shows printer information.(Differ from your printer) ●Click “Print Test Text”, type the text you need to print→ Set up the printing range(printable width & height)→Click “Print” printer start to print printer test text. ●Click “Print Self Information”, printer print out self-test page. ●Click “Label Auto Learn”...
  • Page 32 ●Click “Parameter Setting”. 1) COM Port Setting: 2)Language: 3)Label paper automatic position when power on: 4) Select small label (Label length less than 20mm): 5)Print type: 6)Print when error: Rev. 1.0...
  • Page 33 7)Display “Reprint” when reprint: 8)After stopping X mins, enable the anti-adhesive paper function(choose range:0~255 9) Print density (choose range:0~15,0:Washiest): 10) Ethernet Setting: 11) Other: Judge Paper Mode(Label, Receipt, BlackMark): Max Mark Length(choose range:0~500mm): Min label length(choose range:0~500mm): Max label length(choose range:0~500mm): Rev.
  • Page 34 Heat Adjust: Print Speed(choose range:2,3,4): 9)Click “Set” save all the above settings, click “ok” back to the main menu. Click “Close” back to the main menu and all the settings canceled. ●Click “Restore Factory Settings”, click “OK” printer restore factory settings, click “Cancel” cancel restore factory settings.

  • Page 35: Chapter 7 Seagull Windows Driver Installation

    Chapter 7 Seagull Windows Driver Installation 7.1 Introduction This chapter provides information on installation according to PC operating system (OS). This driver support for these following operating systems: Microsoft Windows 10 (32 bit/64 bit) Microsoft Windows 8 (32 bit/64 bit) Microsoft Windows 7 SPI (32 bit/64 bit) Microsoft Windows Vista SP2 (32 bit/64 bit) Microsoft Windows XP Professional SP3 (32 bit)

  • Page 36: Installation

    7.3 Installation Warning: Under different operating system, the screen has slight difference. Please operate it according to the tips. Recommend to close security software before installation in case of preventing installation. 1.Select one interface to connect your printer to computer. 2.
  • Page 37 5.Select a directory on the computer to unpack the driver or accept the default location then click “Next”. 6.Click"Finish". Rev. 1.0...
  • Page 38 7.Select "Install printer drivers" then click "Next". Note: Connect your printer to computer, can automatically detect and install.(Take USB for example) 8.Select "Install a driver for a Plug and Play printer, click "Next". Rev. 1.0...
  • Page 39 9.Enter a name for this printer, click "Next". 10.Click"Finish". Rev. 1.0...
  • Page 40 11.Click "Close", the HPRT LPG4 Label printer driver installed successfully. 12.After installation, the icon will be found in ”Start”→ “Printers and Faxes”. Note: 1.If you already installed the driver (No matter what kind of port), when you connect the printer with computer, it will create a USB port automatically.

  • Page 41: Chapter 8 Bartender® Ultralite Installation

    Chapter 8 BarTender® Ultralite Installation 8.1 Introduction This chapter provides information on BarTender® installation according to PC operating systems(OS). This label design software is available in two versions:32-bit and 64-bit. 8.2 Installation Preparation Download BarTender® application program. Rev. 1.0...

  • Page 42: Installation

    8.3 Installation Note：Under different operating system, the screen has slight difference. Please operate it according to the tips. Take Windows 7 as example.(Recommend to close security software before installation in case of preventing installation) 。 1.Double click application program 2.Select language, then click "OK"。 3.Click "Next"。...
  • Page 43 4.Read and accept the license agreement, then click "Next"。 5.Select "Features" and "Installation Location" then click "Next". Rev. 1.0...
  • Page 44 6.Click "Installation"。 7.If occurs following windows, please choose "Allow this operation", or you may close security software before installation in case of preventing installation. Rev. 1.0...
  • Page 45 8.Click "Finish"。 9. Select the edition you need（can be changed according to your need while using）,then click "OK". Rev. 1.0...
  • Page 46 10.Click "Close", BarTender® installed successfully。 11.Back to desktop, you may see BarTender® icon,dobule click it get down to use. Rev. 1.0...
