golmar NHEA GB2 User Manual

Hands-free audio terminal
Hide thumbs

Advertisement

Table of Contents

NHEA G 2 TERMINAL
B
TECHNOLOGY
Code 50121929
REV.0 1
2 7
T
NHEA B
G 2 EN

Advertisement

Table of Contents
loading

Related Manuals for golmar NHEA GB2

Summary of Contents for golmar NHEA GB2

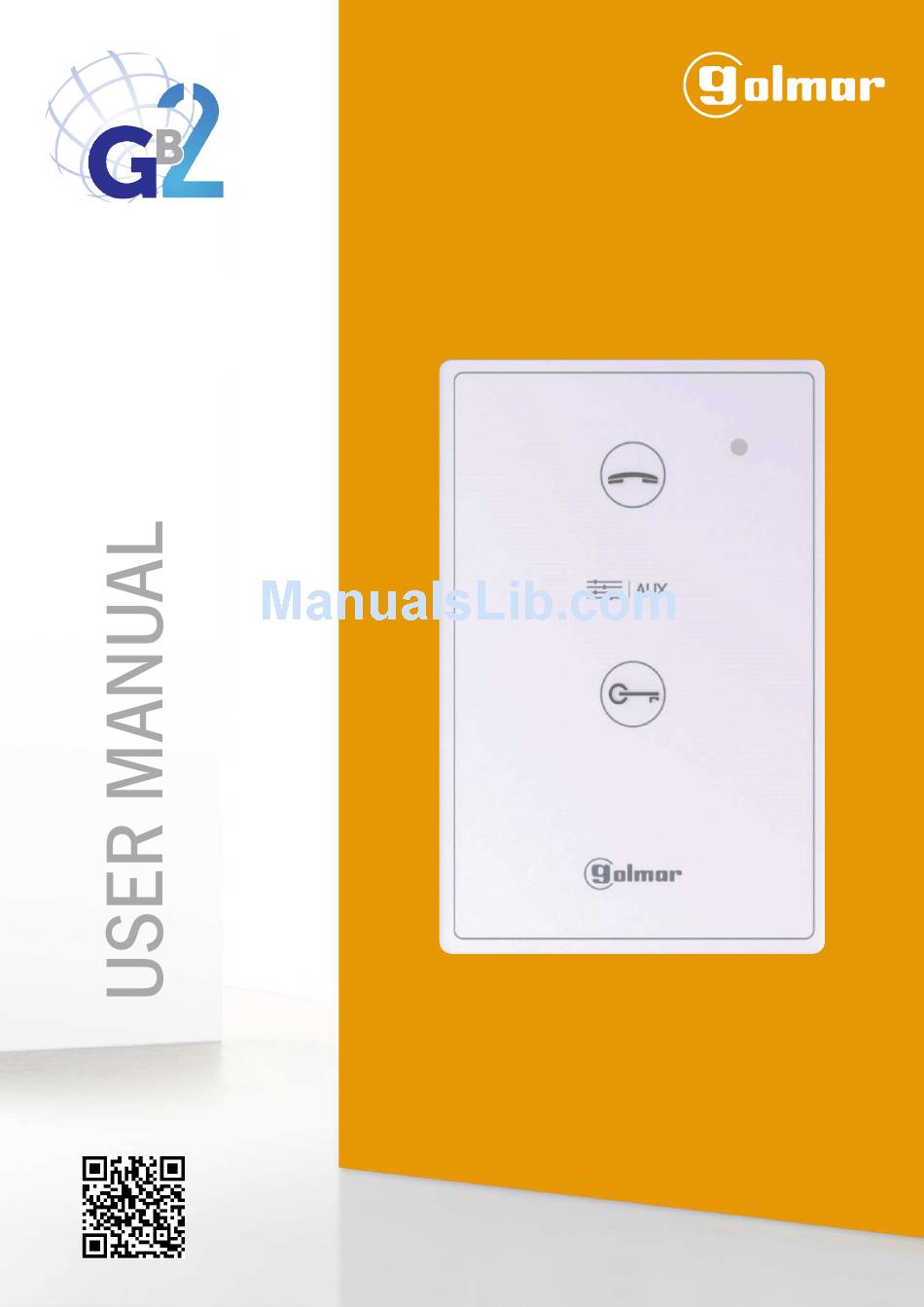

  • Page 1 NHEA G 2 TERMINAL TECHNOLOGY Code 50121929 REV.0 1 NHEA B G 2 EN...
  • Page 2 NHEA GB2 HANDS-FREE AUDIO TERMINAL INTRODUCTION First of all, we thank and congratulate you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased.

  • Page 3: Characteristics

    NHEA GB2 HANDS-FREE AUDIO TERMINAL CHARACTERISTICS Nhea hands-free audio terminal with simplified installation (non-polarised 2 wire bus). Up to 4 Nhea terminals/monitors per apartment (master, slave 1, slave 2 and slave 3). Up to 32 apartments/Nhea terminals per installation. Up to 128 apartments/Nhea terminals per installation and maximum 1 Nhea terminal per apartment (EL632 GB2A/EL642 GB2A sound module required).

  • Page 4: Status Led

    NHEA GB2 HANDS-FREE AUDIO TERMINAL TERMINAL DESCRIPTION: Description: Status LED. Connector fixings. Function push button. Bus connection terminals. Ringtone settings button. Horizontal cable entry. Audio volume control switch. DIP switch. Ringtone volume control switch. Hz connector. Microphone. Speaker. Function push button: During call reception and communication Start/stop communication button.

  • Page 5: Dip Switch

    NHEA GB2 HANDS-FREE AUDIO TERMINAL TERMINAL DESCRIPTION: Description of the DIP switch and configuration of the Nhea terminal address (code): DIP 1 to DIP 5: Configure the Nhea terminal address (up to 32 addresses). DIP 1 to DIP 7: With DIP 10 set to ON , it enables the Nhea terminal address to be configured (up to 128 addresses).
  • Page 6 NHEA GB2 HANDS-FREE AUDIO TERMINAL TERMINAL DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
  • Page 7 NHEA GB2 HANDS-FREE AUDIO TERMINAL TERMINAL DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
  • Page 8 NHEA GB2 HANDS-FREE AUDIO TERMINAL TERMINAL DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...

  • Page 9: Function Buttons

    Apartment code Apartment code Apartment code Apartment code Description of front LED functions: The Nhea GB2 terminal has a status LED, and LEDs on function buttons to indicate the status of the terminal. STATUS LED Standby (no power) Standby (with power)

  • Page 10: Setting The Ringtones

    Make a call to check that the correct ringtone group has been selected. Intercom function: Intercom functionality between two points in the same apartment comes as standard with the Nhea GB2 terminal. The terminal must be in standby to make intercom calls.
  • Page 11 NHEA GB2 HANDS-FREE AUDIO TERMINAL INSTALLING THE TERMINAL IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the wall mounting connector should be located at a height of 1.60m from the ground. The minimum distance between the wall mounting connector and the closest object must be 5 cm.
  • Page 12 NHEA GB2 HANDS-FREE AUDIO TERMINAL INSTALLATION OF THE TERMINAL IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.

  • Page 13: Wiring Diagrams

    NHEA GB2 HANDS-FREE AUDIO TERMINAL WIRING DIAGRAMS Installation with 32 apartments/NHEA GB2 terminals and Golmar DC lock release: NHEA Master APARTMENT ( ) ( ) IMPORTANT: With a coded panel system: EL632 GB2A/EL642 GB2A sound module is required NHEA and must be set to 'operating mode 5'.

  • Page 14: Wiring Diagrams

    NHEA GB2 HANDS-FREE AUDIO TERMINAL WIRING DIAGRAMS Audio door entry system with 128 apartments/NHEA GB2 terminals and Golmar DC lock release: NHEA Master ( ) ( ) APARTMENT IMPORTANT: ( ) ( ) Up to 128 apartments/Nhea terminals per 'audio only' installation:...
  • Page 15 NHEA GB2 HANDS-FREE AUDIO TERMINAL NOT S:...
  • Page 16 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
