Summary of Contents for Storex CHDW360 X'Trem

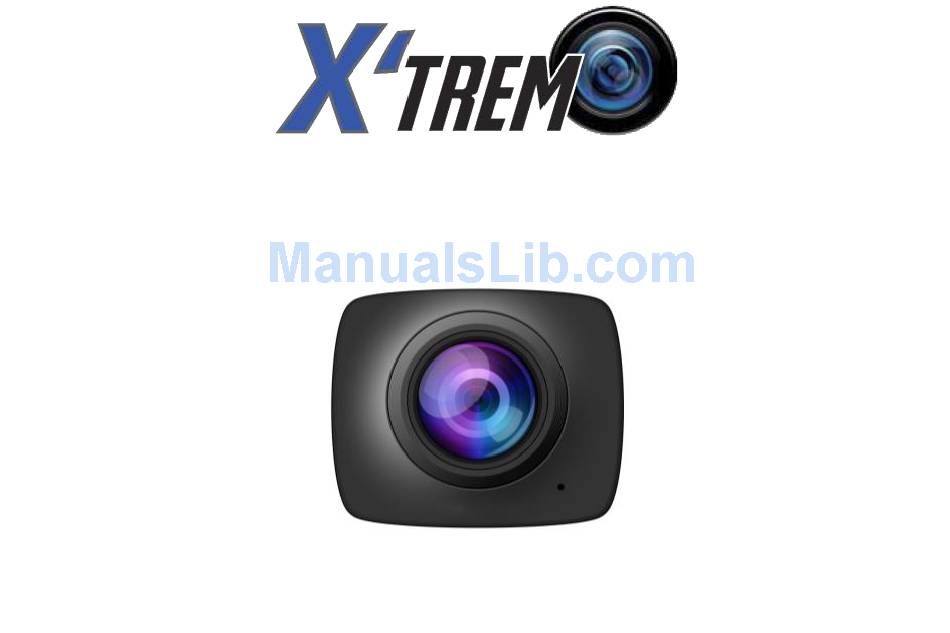

- Page 1 Quick Guide...
- Page 3 ANNOUNCEMENTS Please read the Announcements carefully before using this video camera for proper and safe operation, so as to bring its optimum performance into play and extend its service life. Do not expose the video camera to sunshine directly, nor point its lens to sunlight. Otherwise, the image sensor of the video camera may be damaged.
- Page 4 then wipe the camera gently with rag or tissue applicable to optical equipments. Please use the cleaning agent of video camera for wiping if necessary. Do not use organic solvent to clean the video camera. Do not touch the lens surface with fingers. ...
- Page 5 WATERPROOF CASE USING NOTICE Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak. You can test by closing the case without inserting the camera. Submerse the case completely in water for about a minute.
- Page 6 INTRODUCTION TO APPEARANCE AND KEYPAD LCD display Power button/Mode button WIFI indicator (red) Power - indicator/Charging indicator (blue) Wifi button/MENU button Busy button (red) Shutter button/OK button Lens×2 Triangle nut Interface cover (USB/TF) Speaker Microphone Rope hole Reset hole...
- Page 8 SMARTPHONE APPLICATION ANDROID...
-
Page 9: Install Sd Card
INSTALL SD CARD: Insert the Micro SD card you prepare into the slot as indicated, as shown on the right. Important: A high-speed Micro SD card between Class 6~Class 10 is a must; or else, this product may not work normally. - Page 10 HOW TO USE ACCESSORIES PROPERLY It is strongly recommended to use the accessories originally provided by the manufacturer. It helps create a better product use experience and better shooting/recording effect. Tripod: Screw the tripod nut attached into the screw hole on the bottom of the camera. It serves both as a hand-held or fixed device.
- Page 11 USE MOBILE PHONE Follow these steps to play panoramic videos or pictures on mobile phone or tablet. Download APP: Scan QR Code or search for “SYVR360” on App Store to download and install the product APP. Connect mobile phone and camera: Connect mobile phone and camera through WIFI connection Turn on camera WIFI: Press camera WIFI button, and the display screen will display “WI-FI ON”, and then “P3600_XXXXX”, and initial password is “1234567890”.
- Page 12 Turn on mobile phone WIFI, search for AP hot “P3600_XXXXX” and select Connect. Activate APP: Activate “SYVR360” APP on mobile phone or tablet, and click the upper right corner to “Search for Camera”.
- Page 13 Download: Enter camera folder, select the file to be downloaded and click to download. Play: Select the file on mobile phone and click to play.
- Page 14 Effect of panoramic playing The following effects are available if played on APP player...
- Page 15 Planet mode Plane mode VR mode...
- Page 16 SAFETY-ENVIRONMENT Your STOREX product has been laboratory tested; it complies with European guidelines corresponding to the CE labelling in force at the time of its launch. Your STOREX product's components are traceable; this demonstrates the product's compliance to environmental guidelines (RoHS) in force at the time of its launch.
- Page 17 For repairing, contact your dealer to repair your tablet under guarantee, or send your request via email to the following address: support@storex.eu or by phone at: France: 01 55 85 82 00 (local call charge to Paris) Spain: 902 110 572 (soporte.es@storex.eu) Portugal: 308 800 836 (apoio.pt@support.eu) England: (support.uk@storex.eu)
