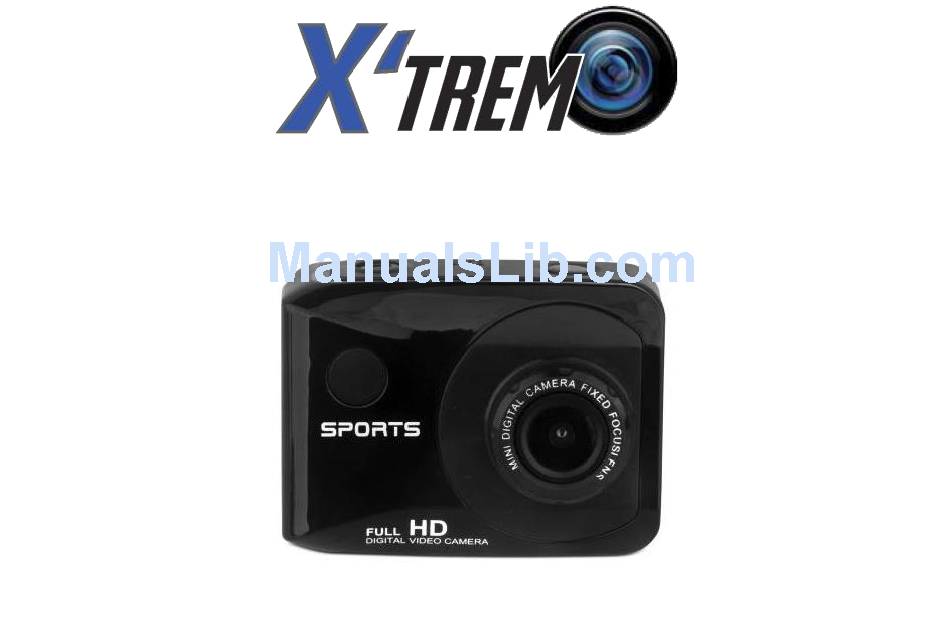

- Page 1 USER MANUAL CSD528S...
-
Page 3: Handlebar Mount
Mounting Accessories Water proof case Handlebar mount Headset fixation Remote control... - Page 4 Quick User Guide Handlebar mount Headset fixation...
- Page 5 ANNOUNCEMENTS Please read the Announcements carefully before using this video camera for proper and safe operation, so as to bring its optimum performance into play and extend its service life. Do not expose the video camera to sunshine directly, nor point its lens to sunlight. Otherwise, the image sensor of the video camera may be damaged.
- Page 6 agent of video camera for wiping if necessary. Do not use organic solvent to clean the video camera. Do not touch the lens surface with fingers. Please back up the data if the memory card inside this video camera is used for the first time. ...
- Page 7 WATERPROOF CASE USING NOTICE Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak. You can test by closing the case without inserting the camera. Submerse the case completely in water for about a minute.
-
Page 8: Introduction To Appearance And Keypad
Introduction to Appearance and Keypad Shutter Infrared light a lens Buttons TFT LCD... - Page 9 USAGE 1. Charge the built-in lithium battery USB Cable Connect the video camera with computer for charging in the shutdown state. The indicator light for charging is on at this time and will be off after charging. In general, it can be fully charged after 2-4 hours.
-
Page 10: Use Of Memory Card
USE OF MEMORY CARD Push the memory card into the card slot according to the concave lettering beside the slot of memory card till it is completely inserted. To take out the memory card, gently press the end of the memory card inward and it will pop up. Note: No built-in memory is available in this video camera. - Page 11 STARTUP/SHUTDOWN 3.1 Startup: Press the POWER button for 3 seconds, the screen is displayed and the camera is on. 3.2. Shutdown: Press the POWER Key, and the camera will be shut down. . Automatic shutdown: when the idle time of the video camera reaches the time for automatic shutdown, it will be shut down automatically to save power.
- Page 12 Photo/recording mode Camera defaults to record mode. Press Shutter to start recording, and press Shutter again to stop recording. Press Shutter to directly take photo. In recording/photo mode, press Up/Down for digital zoom in/out. Screen display in photo mode 1. Photo mode; 2.
- Page 13 5. Screen display in recording mode 1. Video mode 2. Video quality Video frame rate 4. Video resolution 5. Available recording time 6. Face detection 7. Digital zoom range. 8. Battery status Note: When shooting in HD or FHD quality, a high speed Micro SD card is required LCD screen turns off during recording in order to save power;...
-
Page 14: Indicator Light
INDICATOR LIGHT Busy light: when the camera is busy (such as, recording a film, taking photos, automatic off-screen), the busy light will be on. Charging light: when the light is on for a long time, it prompts the user that the camera is charging. -
Page 15: Playback Mode
Playback mode Press Power key to enter playback mode to browse photo/video files stored in camera. Press Up/Down key to scroll through photos or videos. To play a movie, press the shutter button to start/pause play video, press the up/down key to quickly/fast forward or fast back rewind playback, press the MENU button to stop play video. - Page 16 APPLY ON THE PERSONAL COMPUTER Connect camera to a computer and select removable disk mode. A new device directory will appear under “My Computer” where your photo and video files are stored under the “DCIM\100MEDIA” folder. Once you have access to your photo/video files, copies of these files can be transferred to your PC/laptop.
-
Page 17: Safety-Environment
SAFETY-ENVIRONMENT Your STOREX product has been laboratory tested; it complies with European guidelines corresponding to the CE labelling in force at the time of its launch. Your STOREX product's components are traceable; this demonstrates the product's compliance to environmental guidelines (RoHS) in force at the time of its launch. -
Page 18: Warranty Registration
For repairing, contact your dealer to repair your tablet under guarantee, or send your request via email to the following address: support@storex.eu or by phone at: France: 01 55 85 82 00 (local call charge to Paris) Spain: 902 110 572 (soporte.es@storex.eu) Portugal: 308 800 836 (apoio.pt@support.eu) England: (support.uk@storex.eu)
