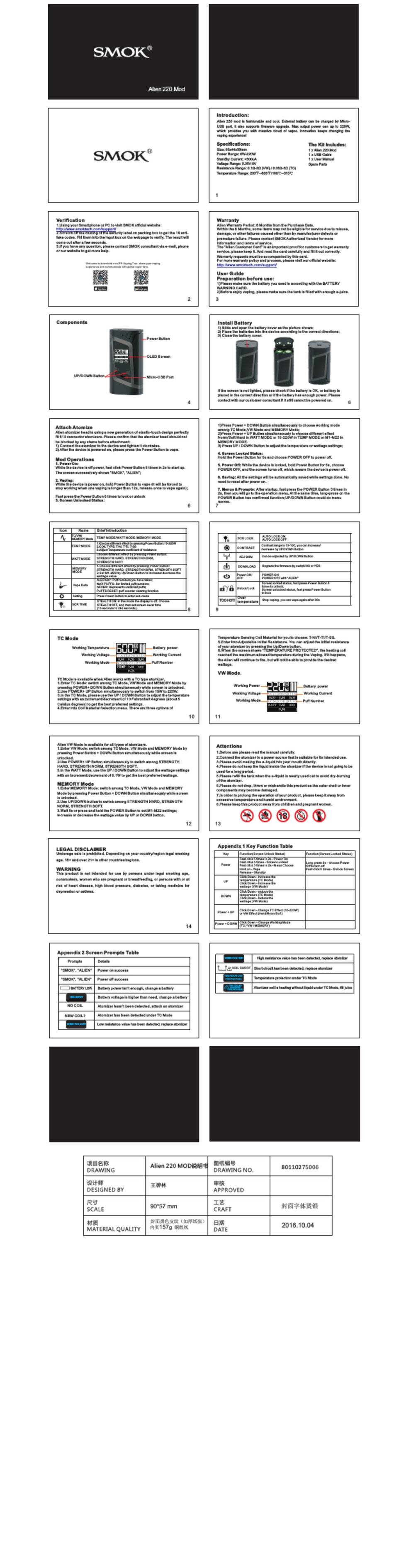

Smok Alien 220 Mod Manual

Verification
1.Using your Smartphone or PC to visit SMOK official website:
http://www.smoktech.com/support/
2.Scratch off the coating of the security label on packing box to get the 16 anti-
fake codes. Fill them into the input box on the webpage to verify. The result will
come out after a few seconds.
3.If you have any question, please contact SMOK consultant via e-mail, phone
or our website to get more help.
Components
UP/DOWN Button
Attach Atomize
Alien atomizer head is using a new generation of elastic-touch design perfectly
fit 510 connector atomizers. Please confirm that the atomizer head should not
be blocked by any stems before attachment:
1) Connect the atomizer to the device and tighten it clockwise.
2) After the device is powered on, please press the Power Button to vape.
Mod Operations
1. Power On:
While the device is off power, fast click Power Button 5 times in 2s to start up.
The screen successively shows "SMOK", "ALIEN";
2. Vaping:
While the device is power on, hold Power Button to vape (it will be forced to
stop working when one vaping is longer than 12s, release once to vape again);
Fast press the Power Button 5 times to lock or unlock
3. Screen Unlocked Status:
Icon Name Brief introduction
TC/VW/
TEMP MODE/WATT MODE /MEMORY MODE
MEMORY Mode
1.Choose different effect by pressing Power Button:15-220W
TEMP MODE
2.COIL TYPE: T-NI, T-TI, T-SS
3.Adjust Temperature coefficient of resistance
Choose different effect by pressing Power Button:
STRENGTH HARD, STRENGTH NORM,
WATT MODE
STRENGTH SOFT
1.Choose different effect by pressing Power Button:
MEMORY
STRENGTH HARD, STRENGTH NORM, STRENGTH SOFT
MODE
2.Set M1-M22 by Up/Down Button to increase/decrease the
wattage value
ALERADY: Puff numbers you have taken;
MAX PUFFS: Set limited puff numbers;
Vape Data
NEVER: Represents unlimited puffs;
PUFFS RESET: puff counter clearing function
Setting Press Power Button to enter sub-menu
STEALTH ON: in this mode the display is off. Choose
SCR TIME
STEALTH OFF, and then set screen saver time
(15 seconds to 240 seconds).
TC Mode
Working Temperature
Working Voltage
Working Mode
T E M P
TC Mode is available when Alien works with a TC type atomizer.
1.Enter TC Mode: switch among TC Mode, VW Mode and MEMORY Mode by
pressing POWER+ DOWN Button simultaneously while screen is unlocked.
2.Use POWER+ UP Button simultaneously to switch from 15W to 220W.
3.In the TC Mode, please use the UP / DOWN Button to adjust the temperature
settings with an increment/decrement of 10 Fahrenheit degrees (about 5
Celsius degrees) to get the best preferred settings.
4.Enter into Coil Material Selection menu. There are three options of
Alien VW Mode is available for all types of atomizers.
1.Enter VW Mode: switch among TC Mode, VW Mode and MEMORY Mode by
pressing Power Button + DOWN Button simultaneously while screen is
unlocked.
2.Use POWER+ UP Button simultaneously to switch among STRENGTH
HARD, STRENGTH NORM, STRENGTH SOFT.
3.In the WATT Mode, use the UP / DOWN Button to adjust the wattage settings
with an increment/decrement of 0.1W to get the best preferred wattage.
MEMORY Mode
1.Enter MEMORY Mode: switch among TC Mode, VW Mode and MEMORY
Mode by pressing Power Button + DOWN Button simultaneously while screen
is unlocked.
2.Use UP/DOWN button to switch among STRENGTH HARD, STRENGTH
NORM, STRENGTH SOFT.
3.Wait 5s or press and hold the POWER Button to set M1-M22 settings;
increase or decrease the wattage value by UP or DOWN button.
LEGAL DISCLAIMER
Underage sale is prohibited. Depending on your country/region legal smoking
age. 18+ and over 21+ in other countries/regions.
WARNING
This product is not intended for use by persons under legal smoking age,
nonsmokers, women who are pregnant or breastfeeding, or persons with or at
risk of heart disease, high blood pressure, diabetes, or taking medicine for
depression or asthma.
Appendix 2 Screen Prompts Table
Prompts Details
"SMOK , ALIEN " " "
Power on success
"SMOK", "ALIEN"
Power off success
BATTERY LOW Battery power isn't enough, change a battery
Battery voltage is higher than need, change a battery
HIGH INPUT
NO COIL
Atomizer hasn't been detected, attach an atomizer
Atomizer has been detected under TC Mode
NEW COIL?
OHMS TOO LOW Low resistance value has been detected, replace atomizer

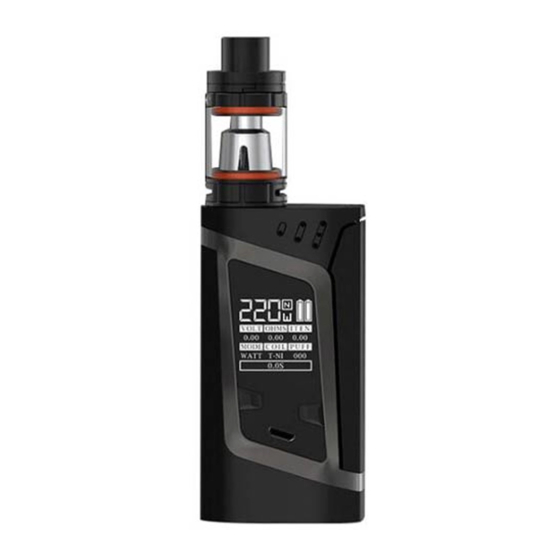

Alien 220 Mod
Introduction:
Alien 220 mod is fashionable and cool. External battery can be charged by Micro-
USB port, it also supports firmware upgrade. Max output power can up to 220W,
which provides you with massive cloud of vapor. Innovation keeps changing the
vaping experience!
Specifications:
Size: 85x44x30mm
Power Range: 6W-220W
Standby Current: <300uA
Voltage Range: 0.35V-8V
Resistance Range: 0.1Ω-3Ω (VW) / 0.06Ω-3Ω (TC)
Temperature Range: 200℉--600℉/100℃--315℃
1
Warranty
Alien Warranty Period: 6 Months from the Purchase Date.
Within the 6 Months, some items may not be eligible for service due to misuse,
damage, or other failures caused other than by manufacturer defects or
premature failure. Please contact SMOK Authorized Vendor for more
information and terms of service.
The "Alien Customer Card" is an important proof for customers to get warranty
service, please keep it. And read the card carefully and fill it out correctly.
Warranty requests must be accompanied by this card.
For more warranty policy and process, please visit our official website:
http://www.smoktech.com/support/
User Guide
Preparation before use:
1)Please make sure the battery you used is according with the BATTERY
WARNING CARD.
2)Before enjoy vaping, please make sure the tank is filled with enough e-juice.
2 3
Install Battery
1) Slide and open the battery cover as the picture shows;
2) Place the batteries into the device according to the correct directions;
3) Close the battery cover.
Power Button
OLED Screen
Micro-USB Port
If the screen is not lighted, please check if the battery is OK, or battery is
placed in the correct direction or if the battery has enough power. Please
contact with our customer consultant if it still cannot be powered on.
5
4
1)Press Power + DOWN Button simultaneously to choose working mode
among TC Mode,VW Mode and MEMORY Mode;
2)Press Power + UP Button simultaneously to choose different effect
Norm/Soft/Hard in WATT MODE or 15-220W in TEMP MODE or M1-M22 in
MEMORY MODE.
3) Press UP / DOWN Button to adjust the temperature or wattage settings;
4. Screen Locked Status:
Hold the Power Button for 5s and choose POWER OFF to power off.
5. Power Off: While the device is locked, hold Power Button for 5s, choose
POWER OFF, and the screen turns off, which means the device is power off.
6. Saving: All the settings will be automatically saved while settings done. No
need to reset after power on.
7. Menus & Prompts: After startup, fast press the POWER Button 3 times in
2s, then you will go to the operation menu. At the same time, long-press on the
POWER Button has confirmed function;UP/DOWN Button could do menu
moves.
6 7
TOO HOT!
8 9
Temperature Sensing Coil Material for you to choose: T-NI/T-TI/T-SS.
5.Enter into Adjustable Initial Resistance. You can adjust the initial resistance
of your atomizer by pressing the Up/Down button.
Battery power
6.When the screen shows "TEMPERATURE PROTECTED", the heating coil
Working Current reached the maximum allowed temperature during the Vaping. If it happens,
the Alien will continue to fire, but will not be able to provide the desired
Puff Number
wattage.
VW Mode
10 11
Attentions
1.Before use please read the manual carefully.
2.Connect the atomizer to a power source that is suitable for its intended use.
3.Please avoid making the e-liquid into your mouth directly.
4.Please do not keep the liquid inside the atomizer if the device is not going to be
used for a long period.
5.Please refill the tank when the e-liquid is nearly used out to avoid dry-burning
of the atomizer.
6.Please do not drop, throw or mishandle this product as the outer shell or inner
components may become damaged.
7.In order to prolong the operation of your product, please keep it away from
excessive temperature and humid environment.
8.Please keep this product away from children and pregnant women.
12 13
Appendix 1 Key Function Table
Power + UP
Power + DOWN
14
Alien 220 MOD说明书
王碧林
AUTO LOCK ON;
SCR LOCK
AUTO LOCK OFF
Contrast range is 10-100, you can increase/
CONTRAST
decrease by UP/DOWN Button
Can be adjusted by UP/DOWN Button
ADJ OHM
Upgrade the firmware by switch NO or YES
DOWNLOAD
POWER ON
Power ON/
POWER OFF with "ALIEN"
OFF
Screen locked status, fast press Power Button 5
times to unlock;
Unlock/Lock
Screen unlocked status, fast press Power Button
to lock
Over
Stop vaping, you can vape again after 30s
temperature
.
Working Power
Working Voltage
Working Mode
Key Function(Screen Unlock Status)
Fast click 5 times in 2s - Power On
Fast click 5 times - Screen Locked
Power
Fast click 3 times in 2s - Menu Choose
Hold on - Vape
Release - Standby
Click Down - Increase the
temperature (TC Mode)
UP
Click Down - Increase the
wattage (VW Mode)
Click Down - reduce the
temperature (TC Mode)
DOWN
Click Down - reduce the
wattage (VW Mode)
Click Down - Change TC Effect (15-220W)
or VW Effect (Hard/Norm/Soft)
Click Down - Change Working Mode
(TC / VW / MEMORY)
High resistance value has been detected, replace atomizer
OHMS TOO HIGH
COIL SHORT Short circuit has been detected, replace atomizer
TEMPERATURE
Temperature protection under TC Mode
PROTECTION
DRY COIL NO
!
LIQUIDDRY Atomizer coil is heating without liquid under TC Mode, fill juice
COIL NO LIQUID
80110275006
2016.10.04
The Kit Includes:
1 x Alien 220 Mod
1 x USB Cable
1 x User Manual
Spare Parts
6
Battery power
Working Current
Puff Number
Function(Screen Locked Status)
Long press 5s – choose Power
Off to turn off
Fast click 5 times - Unlock Screen
