FFC V-Snow Blade Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S & PARTS MANUAL
V-Snow Blade
Model Number_______________________
Serial Number___________________________
800-456-7100 www.paladinlcg.com
Manual Number: 51-4320
Release Date: December 2010
Serial Number 1052001 and Up
2800 N. Zeeb Rd., Dexter, MI. 48130 United States of America
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Snow Blade and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FFC V-Snow Blade

Summary of Contents for FFC V-Snow Blade

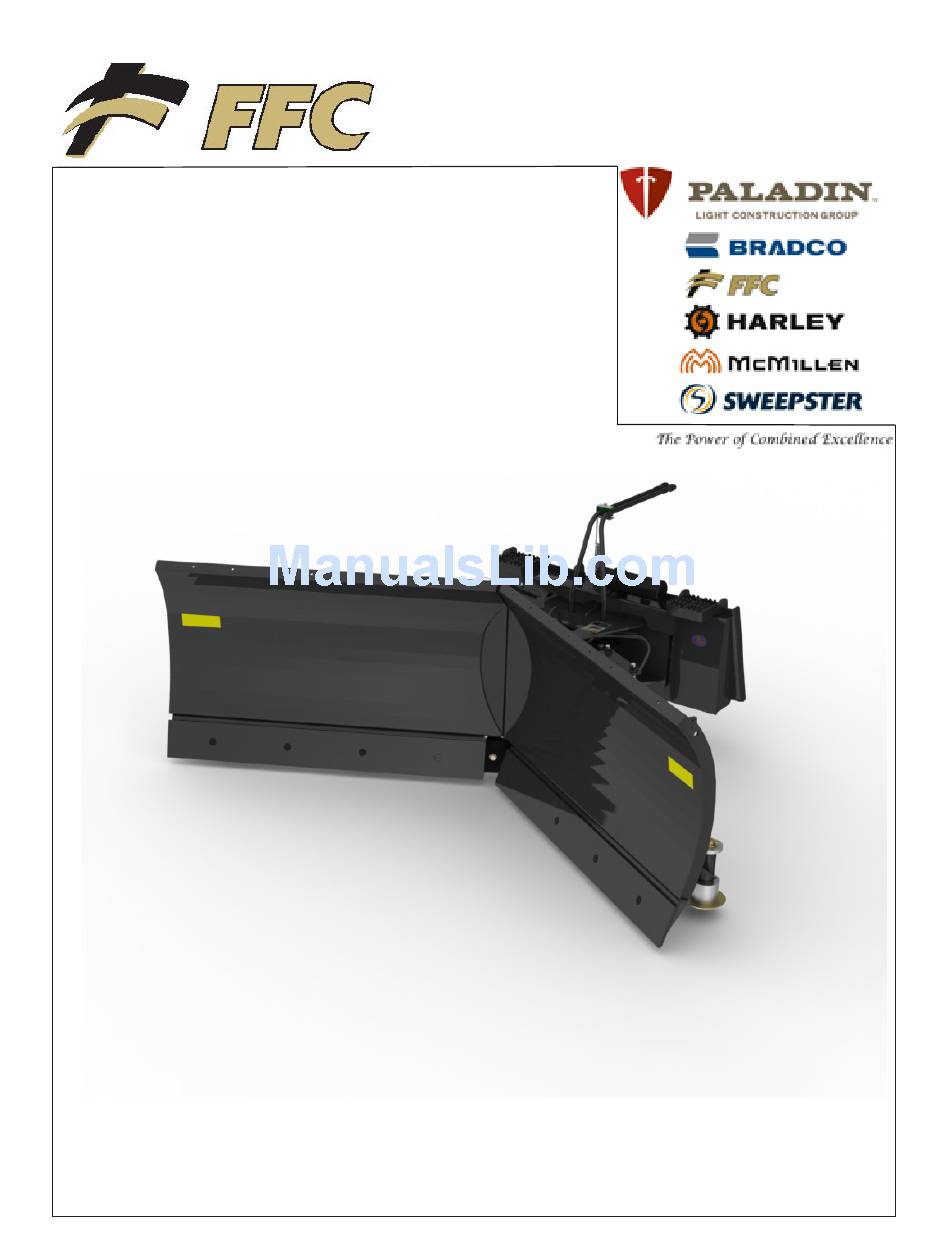

  • Page 1 OPERATOR'S & PARTS MANUAL V-Snow Blade Model Number_______________________ Manual Number: 51-4320 Release Date: December 2010 Serial Number___________________________ Serial Number 1052001 and Up 800-456-7100 www.paladinlcg.com 2800 N. Zeeb Rd., Dexter, MI. 48130 United States of America...
  • Page 2 Notes...
  • Page 3 TABLE OF CONTENTS PREFACE ..............................4 SAFETY STATEMENTS ..........................5 GENERAL SAFETY PRECAUTIONS......................5-7 EQUIPMENT SAFETY PRECAUTIONS ......................8 SAFETY DECALS & LABELS ........................9 INSTALLATION ............................10 OPERATION ............................11-19 MAINTENANCE SCHEDULE ........................20 MAINTENANCE RECORD .........................21 MAINTENANCE ...........................22-23 TROUBLESHOOTING ..........................24-28 PRODUCT SPECIFICATIONS ........................47 BOLT TORQUE SPECIFICATIONS ......................48 HYDRAULIC TORQUE SPECIFICATIONS ...................49-50 WARRANTY ...............................51...

  • Page 4: Preface

    PREFACE GENERAL INFORMATION This product was carefully designed and manufactured to give you many years of dependable service. Only minor maintenance (such as cleaning and lubricating) is required to keep it in top working condition. Be sure to observe all maintenance procedures and safety precautions in this manual and on any safety decals located on the product and on any equipment on which the attachment is mounted.

  • Page 5: Safety Statements

    SAFETY STATEMENTS DANGER! THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. WARNING! THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH COULD RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. CAUTION! THIS SIGNAL WORD IS USED WHERE MINOR INJURY COULD RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
  • Page 6 GENERAL SAFETY PRECAUTIONS WARNING! LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them. Do not use support material made of concrete blocks, logs, buckets, barrels or any other material that could suddenly collapse or shift positions. Make sure support material is solid, not decayed, warped, twisted, or tapered.

  • Page 7: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS WARNING! SAFELY MAINTAIN AND REPAIR EQUIPMENT •Do not wear loose clothing, or any accessories that can catch in moving parts. If you have long hair, cover or secure it so that it does not become entangled in the equipment. •Work on a level surface in a well-lit area.

  • Page 8: Equipment Safety Precautions

    EQUIPMENT SAFETY PRECAUTIONS Operating the V-Snow Blade: •Do not exceed the lifting capacity of your prime mover. •Operate only from the operator’s station. •When operating on slopes, drive up and down, not across. Avoid steep hillside operation which could cause the prime mover to over turn.

  • Page 9: Safety Decals & Labels

    SAFETY DECALS & LABELS Serial Number Tag 2. & 3. RDL3132 & RDL3131 1. 50-0721 4. 50-0724 Item Part Qty Description 5. 50-0737 9. 50-0775 50-0721 Label, Warning, Crush Hazard RDL3132 Label, Amber, Reflective Tape, 2 x 6 RDL3131 Label, Red, Reflective Tape, 2 x 6 50-0724 Label, Warning, High Pressure Fluid 50-0737 Label, Warning, Pinch Point Hazard 50-10017...

  • Page 10: Installation

    INSTALLATION V-Snow Blade Installation WARNING! Improper attachment of V-Snow Blade could result in injury or death. Do not operate this machine until you have positive indication that the attachment is securely mounted. 1. Position the blade on a level surface.

  • Page 11: Operation

    INSTALLATION Removing the V-Snow Blade WARNING! Serious injury or death may result from disengaging the blade when the blade is in an unstable position. Place blade on a firm, level surface in a stable position before disengaging. NOTICE! HOSES FOR THE BLADE MUST BE REMOVED BEFORE THE QUICK ATTACH IS DISENGAGED.
  • Page 12 CAUTION! A V-SNOW BLADE IS A DEMANDING MACHINE. Only fully trained operators or trainee operators under supervision of a fully trained person should use this machine. Before operating blade •Learn blade and prime mover controls in an off-road location.
  • Page 13 OPERATION •Only operate the blade while you are in the seat of the prime mover. The seat belt must be fastened while you operate the prime mover. Only operate the controls while the engine is running. Protective glasses must be worn while you operate the prime mover and while you operate the blade.
  • Page 14 OPERATION Straight Position: 1. If starting from the scoop position, reverse flow until right blade completely retracts. 2. While still reversing flow, retract left blade until it is in the straight position. 3. Use normal flow to extend right blade until it is parallel to left blade.
  • Page 15 OPERATION Electro-Hydraulic Model Adjusting V-Blade: 1. Start the prime mover at idle and raise the blade. 2. Adjust the blade to the desired angle (refer to “angling instructions”) and then lower to the ground. 3. Adjust blade until it is level to the ground ( refer to “leveling instructions”). 4.
  • Page 16 OPERATION Leveling Instructions NOTICE! A LEVEL UNIT SHOULD HAVE NO VISIBLE SPACES BETWEEN CUTTING EDGES AND PLOWING SURFACE. Scoop Position If the front corners of the attachment are contacting the plowing surface and a gap is visible towards the center of the attachment (figure 2): 1.
  • Page 17 OPERATION Scoop Position Shown Level figure 2 figure 3...
  • Page 18 Tighten the spade (or eye) bolts to lengthen the springs. WARNING! LENGTHENING THE SPRINGS BEYOND THE MAXIMUM LENGTH PERMITTED CAN RESULT IN DAMAGE TO THIS PRODUCT. c. Test your blade again. If edges still trip too easily contact FFC.

  • Page 19: Operation

    OPERATION Skid Shoe Set-Up Determine what type of surface is beneath the snow where your blade is being operated. If the surface is hard and smooth, like concrete or asphalt, the skid shoe placement as shipped from the factory is correct. (3 spacers on top, 16 on bottom) If the surface is soft or uneven, then lower the shoe to the desired position (see directions and diagram below).
  • Page 20 Service & Repair CAUTION ! DO NOT MODIFY THE V-SNOW BLADE IN ANY WAY. Personal injury could result. If you have questions, contact your dealer or FFC. Repair or adjust the blade in a safe area, away from traffic and other hazards.
  • Page 21 OPERATION General Storage: NOTICE! Do not store in direct sunlight. Materials will deteriorate prematurely if stored in direct sunlight. Do not store near intense heat. Storage: • Clean the unit thoroughly, removing all mud, dirt and grease. • Inspect for visible signs of wear, breakage or damage. Order any parts required and make the necessary repairs to avoid delays upon removal from storage.
  • Page 22 OPERATION LIFT POINTS Lifting points are identified by lifting decals where required. Lifting at other points is unsafe and can damage attachment. Do not attach lifting accessories around cylinders or in any way that may damage hoses or hydraulic components. See diagram: •...

  • Page 23: Maintenance Schedule

    Hardware - Check for tightness Oil Cleanliness Requirements NOTICE! All hydraulic fluid shall be filtered before use in any FFC product to obtain the ISO cleanliness standard of 17-14 or better, unless explicitly specified otherwise. Lubrication Points The following grease fittings should be greased before each use. See figure for locations.

  • Page 24: Maintenance Record

    MAINTENANCE RECORD Date Performed by Comments Maintenance Procedure Performed...

  • Page 25: Maintenance

    MAINTENANCE Inverting Front Wear Edges NOTICE! All nuts and bolts must be installed using proper torque specifications (refer to Bolt Torque Specifications). 1. Park prime mover on a firm, level surface with blade properly attached. 2. Lower the blades cutting edge onto a sturdy wood or metal blocking positioned under the pivoting assembly, to safely hold the wear edge 6 to 8 inches above the level surface.
  • Page 26 MAINTENANCE Installing New Front Wear Edges NOTICE! All nuts and bolts must be installed using proper torque specifications (refer to Bolt Torque Specifications). 1. Park prime mover on a firm, level surface with blade properly attached. 2. Place primer mover in “Park” and engage parking brake. 3.
  • Page 27 MAINTENANCE Installing New Polyurethane Wear Edges NOTICE! All nuts and bolts must be installed using proper torque specifications (refer to Bolt Torque Specifications). NOTICE! Improper installation of edges will result in damage to plowing surface and premature wearing of edges. 1.
  • Page 28 MAINTENANCE Adjusting and Inverting the Polyurethane Wear Edges NOTICE! The retaining plate between the polyurethane edge and the blade mounting has the holes closest to the ground while the front retaining plate has its holes near the top. Note retaining Initial Installation Position plate positions Holes are near the bottom with...
  • Page 29 MAINTENANCE Installing Center Nylon and Rubber Wear Edges 1. Remove all hardware and the original steel center edges and rubber center edge. Retain all for use with original steel wear edges. 2. Install new center rubber wear edge and nylon center edges. NOTICE! Use only 20 FT/LBS of torque on button head bolts for nylon center edges.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Wear Edges Problem Possible Cause Possible Solution Steel or Poly edges are wearing Blade is not level during Make sure blades are level unevenly operation A noticeable trail of snow is Blades are not level Level blades being left when plowing. Wear edges are worn Flip or replace wear edge Center wear edge is worn...

  • Page 31: Troubleshooting

    TROUBLESHOOTING Hydraulic Manifold Only Problem Possible Cause Possible Solution Hydraulic cylinder neither Hoses or fittings are loose or Tighten hoses and fittings extends nor retracts disconnected Restriction in hoses Remove bends in hoses, Remove obstructions in hoses Cylinders are fighting each Hoses may be installed Re-install hoses correctly others movements...
  • Page 32 HOSE ASSEMBLY Hydraulic/Electric Hose Routings 07-7733 07-7734 Item Part Qty Description 1. 03-2092 Elbow, 90º, 6MB-6MF 2. 03-2278 Fitting, 6MF-8MB 3. 03-3515 Fitting, 12MB-8MF 4. 03-3537 O-Ring, #8 Face Seal 5. 03-4912 Hose, .38 x 72, 8FF-8FF45, 100R2 6. 03-6074 Plate, Orifice, #8, O-Ring Face Seal 7.
  • Page 33 HOSE ASSEMBLY Hydraulic Hose Routings Item Part Qty Description 1. 03-10111 Hose, .38 x 78, 6FF-8MB, 100R2 2. 03-2092 Elbow, 90º, 6MB-6MF 3. 03-3573 O-Ring, Face Seal, 3/8, SAE #6 4. 03-3689 Elbow, 90º, 6FF-6MF 5. 03-4704 Hose, .38 x 27, 6FF-6FF, 3K 6.
  • Page 34 HYDRAULIC/ELECTRIC MANIFOLD SCHEMATIC...
  • Page 35 HYDRAULIC MANIFOLD SCHEMATIC...
  • Page 36 MOLDBOARD ASSEMBLY...
  • Page 37 MOLDBOARD ASSEMBLY Item Part Qty Description 1. 07-0206 Pin, Cotter, Gr2, 3/16 x 2 (5 ft) 07-0206 Pin, Cotter, Gr2, 3/16 x 2 (6,7,8,9,10 ft) 2. 07-0223 Fitting, Zerk, 1/8NPT 3. 07-3268 Snap Ring 4. 07-3674 Screw, HHC, Gr8, 1/2-13 x 2 3/4 5.
  • Page 38 TRIP EDGE ASSEMBLY Item Part Qty Description 1. LAF6405 Trip Spring, .393 x 14 x (26.25) 2. 13-17406-60 Weld, Left, Trip Edge (5 ft) 13-17406-72 Weld, Left, Trip Edge (6 ft) 13-17406-84 Weld, Left, Trip Edge (7 ft) 13-17406-96 Weld, Left, Trip Edge (8 ft) 13-17406-108 Weld, Left, Trip Edge (9 ft) 13-17406-120...
  • Page 39 STEEL WEAR EDGE ASSEMBLY Item Part Description 1. RHW2663 Bolt, Plow, .63-11 x 1.75, Gr8 (5 ft) RHW2663 Bolt, Plow, .63-11 x 1.75, Gr8 (6,7 ft) RHW2663 Bolt, Plow, .63-11 x 1.75, Gr8 (8,9 ft) RHW2663 Bolt, Plow, .63-11 x 1.75, Gr8 (10 ft) 2.
  • Page 40 OPTIONAL MARKER KIT Item Part Qty Description 1. 103006 Marker, Orange, 28 inches 2. RHW1105 Screw, HHC, Gr5, .31-18 x 1 3. RHW7103 4 Nut, Lock, Gr5, .31-18...
  • Page 41 NOTES...

  • Page 42: Product Specifications

    PRODUCT SPECIFICATIONS Specifications and Model Views Angle Position Scoop Position Straight Position “V” Position...
  • Page 43 PRODUCT SPECIFICATIONS 60 inch 72 inch 84 inch 96 inch 108 inch 120 inch Approximate Weight 865 lbs 920 lbs 975 lbs 1020 lbs 1060 lbs 1110 lbs Approximate Weight 392 kg 417 kg 442 kg 463 kg 481 kg 503 kg Maximum Width Straight Position 60 inches...

  • Page 44: Bolt Torque Specifications

    BOLT TORQUE SPECIFICATIONS NOTE - Nylock nuts are utilized when greater resistance to vibrating loose is required, and greater operating temperatures are not a factor. In addition, like lock nuts, nylock nuts have a safety feature that if the bolt does vibrate loose, the nut will remain on the screw. Install nylock nuts to the standard torque shown above.

  • Page 45: Hydraulic Torque Specifications

    HYDRAULIC TORQUE SPECIFICATIONS Face Seal: Assembly, Tube to Fitting NOTICE - Face seal fittings have the most reliable sealing method and therefore, should be used whenever possible. Installation 1. Make sure threads and sealing surfaces are free of burrs, nicks, scratches, or foreign materials. 2.

  • Page 46: Hydraulic Torque Specifications

    HYDRAULIC TORQUE SPECIFICATIONS Straight Thread O-ring Fitting: Assembly, Fitting to Port NOTE - Straight thread o-ring fittings are utilized to adapt hydraulic systems to motors, pumps, cylinders, and valves. Installation (Adjustable Fitting) 1. Make sure threads and sealing surfaces are free of burrs, nicks, scratches, or any foreign materials. 2.

  • Page 47: Warranty

    WARRANTY Limited Warranty Except for the Excluded Products as described below, all new products are warranted to be free from defects in material and/or workmanship during the Warranty Period, in accordance with and subject to the terms and conditions of this Limited Warranty. Excluded Products.
