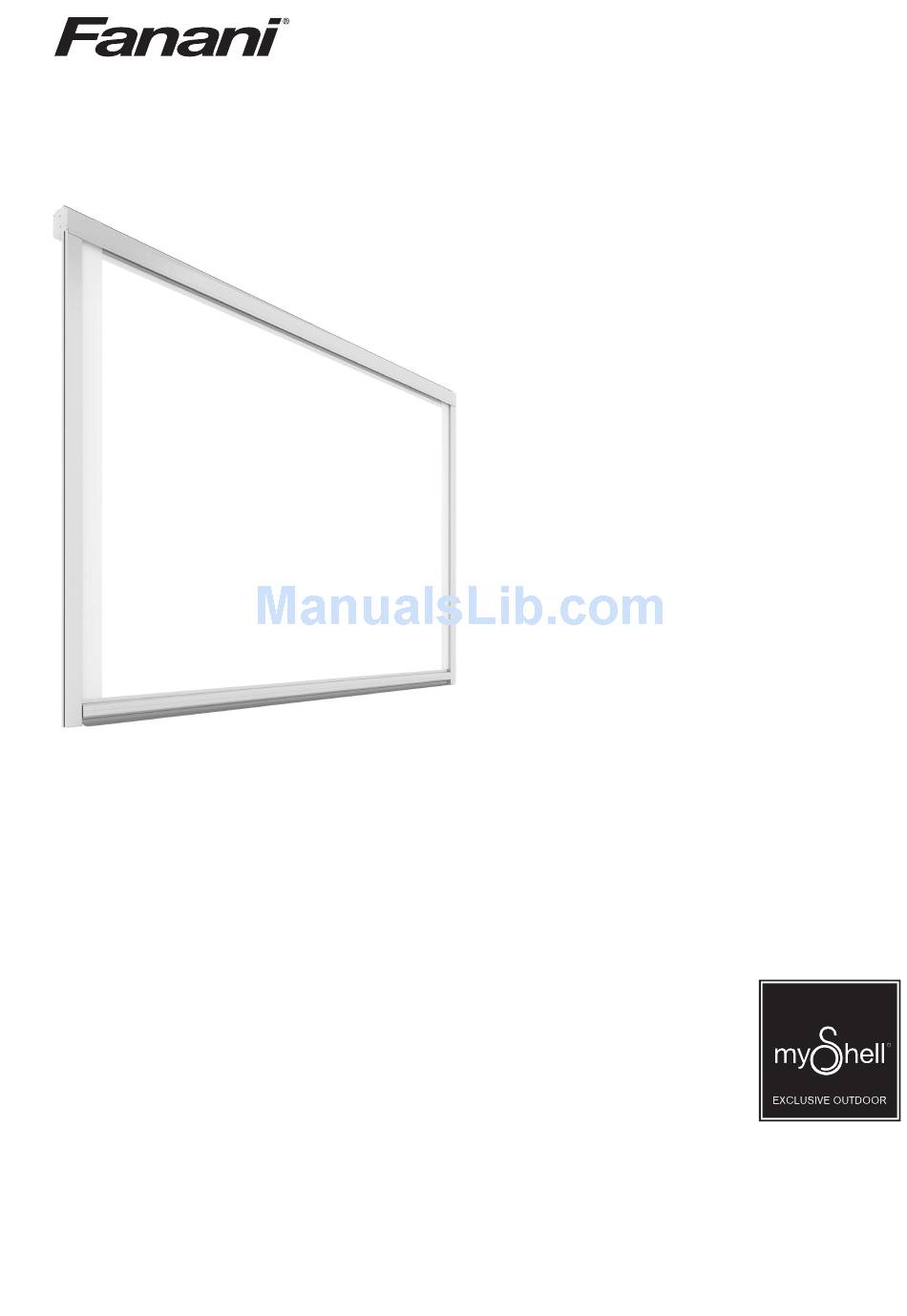

- Page 1 T.2T ZIP ASSEMBLY INSTRUCTIONS Rev.1-03/17...
- Page 3 Components detail Box fixing Fabric opening Roller blind operation Guides fixing Limit switches programming with remote control p. 12 Limit switches programming with push button panel p. 14 Additional remote control p. 16 Troubleshooting p. 17 FANANI / ASSEMBLY INSTRUCTIONS...
- Page 4 (wall/ceiling), bases (floor mounted uprights), hardware or other suitable parts for a safe and proper installation. The installer will certify the completed assembly by signing the use and maintenance manual. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 5 It is installer’s responsability to check walls, floor or whatever else fastening support tho whom the roller blind is settled. The mounting is at installer’s charge qualified to release the document of THE CORRECT INSTALLATION DECLARATION. The electrical connections are at electrician’s charge qualified to release the document of THE CONFORMITY DECLARATION. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 6 Floor guide fixing bracket Bottom rail weight Bottom rail cap Bottom rail ZIP guide with flap xternal gasket nternal gasket Operating rod (manual operation) Becker motor (motor operation) guarnizione a palloncino Pelmet cm. 7 ZIP sliding track Motor holder FANANI / ASSEMBLY INSTRUCTIONS...
- Page 7 T.2T FACE FIXNIG SUPPORTS SIDE FIXING SUPPORTS BOX INSERTING To insert the box into the supports, rotate it enough to allow the hooking to the fixing supports, insert the stainless steel dowels provided and tighten them. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 8 IMPORTANT: it is necessary to insert the rod before moving the fabric. 1) remove the CLIP 2) insert the 3) insert the CLIP to block operating rod into its the rod clutch la CLIP viene fornita pre-assemblata sulla testa dell’asta di manovra FANANI / ASSEMBLY INSTRUCTIONS...
- Page 9 Motor cables Program Blue Blue button Down Black Black Brown Brown Green/yellow Green/yellow IMPORTANT: limit switches are NOT pre-setted, after completion the electrical connections proceed with the limit switches programming , following the procedure with attention. FANANI / ASSEMBLY INSTRUCTIONS...
-
Page 10: Manual Operation
T.2T ZIP 4 Manual operation MANUAL OPERATION Operation through crank with articulated rod. HOW TO OPERATE use the rod to OPEN THE FABRIC, spin in the opposite direction to CLOSE the fabric. 1) APERTURA 2) CHIUSURA FANANI / ASSEMBLY INSTRUCTIONS... - Page 11 Insert the rounded head stainless steel screw and tighten it to the box joint. Once complteted the first guide proceed with the second one. GUIDE FIXING fix the guide directly to the wall (screws and dowels are not included) by using the prepared holes. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 12 Insert the ZIP sliding track into the external guide profile, than complete the guide profile placi9ng the internal profile Fix the internal guide on the top and on the bottom with the provided screws. Place the hole cover stickers. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 13 Insert the painted cylindric head self drilling screws to close the box against the guide.(Box is inspectable only without screws) In case of motor operation before closing the box shut the power. Power it back after the box closure. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 14 (bottom rail stops against the box). WARNING: KEEP PRESSED THE UP BUTTON WITHOUT RELEASING IT TILL THE BOTTOM RAIL STOPS AGAINST THE BOX AND THE MOTOR PERCEIVES THE OBSTACLE AND MEMORIZES THE LIMIT SWITCH FANANI / ASSEMBLY INSTRUCTIONS...
- Page 15 Then repeat the programming operation startin from phase 3) UP LIMIT SWITCH IMPORTANT: before cancelling the limit switches make sure that the roller blind to be reset corresponds to the selected channel (in case of multiple roller blinds) FANANI / ASSEMBLY INSTRUCTIONS...
- Page 16 BOTTOM RAIL STOPS AGAINST THE BOX AND THE MOTOR PERCEIVES THE OBSTACLE AND MEMORIZES THE LIMIT SWITCH DOWNWARD LIMIT SWITCH Press the DOWN button up to the desired limit switch position ; release DOWN button to stop. FANANI / ASSEMBLY INSTRUCTIONS...
- Page 17 DOUBLE CLICK time press the keep pressed PROGRAM button DOWN button DOWN again button IMPORTANT: It is suggested the use of a “dead man” push button (NOT PROVIDED). FANANI / ASSEMBLY INSTRUCTIONS...
- Page 18 NEW REMOTE CONTROL until the motor confirms the operation with a DOUBLE CLICK. Programming over, the NEW REMOTE CONTROL has memorized the previous one’s limit switch (the limit switch does not need to be reset) FANANI / ASSEMBLY INSTRUCTIONS...
-
Page 19: Troubleshooting
Wait from 15 to 30 minutes until the because the roller blind was operated motor has cooled down repeatedly without a pause The motor perceives the command only if Remote control battery needs changing Replace the battery the remote control is close FANANI / ASSEMBLY INSTRUCTIONS... - Page 20 Fanani srl Via Caduti di Sabbiuno 7 40011 Anzola dell’Emilia Bologna | Italy T +39 051 401320 F +39 051 403022 skype: fananitende info@fananitende.it www.fananitende.it...
