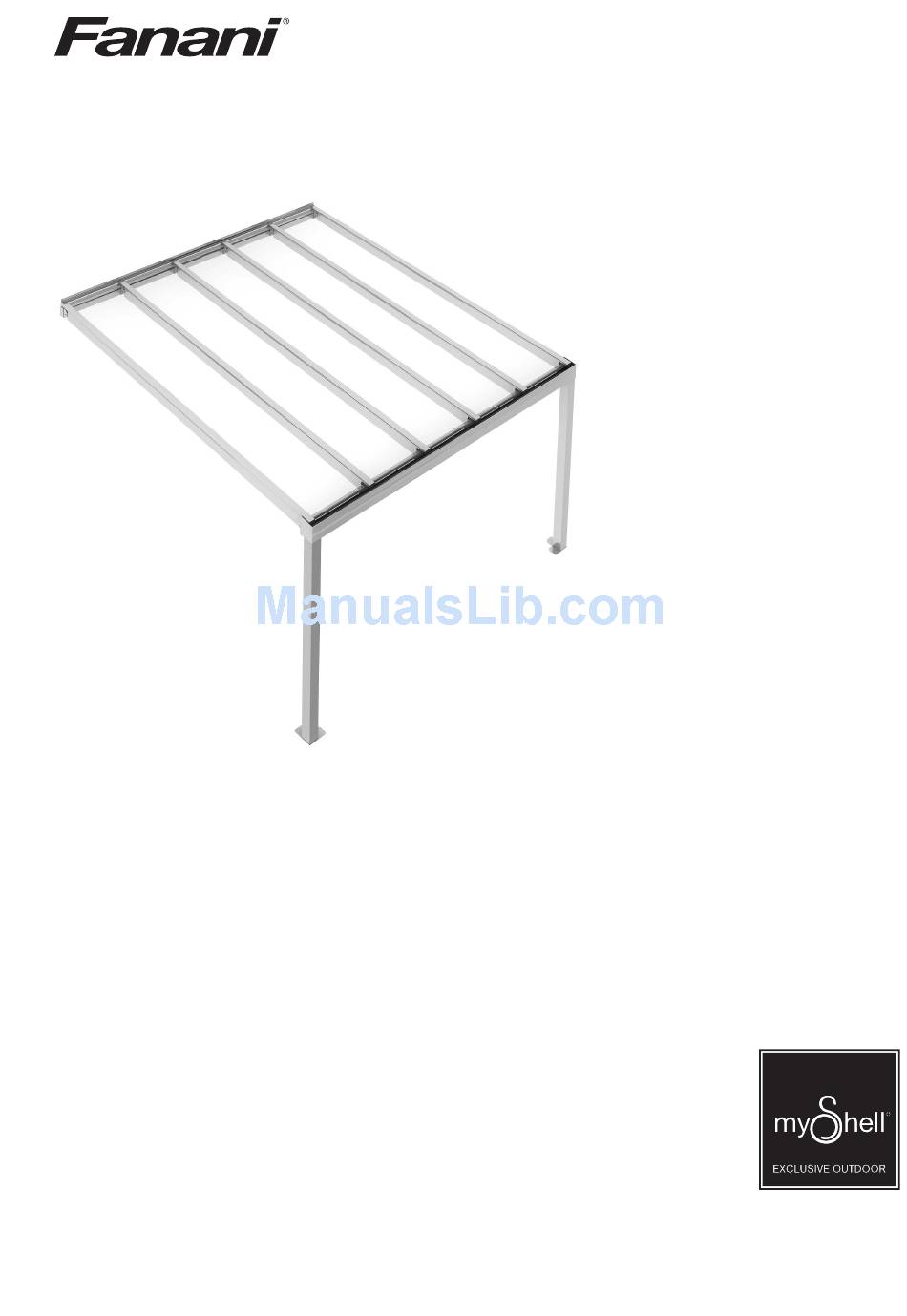

- Page 1 IGLOO TECH ST-GL SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS Rev.1-03/17...
-
Page 3: Table Of Contents
Lower purlins support p. 14 Side beams p. 15 Purlins p. 16 Load bearing gutter gasket p. 17 Drain entrance and gutter caps p. 18 Glass holder profile p. 19 Wall gasket p. 21 FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 4: Versions
IGLOO TECH ST-GL Versions 2 modules 1 module 3 modules FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 5: Igloo Components Detail
11x5 glass holder profile FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 6: Checking Material
(wall/ceiling), bases (floor mounted uprights), hardware or other suitable parts for a safe and proper installation. The installer will certify the completed assembly by signing the use and maintenance manual. FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 7: Before Starting
It is installer’s responsability to check walls, floor or whatever else fastening support tho whom the roller blind is settled. The mounting is at installer’s charge qualified to release the document of THE CORRECT INSTALLATION DECLARATION. The electrical connections are at electrician’s charge qualified to release the document of THE CONFORMITY DECLARATION. FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 8: Clearance Check
IGLOO TECH ST-GL 1 Clearance check and brackets positioning IMPORTANT: Before proceeding with the wall mounting supports fixing, establish their position Front joint detail Passage height FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... - Page 9 2) fix the supports with adequate screws (provided by the installer) IMPORTANT: supports position must center the bubble in spirit level Finished width FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS...
- Page 10 2B Direct wall fixing with wall beam (without supports) 1)position the beam as per illustration below 2)fix the beam with with adequate screws (provided by the installer) IMPORTANT: the beam position must center the bubble in spirit level Finished width FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS...
-
Page 11: Wall Fixing
2) place the beam on the supports and fix it with the provided screws (threaded holdind plates pre- inserted in the beam) IMPORTANT: supports and beam must center the bubble in spirit level FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... - Page 12 IGLOO TECH ST-GL 2D Purlins supports on wall beam 1) fix the purlins supports with the provided screws (threaded holding plates pre-inserted in the beam) as per illustration below Finished width FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS...
-
Page 13: Floor Squaring
IGLOO TECH ST-GL Squaring 3 1) place the upright base to the ground in the IMPORTANT: correct position, verify the measures, and mark DO NOT FIX THE BASES IN THIS PHASE the reference points FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 14: Load-Bearing Gutter
IGLOO TECH ST-GL 4 Load-bearing gutter accessories 1) insert the internal tighteners and fix them 15/20 cm Keep a gap of 15/20 cm between the external gutter edge and the tightener FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 15: Uprights Bases And Load-Bearing Gutter
1) fix the uprights to the bases with the provided screws TSP M8x12. 2) fix the tech internal bracket into the upright with the provided screws 3) fix the load-bearing gutter to the uprights with the provided screws FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 16: Lower Purlins Support
IGLOO TECH ST-GL 6 Lower purlins support 1) insert the holding plate into the slotted profile 2) fix the purlins supports on the load-bearing gutter FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 17: Side Beams 7
2) insert the side beam into the wall support, rise the uprights with the load-bearing gutter inserted and fix it on the side beam 3) fix the bases checking the reference marks as per point 5 FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 18: Purlins
IGLOO TECH ST-GL 8 Purlins 1) place the purlins and fix them with the provided screws ATTENTION: in presence of led stripes, insert them before placing the guide FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 19: Load Bearing Gutter Gasket
Frontal gasket 9 insert the black gasket and block it with the provided dowels; Shape it after the guide and the side gutters positioning (see chapter 17) ATTENTION: gasket correct position (flap facing outside the structure) FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 20: Drain Entrance And Gutter Caps
10 Drain entrance and gutter caps IMPORTANT: Apply silicone on the entrance piece edge before inserting it into its location IMPORTANT: Fix the gutter side caps and apply silicone on the bottom and on the side edges FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... -
Page 21: Glass Holder Profile 11
2) insert the side filler part into the external glass holder profile part. (Insert the side filler profile into the first and the last glass holder profile) FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... - Page 22 “A” proceed with “B” and finish with “C”, then fix it to the glass holder profile with the provided screws 4) close the glass holder cover holes with the provided caps 5) place the frontal caps and tighten its screws FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS...
-
Page 23: Wall Gasket
Place the wall gasket and make sure to fix it about every cm 100, therefore apply silicone on the top edge IMPORTANT: IN CASE OF MORE MODULES IGLOO VERSIONS, DO NOT CUT THE RUBBER GASKET. FANANI / SEMI-FABRICATED COMPONENTS ASSEMBLY INSTRUCTIONS... - Page 24 Fanani srl Via Caduti di Sabbiuno 7 40011 Anzola dell’Emilia Bologna | Italy T +39 051 401320 F +39 051 403022 skype: fananitende info@fananitende.it www.fananitende.it...
