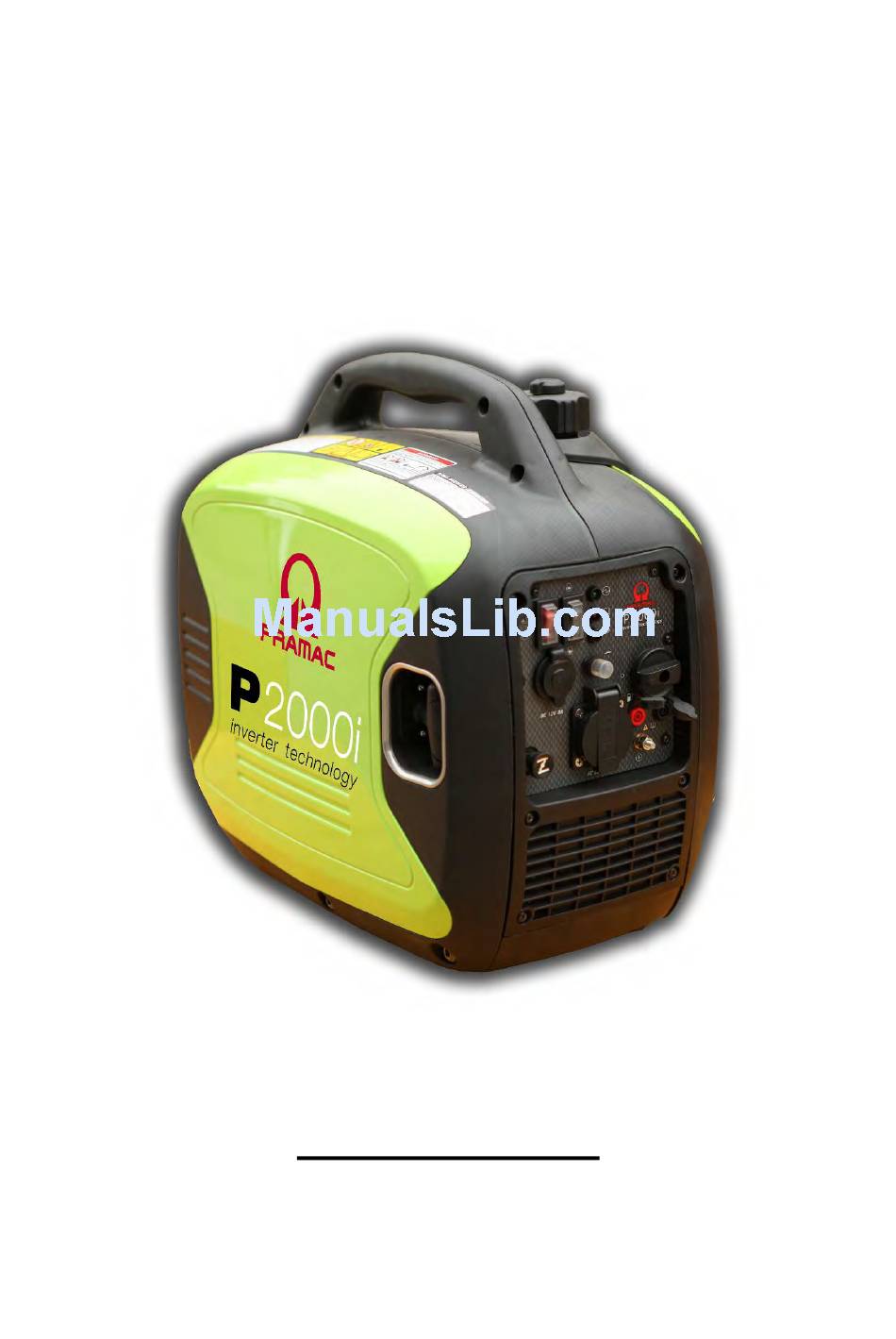

- Page 1 INVERTER GENERATOR P2000i Operating Manual...
- Page 2 READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, ANDIOR VOIDING OF YOUR WARRANTY. PRAMAC WILL NOT BE UABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCT/ONS.
- Page 3 INVERTER GENERATOR – P2000i Table of Contents SAFETY INSTRUCTIONS AND WARNINGS ......... 4 CONTROLS AND FEATURES .............. 12 2.1 Generator ..................12 2.2 Control Panel ..................13 2.3 Control Functions ................14 GETTING STARTED ................18 3.1 Unpack the Generator ..............18 3.2 Adding engine Oil ................
-
Page 4: Safety Instructions And Warnings
INVERTER GENERATOR – P2000i SAFETY INSTRUCTIONS AND WARNINGS WARNING THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. NOTE Read this manual carefully before operating this machine. This manual should stay with this... - Page 5 INTRODUCTION This Operating Manual has been designed to instruct you on the correct operation of your PRAMAC product. Your satisfaction with this product and its safe operation is our ultimate concern. Therefore please take the time to read the entire manual, especially the Safety Precautions. They will help you to...
- Page 6 INVERTER GENERATOR – P2000i IMPORTANT MANUAL INFORMATION Particulary important information is distinguished in this manual by the following notes. Symbol Usage This manual contains important information that you need to know and understand in order to assure YOUR SAFETY and PROPER OPERATION OF EQUIPMENT.
- Page 7 INVERTER GENERATOR – P2000i SAFETY INFORMATION FUEL IS HIGHLY FLAMMABLE AND POISONOUS • Always turn off the engine when refueling. • Never refuel while smoking or in the vicinity of an open flame. • Take care not to spill any fuel on the engine or muffler when refueling.
- Page 8 INVERTER GENERATOR – P2000i • Keep the machine at least 1m (3 ft) from buildings or other equipment, or the engine may overheat @ 1 m (3 ft). • Do not operate the engine with a dust cover, or other objects covering it.
- Page 9 INVERTER GENERATOR – P2000i • Connect the ground lead of the machine to the ground terminal 1 to ground the generator to earth (where needed) and connect the end to the ground electrode buried in the ground. CONNECTION NOTES •...
- Page 10 INVERTER GENERATOR – P2000i LOCATION OF IMPORTANT LABELS Please read the following labels carefully before operating this machine. Maintain or replace safety and instruction labels, as necessary.
- Page 11 INVERTER GENERATOR – P2000i...
-
Page 12: Controls And Features

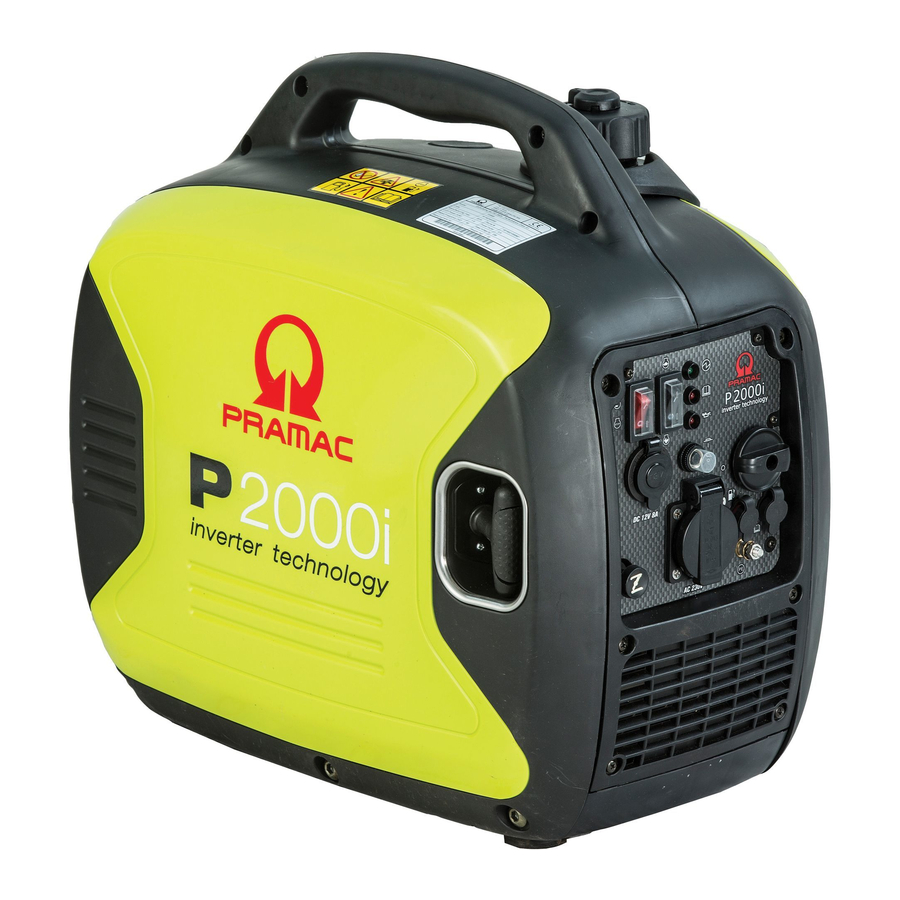

INVERTER GENERATOR – P2000i CONTROLS AND FEATURES Generator 1. Muffler 2. Carrying handle 3. Vented Gas Cap 4. Recoil Starter 5. Control Panel 6. Fuel Gauge 7. Exhaust and Spark Arrestor 8. Oil filter cap... -
Page 13: Control Panel
INVERTER GENERATOR – P2000i Control Panel AC Pilot Light 1. Engine Switch 2. Economy Throttle (Black) 3. AC Pilot Light 4. Overload Indicator Light 5. Oil Warning Light 6. 12V DC Output 7. 8A DC Circuit Breaker 8. Fuel Petcock 9. -
Page 14: Control Functions
INVERTER GENERATOR – P2000i Control Functions ECONOMY THROTTLE Throttle When the Throttle switch is in the “I” position the throttle controls the engine speed according to the connected electrical load. The results are better fuel consumption and less noise. When the switch is in the “O” position the engine runs at 4,500 rpm regardless of the electrical load. - Page 15 INVERTER GENERATOR – P2000i Turn off any connected electric devices and stop the engine. Reduce the total wattage of connected electric devices within the rated output. Check for blockages in the cooling air inlet and around the control unit. lf any blockages are found remove them.
- Page 16 INVERTER GENERATOR – P2000i 12V 8A DC Outlet The 12V 8A DC Outlet is for provided for battery charging. Follow instructions in the owner’s manual for the battery for charging procedures. 8A DC Circuit Breaker The 8A DC Circuit Breaker turns off automatically if the current exceeds 8A. If the circuit breaker turns “O”...
- Page 17 INVERTER GENERATOR – P2000i 220/230/240V AC Outlets The Outlets are used to power 220/230/240V Single Phase 50Hz loads requiring up to 1600W continuous power. This socket is only corresponding to a client, the different laws and regulations according to the sales area changes corresponding to the socket.
-
Page 18: Getting Started
• P 2000i 2000W Generator • Parallel Cables • Oil Funnel If you did not receive any of the above items, please contact PRAMAC costumer service. Adding engine Oil The generator has been shipped without engine oil. DO NOT add fuel or start the engine before adding engine oil. - Page 19 INVERTER GENERATOR – P2000i Using a #2 Phillips-head screwdriver remove screws 1 and 2 (seen in figure 1) and lift up and away to remove the side panel. Figure 2 Place the generator on a level surface. DO NOT tilt the generator while adding oil.
-
Page 20: Adding Fuel
INVERTER GENERATOR – P2000i SAE#20 SAE#10W Recommended engine oil grade: API Service SE type or higher Engine oil quantity: 0.4L Adding Fuel The fuel tank capacty 4.1 Liter. DO NOT overfill the tank, otherwise it may overflow when the fuel warms up and expands. -
Page 21: Starting The Engine
INVERTER GENERATOR – P2000i Starting the Engine OPERATE THE ENGINE IN A WELL VENTILATED AREA. DO NOT connect any electrical devices to the outlets on the generator before starting the engine. Turn the Economy Throttle switch "O" You may turn the Economy Throttle switch to "I" once the engine is started and a s teady idle is achieved, (below 0°(32°F)/5mins, below 5°C(41... - Page 22 INVERTER GENERATOR – P2000i Turn the Engine Switch (Red) "I" Pull the Choke Knob fully out. NOTE The Choke is not needed to start a warm engine. Push the knob in to the original position when starting the engine warm.
-
Page 23: Stopping The Engine
INVERTER GENERATOR – P2000i Stopping the Engine Before stopping the engine turn off and disconnect any electronic devices attached to the generator. Turn the Throttle switch “O”. Turn the Engine switch to “O”. Turn the Fuel Petcock to “O”. -
Page 24: Electrical Connection
INVERTER GENERATOR – P2000i ELECTRICAL CONNECTION Capacity Follow these simple steps to calculate the running and starting watts necessary for your purposes. See Section 4.5 for Wattage Reference Guide. Select the electrical devices you plan on running at the same time. -
Page 25: Parellel Connection Within 2 Generator
Parellel Connection within 2 generator Performance: increase output through the parallel connection way within 2 sets of P2000i inverter generators. Operation Guide: 1. 2 sets of P2000i inverter generators needed Attention: generators are power off, without any loading equipments and cable sockets. - Page 26 INVERTER GENERATOR – P2000i 2. Put the parallel connection wire 1 and 2 into the parallel connection sockets 3 and 4. Attention: Grounding Wire must be properly installed and worked if needed. Keep each inverter generator in steady.
- Page 27 4. Put the equipment plug 5 into socket 6, turn on the equipmentpower. Warning: Only 2 sets of P2000i inverter generator can be parallel connected. More than 2 sets and above inverter generators parallel connection are not permitted.
-
Page 28: Battery Charging
INVERTER GENERATOR – P2000i Battery Charging Start the engine first and allow it to reach idle before connecting the generator to the battery. Battery Charging is performed using the 12V DC outlet only. 1. Be sure the Throttle switch is turned "O" while charging batteries. -
Page 29: Wattage Reference Guide
INVERTER GENERATOR – P2000i Wattage Reference Guide Running Starting Item Watts Watts Essentials Light Bulb Refrigerator/Freezer 1200 2400 Sump Pump 1800 Well Pump 1HP 2000 4000 Water Heater 4000 Security System AM/FM Radio Garage Door Opener 1/2 HP Battery Charger 12V... - Page 30 INVERTER GENERATOR – P2000i These are estimates only. Check your tool or appliance for exact wattage requirements. The wattages listed are based on estimated wattage requirements. For exact wattages, check the data plate or owner's manual on the item you wish to power using the generator.
-
Page 31: Maintenance
INVERTER GENERATOR – P2000i MAINTENANCE Periodic Maintenance Periodic inspection, adjustment and lubrication will keep your generator in the safest and most efficient condition possible. Every Item Routine Prior to use 6mos.or 12mos. or 100hrs. 300hrs. • Check condition Spark Plug •... -
Page 32: Spark Plug Maintenance
INVERTER GENERATOR – P2000i Spark Plug Maintenance Spark plug inspection The spark plug is an important engine component and should be checked periodically. 1. Remove the screws 1 and then remove the cover 2. 2. Remove the spark plug cap 3 and access cap 4. -
Page 33: Engine Oil Replacement
INVERTER GENERATOR – P2000i Engine Oil Replacement Initial replacement of the engine oil is after one month or 20 hours of operation. Place the generator on a level surface and warm up the engine for several minutes. Then stop the engine and turn the Fuel Petcock knob to "O"... -
Page 34: Air Filter Maintenance
INVERTER GENERATOR – P2000i Air Filter Maintenance Should be performed every 6 months or 100 hours. The air filter may need to be cleaned more frequently when using in unusually wet or dusty areas. Remove the screws 1 and then remove the cover 2. -
Page 35: Muffler Screen And Spark Arrestor Maintenance
INVERTER GENERATOR – P2000i Muffler Screen and Spark Arrestor Maintenance Should be performed every 6 months or 100 hours. The air filter may need to be cleaned more frequently when using in unusually wet or dusty areas. Remove the screws 1 and then remove the cover 2. -
Page 36: Fuel Filter Maintenance
INVERTER GENERATOR – P2000i Fuel Filter Maintenance Should be performed every 12 months or 300 hours. Remove the fuel tank cap and filter 1. Clean the filter with gasoline. If damaged, replace it. Wipe the filter and install it. Install the fuel tank cap. -
Page 37: Storage
INVERTER GENERATOR – P2000i STORAGE Long Term Storage Long term storage of your machine will require some preventive procedures to guard against deterioration. Drain the fuel Turn the Engine switch to "O" 1. Remove the fuel tank cap. Extract the fuel tank into an approved gasoline container using a commercially available hand siphon. - Page 38 INVERTER GENERATOR – P2000i Remove the screws 1, and then remove the cover 2. Drain the fuel from the carburetor by loosening the drain screw 3 on the carburetor float chamber. Turn the Engine switch to "O" Turn the fuel cock knob to "O"...
-
Page 39: Troubleshooting And Specifications
INVERTER GENERATOR – P2000i TROUBLESHOOTING AND SPECIFICATIONS Troubleshooting Diagram A ENGINE DOES NOT START B Turn the engine switch to “ON”, then pull the recoil starter and c heck if the oil warning light flickers C Does not flicker D Flicker... -
Page 40: Fuel Filter Maintenance
INVERTER GENERATOR – P2000i K Check the spark plug. • Type: BPR6HS • Gap: 0.6-0.7 mm (0.024- 0.028 in) L Incorrect M OK Replace Clean the spark adjust Gap. plug. N Check the following Q Clean or Replace; Consult a Clogged dealer. -
Page 41: Specifications
INVERTER GENERATOR – P2000i Specifications Engine Type 4-Stroke OHV Air Cooled Single Cylinder EPA Certified Engine Displacement (cc) 79cc Running Watts 1600w Starting Watts 2000w Rated Frequency 50Hz Rated Voltage 230V Rated Current Run Time 10.5hrsat1/4load Receptacles (qty.) (1) 230V AC; (1) 12V 8A DC...
