Summary of Contents for Andrew RF100978

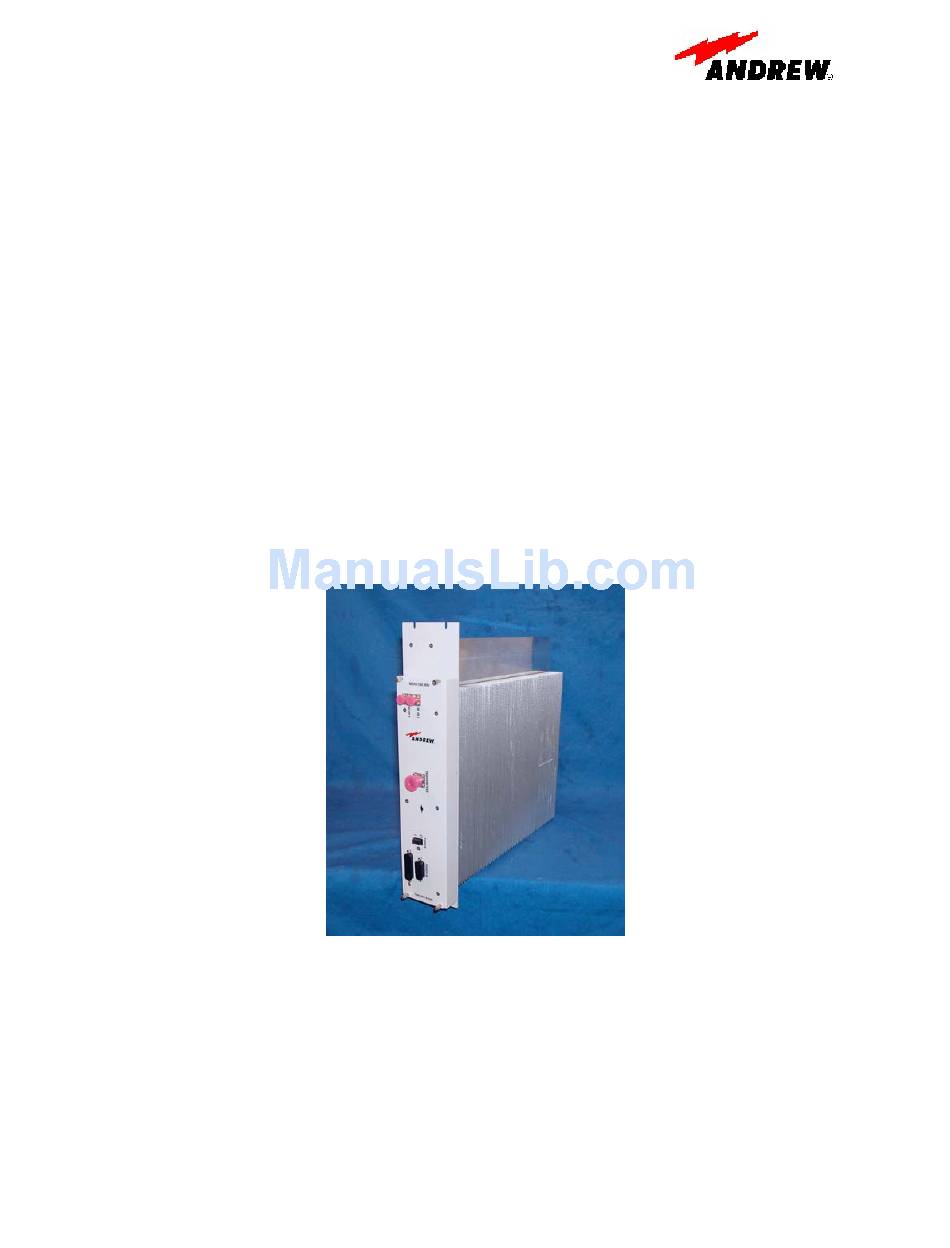

- Page 1 1960 CDMA Multiple Carrier Power Amplifier Model: RF100978 Operation Instruction Date: Mar 19, 2008 Version. 1.1 Ref# FCC ID S8L-100978MCPA Andrew Corporation Proprietary – Use pursuant to Company Instruction 1 of 8...
- Page 2 (1930 MHz to 1990 MHz) RF power amplifier is capable of 1960 CDMA amplifying multiple carriers to a composite power level of 75 Watts. MCPA Specifications The RF100978 provides linear amplification of multi-carrier signals in the CDMA frequency band. The specifications are: Parameter Specification Operating RF Band 1930MHz –...
-
Page 3: Control
Control System: A microprocessor controller is used to control the amplifier alarm system, control environmental compensation of the amplifier, and to maintain a linearization solution for the predistortion circuit. Andrew Corporation Proprietary – Use pursuant to Company Instruction 3 of 8... -
Page 4: Ground
RF100978 RF100978 Figure 1 MCPA Front Panel Figure 2 MCPA Back Panel RF100978 Figure 3 MCPA Top & Bottom Panels Andrew Corporation Proprietary – Use pursuant to Company Instruction 4 of 8... -
Page 5: Ground
RF100978 Figure 4 MCPA Side Panels Andrew Corporation Proprietary – Use pursuant to Company Instruction 5 of 8... -
Page 6: Ground
Alarms are non-recoverable and require a Reset or cycling of the power switch Note 3: Details as to the specific alarm event are retrieved through the front panel RS- 485 interface. Andrew Corporation Proprietary – Use pursuant to Company Instruction 6 of 8... - Page 7 Not allowed for the MCPA UART RX + (MCPA to Exchanged Information TRM) UART RX - (MCPA to Exchanged Information TRM) Ground 19-24 Green LED Table 3: Pin out for D-Sub connector Andrew Corporation Proprietary – Use pursuant to Company Instruction 7 of 8...
- Page 8 Warning Changes of modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Andrew Corporation Proprietary – Use pursuant to Company Instruction 8 of 8...
