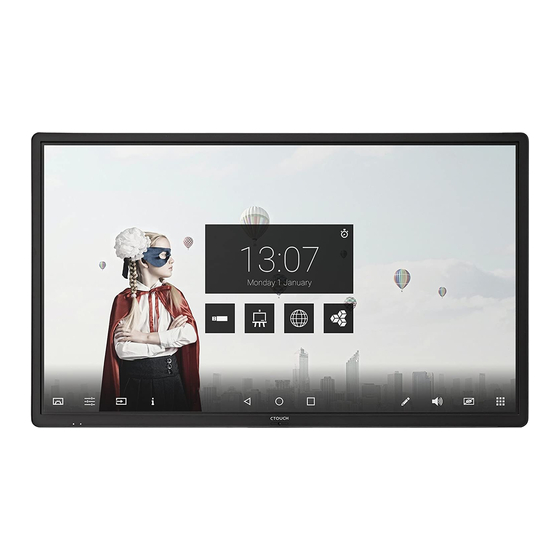

The CTOUCH Laser air+ is a masterpiece when it comes to craftsmanship, technology and
making touch accessible to the world. Integrating innovations like JBL sound, opening a
complete new and unique experience in touch.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This user manual includes detailed usage instructions for your product. Please read this manual thoroughly.
Figures and illustrations in this user manual are provided for reference only and may differ from actual equipment appearance.
Equipment design and specifications may be changed without notice.
www.ctouch.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ctouch CLAP-55FHDA5
Summary of Contents for Ctouch CLAP-55FHDA5

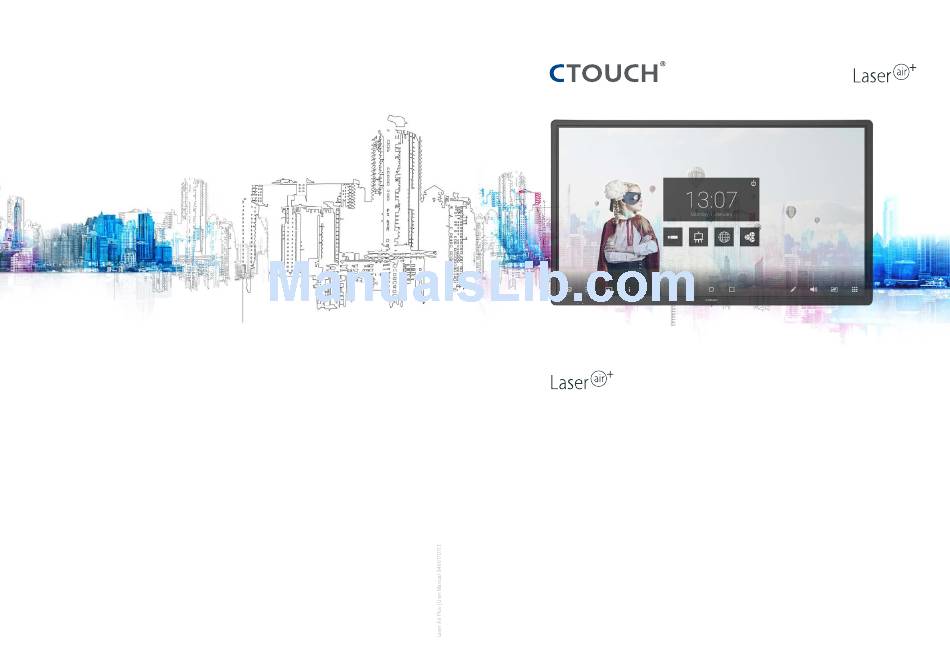

- Page 1 The power to engage Series WHEN FUNCTION MATTERS. The CTOUCH Laser air+ is a masterpiece when it comes to craftsmanship, technology and making touch accessible to the world. Integrating innovations like JBL sound, opening a complete new and unique experience in touch.
- Page 2 A digital PDF manual to zoom in for better viewing can be found at: www.ctouch.eu This manual is for the 55”, 65”, 70”, 75”, 84” and 86” screens and may slightly differ from original CTOUCH range. Laser Air Plus | User Manual...
-
Page 3: Important Information
To avoid possible condensation it is recommended to not use the device within 24 hours after its arrival. • To prevent the spread of fire, keep candles or other open flames away from the CTOUCH interactive display all the times. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your CTOUCH interactive display. -
Page 4: Important Safety Precautions
17. Lightning - Unplug this device during thunder storm or when unused for long periods of time. For added protection during a thunder storm, or when the CTOUCH interactive display is left unattended and unused for long periods of time, unplug the AC power cord. This will prevent damage to the equipment due to lightning and power-line surges. - Page 5 When you move the CTOUCH interactive display , hold the frame of the CTOUCH interactive display . Storage temperature: -15°C – 45°C • Be aware of the danger or harm which may caused by carrying or moving the CTOUCH interactive display , as the bezel is very thin. Storage humidity: 10% – 80% •...
-
Page 6: Standard Accessories
STANDARD ACCESSORIES REMOTE CONTROL UNPACKING CTOUCH INTERACTIVE DISPLAY The following items are included in your Switch the CTOUCH interactive display power Display or exit input source menu product box. on or off To confirm or enter a sub-menu or toggle between options during menu operation. -
Page 7: Remote Control
For remote control of the CTOUCH interactive display. Note: When the CTOUCH interactive display is turned on, press the button in middle to show the navigation bar. Press the button for about 2 seconds and the screen will go into WAN IN The built-in router input port. -
Page 8: Connections
Before using headphones, adjust the device volume to avoid excessive volume, as hearing damage may result. Monitor • The CTOUCH interactive display is designed with multiple USB port (3.0 or 2.0), if you VGA cable want to connect a USB device, please select the appropriate port. -
Page 9: Basic Operations
Plug the power cord into an AC power outlet. 2. Press Power Switch on the CTOUCH interactive display. 3. Now the CTOUCH is in standby mode. Wait a moment until the power indicator lights up, then press button to turn on the CTOUCH interactive display. -
Page 10: Display Menu
The power to engage DISPLAY MENU DISPLAY MENU ADJUSTING PICTURE MODE Picture Mode Select your favourite picture mode for each input ADJUSTING SETTING MENU Source Auto Automaticly switch to active source Switch Contrast Adjust the contrast Color Range Select color range (Only for HDMI mode) Brightness Adjust the brightness HDMI EDID Ver. -
Page 11: Network Settings
Turn on or off the float menu display Android system information Set Password Change password settings for Lock Menu Change Logo Change the startup logo of the display (by default CTOUCH logo) Change Wallpaper Set wallpaper Power on Source Memory mode: display will remember last source. - Page 12 The power to engage NETWORK SETTINGS NETWORK SETTINGS Wired Network Setting (Internal router) Method 1: Easy Setup Wizard Fill in the credentials and then touch the Set the built-in WiFi Touch ‘Router Settings’. Select ‘Easy Setup Wizard’. ‘login-button’. Default UserName: admin. Default password: no default password is set.
- Page 13 The power to engage NETWORK SETTINGS NETWORK SETTINGS Wireless Network Setting (Internal router) Wireless Network Setting (Internal router) Method 1: Easy Set Wizard Method 1: Easy Set Wizard continue Touch ‘Router Settings’. Select ‘Easy Setup Wizard’. Select the Wireless Network you would Enter the password of the selected Fill in the credentials and then touch the Touch ‘Next’.
-
Page 14: Troubleshooting
NETWORK SETTINGS TROUBLESHOOTING If, after reading these operating instructions, you have additional questions related to the use of your CTOUCH interactive display, please call the services center in your local area. For contact information and full warranty conditions refer to www.ctouch.eu/warranty. -
Page 15: Specifications
Operating humidity: 20 % - 80 % (no moisture condensation), Atmospheric pressure: 86kPa ~ 106kPa Operating humidity: 20 % - 80 % (no moisture condensation), Atmospheric pressure: 86kPa ~ 106kPa Connection terminals of the CTOUCH interactive display AV IN PC IN...
