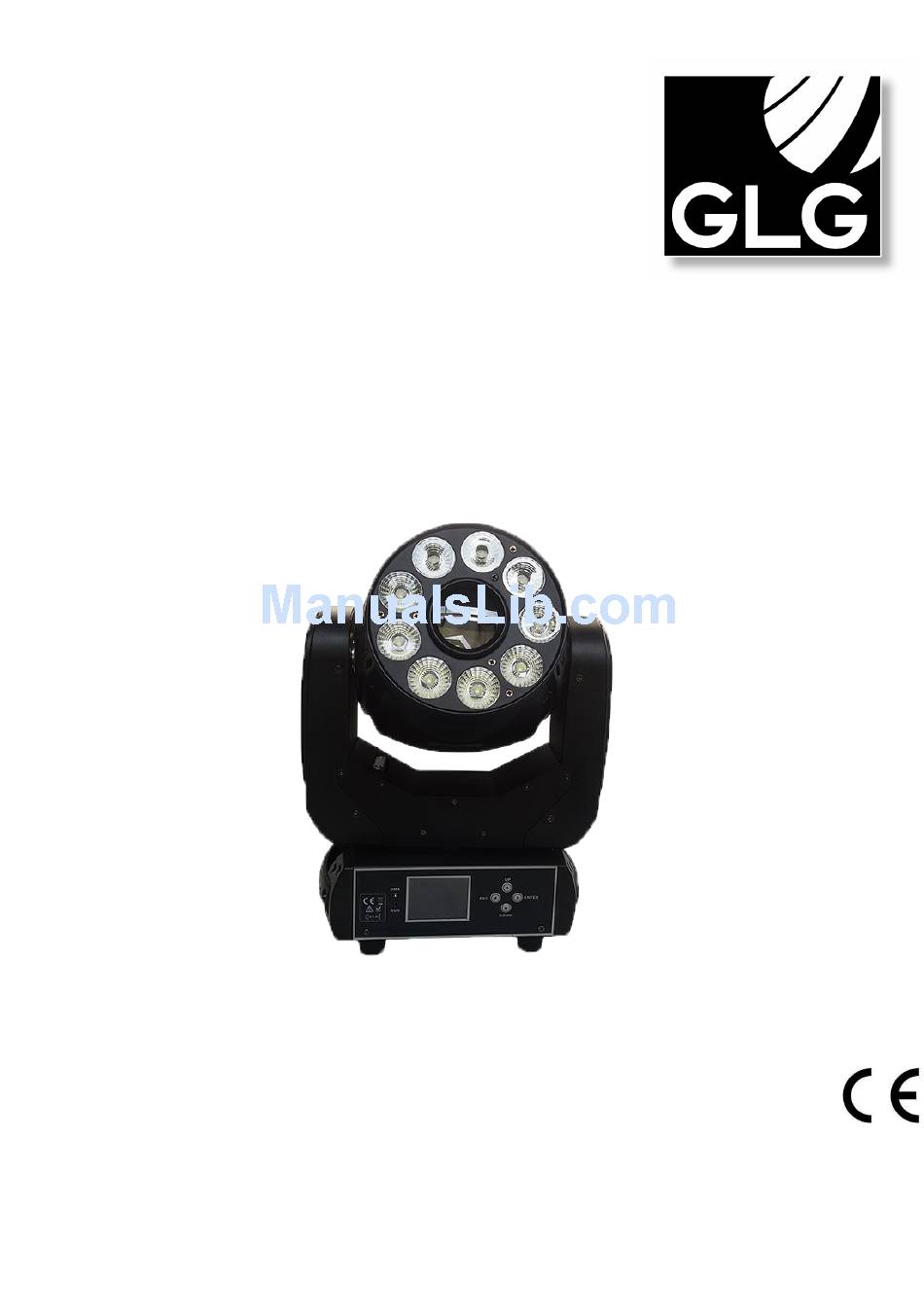

Page 1: User Manual
1 X 7 5 W L E D S p o t + 9 X 1 2 W W a s h USER MANUAL GLG is a brand name of GOED licht en geluid the Netherlands KEEP THIS MANUAL FOR FUTURE NEEDS... - Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 3: Mounting And Installation
Please check carefully that there is no damage caused by transportation. Should there be any, please consult your dealer and don’t install this device. 2 Mounting and installation 2.1 Cautions: for added protection mount the fixtures in areas outside walking paths ,seating areas,or in areas were the fixture might be reached by unauthorized personnel. - Page 4 installation material being used ,and periodic safety inspection of all installation material and the fixture. If you lack these qualifications , Do not attempt the installation yourself ,improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
- Page 5 2.4 DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.
- Page 6 3 TECHNICAL PARAMETERS POWER SUPPLIE Input power:AC100-240V 50/60 Hz Power consumption :200W LED Source: 75W white + 9*12W RGBWA+UV 6in1 LEDs Beam angle: 11°(spot)/25°(Wash) Lamp life : 5000 hours lamp lifespan and low consumption 16/23 DMX channels Color wheel: 7 colors+white Gobo wheel: 7 gobos+open Prism: 3 face Focus: Electronic linear focus...
- Page 7 Slave 简体中文 Language Setting English Pan Reverse Tilt Reverse Display Reverse Mic Sensitive = 000 Reset Motor Factory Reset Advanced Setting Home Position Password Code =018 =000 TILT TILT =000 Color Wheel Gobo Focus Prism Current Time Total Time System Info Current Mode Temperature Software Version...
- Page 8 5:Function Mode 5.1 DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. Select via the encoder. Press the encoder, adjust the DMX address by turning the encoder. Press the encoder to confirm. Press the Mode/Esc-button in order return to the main menu. Set DMX address Display the DMX 512 value of each channel With this function you can display the DMX 512 value of each channel.
- Page 9 6: DMX CHANNELS 16 channel definition table Channel DMX Value Function 000 - 255 000 - 255 000-255 Dimmer(0-100%) 000-004 Shutter closed 005-250 Strobe effect slow to fast 251-255 Shutter open 000-004 Open(White) 005-013 White/Color1 014-022 Color1 023-031 Color1/Color2 032-040 Color2 041-049 Color2/Color3...
- Page 10 010-129 Forward Gobo Rotation from fast to slow 130-134 Stop 135-255 Backward Gobo Rotation from slow to fast 000-255 Focus 000-007 Open(White) 008-134 Prism 135-255 Forward Prism Rotation from slow to fast 000-004 Wash Shutter closed 005-250 Wash Strobe effect slow to fast 251-255 Wash Shutter open 000-255...
- Page 11 086-094 Color5 095-103 Color5/Color6 104-112 Color6 113-121 Color6/Color7 122-130 Color7 131-139 Open(White) 140-195 Forward rainbow effect from fast to slow 196-199 Rotation stop 200-255 Backward rainbow effect from slow to fast 000-007 Open(White) 008-028 Gobo1 029-049 Gobo2 050-070 Gobo3 071-091 Gobo4 092-112 Gobo5...
- Page 12 088-127 Auto Play 3 128-167 Auto Play 4 168-207 Auto Play 5 208-247 Auto Play 6 248-255 Color Gobo Sound Control 000-007 Empty 008-032 X/Y auto run 1 033-058 X/Y auto run 2 059-084 X/Y auto run 3 085-110 X/Y auto run 4 111-136 X/Y auto run 5 137-162...
