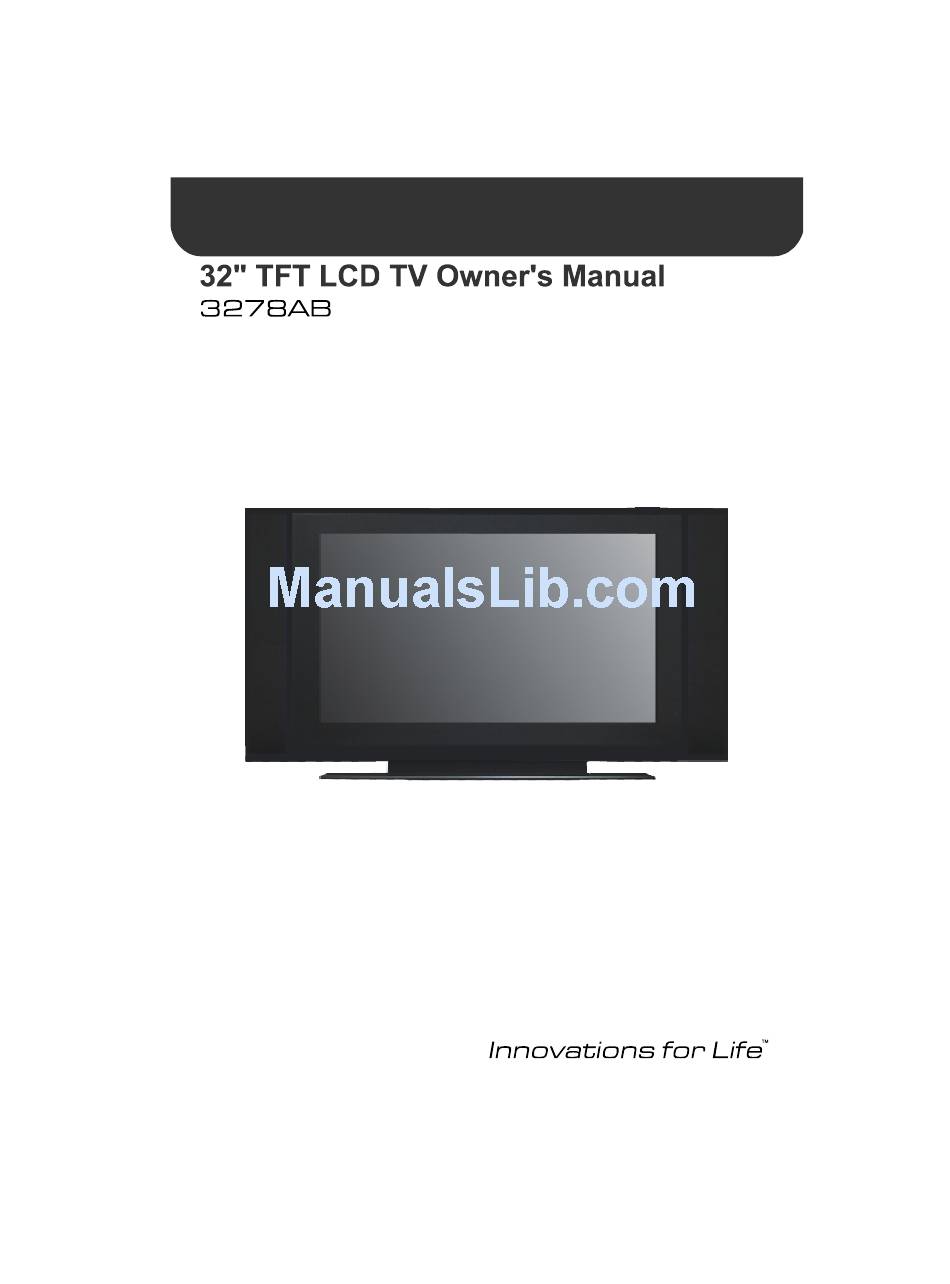

Summary of Contents for SOYO 3278AB
- Page 2 CAUTION Risk of electronic shock, do not open. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. WARNING To reduce the risk of fire or electric To avoid fire, no naked flame source, such as shock, do not expose this product lit candles, should be placed on the apparatus;...
- Page 3 Power supply cords should be routed safety to prevent property damage and personal injury; When the TV being moved in from a cold place, it needs some right time for dew inside the unit to evaporate fully before turning on the unit; 13.
- Page 4 Welcome you to purchase OUR LCD TV Welcome you to high quality image world our color LCD TV brings you. We sincerely hope our TV brings you the brand new visual and audio enjoyment. This operating instructions can help you operate this TV set easily. Read this manual before operating the unit for being familiar with its features and keep it for future reference.
- Page 5 CCD Mode Analog Caption Digital Caption Style Time setup Current Time Auto Turn-Off Sleep Timer Time Zone DayLight Saving System Setup OSD Setup Password MPAA Rating TV Rating C.E.Rating C.F. Rating OPEN V-CHIP Troubleshooting Picture defects and the reason Package accessories Appendix 1 TV Rating setup rule Appendix 2 PIP function Notes：...
-
Page 6: Features
TV adopts 32" TFT LCD display screen HDTV Compatible(480i, 480p, 720p, 1080i) Support American TV Standard 8VSB/Free 64/256QAM,NTSC System, ATSC System Connect to computer directly to realize TV/monitor combo. Zero X radiation complies to green environment protection requirement Soft picture and no harm to your eyes Ultra-thin and ultra-light features to realize wall mounted 16:9 wide screen(480i,480p,720p,1080i) Dual channel operation (PIP/PBP) - Page 7 Colour active matrix LCD display 31.51 inches (800.4mm)diagonal (max.) 1366X768 Response time Fine digital control AC 110V-240V 60Hz American TV Standard 8VSB/Free 64/256QAM, NTSC System, ATSC System Antenna: 2~69; Cable: 2~135 (Analog: 2-125, Frequency range Digital: 2-135) NTSC3.58, NTSC4.43, SECAM, PAL 75 (Unbalance) 2X10W 180W...
- Page 8 Plastic spacer (J) Panel display bottom edge Use at your own risk, SOYO is not responsible on any damage or injury cause by using this wall mount. This product also comes with VESA 200 hole pattern, any VESA 200 standard wall mount...
- Page 9 AC INPUT COMPONENT 2 IN ANTENNA CABLE -AUDIO- -AUDIO- VIDEO SPDIF -AUDIO- RGB/PC HDMI -AUDIO- -AUDIO- VIDEO S-VIDEO ETHERNET COMPONENT 1 IN Computer...
- Page 10 General Description 1. ON/OFF Press this key to turn TV on or off. 2. Power indicator Green: In power on mode. Yellow: In standby mode. 3. IR remote sensor Point remote control at this sensor to conduct remote control. 4. VOL / Press these two buttons to increase or decrease the volume, and they are also used for menu selection.
-
Page 11: Supporting Signals
General Description AC INPUT COMPONENT 2 IN CABLE ANTENNA -AUDIO- -AUDIO- VIDEO SPDIF -AUDIO- RGB/PC HDMI -AUDIO- -AUDIO- VIDEO S-VIDEO ETHERNET COMPONENT 1 IN SPDIF Ethernet VIDEO output/input RGB/PC RGB/PC input Component Component AUDIO input AUDIO input signal input S-VIDEO input AC input Antenna input AUDIO output/input... - Page 12 General Description 1. LED: Press any button, the led will light. 2. POWER: Turns your TV on or off. 3. SLEEP: Sets the sleep timer. Press the key repeatedly to select sleep time. ACTIVE INPUT SLEEP ASPECT V IDEO 4. ASPECT: Changes the aspect ratio.
- Page 13 General Description 31. EPG: Displays EPG. 32. FREEZE: Pause the image, press again to return to normal screen. 33. OK: Validation key for DVD mode. 34. PIP POSITION: Selects the position for PIP window. 35. PIP: PIP/PBP on or off. 36.
- Page 14 How to turn the TV on or off 1. Insert AC power plug into the wall outlet, then turn on the AC power switch. 2. If the screen does not turn on, please press POWER button on the remote control or button on the right panel of LCD TV.
-
Page 15: Menu Operation
Menu operation Language setup 1. Press MENU key to enter main menu, use arrow key to select System Setup, then press OK or key to enter System Setup submenu. Use key to select OSD Setup, press OK key to enter OSD Setup submenu. 2. -
Page 16: Audio Channel List
Menu operation 2. PIP source selection Press PIP key on the remote control first, then press INPUT key on the remote control to enter Select PIP Source submenu. There are eight options for you to select: ANTENNA, CABLE, COMPOSITE, S-VIDEO, COMPONENT1, COMPONENT2, PC VGA and HDMI. Select PIP Source arrow key to move the cursor to the source you desired and ANTENNA... -
Page 17: Auto Search
Menu operation Aspect ratio setup Press ASPECT key on the remote control to enter Scaling submenu, there are four options for you to select: Auto, 4:3, 16:9, Zoom. Use arrow key to move the cursor to the option you desired and press OK key to confirm. -
Page 18: Channels List
Menu operation Channels List 1. All Channel List Press LIST ALL key on the remote control to display All Channels List menu. Use arrow key to move the cursor to the program you need, and press OK key to confirm. If there are more than one page in the list, you can press PAGE DOWN or PAGE UP keys to turn to next page or previous All Channels List page. -
Page 19: Volume Adjustment And Mute Setup
Menu operation Volume adjustment and Mute setup Volume adjustment Press VOL / key on the remote control or on the TV to display Volume menu, adjust the volume of TV between 0 to 100 by using VOL / key: To increase the volume, press VOL key;... -
Page 20: Current Channel Information
Menu operation Note: Many but not all adjustments and settings can be applied to the PIP window when the PIP window is selected. Current channel information Press INFO key on the remote control to display the following OSD, the indications of items in this OSD are listed in the following table. -
Page 21: Epg Menu
Menu operation . Enter "System Setup_ _C.F. Rating" menu; . Enter "System Setup_ _C.E. Rating" menu; . Enter "TV Channel_ _Channel Edit" menu; . Enter "TV Channel_ _Auto Search" menu; . Enter "TV Channel_ _Manual Search" menu. There are two ways to input password: 1. -
Page 22: Video Setup
Menu system introduction Video Video Setup MAIN Mode Video Video Setup Standard Dynamic Soft Custom Audio PC Setup Contrast Brightness Saturation TV Channel Sharpness Closed Caption Auto High Time Setup Color Temp Warm Cool Standard System Setup Blue Screen : SELECT, : PREVIOUS, MENU: EXIT : MOVE,... -
Page 23: Pc Setup
Menu system introduction Video PC Setup Video Video Setup H. size Audio PC Setup H. Position TV Channel V Position Phase Closed Caption Time Setup Auto Adjust Default System Setup : SELECT, : PREVIOUS, MENU: EXIT : MOVE, Press MENU key to display the main menu on the screen, use / key to select Video option, then press OK or key to enter Video submenu. -
Page 24: Spdif Out
Menu system introduction Audio one mode from following four modes: Live, Pop, Rock and Custom, press OK key to confirm. Only when you select Custom mode, you can adjust the setting of a certain band. Use / key to move cursor to the position you desired, then press key to adjust the setting. -
Page 25: Manual Search
Menu system introduction TV Channel key to move the cursor to OK option, then press OK key on the remote control to start auto searching. If you want to stop searching, just press EXIT key on the remote control or move the cursor to Cancel option by pressing key on the remote control, then press OK key. -
Page 26: Information
Menu system introduction TV Channel Press MENU key on the remote control to enter the main menu, use key to select TV Channel, then press OK or key to enter TV Channel submenu, use key to select Channel Edit, then press OK or key to enter Channel Edit submenu. - Page 27 Menu system introduction TV Channel Press MENU key to enter the main menu, use key to select TV Channel option, press OK or key to enter TV Channel submenu. Then use key to select Info option, press OK or key to enter Info submenu.
-
Page 28: Closed Caption
Menu system introduction Closed Caption CCD Mode Video CCD Mode Close Caption Mode Analog Caption Audio TV Channel Digital Caption Style Closed Caption Time Setup On When Mute System Setup : SELECT, : PREVIOUS, MENU: EXIT : MOVE, Press MENU key on the remote control to enter the main menu, use key to select Closed Caption, then press OK or key to enter Closed Caption submenu, use... -
Page 29: Digital Captions
Menu system introduction Closed Caption Digital Captions Video CCD Mode Service Analog Caption Audio Service1 Service4 Service2 Service5 TV Channel Digital Caption Service3 Service6 Style Closed Caption Time Setup System Setup : SELECT, : PREVIOUS, MENU: EXIT : MOVE, Press MENU key on the remote control to enter the main menu, use key to select Closed Caption, then press OK or key to enter Closed Caption submenu, use... -
Page 30: Time Setup
Menu system introduction Closed Caption Style3: Large, Font4, Cyan, Flashing, Magenta, Transparent Style4: Normal, Font5, Yellow, Translucent, Black, Solid Style5: Normal, Font6, Yellow, Translucent, Black, Solid Style6: Normal, Font7, Yellow, Translucent, Black, Solid Style7: Normal, Font8, Yellow, Translucent, Black, Solid Style8: Default, Font2, Default, Flashing, Default, Translucent 2) Only when the CCD Style is Custom, you can use key to move the cursor to Size, Font,... -
Page 31: Sleep Timer
Menu system introduction Time Setup Notes: When set time and date, you can't input characters by pressing digital keys on the remote control, you can press key to change the digit. Press key to increase the digit. Press key to decrease the digit. ... -
Page 32: Time Zone
Menu system introduction Time Setup Press MENU key on the remote control to enter the main menu, use key to select Time Setup, then press OK or key to enter Time Setup submenu, use key to select Sleep Timer, then press OK or key to enter Sleep Timer submenu. -
Page 33: System Setup
Menu system introduction Time Setup Press MENU key on the remote control to enter the main menu, use key to select Time Setup, then press OK or key to enter Time Setup submenu, use key to select DayLight Saving, then press OK or key to enter DayLight Saving submenu. -
Page 34: Password
Menu system introduction System Setup Password OSD Setup Video _ _ _ _ Enter Password Password Audio MPAA Rating Confirm Password _ _ _ _ TV Channel TV Rating Password CE Rating Closed Caption Default Settings Clear Password CF Rating Time Setup E/I Rating System Setup... -
Page 35: Mpaa Rating
Menu system introduction System Setup MPAA Rating OSD Setup Video Password Audio MPAA Rating TV Channel TV Rating PG-13 CE Rating Closed Caption CF Rating Time Setup NC-17 E/I Rating System Setup TV Smarts : SELECT, : PREVIOUS, MENU: EXIT : MOVE, Press MENU key on the remote control to enter the main menu, use key to select System... -
Page 36: C.e.rating
Menu system introduction System Setup C.E. Rating OSD Setup Video Password Audio MPAA Rating TV Channel TV Rating CE Rating Closed Caption CF Rating Time Setup E/I Rating Block All System Setup TV Smarts : SELECT, : PREVIOUS, MENU: EXIT : MOVE, Press MENU key on the remote control to enter the main menu, use key to select System... -
Page 37: Open V-Chip
Menu system introduction System Setup OPEN V-CHIP OSD Setup Video Password Audio E/1-3 MPAA Rating E/1-7 TV Channel TV Rating E/1-10 CE Rating Closed Caption E/1-13 CF Rating Time Setup E/I Rating System Setup TV Smarts : SELECT, : PREVIOUS, M ENU: EXIT : MOVE, Press MENU key on the remote control to enter the main menu, use... -
Page 39: Picture Defects And The Reason
Picture defects and the reason A user's manual, wall-mounted accessories, power cord and a remote control. -
Page 40: Appendix 1 Tv Rating Setup Rule
Appendix 1 TV Rating setup rule If TV-Y is locked ,then lock TV-Y,TV-Y7,TV-Y7-FV . If TV-Y is unlocked ,then unlock TV-Y. If TV-Y7 is locked ,then lock TV-Y7,TV-Y7-FV If TV-Y7 is unlocked ,then unlock TV-Y7,TV-Y7-FV If TV-Y7-FV is locked ,then lock TV-Y7-FV If TV-Y7-FV is unlocked ,then unlock TV-Y,TV-Y7,TV-Y7-FV If TV-G is locked ,then lock TV-G, TV-PG,TV-PG-D,TV-PG-L,TV-PG-S,TV-PG-V... - Page 41 Appendix 1 TV Rating setup rule If TV-14-S is locked ,then lock TV-14-S TV-MA-S If TV-14-S is unlocked ,then unlock TV-G TV-PG TV-PG-S TV-14 TV-14-S If TV-14-V is locked ,then lock TV-14-V TV-MA-V If TV-14-V is unlocked ,then unlock TV-G TV-PG TV-PG-V TV-14 TV-14-V If TV-MA-L is locked ,then lock TV-MA-L...
-
Page 42: Appendix 2 Pip Function
Appendix 2 PIP function Analog Digital Composite Component1 Component2 MP/PIP S-VIDEO PC VGA HDMI Analog Digital Composite S-VIDEO Component1 Component2 PC VGA HDMI... - Page 60 39019771...
