Home Energy Meter Gen5 user guide.
Modified on: Tue, 7 Mar, 2017 at 6:29 PM
Aeotec by Aeon Labs Home Energy Meter Gen5.
Aeotec Home Energy Meter Gen5 has been crafted to power connected lighting using Z-Wave Plus
(http://aeotec.com/z-wave-plus)
out more about Home Energy Meter Gen5
To see whether Home Energy Meter Gen5 is known to be compatible with your Z-Wave system or not, please
reference our Z-Wave gateway comparison
of Home Energy Meter Gen5
technical-specifications-)
Familiarize yourself with your Home Energy Meter.

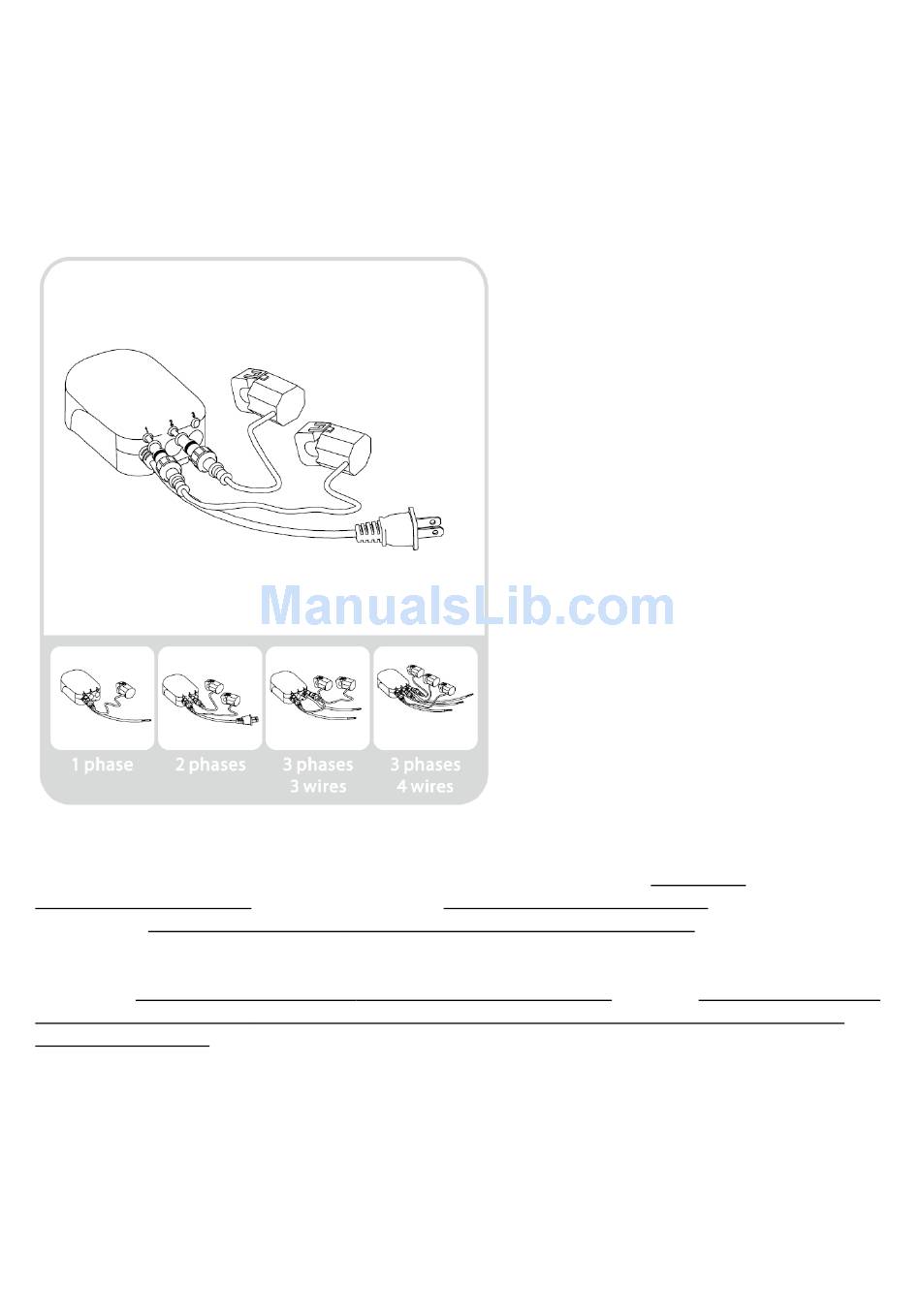

Your Home Energy Meter from Aeotec by Aeon Labs is comprised of two parts: the Main Body and Clamps. Once
installed, the meter will sit near your home's main circuit box, while the clamps are attached to it.
https://aeotec.freshdesk.com/support/solutions/articles/6000161943-home-energy-meter-gen5-user-guide-
Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs
. It is powered by Aeotec's Gen5
(http://aeotec.com/z-wave-home-energy-measure)
(http://aeotec.com/z-wave-gateways)
(https://aeotec.freshdesk.com/solution/articles/6000168072-home-energy-meter-gen5-
can be viewed at that link.
(http://aeotec.com/z-wave-gen5)
listing. The technical specifications
technology. You can find
by following that link.
1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aeon Aeotec
Summary of Contents for Aeon Aeotec
- Page 1 Familiarize yourself with your Home Energy Meter. Your Home Energy Meter from Aeotec by Aeon Labs is comprised of two parts: the Main Body and Clamps. Once installed, the meter will sit near your home’s main circuit box, while the clamps are attached to it.
-
Page 2: Quick Start
11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs Quick start. The installation of your Home Energy Meter has two major parts: the installation of it into your home’s main circuit box and the syncing of it to your Z-Wave network. What follows are the instructions for both parts. Please note that only a licensed electrician, with knowledge and understanding of electrical systems and electrical safety, should perform the electrical installation of your meter into your home’s circuit box. - Page 3 11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs In 230 volt countries with a 1 phase installation; Diagram of EU/AU Version(1 Phase): In 230 volt countries with a 3 phases and 3 wires installation; https://aeotec.freshdesk.com/support/solutions/articles/6000161943-home-energy-meter-gen5-user-guide-...
- Page 4 11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs Diagram of EU/AU Version(3 Phases,3 Wires): In 230 volt countries with a 3 phases and 4 wires installation; Diagram of EU/AU Version(3 Phases,4 Wires): Wiring your Home Energy Meter.
-
Page 5: Advanced Functions
11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs It is now time to permanently affix the Home Energy Meter to a surface. Within each meter is a low-frequency radio antenna that’s used for wireless communication. This must be taken into consideration when selecting a final location for the meter. - Page 6 11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs 2. If successful, the LED on the HEM should begin to blink slowly. Associating your Home Energy Meter to Report Automatically. Your Home Energy Meter can send Wattage and KWH usage reports to associated devices. To enable this, please refer to your controller’s manual on how to configure settings on Z-Wave devices linked to your controller.
- Page 7 11.7.2017 Home Energy Meter Gen5 user guide. : Aeotec by Aeon Labs byte 1 16777216 kVah Clamp 1 byte 1 33554432 kVah Clamp 2 byte 1 67108864 kVah Clamp 3 byte 1 134217728 kVar Clamp 1 byte 1 268435456 kVar...
