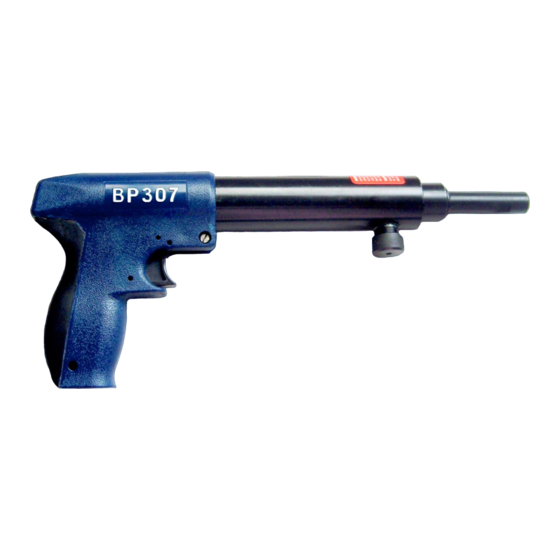

Model BP307
Operating Instruction Manual
Low Velocity Powder Actuated Fastening Tool
WARNING! PLEASE DO NOT OPERATE THE TOOL UNTIL YOU HAVE READ THIS TRAINING
MANUAL FOR THIS TOOL AND EDUCATION HAS BEEN RECEIVED ACCORDING TO THE
ANSISTANDARD A 10.3-1995. BY READING THIS MANUAL IT CAN HELP AVOID SERIOUS
INJURY OR DEATH.
Advertisement
Related Manuals for Blue point BP307
Summary of Contents for Blue point BP307
- Page 1 Model BP307 Operating Instruction Manual Low Velocity Powder Actuated Fastening Tool WARNING! PLEASE DO NOT OPERATE THE TOOL UNTIL YOU HAVE READ THIS TRAINING MANUAL FOR THIS TOOL AND EDUCATION HAS BEEN RECEIVED ACCORDING TO THE ANSISTANDARD A 10.3-1995. BY READING THIS MANUAL IT CAN HELP AVOID SERIOUS...
- Page 2 PRIOR TO OPERATING THE BP307 TOOL, PLEASE STUDY THIS MANUAL CAREFULLY AND DEVELOP A THOROUGH UNDERSTANDING OF THE CONTENTS. PROPER TRAINING ACCORDING TO THE CURRENT ANSI STANDARD A 10.3, SAFETY REQUIREMENTS FOR POWDER ACTUATED FASTENING SYSTEMS MUST BE COMPLETED AND A BLUEPOINT FASTENERS QUALIFIED OPERATOR CARD MUST BE OBTAINED PRIOR TO OPERATION OF THE TOOL.
- Page 3 Introduction The BP307 is an economically designed tool that produces high productivity and dependable performance. This single shot firing tool makes it easy to operate and allows fast maintenance making it easy to repair in minutes. BP307 handles all .300”...
- Page 4 Failure to do so can result in blindness or serious eye injury from debris and hearing loss for unprotected exposure to constant or repeated noise from the fastening tool. BP307 www.bpfasteners.com Page 4...
-
Page 5: Technical Specifications
•Load Caliber: .27 caliber long strip loads (all power levels) 5. Never place your hands or any other body • Firing Action: Single Shot part on the loading end of the tool. It can •Fastener Capacity: 1/2"to 3" BP307 www.bpfasteners.com Page 5... - Page 6 Selection Guide for Pins .300 Head, .145 Shank, Flat Head Drive Pin Blue Point Part # Length PD13F10K 1/2" Knurled PD19F10 3/4" PD25F10 1" PD32F10 1-1/4" PD37F10 1-1/2" PD52F10 2" PD62F10 2-1/2" PD76F10 3" .300 Head Diameter Drive Pin w/ Top Hat...
- Page 7 .300 Head, .145 Shank Pin w/ 90 Degree Angle Clip Blue Point Part # Length PDAC90-25F10 1" PDAC90-32F10 1-1/4" .300 Head, .145 Shank Pin w/ 120 Degree Angle Clip Blue Point Part # Length PDAC120-25F10 1" PDAC120-32F10 1-1/4" .300 Head, .145 Shank Pin, 90 Degree Angle Clip...
- Page 8 If the tool becomes stuck or jammed with a powder charge, keep the tool pointed in a safe direction and immediately labeled "Danger do not use defective". Lock the tool in a box and contact your local dealer for assistance from Bluepoint. BP307 www.bpfasteners.com Page 8...
- Page 9 Applications of fasteners Concrete Fasteners driving too close to an edge or BP307 tool can be used for a wide range of too close together can cause the concrete edge to fastening needs in a variety of base materials. Read...
-
Page 10: Operating Instructions
3. With the tool pointed in a safe direction and your finger off the trigger, insert the Operating the BP307 tool strip in the tool through the bottom of the handle. Make sure the load is inserted 1. -
Page 11: Trouble Shooting
All parts should be cleaned with oil detergent and wire brushes supplied with the tool kit. Remove the thick brush land that has been accumulated. After cleaning with detergent oil, must be completely dry all parts of the BP307. Excess oil will tend to accumulate dirt and dust. Use eye protection when cleaning the tool. - Page 12 7. Slide the piston out of the piston BP307 tool. When taking the tool apart do sleeve and slide the fastener guide not lose or damage any other part of the out of the front barrel.
- Page 13 Item # PART # DESCRIPTION Item # PART # DESCRIPTION BP307-1 Fastener Guide BP307-14 Reset Pin Cap BP307-2 Buffer BP307-15 Locking Pin BP307-3 Piston BP307-16 Firing Pin BP307-4 Piston Ring BP307-17 Firing Pin Spring BP307-5 Barrel BP307-18 Tube BP307-6 Breach Plug...
- Page 14 14728 Yorba Court Chino, Ca. 91710 U.S.A. Tel: (877)779-2583 Fax: (866)672-9402 www.bpfasteners.com...
